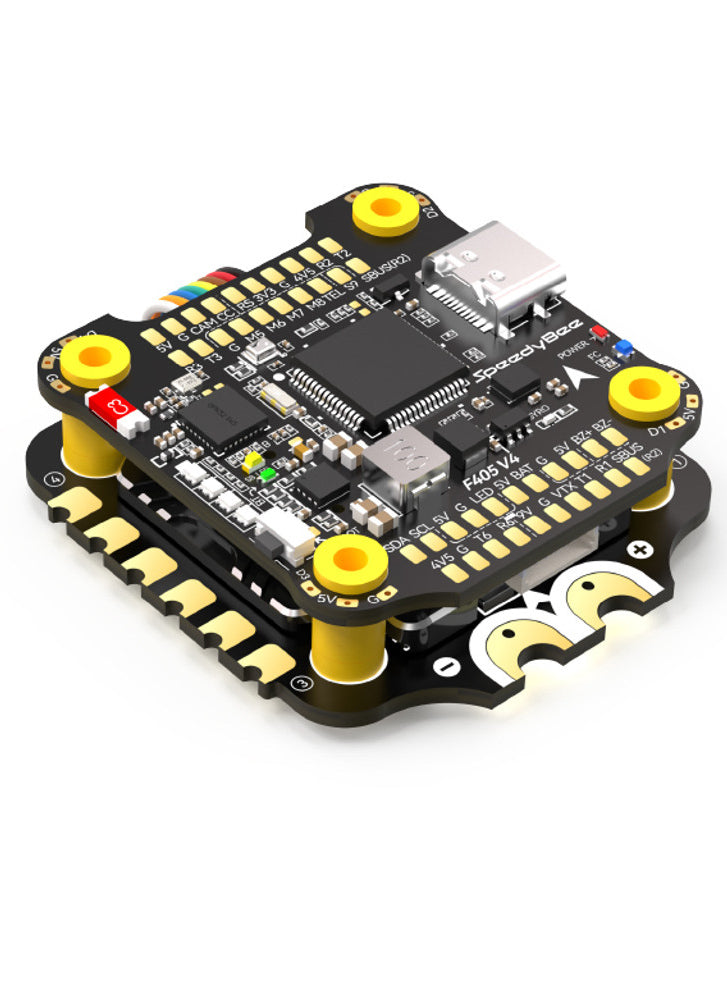

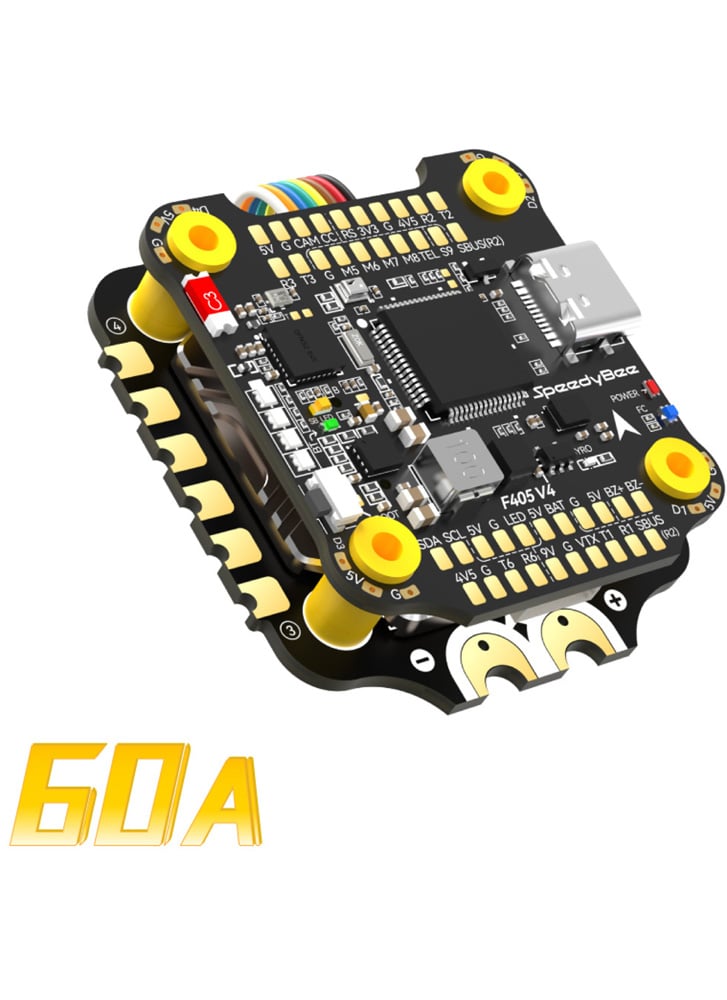

SpeedyBee F405 V4 BLS Flight Controller / Stack with 60A ESC

£0.00

Discontinued: For the latest SpeedyBee F405 stack – See the F405 V5

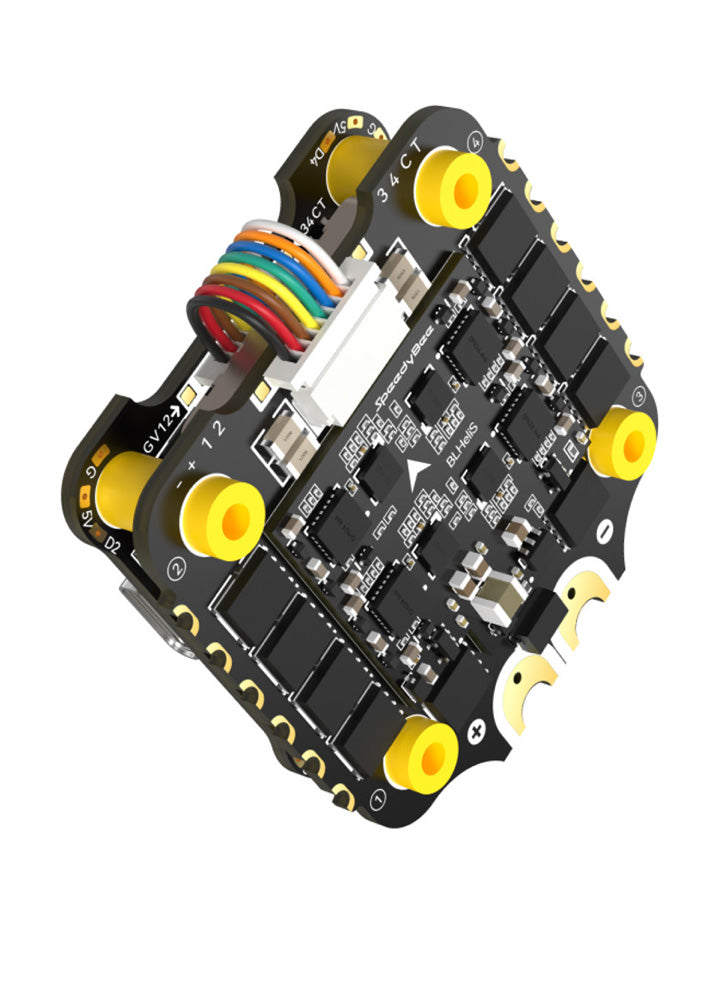

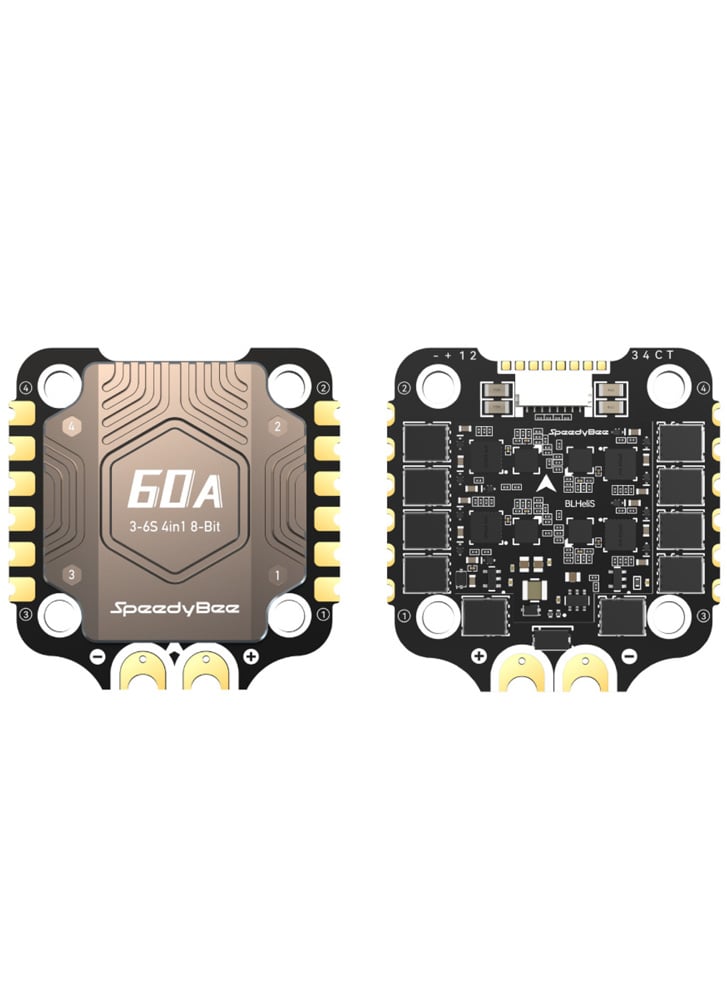

For the flight controller the V4 edition brings an updated the Gyro, it is now using the ICM-42688P. The BECs have also been uprated from 2A to 3A allowing for use of more power hungry HD systems. Other tweaks include native supports for DShot on all 8 motor outputs allowing for full DShot support in iNav. The most significant update is to the 4in1 ESC which brings more performance and improved reliability. It now boasts a rating of 60A and 80A burst, up from 55A and 70A burst. There’s also the addition a metal heatsink and the selection of MOSFETS with lower internal resistance. A built-in TVS diode for surge protection reduces voltage spikes. Furthermore, the ESC is built with a thicker copper layer in its PCB, a 50% increase from previous version, providing additional reliability and heat dissipation capability.

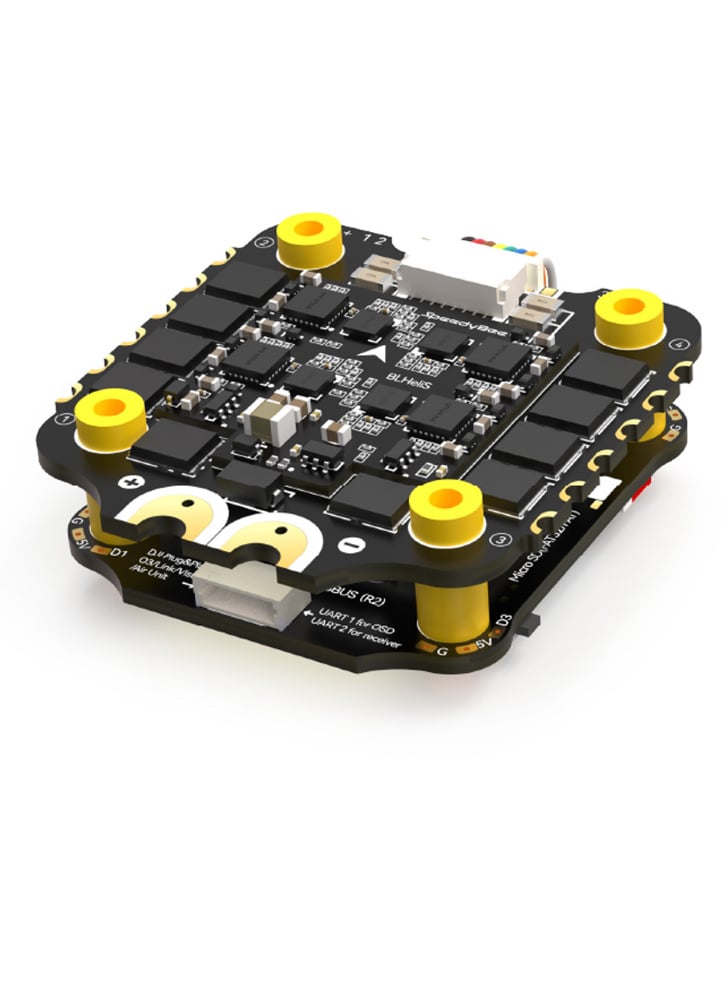

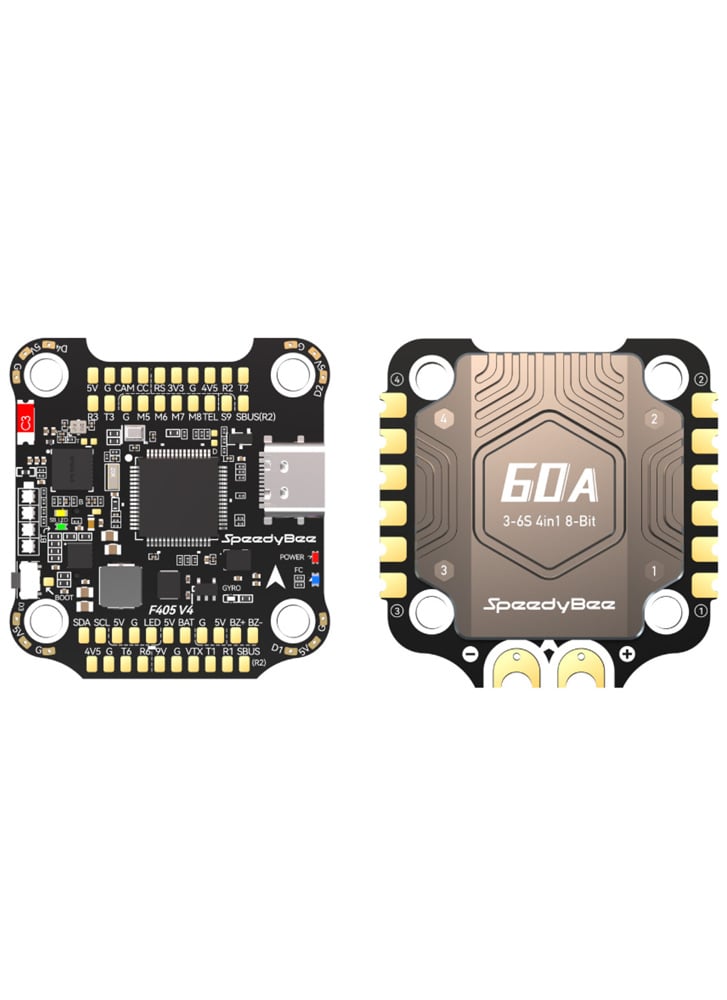

The Speedy Bee F405 50A Stack V4 includes all the features a user would expect from a modern flight controller and ESC stack, but at an incredible price. The flight controller features the STM32F405 MCU, onboard 4-level battery life indicator, Micro-SD card slot for Blackbox logging, connections for LED strip (available here ), DJI plug for digital quads, and built-in Bluetooth for wireless configuration through the SpeedyBee App. Paired with the SpeedyBee BLS 60A 4-in-1 ESC, delivering up to 80A continuous current, these components ensure a powerful and reliable drone setup for your aerial adventures.

Specifications

• MCU: STM32F405
• IMU(Gyro): ICM42688P
• USB Port Type: Type-C
• Barometer: Built-in
• OSD Chip: AT7456E chip
• BLE Bluetooth: Supported for Flight Controller configuration (MSP enabled with Baud rate 115200 on UART4)
• WIFI: Not supported
• DJI Air Unit Connection Way: Two ways supported – 6-pin connector or direct soldering.
• 6-pin DJI Air Unit Plug: Supported and compatible with various DJI models, no wire changes needed.
• Blackbox MicroSD Card Slot: Compatible with Standard (SDSC) or High Capacity (SDHC) cards under 32GB.
• Current Sensor Input: Supported (for SpeedyBee BLS 55A ESC, set scale = 400 and Offset = 0).
• Power Input: 3S – 6S LiPo (Through G, BAT pins/pads).
• 5V Output: 9 groups of 5V output.
• 9V Output: 2 groups of 9V output.
• 3.3V Output: Supported up to 500mA current load.
• 4.5V Output: Supported up to 1A current load.
• ESC Signal: M1 – M4 on the bottom side, M5-M8 on the front side.
• UART: 6 sets (UART1, UART2, UART3, UART4 (Dedicated for Bluetooth connection), UART5 (Dedicated for ESC telemetry), UART6).
• ESC Telemetry: UART R5 (UART5).
• I2C: Supported for various sensors.
• Traditional Betaflight LED Pad: Supported for WS2812 LED controlled by Betaflight firmware.
• Buzzer: BZ+ and BZ- pad used for 5V Buzzer.
• BOOT Button: Supported for firmware flashing and LED control.
• RSSI Input: Supported (named as RS on the front side).
• Smart Port / F.Port: Not supported.
• Supported Flight Controller Firmware: BetaFlight (Default), INAV.
• Firmware Target Name: SPEEDYBEEF405V4.
• Mounting: 30.5 x 30.5mm (4mm hole diameter).
• Dimension: 41.6(L) x 39.4(W) x 7.8(H)mm.
• Weight: 10.5g.
• Firmware: BLHeli_S J-H-40.
• Wireless Configuration: Full Configuration Supported in the SpeedyBee app.
• PC Configurator Download Link: Link.
• Continuous Current: 60A * 4.
• Burst Current: 80A (10 seconds).
• TVS Protective diode: Yes.
• External Capacitor: 1000uF Low ESR Capacitor (Included in the package).
• ESC Protocol: DSHOT300/600.
• Power Input: 3-6S LiPo.
• Power Output: VBAT.
• Current Sen
