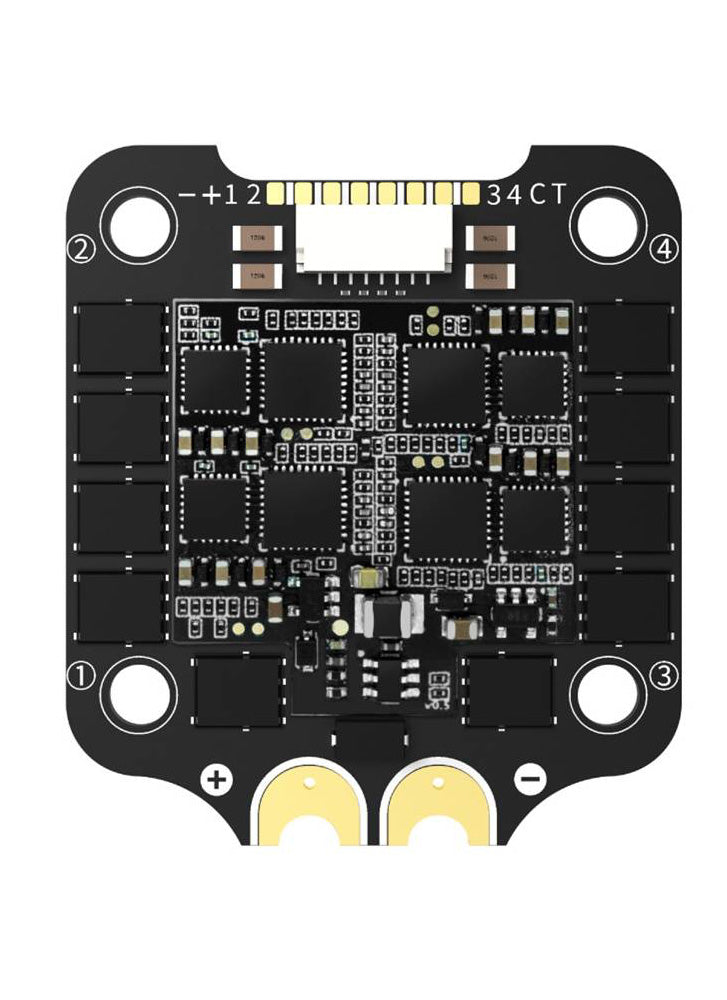

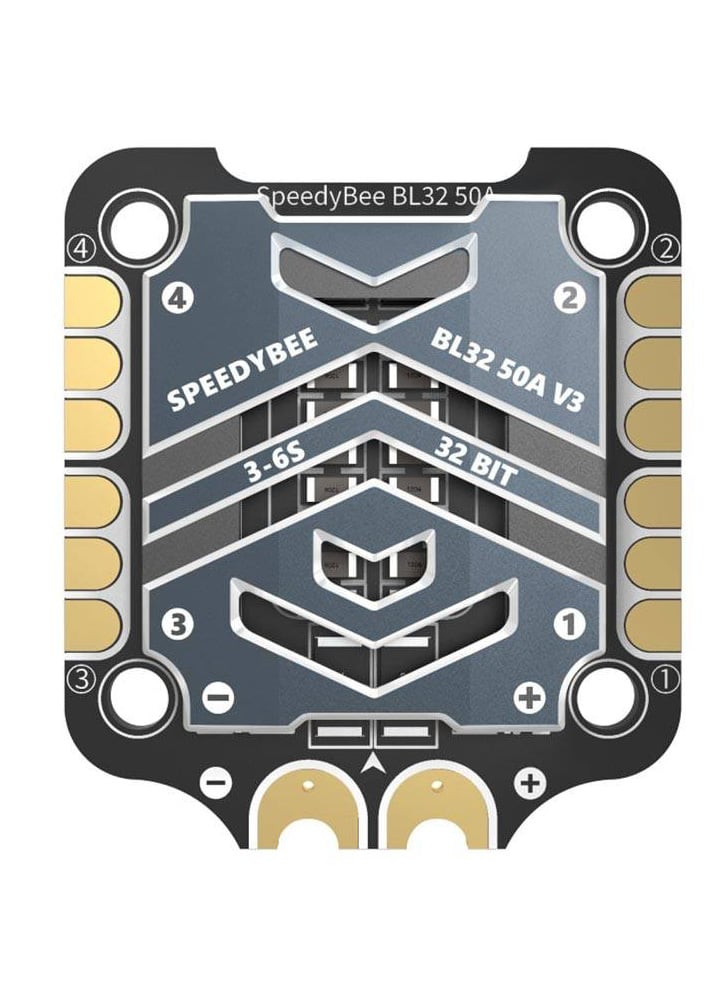

SpeedyBee BL 50A V3 3-6S BLHeli_32 128K ESC – 30×30
£64.90
The SpeedyBee 50A 128K ESC features a striking CNC machined heatsink and it can withstand a continuous current of 50A and 55A peak . With an F4 MCU , you can set the PWM frequency up to 128KHz. It runs BLHeli_32 firmware and operates under the Dshot 300/600 protocol. The ESC is built with a TVS protective diode to absorb the voltage spike when you plug in the battery, or during crashes that block your props. SpeedyBee also provide a humongous 1500uF low ESR capacitor, ensuring clean data from the gyro to the FC.
Features
- 1500uF Low ESR Capacitor with TVS Protective Diode
- 30.5 x 30.5mm Mounting Pattern
- CNC Heatsink Shield
- 128KHz PWM
- 50 Amperage
Specifications
- Current Sensor: Supported (Scale=490 Offset=0)
- Mounting: 30.5×30.5mm, 4mm hole size
- Dimension: 45.6(L)x40(W)x8.8mm(H)
- Firmware: SpeedyBee BL32 50A
- Protocol: DSHOT300/600
- Weight: 19.2g with heat sink
- Continuous Current: 50Ax4
- Power input: 3S – 6S LiPo
- Burst Current: 55A(5S)
- Power output: VBAT
In the box
- 1x SpeedyBee 50A BLHeli_32 128K ESC
- 1x 35V 1500uF Low ESR Capacitor
- 5x M3 8.1mm Silicone Grommets
- 1x SH 1.0mm 8-Pin Cable -30mm
- 5x M3 Silicone O-Ring
- 1x XT60 Power Cable
