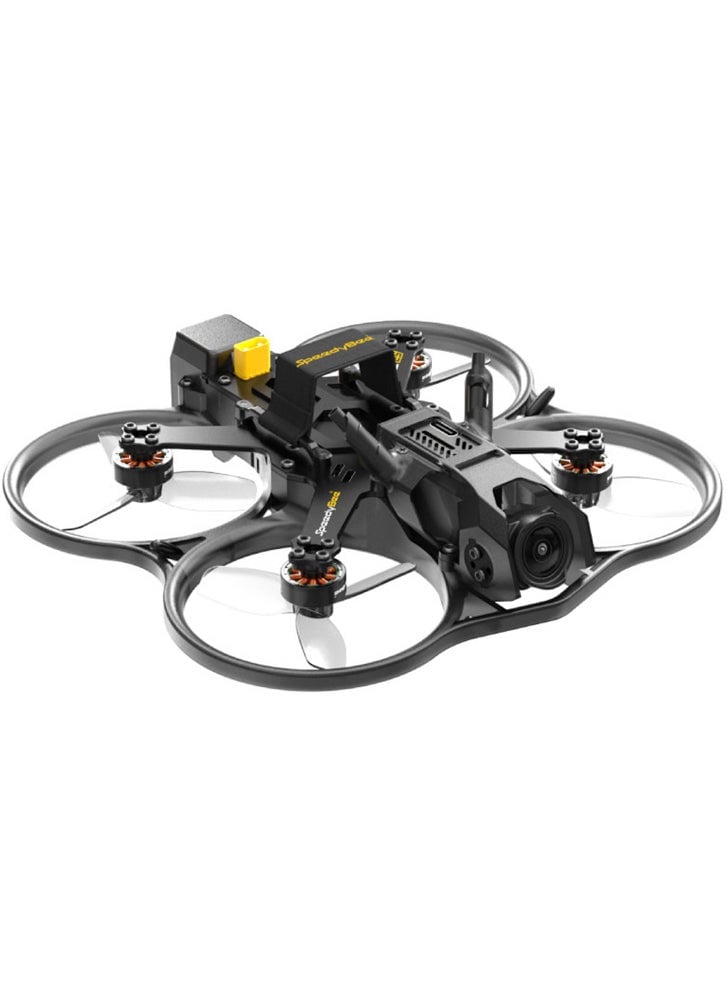

SpeedyBee Bee25 2.5 inch Drone HD O3 Air Unit FPV

£179.99

Upgrade Parts:

SpeedyBee Bee25 Aluminum Alloy Nose Upgrade Kit (can be used to adapt for DJI O4 Air Unit).

Resources:

Installation Instructions

Quick Start Guide

Aluminium Alloy Head Installation

Specifications

• Voltage Input: 4S LiPo, 16.8V (Recommended: 650mAh–1100mAh)
• Bluetooth: Supported for FC tuning and Meteor LED
• Camera: None (compatible with 20mm width lens)
• Frame: SpeedyBee Bee25 Standard Version
• Receiver: PNP, TBS Crossfire, ELRS 2.4GHz
• ESC: 35A 8-bit ESC (with BlueJay firmware)
• Meteor LED: Standard with 88 LED beads
• Propeller: HQprop DT63mm, 3-blade
• Main Control: STM32F405
• Motor: 1404-V2-4600KV
• Gyroscope: ICM 42688-P
• Battery Connector: XT30
• OSD Chip: AT7456E
• Wheelbase: 120mm
• Black Box: 8MB
• Maximum Supported Battery Size: Horizontal: 75(L) x 31(W) x 40(H) mm Vertical: 64(L) x 31(W) x 40(H) mm
• Horizontal: 75(L) x 31(W) x 40(H) mm
• Vertical: 64(L) x 31(W) x 40(H) mm
• Weight: ELRS: 124g ± 2g PNP: 122g ± 2g TBS: 124g ± 2g
• ELRS: 124g ± 2g
• PNP: 122g ± 2g
• TBS: 124g ± 2g

In the box

• 1x SpeedyBee Bee25 2.5″ Cinewhoop
• 1x 4pin Cable (PNP Version Only)
• 1x Antenna Mount (Left & Right)
• 1x Camera Dampening Silicone
• 1x Hardware Set
• 1x Battery Strap
• 1x Screwdriver
• 2x Antenna
