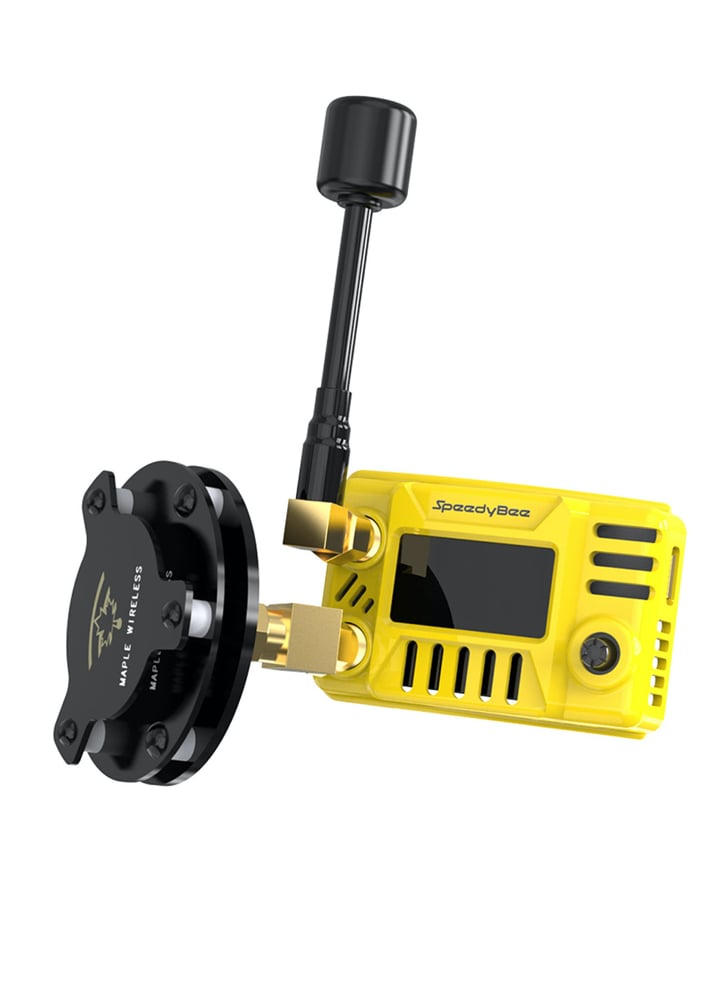

SpeedyBee 5.8GHz Goggles Receiver / Antenna Combo
£84.99
Experience affordable FPV with the SpeedyBee Goggles Receiver module for analog FPV. While digital FPV has taken center stage in recent times, there’s still a place for analog FPV. Catering to those users, SpeedyBee have developed this new analog video receiver module, offering a cheaper alternative to modules like the TBS Fusion . Like the Fusion, the SpeedyBeeGoggles Receiver module incorporates two video receivers and merges their signals to ensure image stability and clarity. The module is compatible with a wide range of FPV goggles including traditional analog goggles like the Fat Shark Dominator series, but also digital FPV goggles when used with an analog module bay adapter, for example V3 Adapter / BDI Adapter V2 . The module supports multiple frequencies across the 5.8G band, 48 channels in total and has an auto channel scan function. It also has the ability to help you locate a lost model by displaying the real-time signal strength of the video transmission detected.
The module is available as it is and also bundled with some high quality antennas – please select as required.
Features
- Works with various FPV goggles, including Fat Shark Dominator series, HDZero, and DJI Goggles (with adapter).
- Supports multiple frequency bands (A, B, E, F, R, L) with 48 channels and channel scanner
- Clear OLED Screen
- Model Finder function.
- Operates at 5V with low power consumption (450mA@5V).
Specifications
- Operating Voltage: 5v
- Operating Current: 450mA@5V
- Working Frequency: Supports A, B, E, F,R, L bands with 48 channels from 5.3GHz~5.9GHz
- Dimensional: 51x34x17.8mm
- Weight: 32.8g
- Fat Shark Dominator series: including V1,V2, V3,SE,HD1, HD2,HD3,HDO,HDO2.
- Orqa: Currently not compatible with the factory housing of Orqa goggles. We have designed a 3D-printed housing that supports Orqa’s FPV.One, FPV.One Pilot, FPV.One Race.
- HDZero: Supports HDZero FPV goggles analog conversion module.
- DJI: Supports DJI V1, V2 Goggles (an adapter board needs to be purchased separately when using DJI Goggles).
