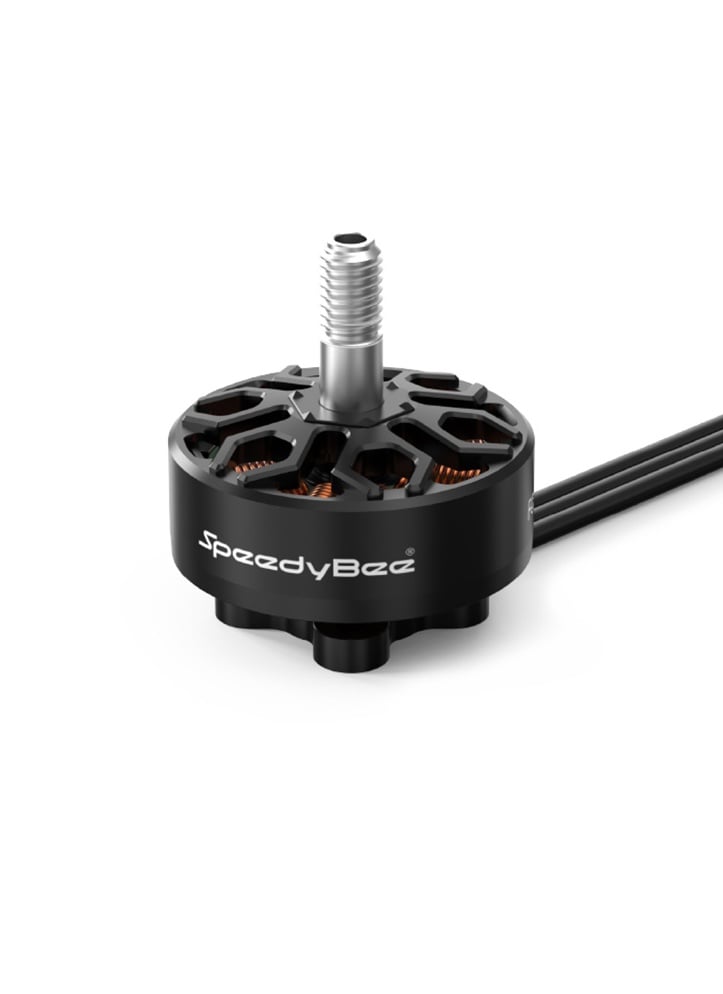

SpeedyBee 2306.5 1800KV Motor for Master 5 V2 5inch

£17.99

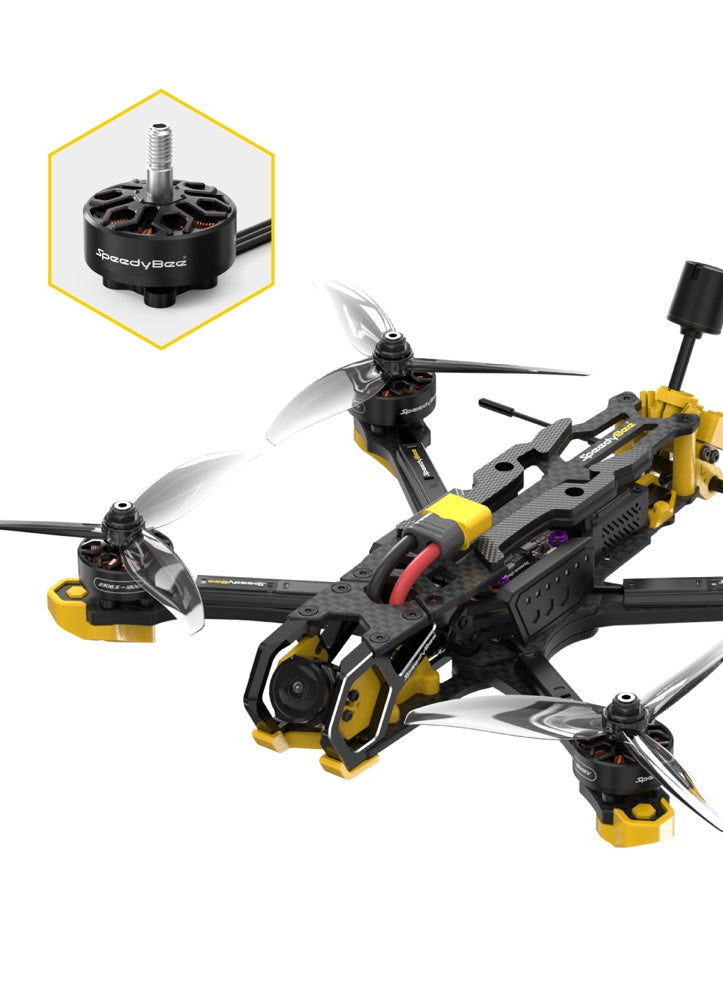

The SpeedyBee 2306.5 is a 1800KV motor with 720W maximum power designed for 6S voltage. This motor is used by the Master 5 V2 FPV Freestyle Drone .

Motor Size (2306.5):

The “2306.5” indicates the stator size of the motor. In this case, it’s a 23mm diameter and 6.5mm height stator. Larger stator sizes generally provide more power and torque.

KV Rating (1800KV):

The KV rating specifies the motor’s speed in revolutions per minute (RPM) per volt. A lower KV rating (like 1800KV) is suitable for larger propellers and provides more torque, making it suitable for 5-inch propellers commonly used in FPV racing and freestyle drones.

Specifications

• KV (rpm/V): 1800
• Stator Poles: 12N14P
• Shaft Diameter: φ5.0mm
• Silicone Wire: 20AWG 150mm
• Phase Resistance: 77.55
• Operating Voltage: 6S
• Motor Mounting Hole: M3X16
• Max. Power: 721.97W
• (1 OV) No-load Current (10V): 0.71A
• Maximum Current: 30.76A
• Sizeφ: 28.9×31.9mm
• Motor Weight (including wires) 34.34g
