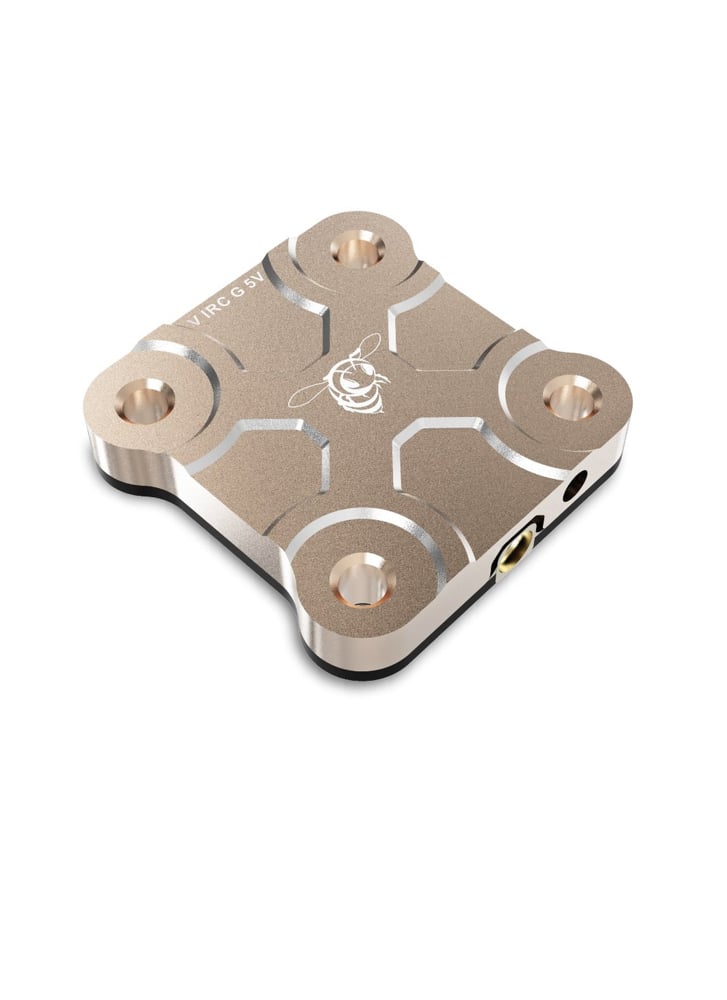

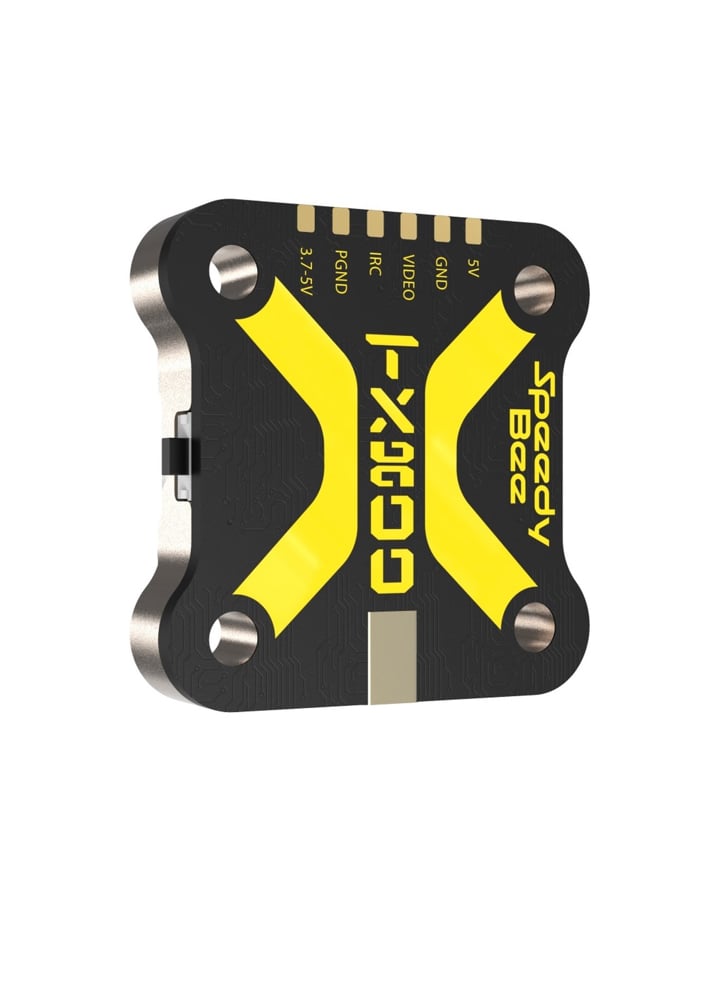

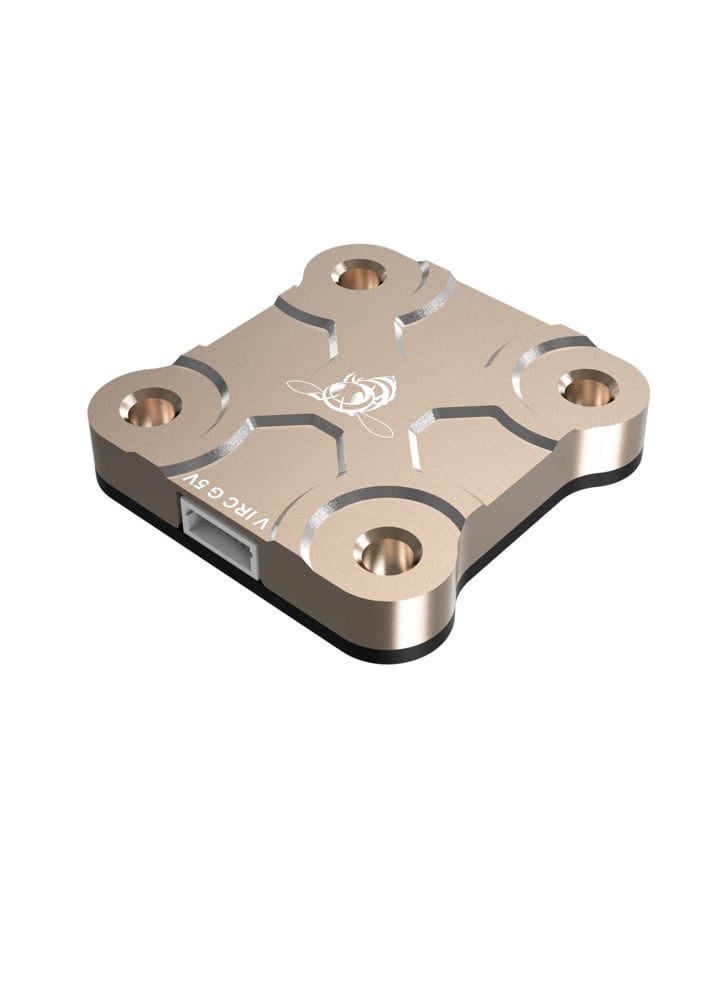

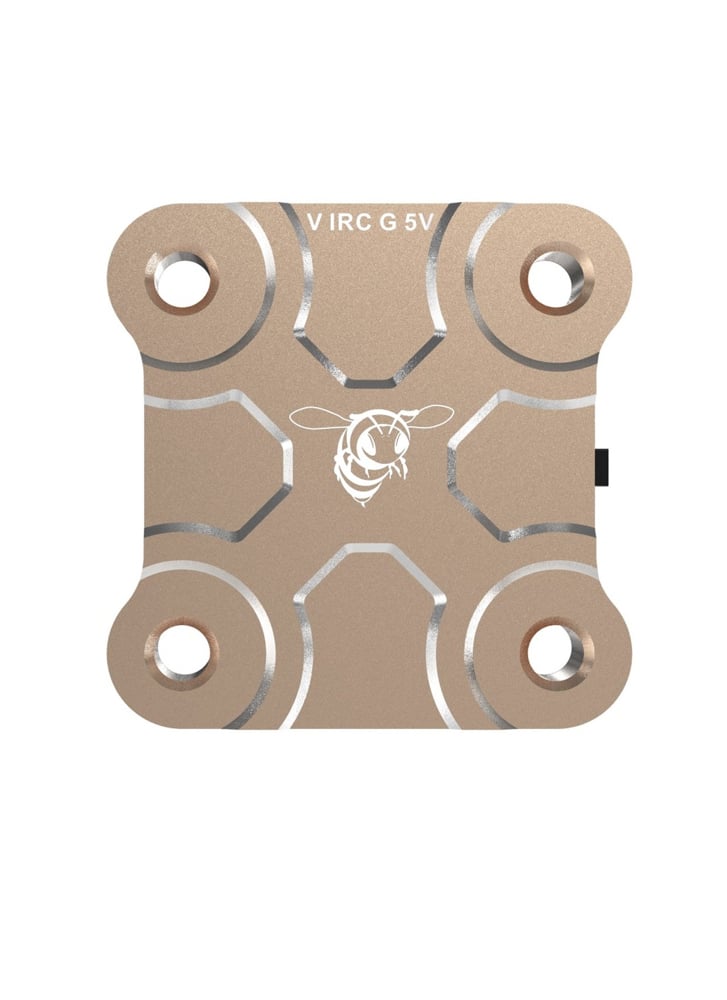

Speedy Bee TX800 5.8GHz FPV Video Transmitter

£31.90

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

The Speedy Bee TX800 is compact, high-efficiency video transmitter, offering a variable power output from 25mW up to 800mW and including a Pit Mode. It has IRC Tramp support for easy setting changes remotely via FC control, or you can use a simple push button on the VTX if you prefer. The transmitter only measures 28x28mm in size and is perfect in a stack with 20x20mm M2 mounting holes. The TX800 has a MMCX antenna connection, but it also includes a SMA pigtail adapter and a dipole whip antenna.

Speedy Bee also have great range for antennas to match, see here .

Specifications

• Frequency Channel: 5.8GHz 48CH
• Output Power: PIT/25mW/200mW/400mW/800mW
• Working Current: 5V@250~750mA
• Voltage out: 5V@max 250mA
• Voltage in: 3.7-5.5V
• Video input impedance: 75 Ohm
• Antenna Connector: MMCX
• Weight: 5.6g (without antenna)
• PCB Size: 28mmx28mm@20×20 M2

In the box

• 1x Speedy Bee TX800 5.8GHz Video Transmitter
• 1x MMCX Antenna
• 1x MMCX to SMA Cable
• 1x 1.0mm 4pin Cable
