Skyzone VT1225 1.2G 2.5W VTX – 1.2GHz 2.5W with CNC Case and Fan
Skyzone VT1225 1.2G 2.5W VTX – 1.2GHz 2.5W with CNC Case and Fan
Skyzone VT1225 1.2G 2.5W VTX – 1.2GHz 2.5W with CNC Case and Fan

Skyzone VT1225 1.2G 2.5W VTX – 1.2GHz 2.5W with CNC Case and Fan

£48.99

The Skyzone VT1225 – 1.2 GHz 2.5 W is a powerful long-range analogue video transmitter designed for pilots who fly in challenging environments where penetration and stability matter most. Compared to common 5.8 GHz systems, the lower-frequency 1.2 GHz band offers superior diffraction, stronger resistance to interference, and clearer, more stable video over extended distances—making it ideal for long-range builds and complex terrain.

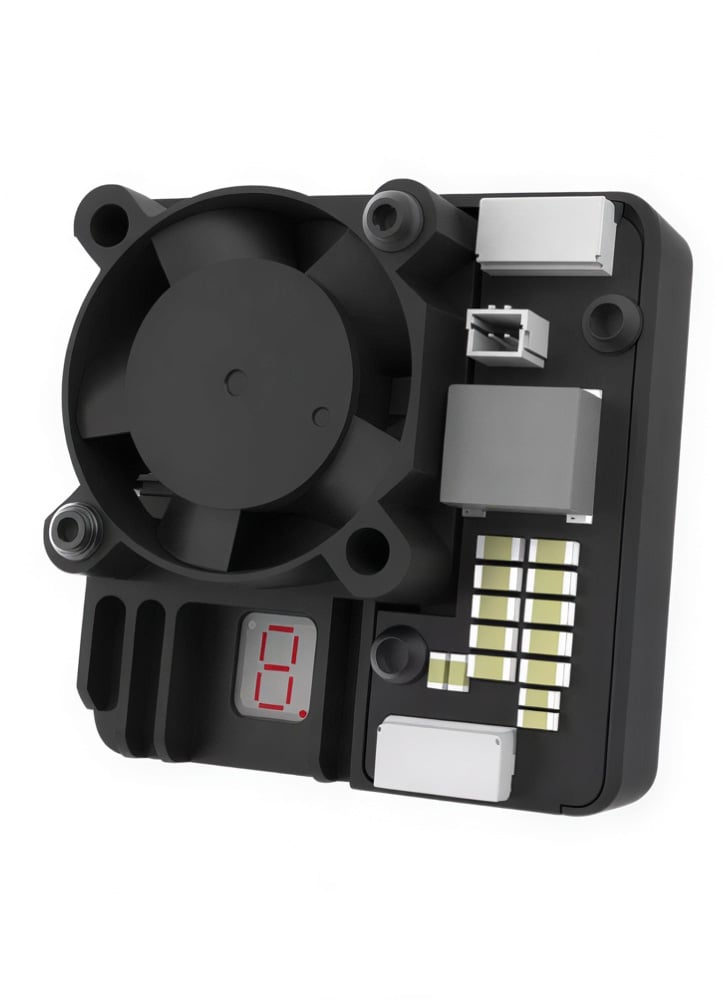

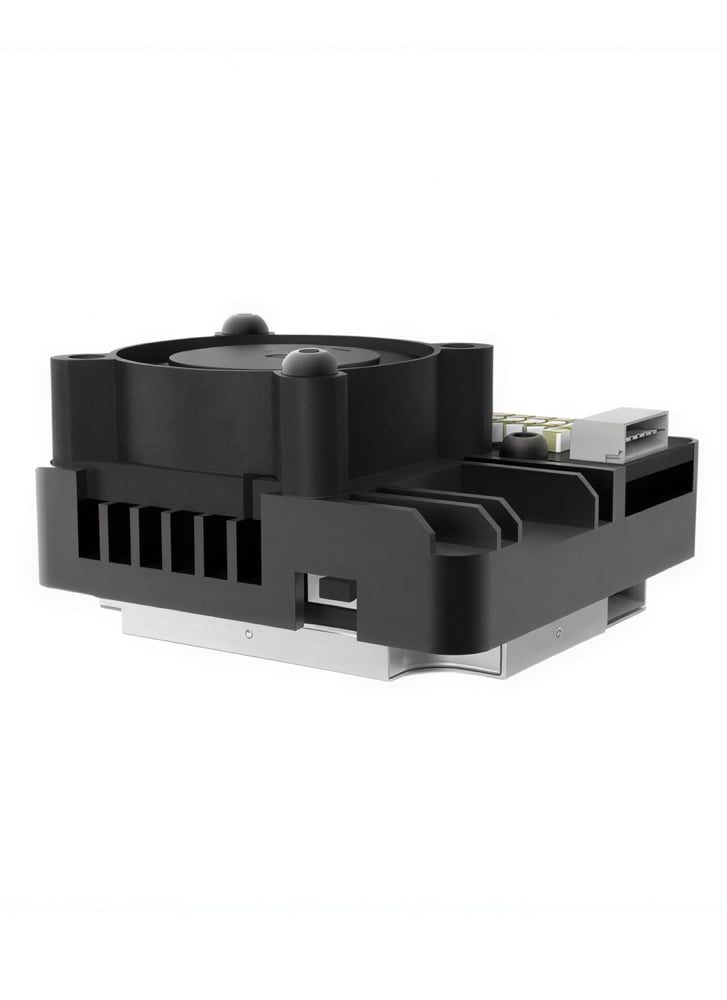

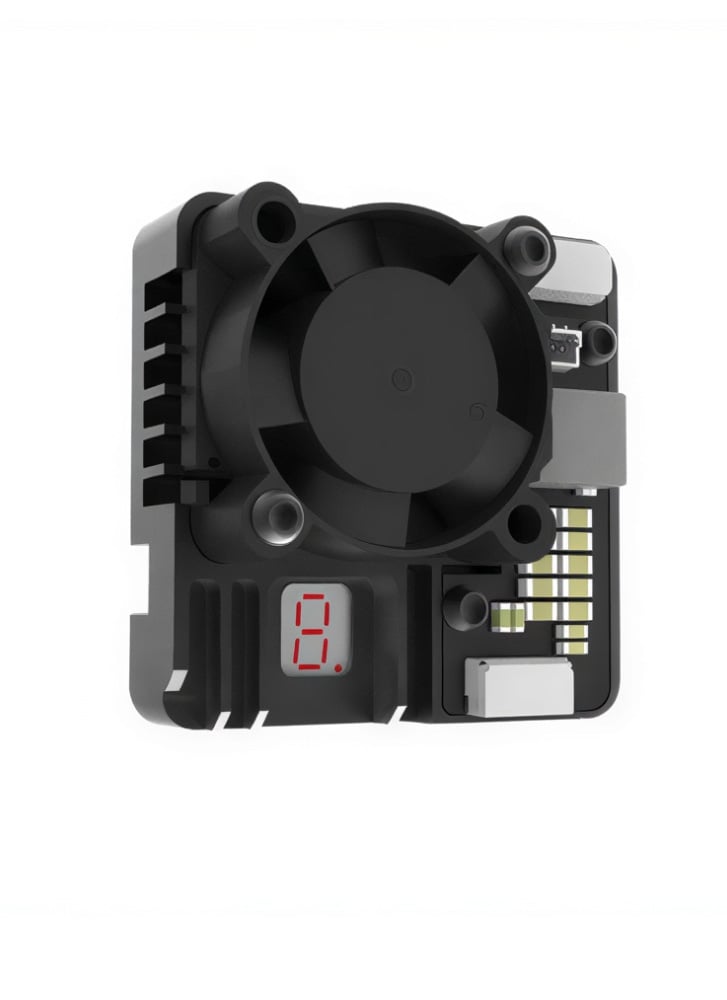

Housed in a rugged CNC-machined aluminium case, the VT1225 is built to handle high-power operation while efficiently shedding heat. An integrated cooling fan actively manages thermal load at higher output levels, helping maintain consistent performance during extended flights and high-duty use.

The VTX features wide power-output adjustment (25 mW / 800 mW / 1600 mW / 2500 mW) along with dual frequency bands providing a total of 16 channels for flexible setup and compatibility with a variety of ground-station receivers. Standard 30.5 × 30.5 mm mounting holes allow easy installation directly into a flight-controller stack or frame bay.

Note: Powering on without antenna can result in damage!

1.2G Antenna not included.

A compatible video receiver for the 1G3-VTX is sold here .

Features

IMPORTANT: The use and operation of this product in your country may require an amateur radio license, and some countries may forbid its use entirely (it is NOT Legal in the UK). It is the responsibility of the purchaser to ensure that the purchase and use of this product meets the requirements imposed by your government’s rules and regulations for RF devices. Do not purchase this product if you are unsure of the government requirements or are not able to comply with them. Flying Tech Ltd cannot be held responsible for your actions if you purchase and/or use this product in violation of your government’s regulations.

FrSky R9 / TBS Crossfire Users – these radio control systems can interference with the 1G3 video link as they operate on adjoining frequencies. To help reduce interference we recommend fitting a notch filter or using a 5.8Ghz relay station so that the 1G3 VRX can be positioned away from your radio control.

Specifications

In the box
