Skyzone TS5823 5.8Ghz 200mW 40CH Mini FPV Transmitter (V2)
£26.00

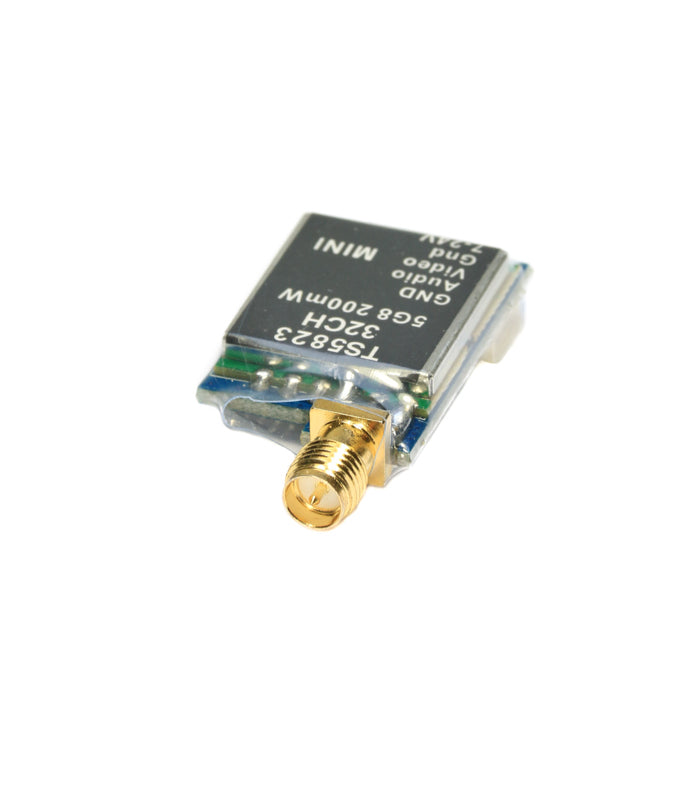

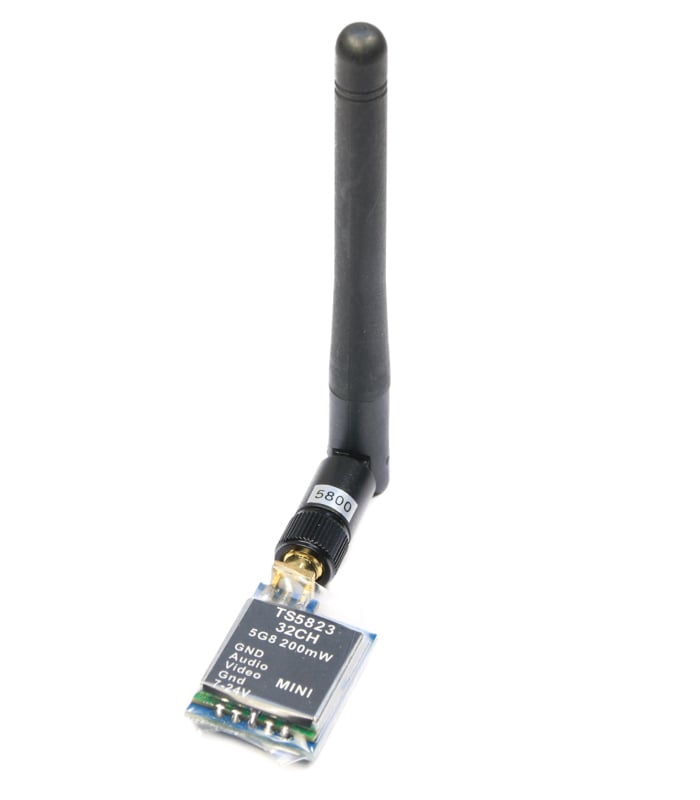

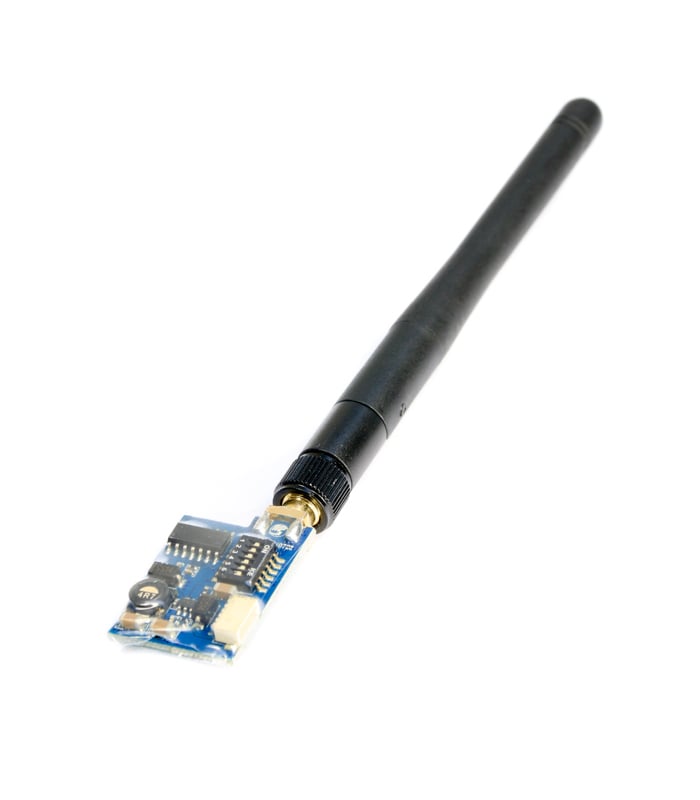

The Skyzone TS5823 is a fantastic little FPV transmitter (Tx). It’s tiny and weighs practically nothing making it ideal for FPV mini quads. In fact the popular Gravity racing drone frames by Fossil Stuff have been designed to incorporate this very transmitter. The TX boasts a 200mW output, giving a range of 400m LOS with no obstacles, but this can be extended to 1km+ by using a combination of circular polarised and helical antennas. It supports 32 channels (now shipping 40CH version), across 4 different bands which covers the channels used in equipment from Fatshark, ImmersionRC, Skyzone, and Boscam. The TS5823 comes with a 2 dBi dipole (Rubber Duck) antenna and even a GoPro compatible video cable for plug and play compatibility. You can power it straight from your flight battery without the need for a UBEC as it supports a wide input voltage (7-24V).
This is the V2 release of the TS5823 that has had the previous known issues with lines in the display resolved.
Features
- Transmitter frequency: 5645-5945MHz with 200mW output power
- 40 channels / 4 Bands – compatible with Fatshark & ImmersionRC gear & RaceBand
- Not affected by 2.4GHz R/C radios
- Micro sized and very lightweight – only 10g

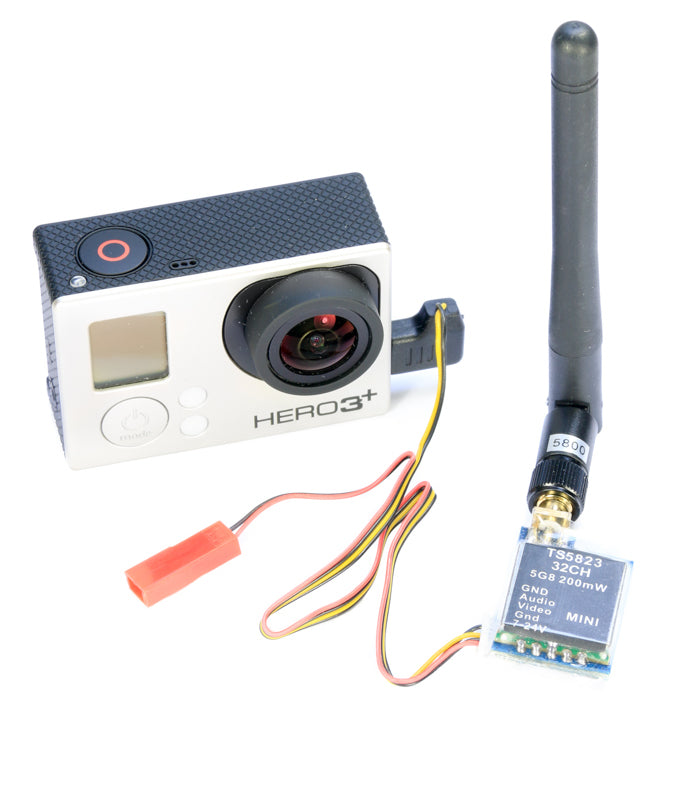

- Includes GoPro ready FPV video cable
- IMPORTANT : Do not turn the transmitter on before attaching the antenna, doing so will permanently damage the board!
Note: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.
Specifications
- Operating Voltage: 7V~24V
- Modulate: Wideband FM Modulate
- Video Format: NTSC/PAL
- Output Impedance: 50 Ohm
- Output Power: 23~24dBm
- Channel: 40CH
- Supply Current: 190mA
- Operating Temperature: -10~85 Video Band Width : 0~8.0 MHz
- Audio Carrier Frequency: 6.5MHz
- Video Input Level: 0.8~1.2 Vp-p
- Video Input Impedance: 75 Ohm
- Audio Input Level: 0.5~2.0 Vp-p
- Audio Input Impedance: 10K Ohm
- Connector: RP-SMA
- Dimension: 40mm x 23mm x 8mm
- Weight: 8g (without antenna)
- Band A: 5865,5845,5825,5805,5785,5765,5745,5725
- Band B: 5733,5725,5771,5790,5809,5828,5847,5866
- Band C: 5705,5685,5665,5645,5885,5905,5925,5945
- Band D: 5740,5760,5780,5800,5820,5840,5860,5880

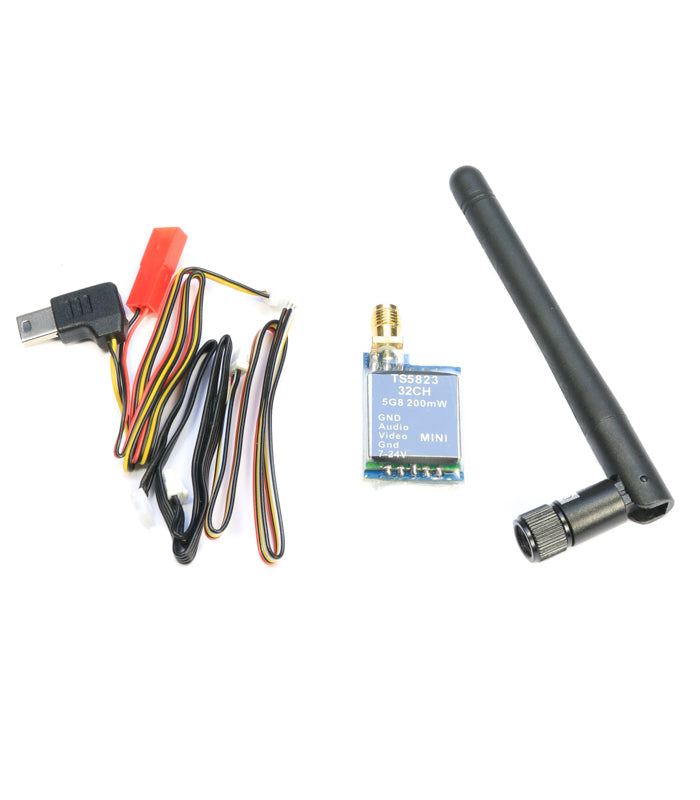

In the box
- 1x TS5823 transmitter
- 1 x 5.8Ghz 2db antenna
- 1x GoPRO USB to A/V cable (for using GoPRO as A/V input)
- 1x DIY 5p wire lead
