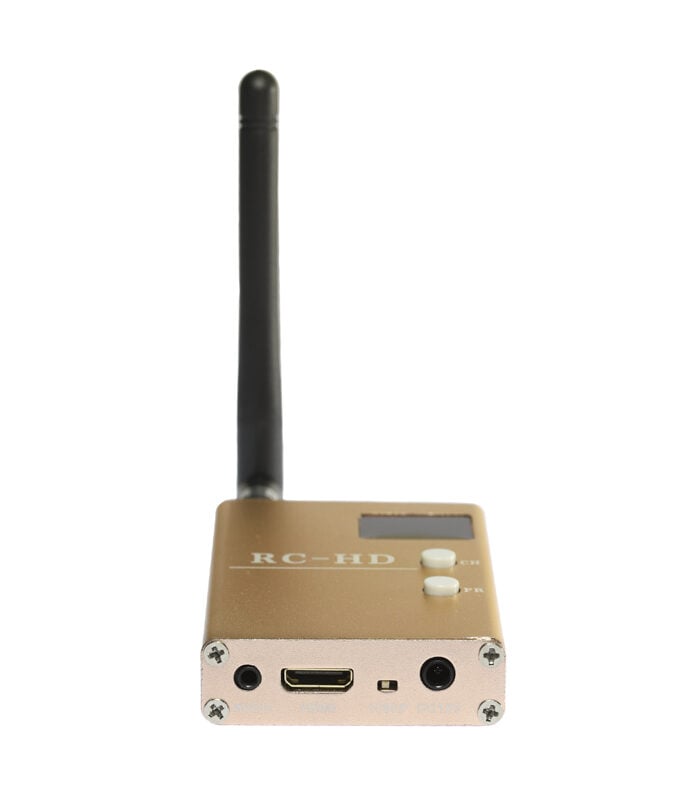

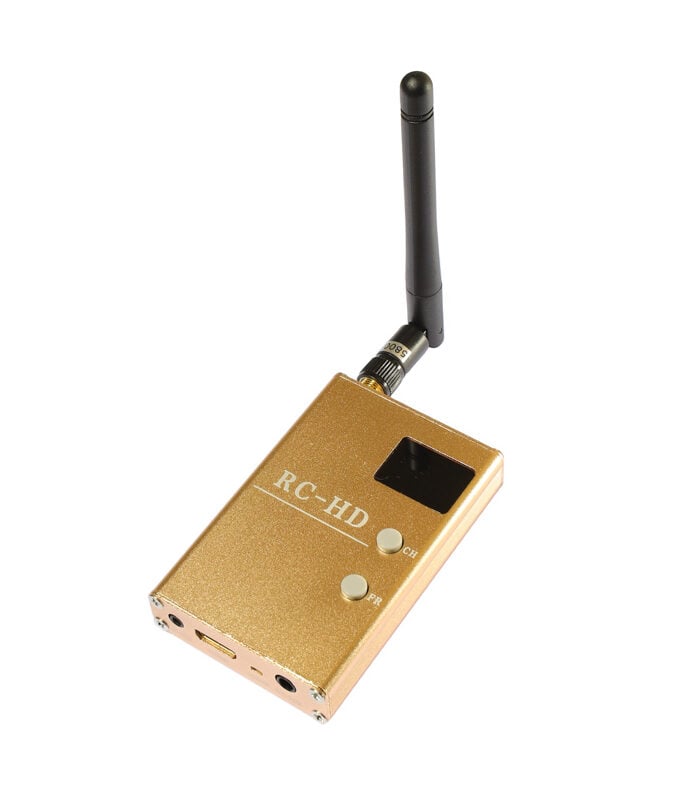

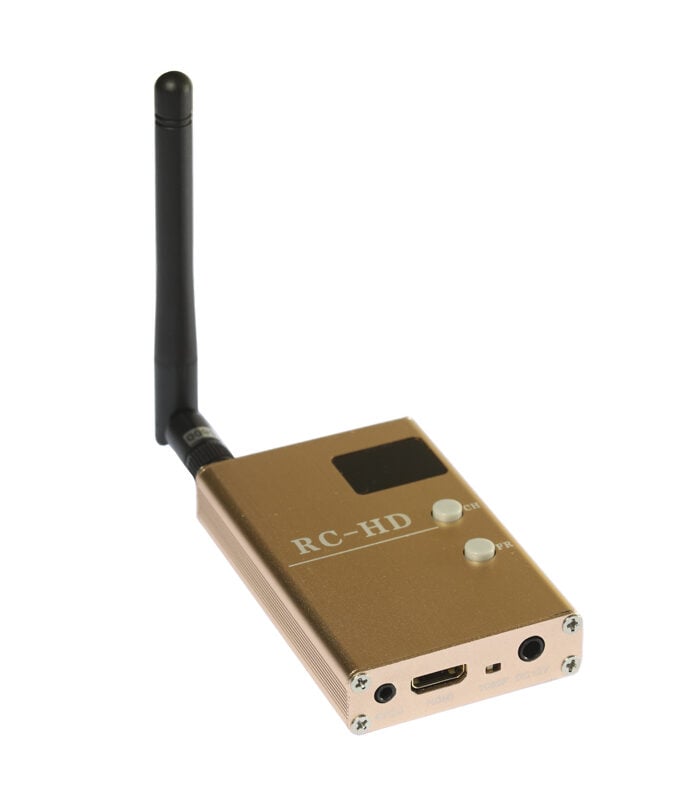

Skyzone RC832-HD 48CH 5.8Ghz FPV Video Receiver with HDMI

£66.90

Most 5.8Ghz FPV video receivers provide only an AV output, which means they can’t be used with a lot of modern displays that don’t have composite video input. The nice thing about the RC832-HD receiver is that it has both an AV output and a mini HDMI output so it can be connected to most displays. Its HDMI output upscales the video output to 1080P or 720P (select via the switch). You can also output via the AV connection simultaneously with the HDMI output, so the Rx can feed two displays at once. The latency on the AV output is slightly less than the HDMI output, around 20ms vs. 40ms for the HDMI output.

Specifications

• Receiving Frequency: 5.8GHz
• Channels: 48 (6 Bands)
• Video format supported: NTSC/PAL
• Antenna connection: RP-SMA
• Power input: 6-24V
• Working current: 200mA max
• Antenna Input Impedance: 50ohm Typ.
• Antenna Connector: SMA
• Antenna Gain: 2dBi
• Video Output Level: 1.0Vp-p Typ, 75Ω
• Audio Output Level: 1.0Vp-p Typ, 10KΩ
• Audio Carrier: 6.5MHz
• AV output: 1CH (3.5mm plug)
• HD Output: Mini HDMI
• Dimension: 80x65x15mm
• Weight: 120g

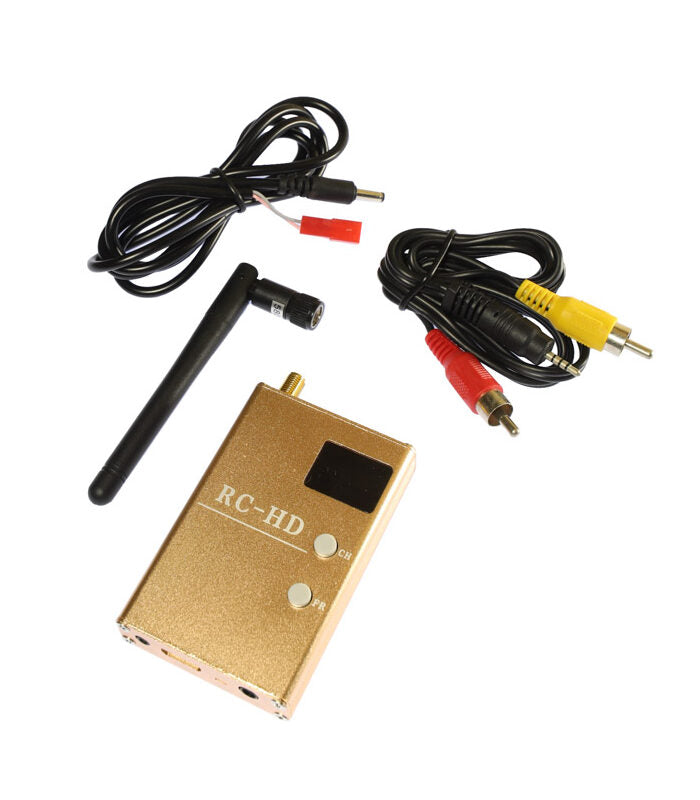

In the box

• 1x RC832HD FPV Receiver
• 1x 5.8Ghz “rubber duck” antenna
• 1x power cable – JST connection.
• 1x RCA cable connector set for video output
