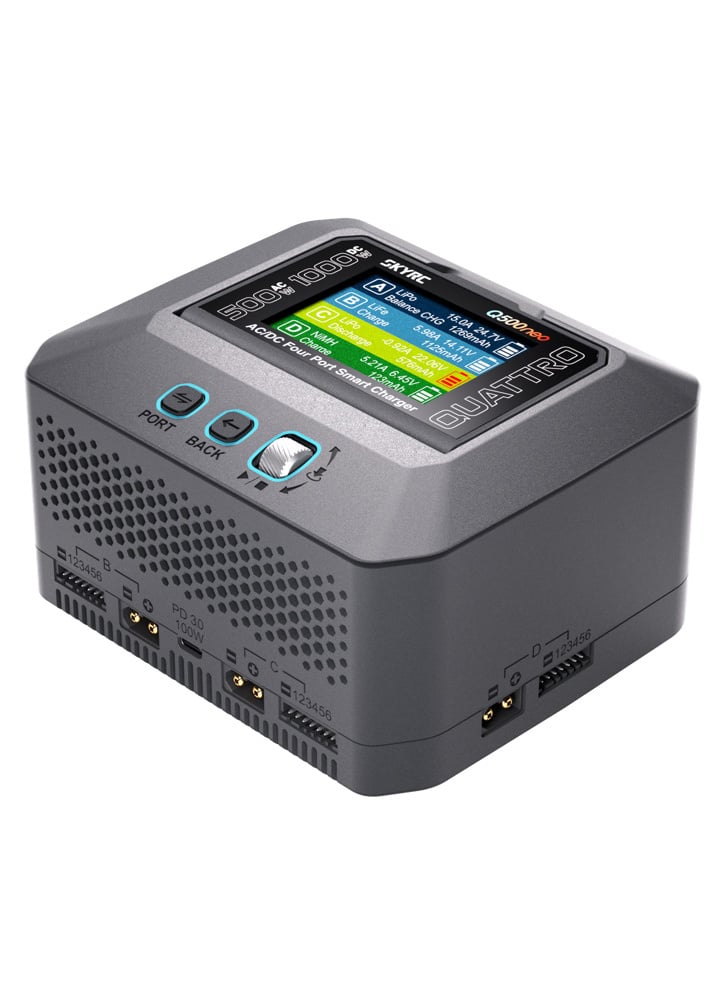

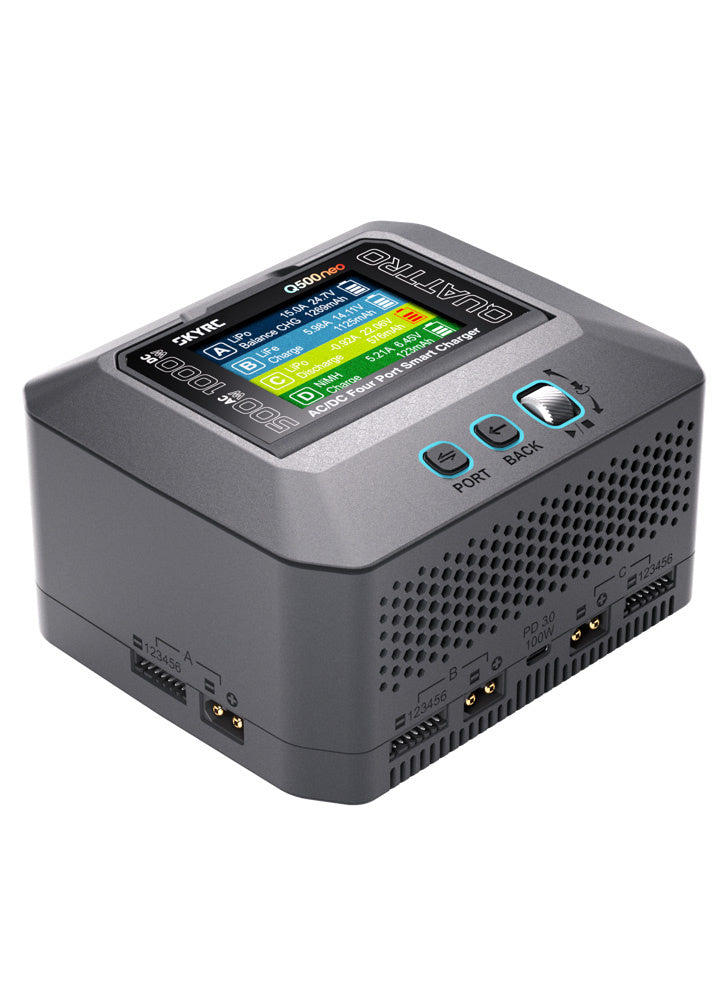

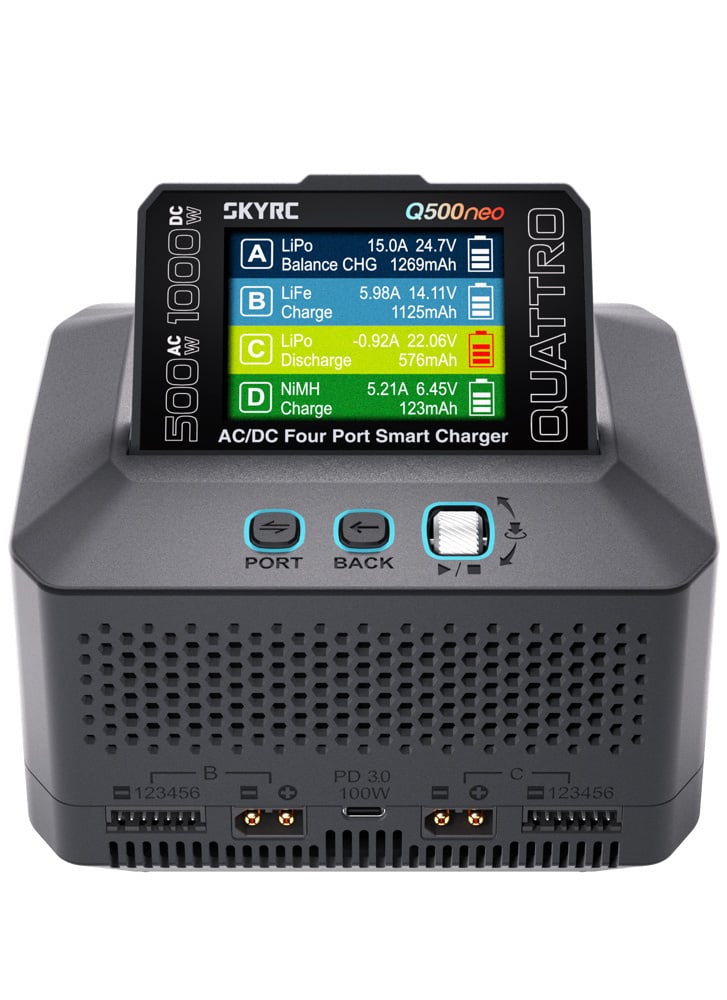

SkyRC Q500neo AC/DC 4-Port Charger 1-6S (XT60)
£219.99
The SkyRC Q500neo is a powerful four-channel AC/DC smart charger for anyone needing several RC batteries charged quickly and independently. It offers up to 500W total from mains AC, or 1000W from a suitable DC source, which suits busy FPV pilots, RC racers and workshops running a stack of packs at once. All four channels work independently: A and D handle up to 15A / 250W each, while the higher-powered B and C reach 25A / 500W each.

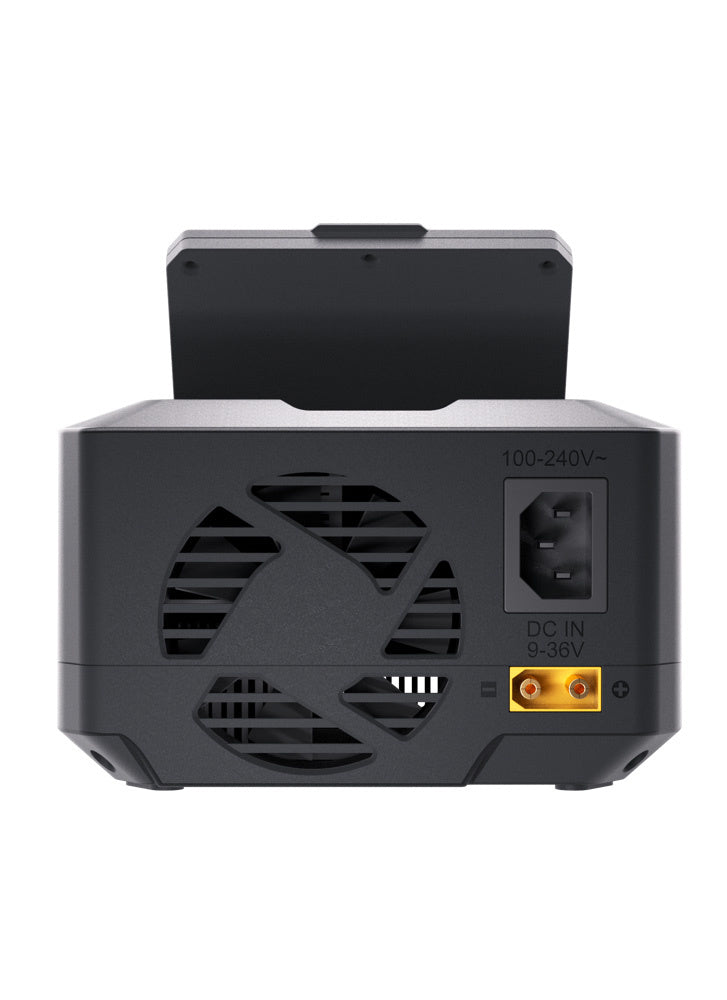

Every channel has its own XT60 main output and balance connection. Power comes either straight from a 100–240V AC mains supply or through the XT90 DC input from a suitable 9–36V source.
Supported chemistries run to LiPo, LiHV, Li-ion and LiFe from 1–6S, NiMH/NiCd from 1–15S, and 3S, 6S and 12S Pb. Lithium modes cover Balance Charge, Charge, Storage and Discharge, with further programmes for NiMH/NiCd and lead-acid. A strong 900–1500mA balance current keeps lithium cells accurately balanced, which matters most to anyone regularly charging several high-capacity packs.
Away from charging, the Q500neo works as an adjustable DC power supply, giving 1–30V at up to 15A from channels A/D or 25A from B/C — useful for running compatible workshop accessories. A USB-C PD 3.0 port adds up to 100W for laptops, phones and other USB-C devices.
Bluetooth 5.0 pairs with the SkyRC SkyCharger app for convenient control, and firmware updates come through the app as well.
For all its output and four channels, the Q500neo stays compact enough for everyday use. A 90° tilting display keeps charging information in clear view, and the mix of AC/DC operation, independent outputs and smart features makes it a versatile all-in-one for bench, workshop or race field.
Features
- Four fully independent charging channels
- 500W total charging power on AC input
- Up to 1000W total charging power on DC input
- Channels A/D: up to 250W / 15A each
- Channels B/C: up to 500W / 25A each
- Supports LiPo, LiHV, Li-ion and LiFe 1–6S batteries
- Supports NiMH/NiCd 1–15S batteries
- Supports 3S, 6S and 12S Pb batteries
- 900–1500mA lithium battery balancing current
- XT60 charge/discharge outputs
- XT90 9–36V DC input
- Built-in 100–240V AC power supply
- Adjustable 1–30V DC power-supply mode
- USB-C PD 3.0 output up to 100W
- Bluetooth 5.0 connectivity
- SkyCharger iOS/Android app support
- Firmware updates through the SkyCharger app

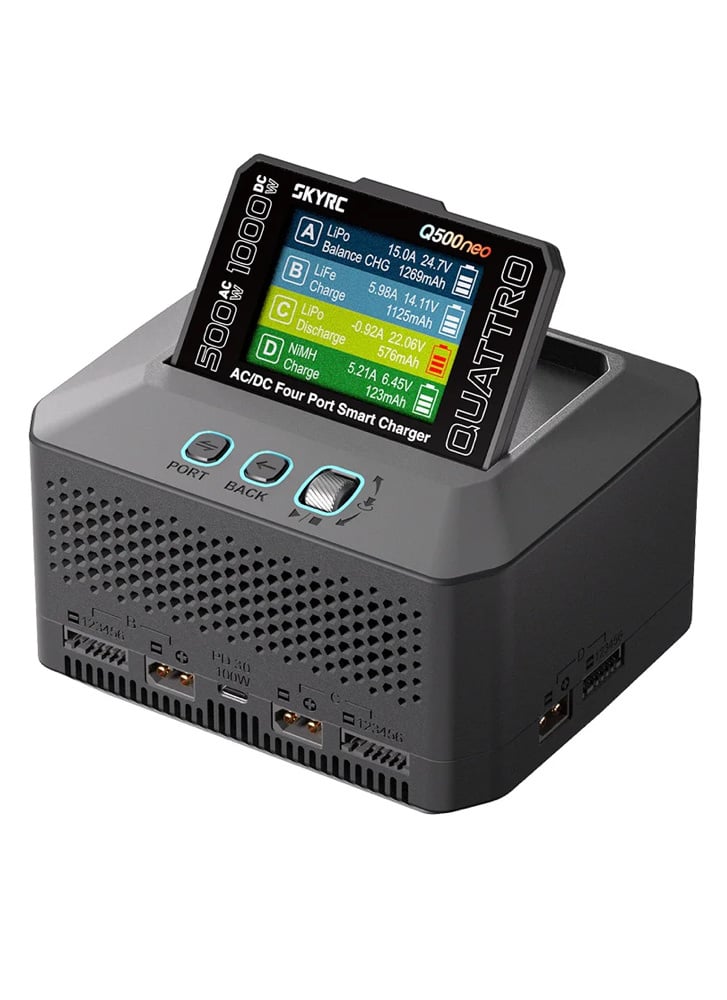

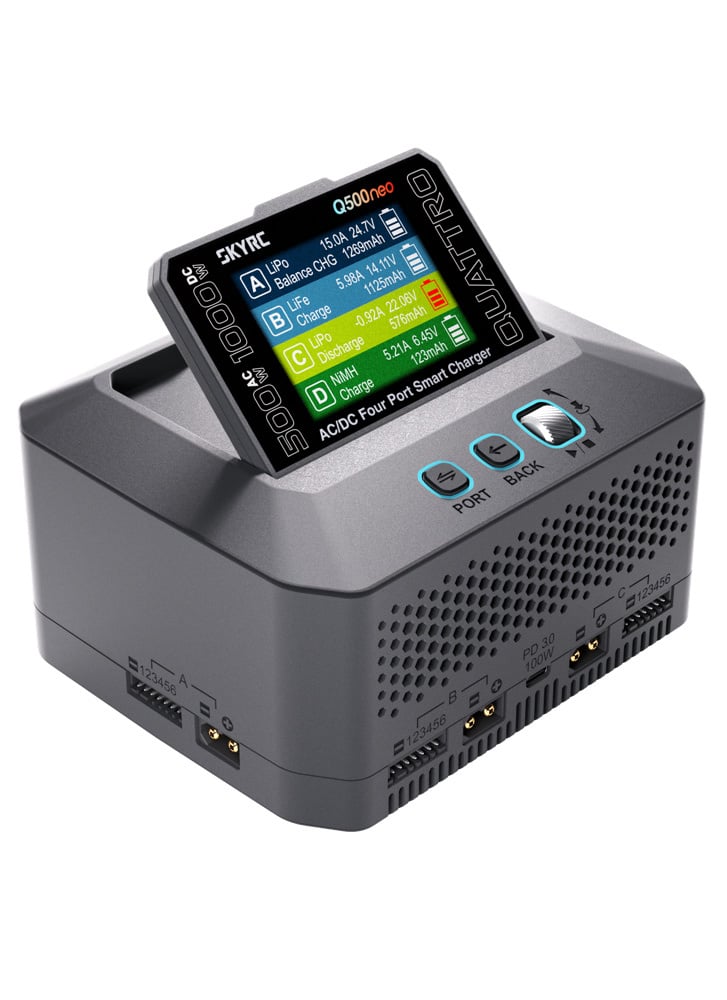

- 90° tilting display
- Battery voltage and internal resistance meter
- Compact four-channel desktop design
Specifications
- Input Voltage: AC 100–240V 50/60Hz / DC 9–36V
- Maximum Input Current: AC 7A / DC 50A
- Charging Power: AC 500W total / DC 1000W total
- Channel A/D Output: 250W max per channel, up to 15A
- Channel B/C Output: 500W max per channel, up to 25A
- LiPo/Li-ion/LiFe/LiHV: 1–6S
- NiMH/NiCd: 1–15S
- Pb: 3S / 6S / 12S
- Discharge Current: 0.1–2.0A
- Main Port Discharge Power: 10W
- Balance Port Discharge Power: 24W max
- Balance Current: 900–1500mA
- DC Power Supply: 1.0–30.0V
- USB-C Output: PD 3.0, up to 100W
- App: SkyCharger for iOS / Android
- Dimensions: 146 × 123 × 88mm
- Weight: 1206g
In the box
- 1 × SkyRC Q500neo Charger
- 1 × AC Power Cord
- 1 × Instruction Manual
- 2 × QR Code Stickers
