SkyRC Q100 Neo AC/DC 1-4S Battery Charger (XT60)

£67.99

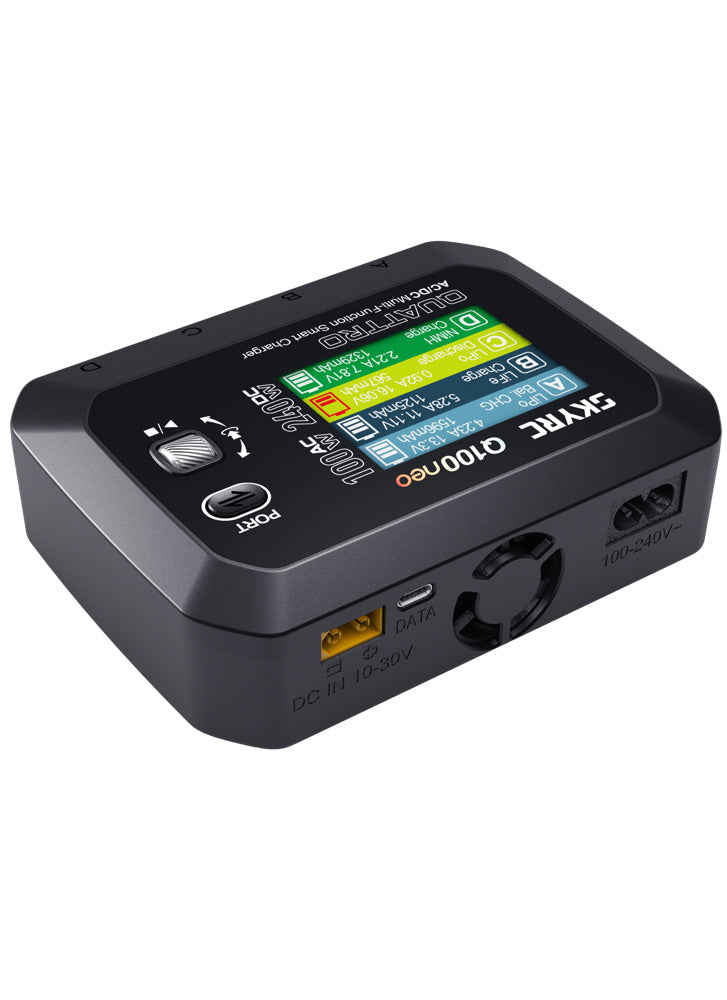

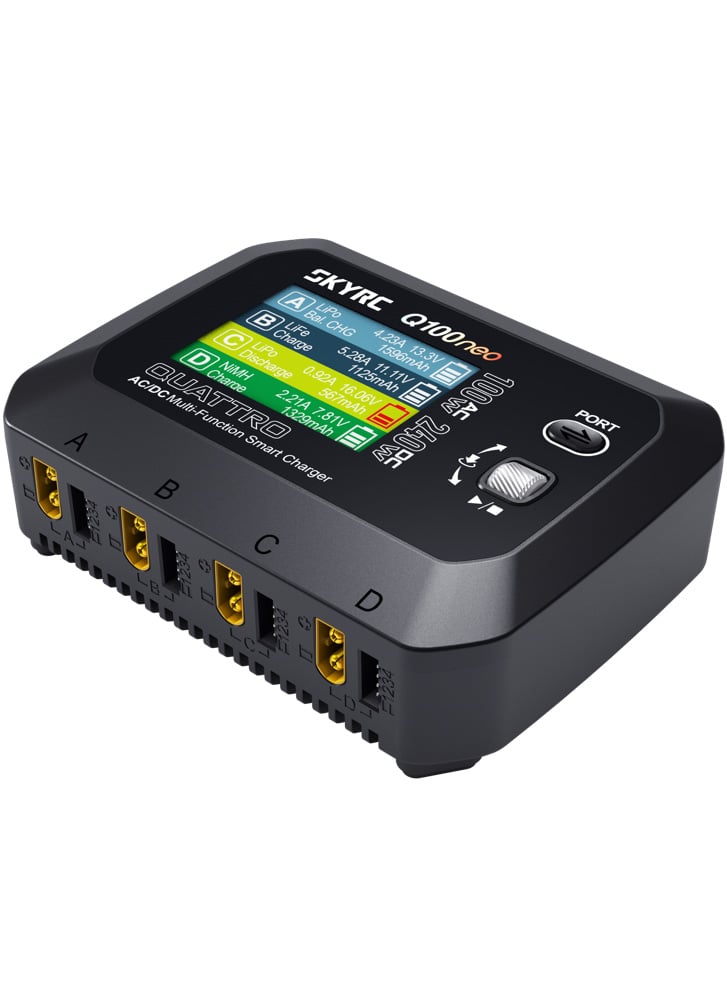

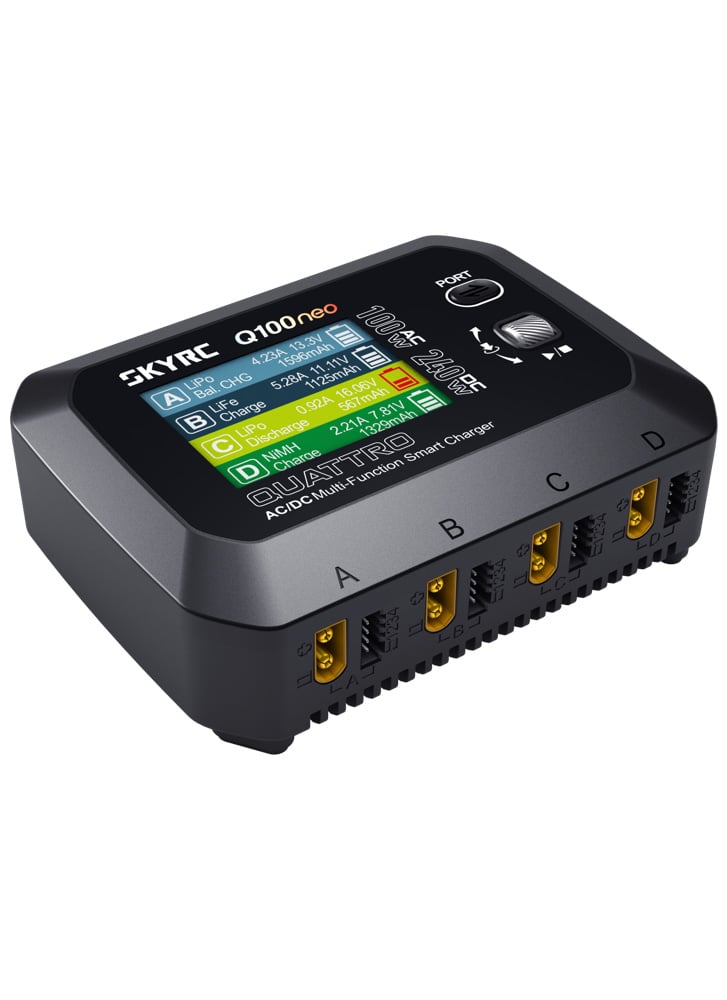

The SkyRC Q100 Neo is a compact AC/DC smart charger designed for charging and maintaining 1–4S batteries across a wide range of RC and FPV applications. It features four independent charging ports, allowing multiple packs to be charged simultaneously with automatic power distribution based on available input.

The charger supports LiPo, LiHV, LiFe and Li-ion batteries up to 4S, as well as NiMH, NiCd and Pb chemistries. Each channel provides precise charge control with balance charging, storage and discharge functions, making it suitable for both day-to-day use and long-term battery care.

Designed for flexibility, the Q100 Neo can be powered from mains AC or a DC source via the XT60 input. On AC power, the charger delivers up to 100W total output, while DC input via XT60 increases available power to up to 240W, making it suitable for both bench use and field charging. Each port supports charge currents up to 6A, with power automatically shared depending on how many channels are active.

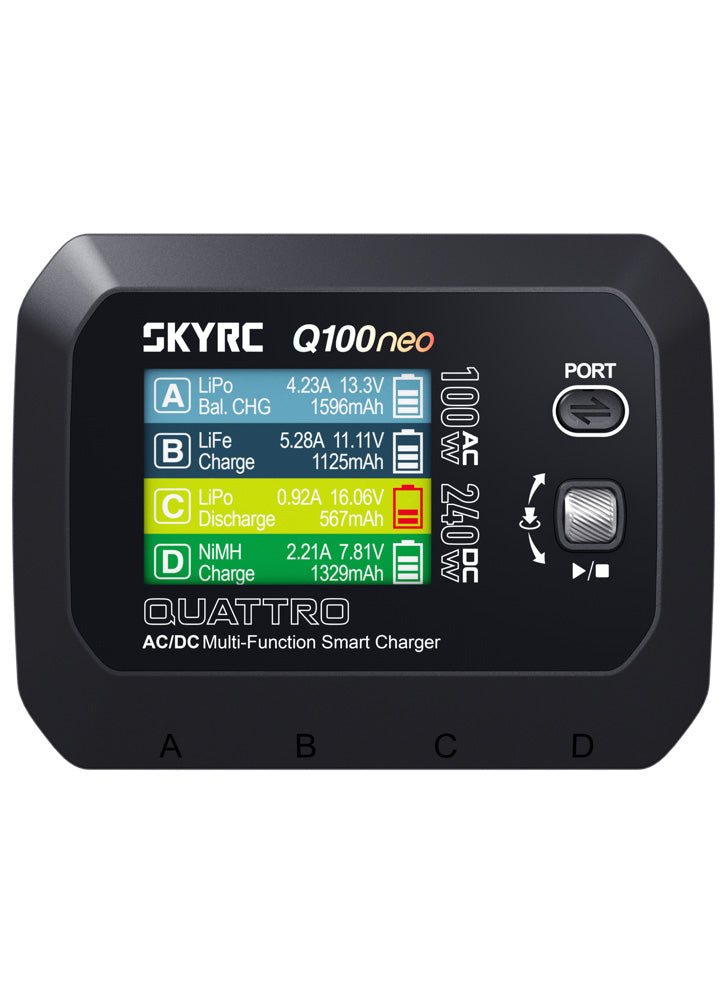

Operation is handled via a clear colour LCD and a simple scroll-wheel interface, providing easy access to charge settings, battery data and system configuration. Additional features include built-in safety protections, per-port monitoring, firmware updates via USB-C, and a CC/CV DC power supply mode for powering external devices.

With its compact footprint, quad-output design and broad battery compatibility, the SkyRC Q100 Neo is a practical all-in-one charging solution for pilots and RC hobbyists running multiple battery packs.

Specifications

• Four fully independent outputs, each up to 6.0A
• AC mode: up to 100W total (1 port: 60W max
• 2 ports: 50W + 50W
• 3 ports: 33W each
• 4 ports: 25W × 4)
• DC mode: up to 240W total (60W × 4)
• Smart power distribution under AC automatically reallocates power as ports finish
• Built for precision: ±0.02 V accuracy and max 600 mA balance current
• Chemistries: LiPo, LiFe, Li‑ion, LiHV, NiMH, NiCd, Pb
• LiPo/LiHV/LiFe/Li‑ion: 1–4S with Balance Charge, Charge, Discharge, Storage
• NiMH/NiCd: 1–8S with Normal, Discharge, Re‑Peak, Cycle D→C, Cycle C→D
• Pb (Lead‑acid): 3S/6S with Normal, AGM Charge, Cold Charge, Discharge
• Main port discharge: up to 5W
• Discharge via balance port: up to 10W (LiPo/4S)
• Combined with main port: up to 15W for quicker pack management
• Quad output DC PSU for bench testing and prototyping
• Voltage: 1.0–30.0V, adjustable in 0.1V steps
• Current: 0.1–6.0A, adjustable in 0.1A steps
• Each output independently controllable
• 2.8 inch TN display, 240 × 320 resolution, 262K colours
• ColorX interface with selectable languages: English, Dutch, French, Chinese, Japanese
• Proprietary rectifier circuit and MCU control for efficient, compact power delivery
• Case size: 140 × 108 × 43.5 mm
• weight: 491g
• AC input: 100–240V (50/60 Hz)
• DC input: 10–30V
• Operating temperature: 0–40°C
• storage: −10–70°C
• Working/storage humidity: 5%–75% RH (non‑condensing)
• Input Voltage – AC: 100v to 240v, DC: 10v to 30v
• Charging Power (DC) – max. 240w (4x60w dynamically distributed)
• Charging Power (AC) – max. 100w
• Charge Current – 0.1-6.0A
• Balance Current – max. 600 mA
• Discharge Power – 5w (Main Port), 10w (Balance Port, LiPo/4S)
• Display – 2.8” colour display, 240×320 px, 262k colours
• Battery Types – LiPo/LiFe/LiIon/LiHV: 14S, NiMh/NiCd: 18S, Pb: 3S / 6S
• Dimensions – 140x108x43.5 mm
• Weight – approx. 491g
• SKY RC Q100 Neo AC/DC Quad Smart Charger/Discharger for LiPo, LiFe, LiHV, LiIon, Pb and NiMh Batteries
• 3-Pin AC UK Plug
