SkyRC Pro Parallel Charging Cable for D750 XT60+4/5MM

SkyRC Pro Parallel Charging Cable for D750 XT60+4/5MM

£9.90

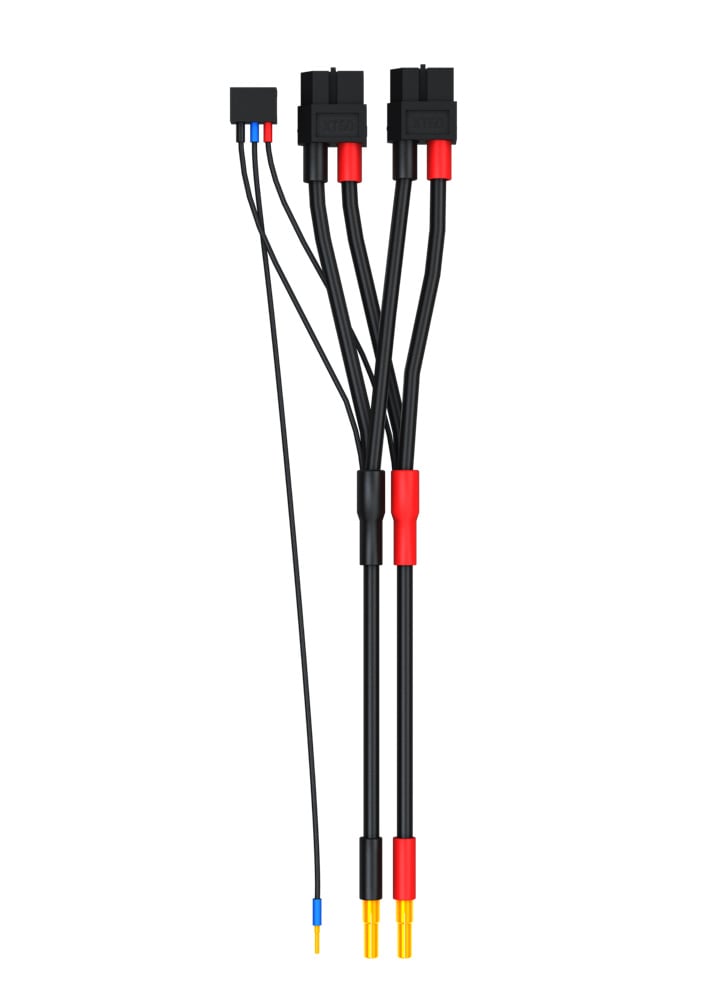

Using this cable, you can link the two XT60 output ports of the D750 chargers to increase the charging current up to 50A. The cable connects to batteries with 4mm or 5mm sockets and supports cell balancing for 2S lithium batteries.

Usage: On the D750 charger:

SkyRC D750 MIX offers a Parallel Charging mode to deliver higher charging current. Note: Parallel Charging is only supported for lithium batteries. Other battery types are not supported! Use the dedicated parallel charging cable for this product to correctly connect the battery’s main lead and balance lead.

Select the channel to which the battery’s balance lead is connected, e.g., Channel A;

Choose the correct battery type (LiPo / LiFe / Li-ion / LiHV);

In the task menu, select the “Parallel Charge” program;

Set the charging current (adjustable range: 33–50A);

Once all settings are complete, press “Start” to begin parallel charging.

SkyRC Part Number: SK600023-23

In the box
