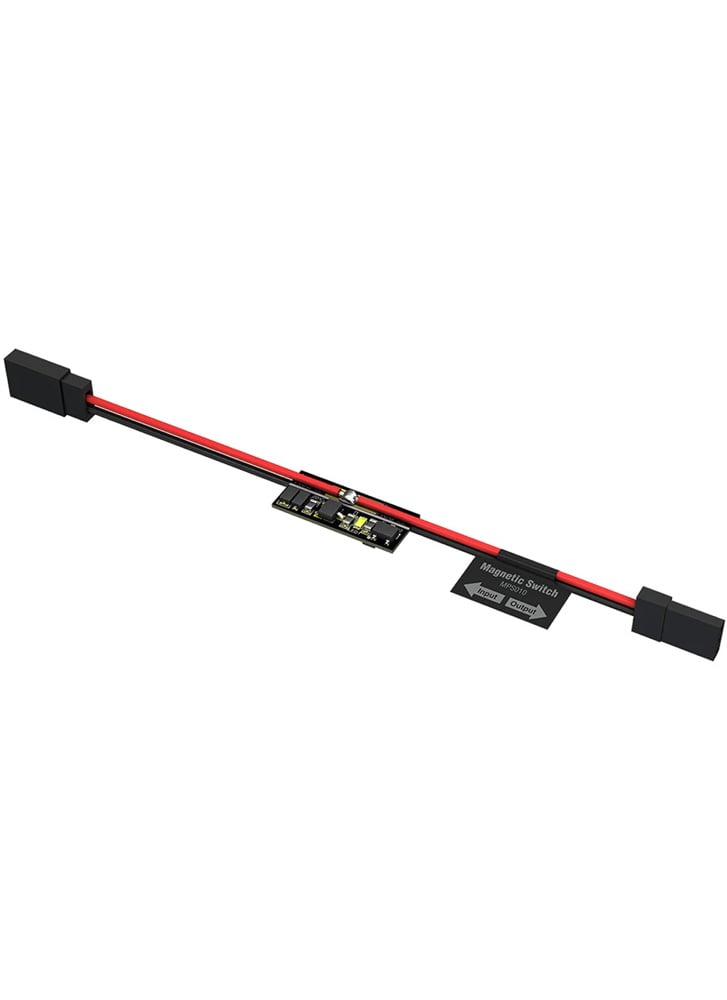

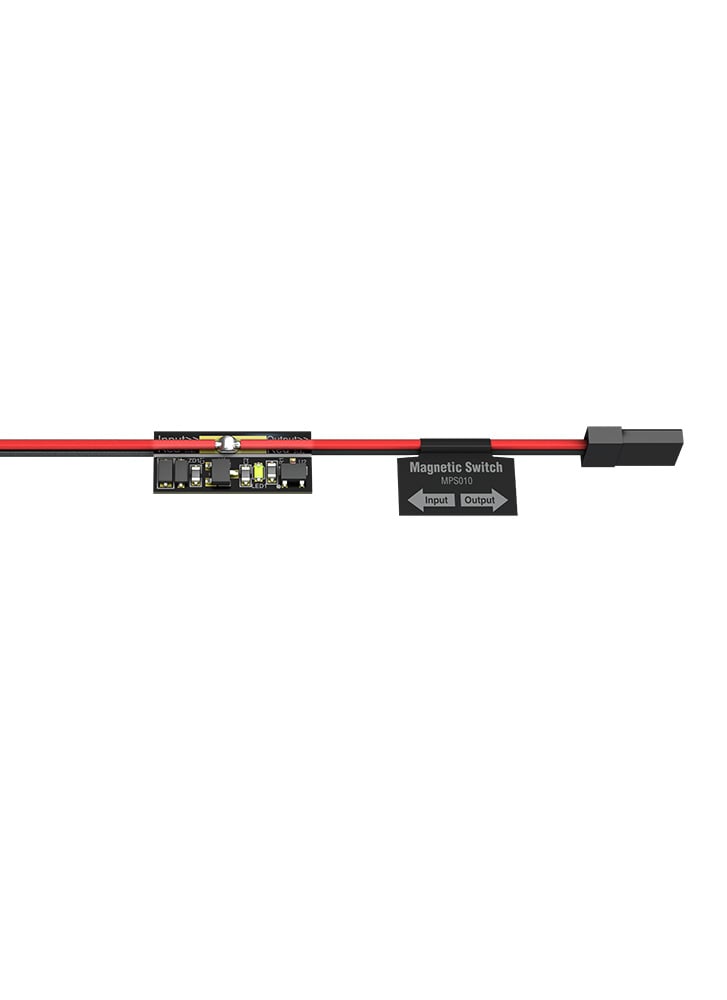

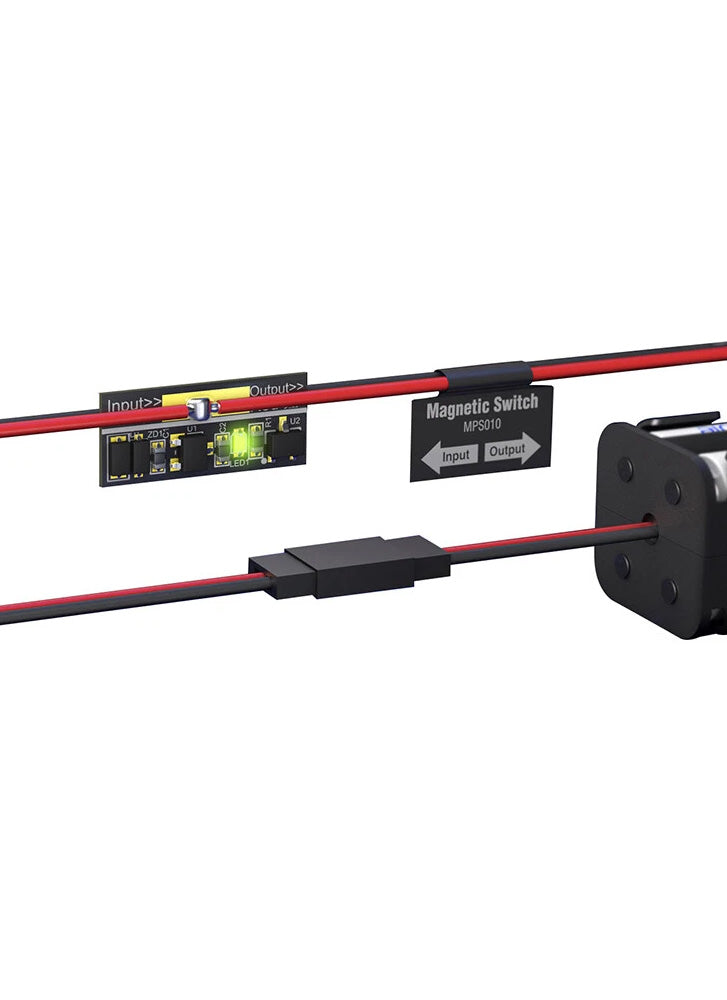

SkyRC Non-contact MPS010 Magnetic Power Switch DC 3-13V 7A
£14.99
The SkyRC MPS010 is a compact, non-contact magnetic power switch designed for RC models and electronic projects. Operating on DC 3–13V, it supports up to 7A continuous current (10A peak) and offers reliable power control with a simple swipe of a magnet. Its minimal standby current draw (≤5µA off, ≤3.5mA on) ensures energy efficiency, while the built-in green LED provides clear on/off status. Installation is straightforward, and the switch securely retains its state after brief power losses (≤10 seconds). Ideal for hidden or hard-to-reach installations, the MPS010 provides intuitive activation without mechanical wear or exposed switches.
Features
- Power on/off with a magnetic swipe
- No need to unplug the battery
- Compact and easy to install
- Ultra-low standby current
- Supports up to 7A continuous / 10A peak
- LED power status indicator
- Remembers state after short power loss
- Works with DC 3–13V systems
Specifications
- Input Voltage : DC 3-13V
- Standby Current : Output OFF: <5uA
- Output ON: <3.5mA
- Continuous Output Current : 7A
- Peak Output Current : 10A
- Magnetic Sensing Distance : 1.0-1.5cm
- Power-On State Memory : Retains the previous state if powered backwithin 10 seconds
- resets if over 10 seconds.
- LED Indicator : Green light ON when active, OFF when inactive.
In the box
- 1x SkyRC MPS010 Magnetic Switch
