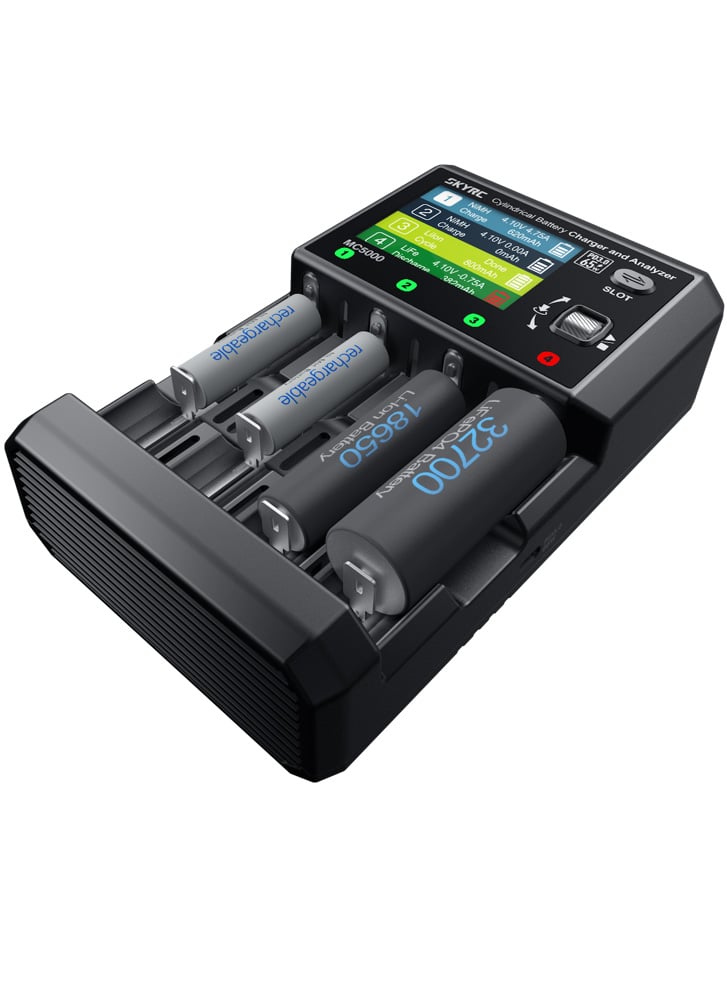

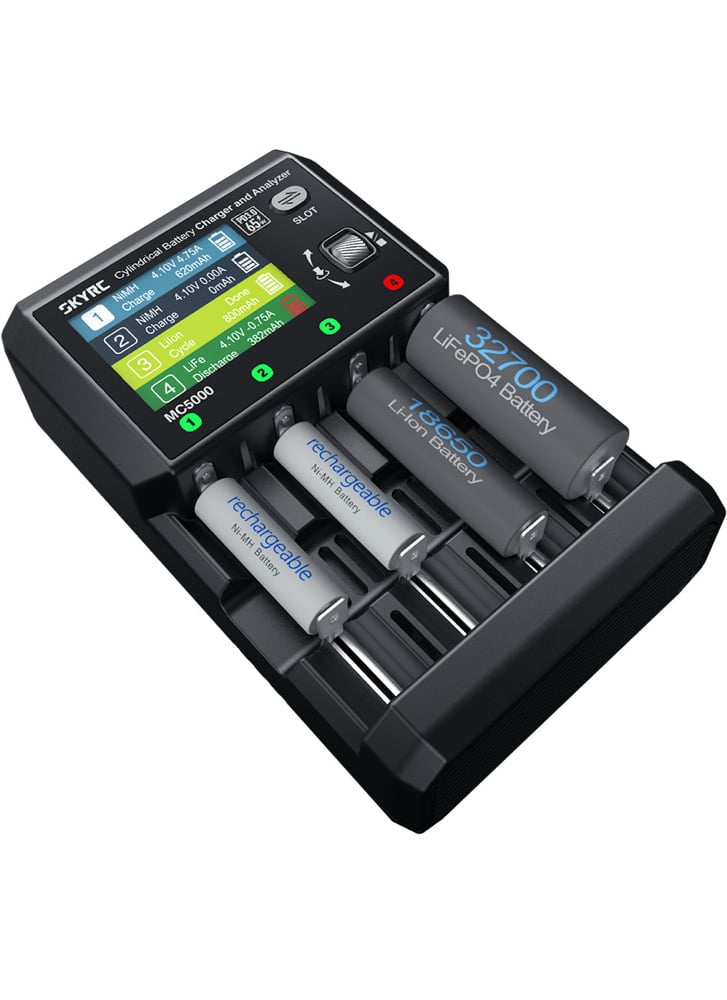

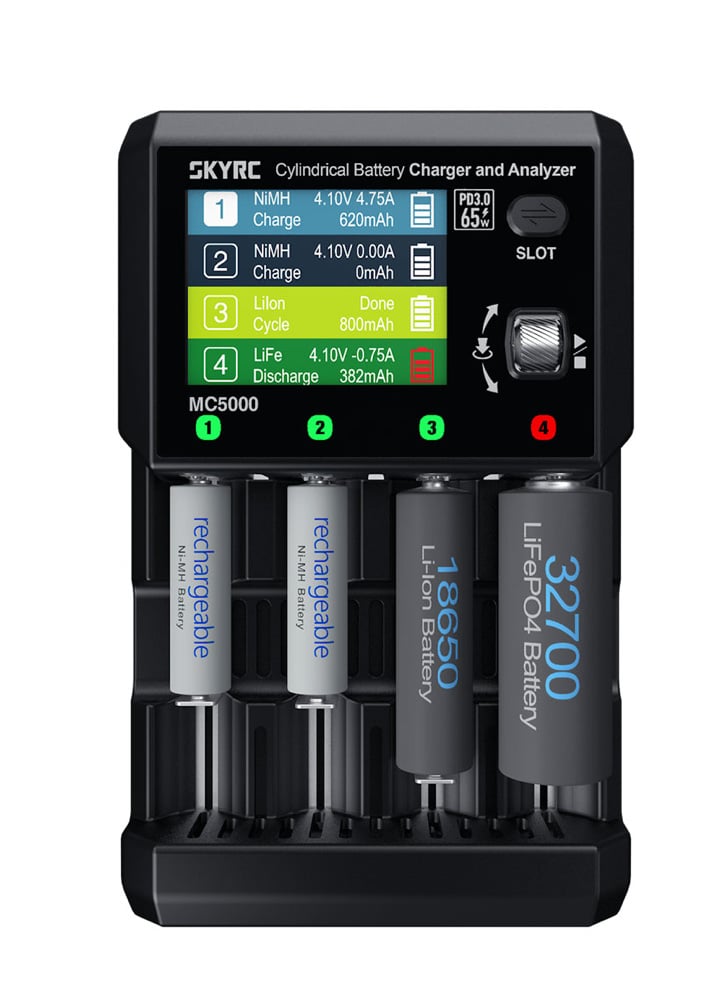

SkyRC MC5000 Universal Cell Type Battery Charger & Analyzer
£108.90
The SkyRC MC5000 is a professional-grade charger and analyzer for cylindrical cells, offering advanced control and precision across a wide range of battery chemistries. With four fully independent channels, it can charge, discharge, and analyze up to four batteries simultaneously, each with custom parameters. The large color display provides real-time readouts of voltage, current, capacity, resistance, and charge/discharge curves, making it ideal for testing, maintenance, and battery health evaluation.

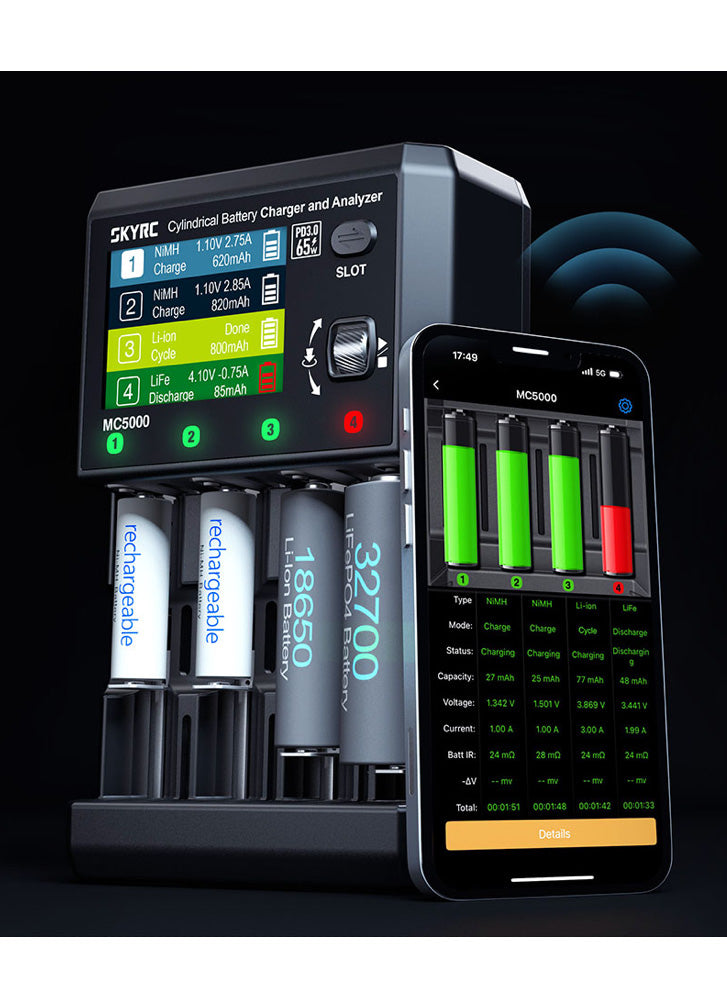

A spring-loaded sliding contact adapts to many cylindrical sizes, making it compatible with everything from AAAA to 32700 cells. Supporting up to 10 battery types including Li-ion, LiFe, NiMH, NiCd, NiZn, RAM, LTO, and Na-ion, it delivers adjustable charge currents up to 5A and discharge currents up to 2A. Multiple working modes—Charge, Discharge, Storage, Refresh, Break-in, and Cycle—offer full flexibility for every cell condition. Built-in Bluetooth 5.0 allows you to monitor and control the charger, view live graphs, and update firmware via the SkyCharger mobile app.
It also includes a 65W PD USB-C output for powering compatible devices, a quiet active cooling system, and safety features such as reverse polarity, overload, and temperature protection.
Features
- Four independent slots with unified or per‑bay settings for flexible workflows
- Wide chemistry support: Li-ion, Li-ion HV, LiFe, NiMH, NiCd, eneloop, NiZn, RAM, LTO, Na‑ion
- Fast performance: up to 80W charge power and 5.00A selectable charge current; discharge up to 20W/2.00A
- Precision control: near‑zero current fluctuation and 0.01V voltage accuracy (lab tested)
- Battery health insights: internal resistance measurement and real‑time charging curves (curves available in charge mode)
- PD 3.0 USB output up to 65W to power compatible devices
- Clear interface: 2.8″ colour display with ColorX UI, intuitive icons and LED status indicators
- Productivity design: aluminium scroll wheel and a foldable stand with a comfortable 13° viewing angle
- Triple‑fan smart cooling helps manage heat, especially with higher NiMH currents
- Built‑in safety protections and multi‑language UI (English, Dutch, Chinese, French, Spanish, Japanese)
- Working Modes
- Li-ion / Li-ion HV / LiFe / LTO / Na‑ion: Charge, Storage, Discharge, Cycle
- NiZn / RAM: Charge, Discharge, Cycle
- NiMH / NiCd / eneloop: Charge, Refresh, Break-In, Discharge, Cycle
- Suggested Compatibility
- Spring‑loaded sliding negative contact adapts to many cylindrical sizes
- Suggested compatibility includes AA/AAA through larger formats such as 21700/32700
- With many sizes on the market, full coverage may not be guaranteed
Specifications
- Case size: 188 × 122 × 65 mm
- weight: approx. 665 g
- Display: 2.8″ TN, 240 × 320, 262K colours
- AC input: 100–240 V (50/60 Hz)
- Charge power: 80 W
- discharge power: 20 W
- USB output: PD 3.0 up to 65 W
- Charge current: 0.05–5.00 A
- discharge current: 0.05–2.00 A
- Operating temperature: 0–40 °C
- storage: −10–70 °C
- Working/storage humidity: 5%–75%
- Battery Type: Li-ion, Li-ion HV, LiFe, NiMH, NiCd, eneloop, NiZn, RAM, LTO, Na-ion
- Charge Current: 0.05A ~ 5.00A
- Discharge Current: -0.05A ~ -2.00A Operation:
- Li-ion/Li-ion HV/LiFe/LTO/Na-ion: Charge/Storage/Discharge/Cycle
- NiZn/RAM: Charge/Discharge/Cycle
- NiMH/NiCd/eneloop: Charge/Refresh/Break in/Discharge/Cycle
