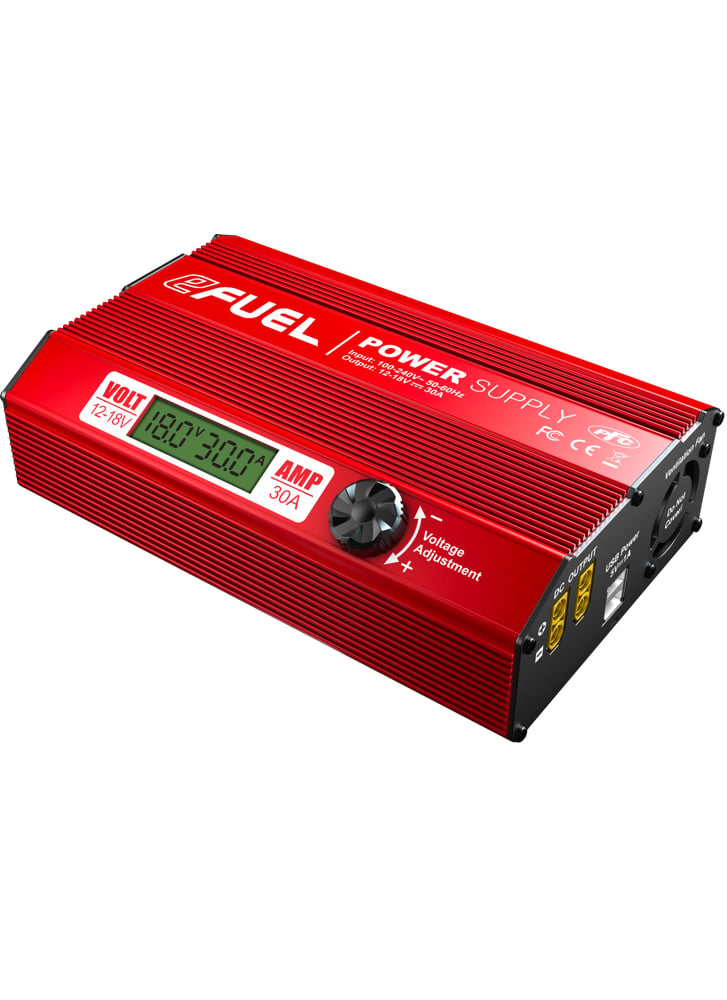

SkyRc eFuel 30A 540W 12-18V DC Power Supply w/LCD Display
£114.90
The eFUEL switching DC Power Supply is designed to use household AC power source to power equipments that required DC power. The eFUEL converts standard household power 100-240V AC to 12-18V DC power and can supply up to 30 amperes of continuous power.

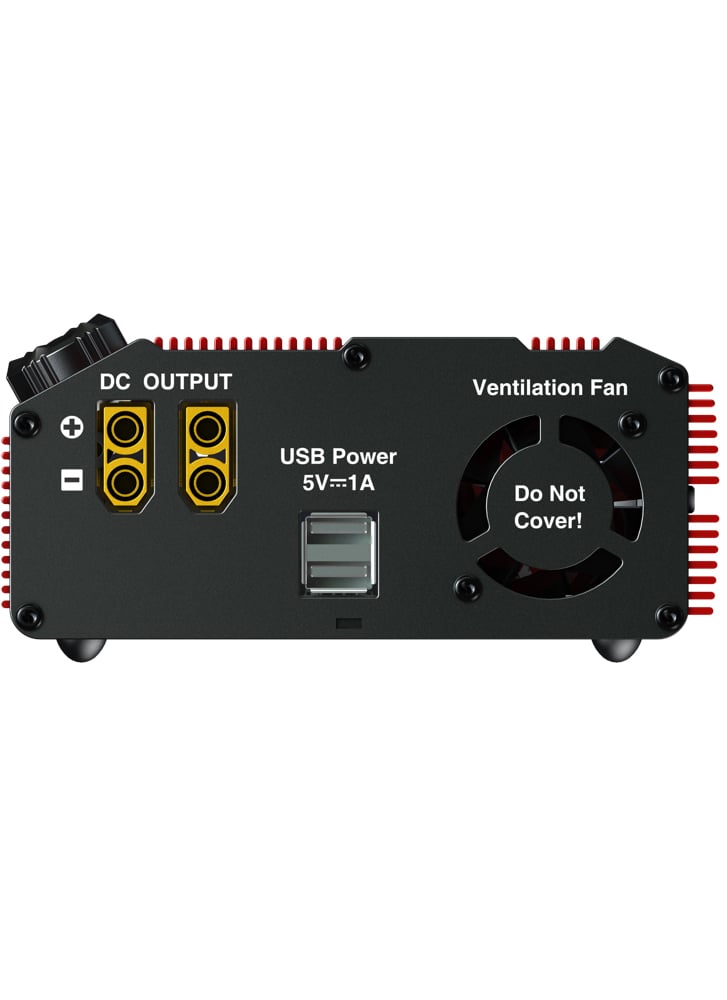

The output power sockets use XT90 female – requires XT90 Male connector .
Features
- Dual DC power outputs, up to 30 Amps
- Output voltage adjustable 12-18V

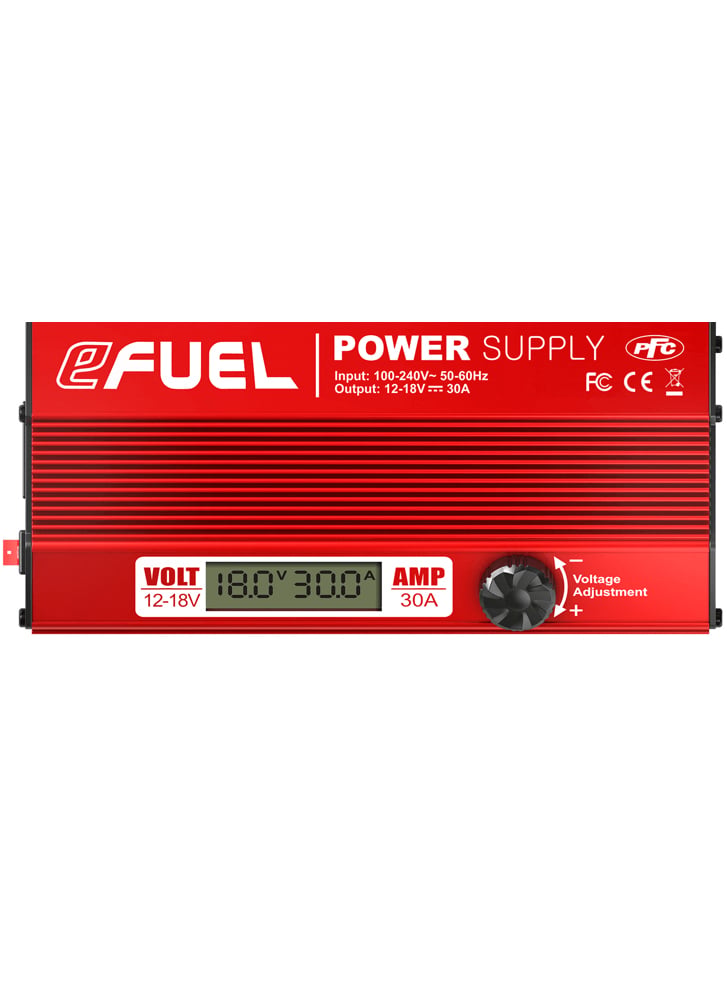

- Large LCD indicates voltage and current amperes output
- Two USB charging ports
- Smart cooling fan
- Over temperature protection
- Over loading protection
- Short circuit protection
Specifications
- Input Voltage: 100-240V AC
- Input AC Frequency: 50Hz-60Hz
- Output Voltage: 12-18V DC±0.5V
- Output Current: 30A±1A
- Current Overload Protection: ≤31A 500MS
- Input Fuse: 100-240V AC 10A Fuse
- LCD Display: Voltage Precision ±0.3V Current Precision ±0.3A
- Output Voltage Ripple: <150MV
- Power Efficiency: >89%
- Power Factor: >0.98
- Over Temperature Protection: <65℃
- Cooling Method: Cooling Fan
- Operating Temperature: 0-40℃
- Operating Humidity: 0-90%
- Dimensions (L x W x H): 218 x 139 x 59.5mm
- Net weight: 1.62kg
In the box
- 1x SKYRC eFuel 30A
- 1x UK Power Plug
