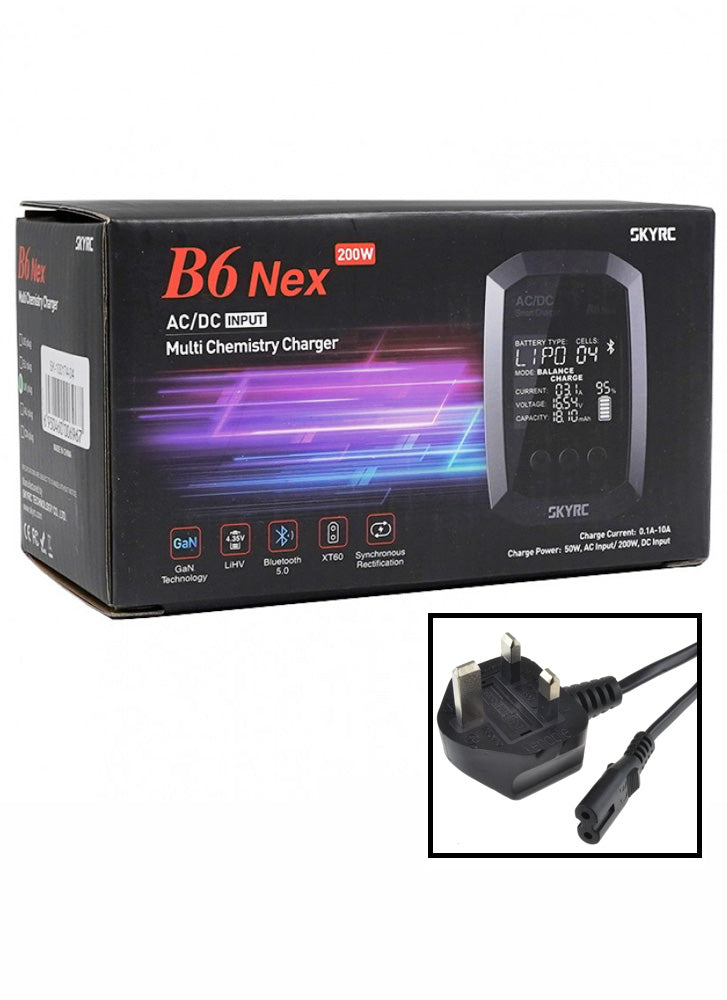

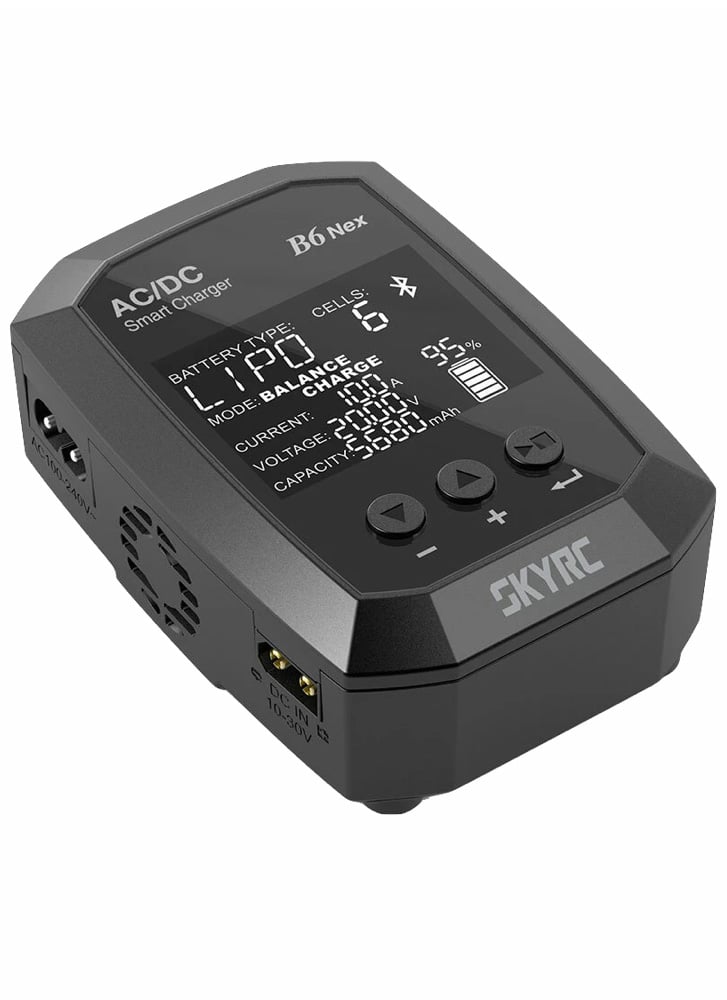

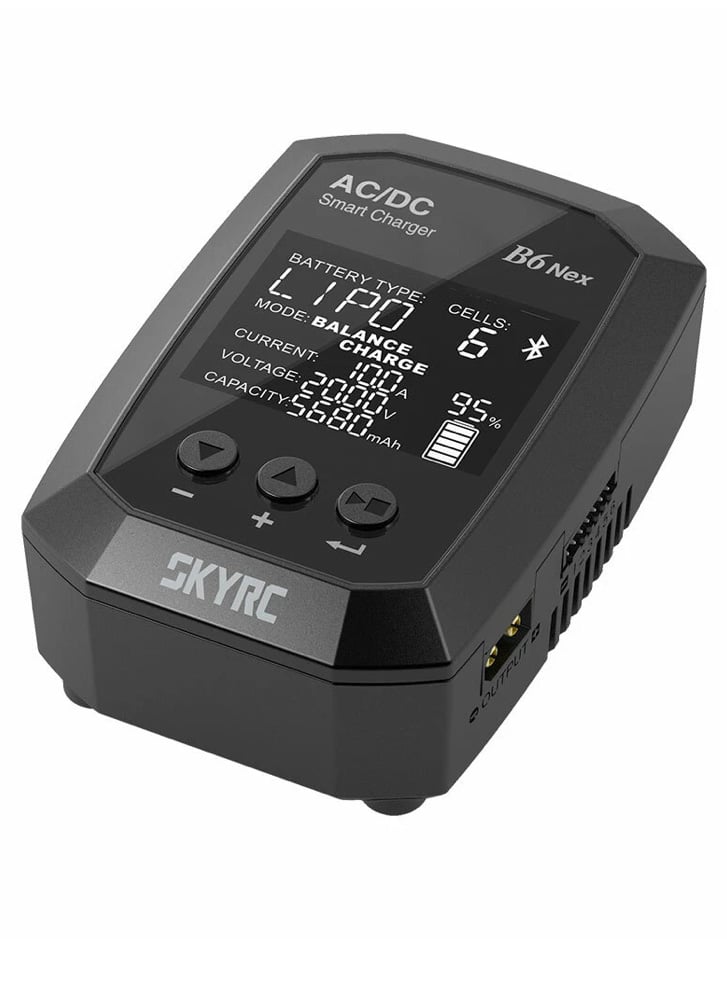

SkyRC B6 NEX AC 50W / DC 200W 10A Balance Charger with Bluetooth
SkyRC B6 NEX AC 50W / DC 200W 10A Balance Charger with Bluetooth
SkyRC B6 NEX AC 50W / DC 200W 10A Balance Charger with Bluetooth

SkyRC B6 NEX AC 50W / DC 200W 10A Balance Charger with Bluetooth

£73.90

The SkyRC B6 Nex AC/DC Battery Charger builds on the success of the iconic iMax B6. The B6 Nex is a high-performance solution designed for hobbyists of all disciplines.

With the dual power AC/DC input, B6 Nex can charge the 1-6 cell Li-ion or LiPo batteries at a maximum charge current of 10A. The maximum power of B6 Nex can reach up to 200W (DC, 50W on AC). Menu navigation is made easy with the intuitive three-button control interface. With the stunning backlit 2.4-inch VA screen, large viewing angle, high WBC, rapid response, all information is clear at a glance.The built-in Bluetooth 5.0 enables B6 Nex’s connectivity with smartphones. The app can push notifications reminding users that charge or discharge is completed. A unique feature of the B6 Nex is SCAN TO GO (automatically charging system): with the SkyCharger app, a unique QR code sticker can be printed and pasted on the battery. Since all the essential information is stored in the QR code, all you need to do is to scan the QR code, and the charge or discharge process will start automatically. Through the smart app, the charger can be quickly upgraded wirelessly. There is no need to buy an expensive legacy data cable for firmware upgrade through a computer. The firmware upgrade is made easy with the smartphone. With B6 Nex, charging becomes a faster and more convenient experience!

Cutting Edge with GaN Power!

By replacing silicon with gallium nitride, SkyRC has been able to implement their proprietary charging algorithm and optimal thermal dissipation technique to minimize the temperature rise, deliver more power, and shrink its size. The primary benefit is power to footprint ratio. GaN systems offer higher power output in a smaller size than a traditional charger. The con is that GaN requires synthetic materials, which are much more difficult to manufacture than traditional silicon.

What is GaN?

Gallium nitride (GaN) is a very hard, mechanically stable wide bandgap semiconductor. GaN is used in the production of semiconductor power devices as well as RF components and light-emitting diodes (LEDs). GaN has demonstrated potential to be the replacement technology for silicon semiconductors in power conversion, RF, and analog applications. GaN’s ability to conduct electrons more than 1000 times more efficiently than silicon, while being able to be manufactured at a lower cost than silicon has been well established. When compared to silicon, GaN is a superior choice.

Features

Scan to Go: A unique feature of the B6 Nex is the SCAN TO GO automatic charging system. With the SkyCharger app, a unique QR code sticker can be printed and pasted on the battery. Since all the essential information is stored in the QR code, all you need to do is to scan the QR code, and the charge or discharge process will start automatically without needing to manually update charge parameters.

Intuitive Android & iOS application: SkyCharger app available on App Store and Google Play.

Wireless Firmware Upgrade: Through the smart app, the charger can be quickly upgraded wirelessly. There is no need to buy an expensive legacy data cable for firmware upgrade through a computer. The firmware upgrade is made easy with your smartphone.

Specifications
