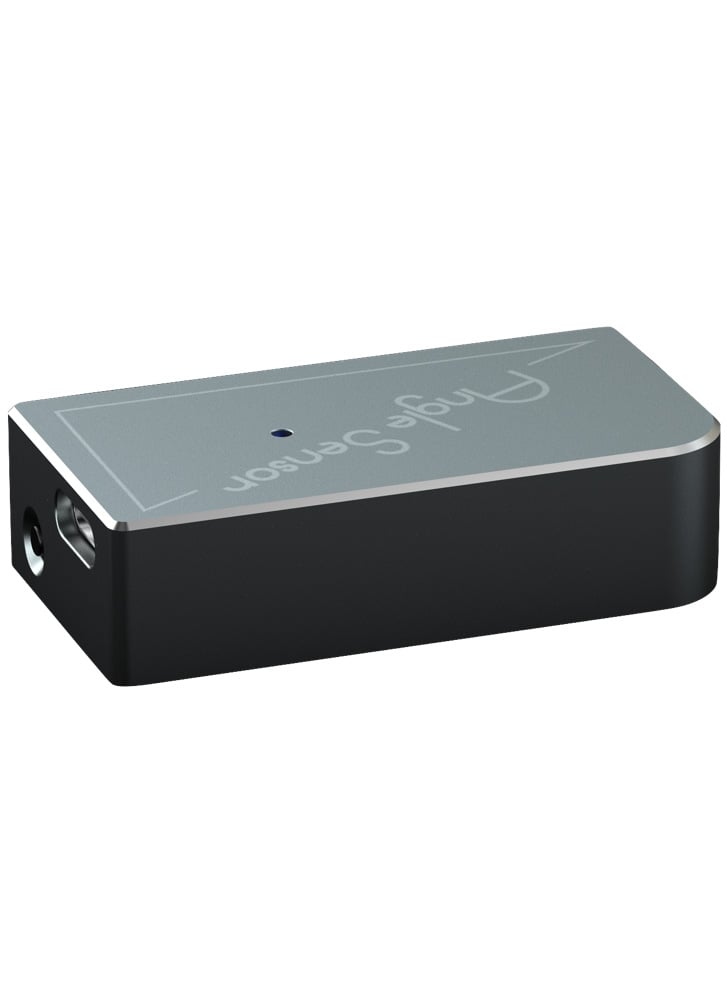

SkyRC Angle Gauge SAM-020 (3Pcs) for RC Airplanes SK-500040-01
£79.95
The SkyRC SAM-020 Angle Gauge is a must-have in any RC guru’s toolset, offering precise, wireless measurement of control surface angles on fixed-wing aircraft. Traditional mechanical methods fall short when it comes to precision and can’t easily measure relative angles. The SAM-020 solves this with three compact sensors that connect via Bluetooth 5.0 to the RC Gears app, providing real-time angle data for rudder, elevator, and aileron surfaces. It’s ideal for setting maximum throws, mixed surface angles, and aileron differentials. Each module is lightweight, USB-C rechargeable, and offers angle measurement accurate to within 2°, with travel accuracy of 0.1 mm — making setup faster, easier, and far more consistent.
Ideal for fixed-wing aircraft setup, especially when paired with the SkyRC CGG-020 CG Gauge (sold separately).
RCGears APP – Click or Scan to download App
Specifications
- Working Voltage: 3.4-4.2V
- Working Current: ＜10mA
- Interface: Type C
- Input Voltage: 5V
- Input Current: 200-300mA
- Battery Type: 3.7V LiPo
- Battery Capacity: 200mAh
- Low-voltage Protection: ＜3.4V (Flashes Red)
- Measuring Accuracy: ±2°
- Travel Accuracy: ±0.1mm
- Working Temperature: 0℃-50℃
- Working Humidity: 5%-90% (No Condensation)
- USB-C Power Cable
In the box

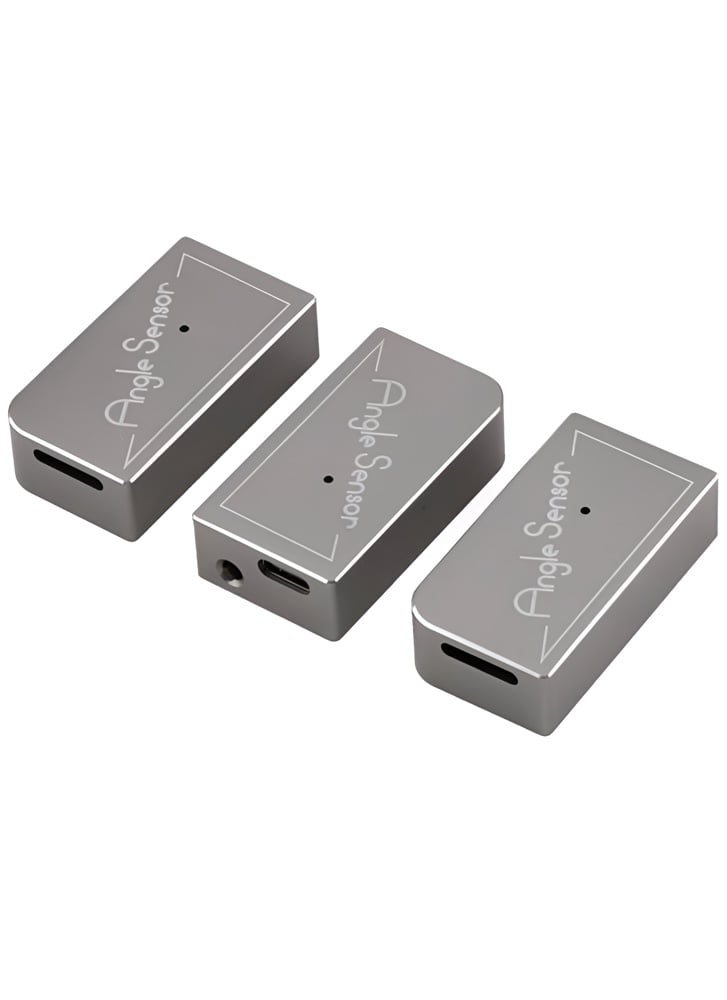

- 3x SkyRC Angle gauge
