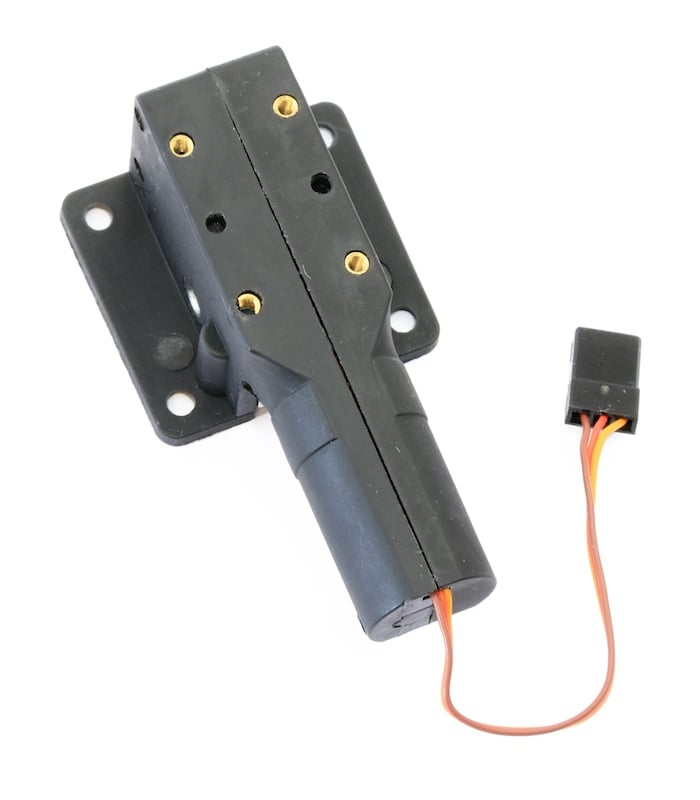

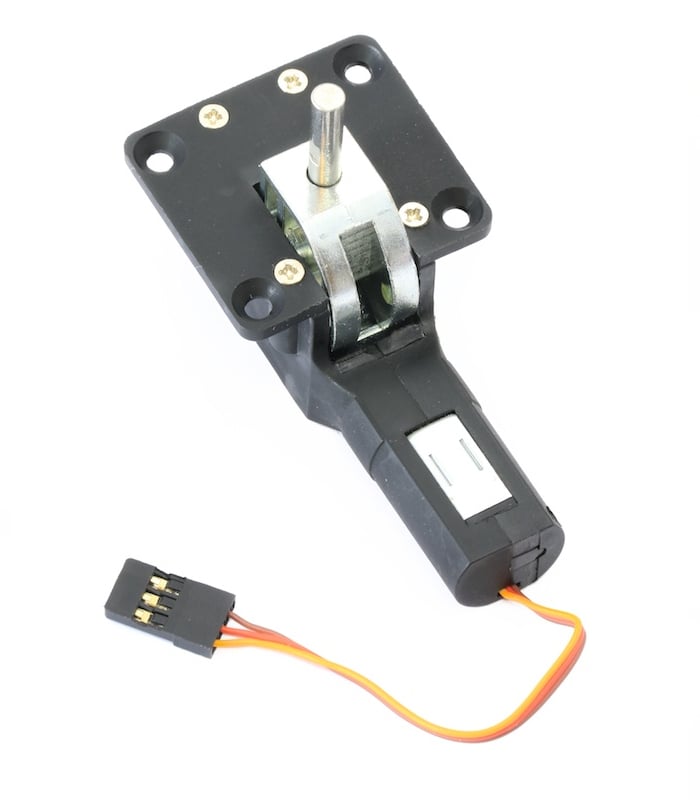

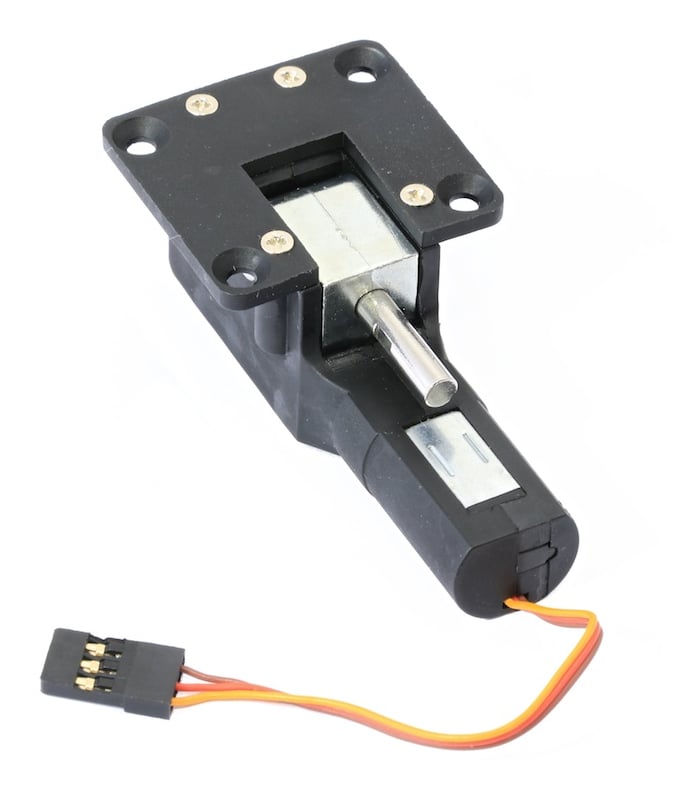

Servoless 90 Degree Retract with Metal Trunnion – 33mm x 35mm Mount
£18.00
Features
- Reliable mechanism with metal gearing and a high torque motor
- Robust mounting bracket
- Built-in over-current and jamming protection with auto-cutoff
- Pre-installed 4mm mounting pin (removable – secured with a grub screw)
A pair of servoless retracts can be used to make an inexpensive DIY retractable landing gear for a multirotor. There are many tutorials online but in essence in addition to the retracts you just need a Y cable to connect the retracts in parallel, a carbon fibre tube landing gear to modify and a spare RC channel controlled via a 2-position switch. A retractable landing gear not only looks super cool, its a huge advantage for photography and filming as the retracted gear will not block the view of the camera, making smooth shooting in all direction possible.
We also sell a similar retract with a 75 degree range of movement - here .
Specifications
- Working voltage: 4.5-5.5V

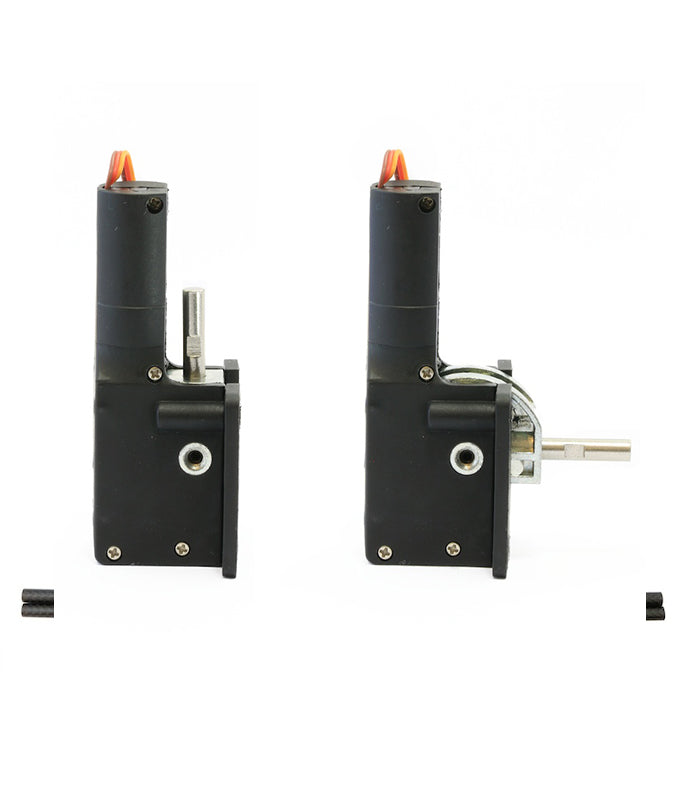

- Movement: 90°
- Mount Plate Dimensions: 33mm x 35mm
- Mount Plate Hole Spacing: 24mm x 28mm (M3)
- Top Screw Hole Spacing: 12mm x 20mm (M2)
- Depth: 26mm
- Length: 61mm
- Pin: 4mm
- Weight: 46g
