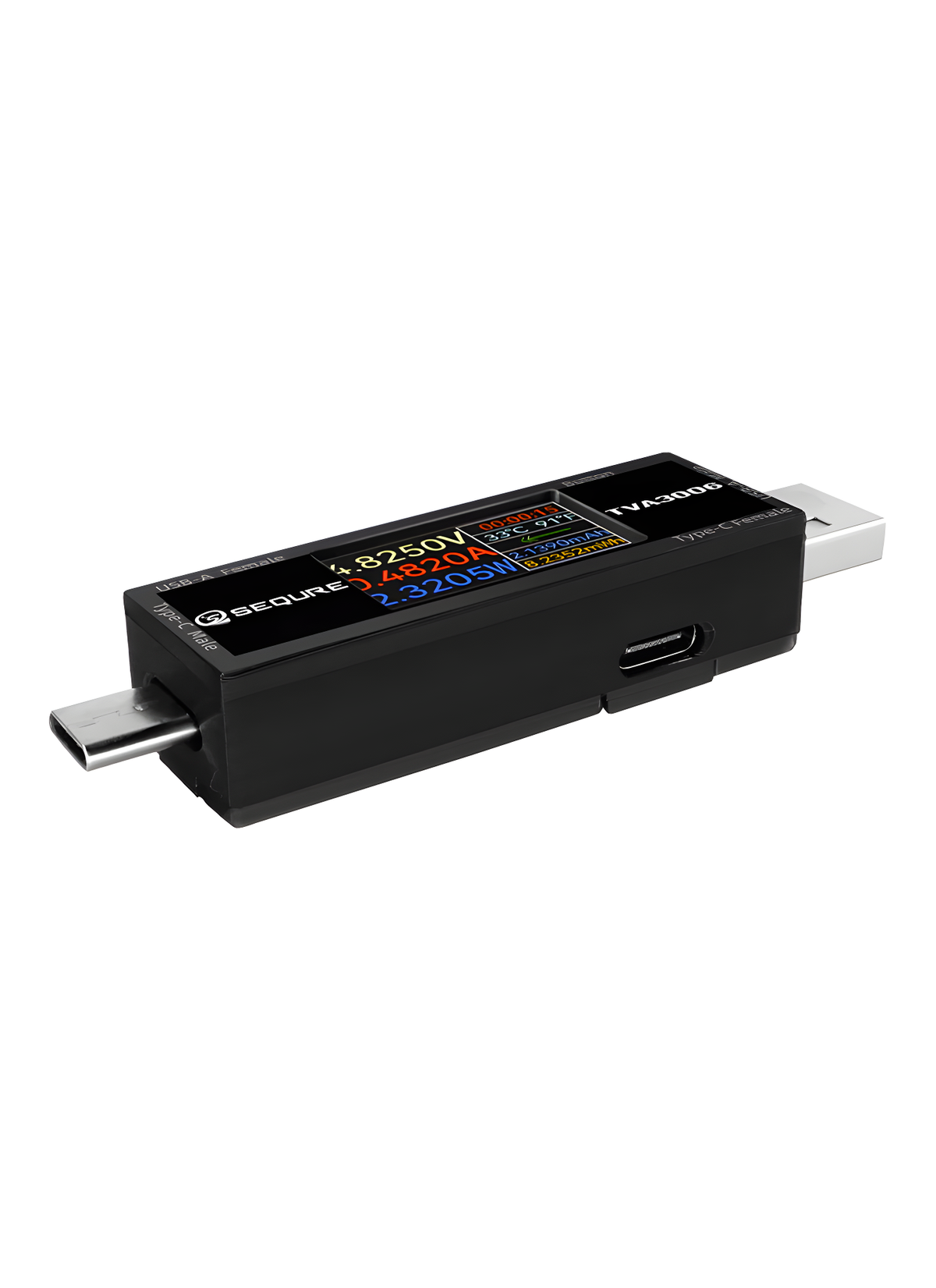

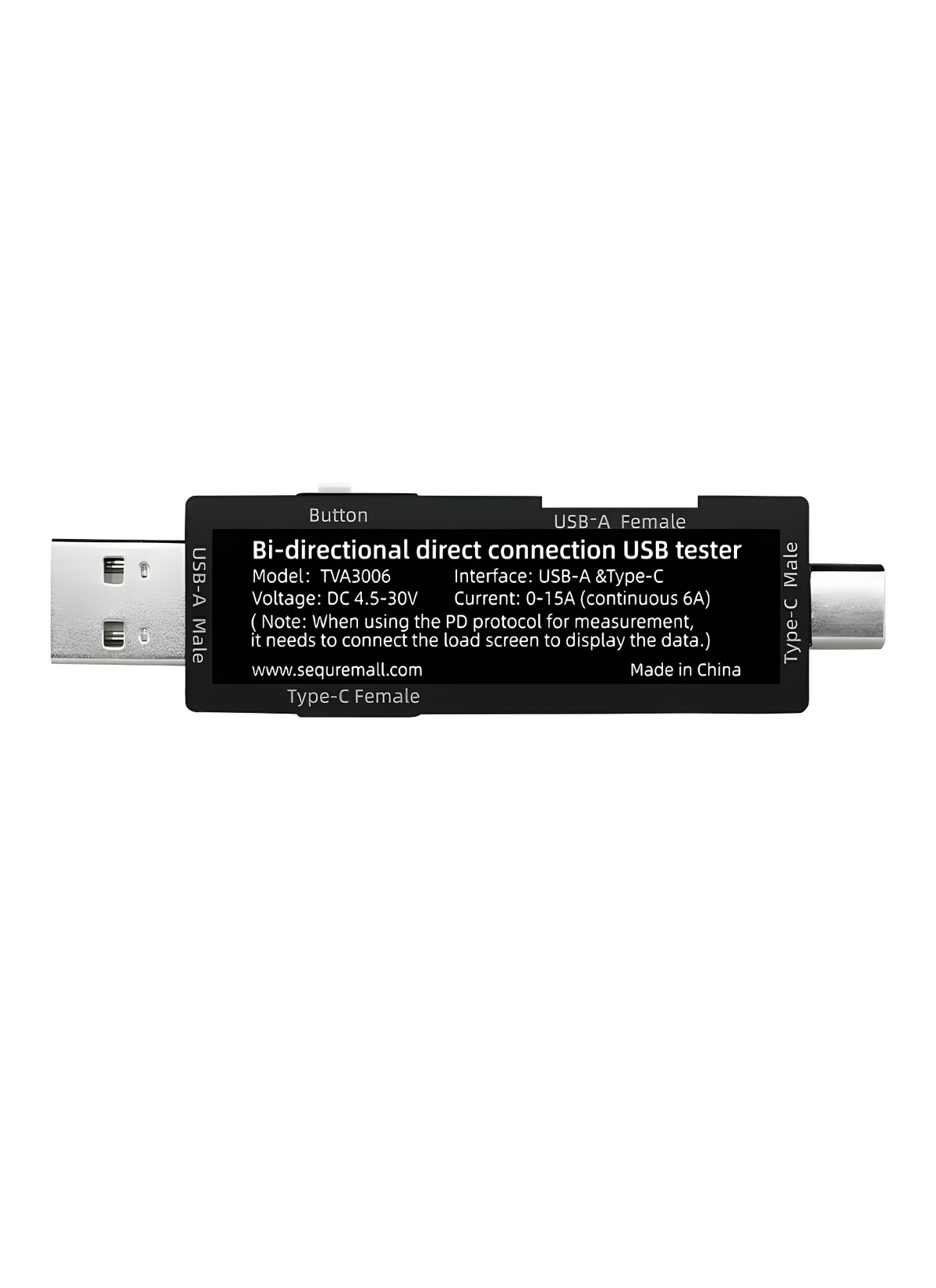

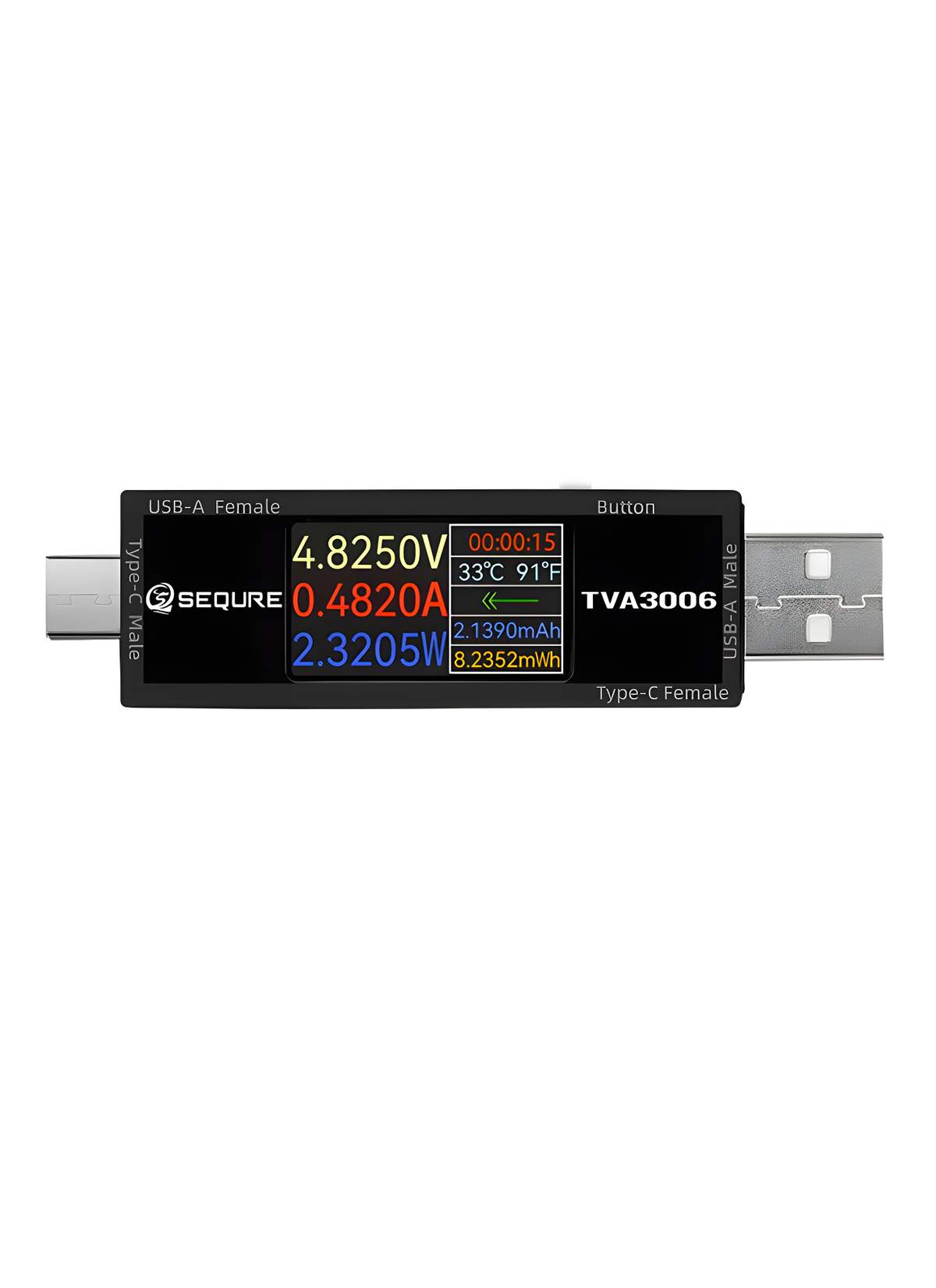

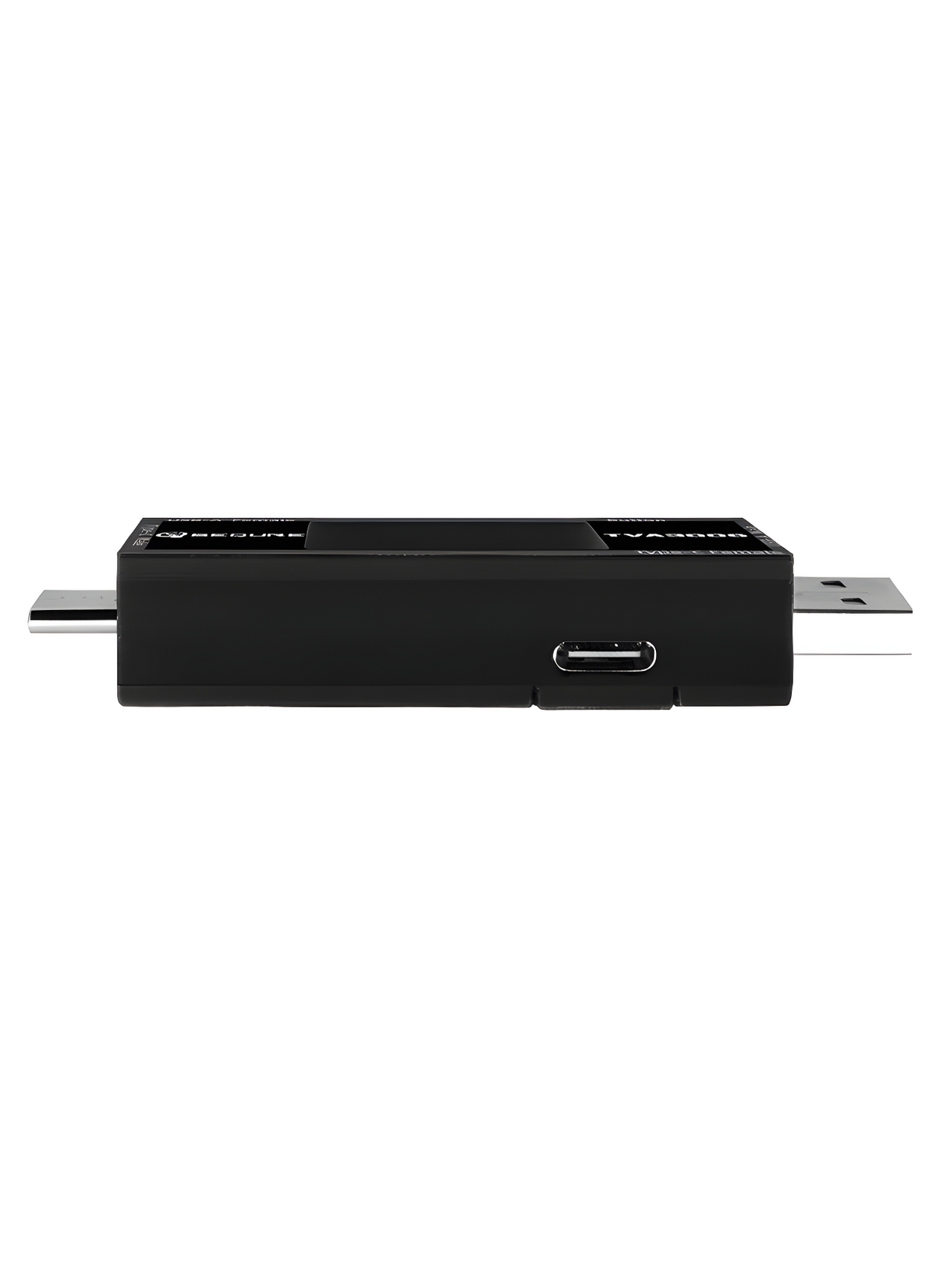

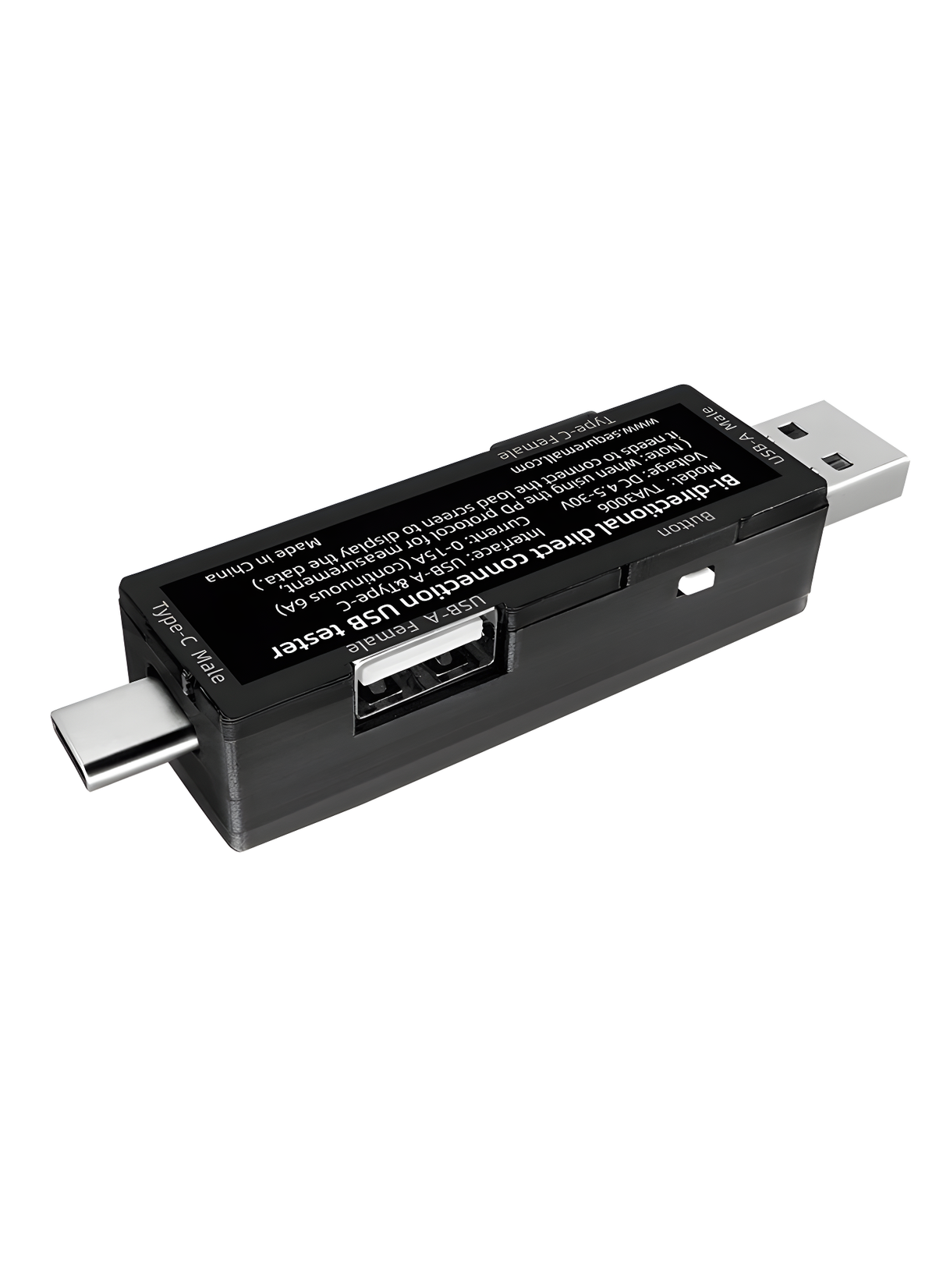

Sequre TVA3006 High Precision USB (Type C & A) Pass-Through Power Meter
£12.90
The Sequre TVA3006 Pass-Through Power Meter is useful for testing the power output from your USB power supply, be it your computer, power adapter or power bank. The tester works for USB devices, both Type A (full size USB) and Type C.
The USB tester measures in real time, voltage, current, current direction, power, discharge flow, capacitance and work timekeeping. This is very handy for determining if your mobile phone, action camera or even 1S Tiny Whoop drone battery is being charged properly. The tester’s compact size allows it to be conveniently carried with your device.
Features
- Measures voltage, current, power, discharge flow, capacitance, work timekeeping and current direction in real time.
- Supports test voltage from DC4.5V to DC30V, current from 0A to 15A.
- Detects bidirectional current. Supports USB-A & Type-C.
- Small size, easy to carry and store, you can use it anywhere and anytime
- LCD screen easily displays current and voltage data
- Collects data statistics, the statistics interface will show the maximum/minimum/average value of voltage, current, and power.
Specifications
- Voltage Range: DC 4.5-30V
- Current Range: 0-15A(Continuous 6A)
- Interface Specification: USB-A & Type-C
- Voltage Measurement Accuracy: ±0.01V
- Current Measurement Accuracy: ±0.01A
- Screen Specification: 1.14”IPS LCD
- Monitoring Methods: Pass-through
- Monitoring Content: Voltage, Current, Power, Work Timekeeping, Temperature, Current Direction, Capacitance, quantity of electricity, and so on.
- Adjustable Display Direction of Screen: Support
- Data Statistics: Support
- Firmware Upgrade: Support
- Dimension: 80x20x14mm
- Weight: 18g
- 1 x SEQURE TVA3006
