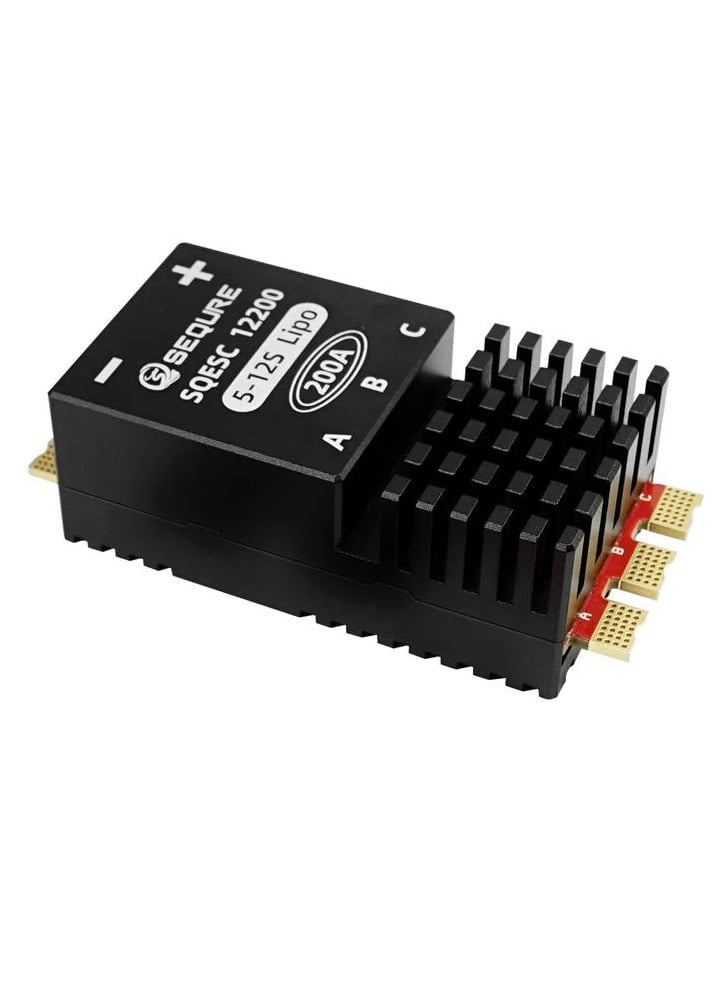

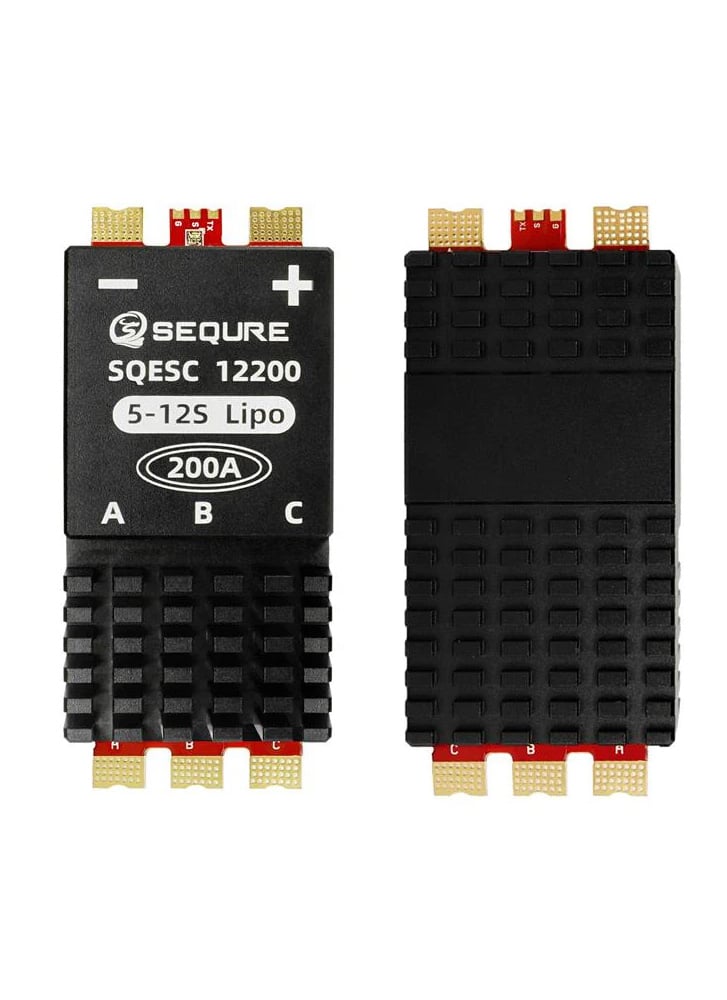

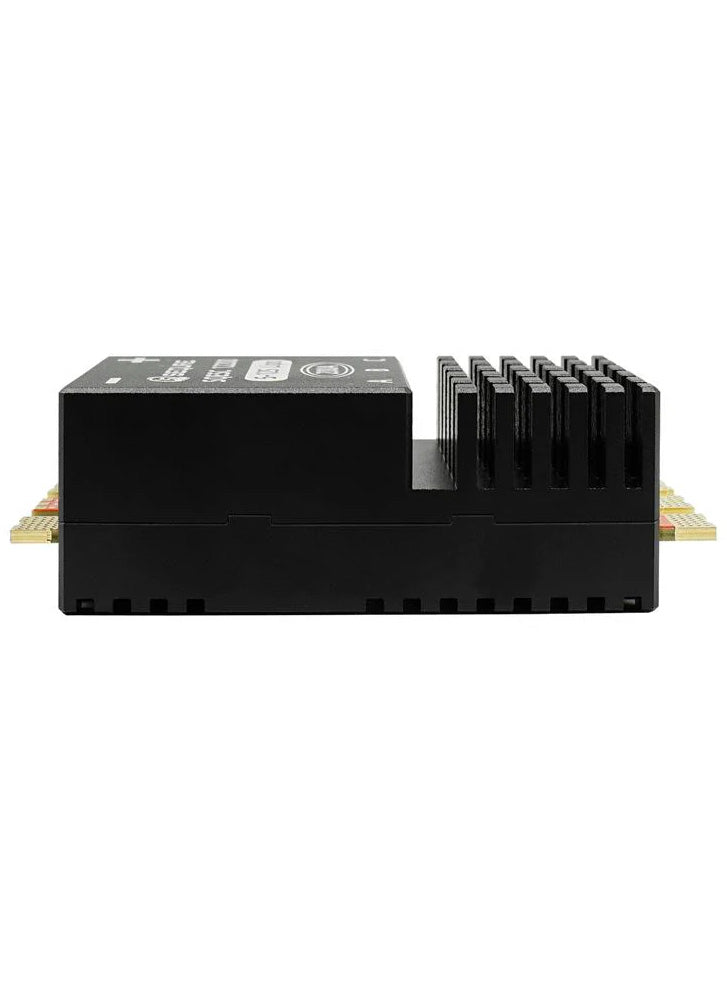

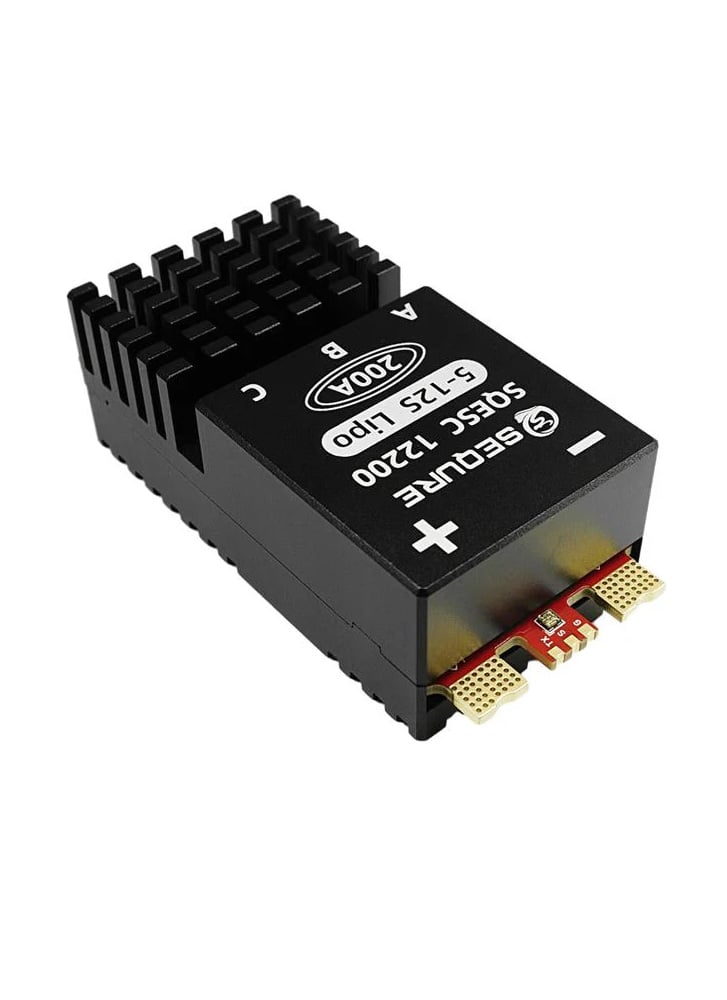

Sequre SQESC 12200 Brushless 200A ESC 5-12S BLHeli_32 / AM32
£105.00
BLHeli_32 Notice – click here to read more.
Sequre is a brand well known in the hobby world for making innovative hobby tools like smart soldering irons and screwdrivers. They are now expanding their offering with component electronics.
This SQESC 12200 is a powerful 200A brushless speed controllers (ESC) which makes use of the latest in drone ESC technology. This ESC isn’t just for drones though. It’s universal to all RC models, be that fixed-wing aircraft, cars, boats and so on.
The ESC runs BLHeli_32 / AM32 firmware (select as required) allowing it to be configured to meet your needs. For example setup relating to: ESC brake, motor timing, direction, throttle calibration, current detection and other settings can be adjusted (ESC programmer required – here ).

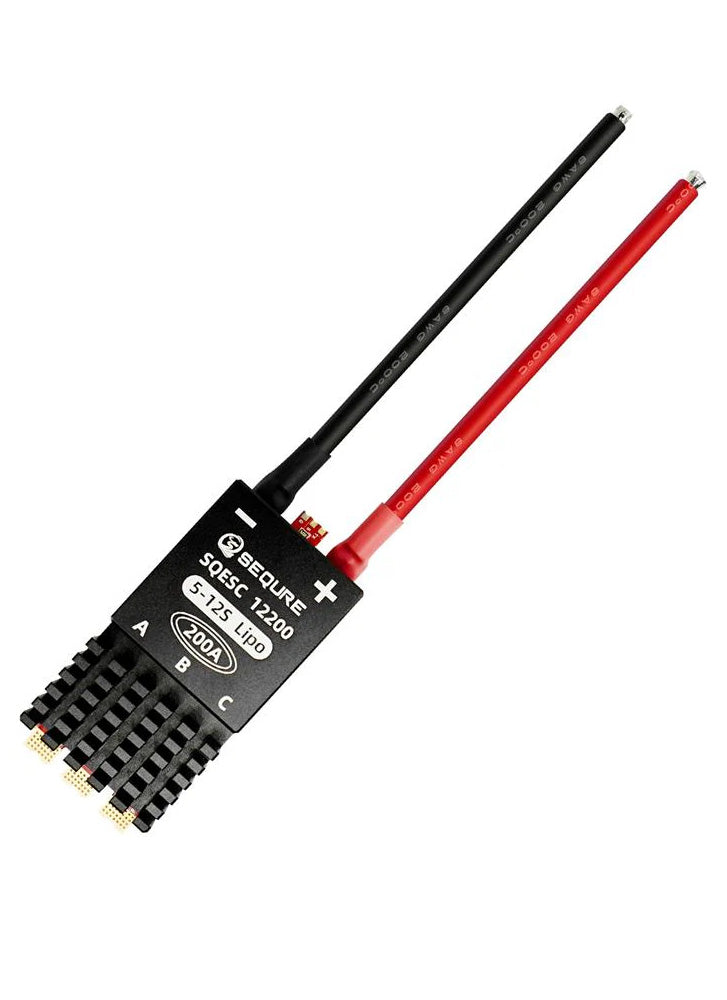

The SQESC 12200 ESC is sold in two versions: unsoldered or pre-wired using heavy gauge 8AWG silicone wire – please select as required.
Features
- Utilises 32-bit high-performance processor STM32G071
- Supports working frequency of up to 64MHz and maximum support 128KHz motor PWM frequency
- Works with all Dshot signals. Also supports signal protocols such as PWM, Oneshot and Multishot.
- Supports multiple motion modes such as unidirectional, bidirectional, and braked motors.
- Features multiple protections such as low voltage protection, temperature protection, locked rotor protection and current protection.
We would like to inform customers about recent changes affecting the availability of BLHeli_32 firmware. As of 2024, the development and licensing of BLHeli_32 have been discontinued, and official support channels, including firmware updates, are no longer accessible.
How This Affects You:
Future firmware updates for BLHeli_32 ESCs will no longer be provided. ESCs with factory-installed BLHeli_32 may still function but without ongoing support or new features.
Future firmware updates for BLHeli_32 ESCs will no longer be provided.
ESCs with factory-installed BLHeli_32 may still function but without ongoing support or new features.
Firmware Configuration Options: Some manufacturers and third-party developers have access to firmware builds provided directly by the original BLHeli_32 developer for development and configuration purposes. These are not official public releases and are not endorsed or supported by the BLHeli_32 project. Availability, functionality, and long-term support cannot be guaranteed.
For reference only, some manufacturers host access pages for BLHeliSuite32 tools and firmware provided by the original BLHeli_32 developer. These are not official public releases and are not supported by the BLHeli_32 project.
Looking Ahead with AM32 Firmware: We also offer Sequre ESCs pre-flashed with AM32 firmware . AM32 is a modern, open-source alternative that is actively maintained and offers the same high-level features with continued updates.
Specifications
- Processor: STM32G071
- Input voltage: DC 18V-50.4V（5-12S Lipo）
- Continuous current (good heat dissipation): 200A
- Maximum current (good heat dissipation): 250A
- Support firmware: BLHeli_32，AM32
- BLHeli_32 firmware: SEQURE_G071_01
- AM32 firmware: SEQURE_G071
- Signal protocol: Dshot (All), PWM, Oneshot, Multishot, etc.
- Programming parameter adjustment: Support
- Throttle calibration: Support
- Timing angle setting: Support
- Current detection: Support
- Telemetry signal: Support
- Motor steering settings: Support
- RGB LED color lights: Support
- BEC (if any): NO
- Size: 84x38x27mm / 230x38x27mm (Pre-wired/BEC)
- Weight: 120g / 155g (Pre-wired/BEC)
- Application scenarios: FPV racing drones, multi-axis drones, fixed-wing UAV, model ships, climbing vehicles, model cars, etc.
