Sequre H743 V2 Flight Controller / Stack with E130/E160 G2 AM32 ESC
Sequre H743 V2 Flight Controller / Stack with E130/E160 G2 AM32 ESC
Sequre H743 V2 Flight Controller / Stack with E130/E160 G2 AM32 ESC

Sequre H743 V2 Flight Controller / Stack with E130/E160 G2 AM32 ESC

£159.99

SEQURE H743 V2 & E130/E160 G2 Stack FC ICM42688P 4-12S 130A/160A ESC

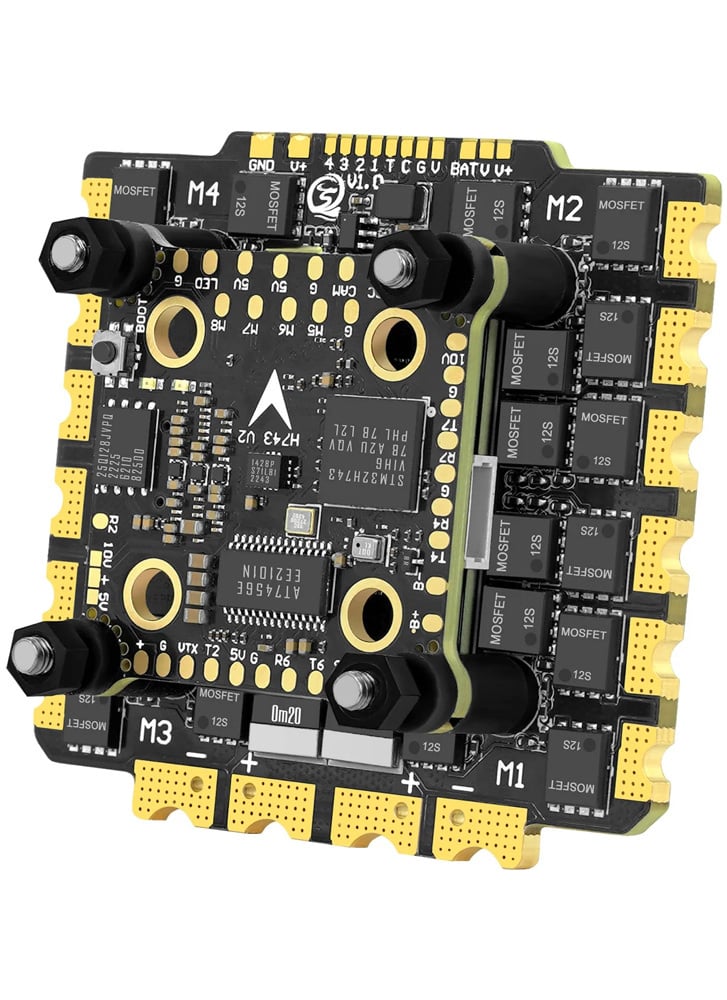

The SEQURE H743 V2 Flight Controller Stack pairs the H743 V2 Flight Controller with a choice of E130 G2 130A or E160 G2 160A 4-in-1 ESC. Aimed at high-power multirotors, large FPV drones and demanding X8 builds, the stack offers unusually high current capability alongside battery voltages up to 12S.

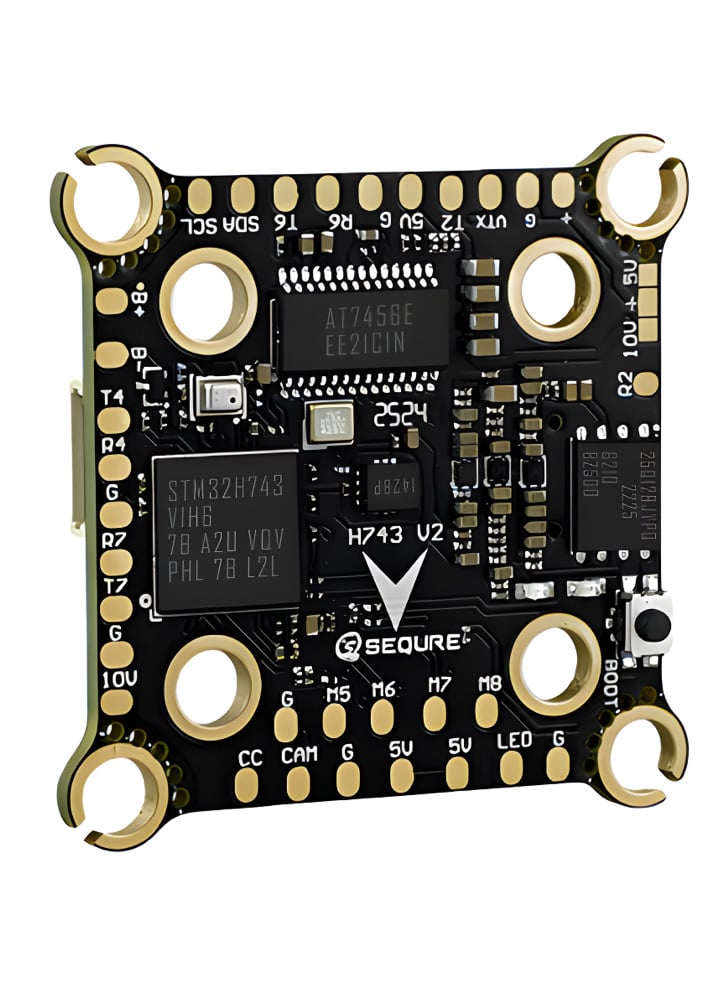

The H743 V2 Flight Controller runs a high-performance STM32H743 processor at up to 480MHz, leaving ample headroom for advanced flight control. An ICM-42688-P gyroscope handles motion sensing, joined by an onboard barometer, AT7456E analogue OSD and 16MB blackbox for flight logging. Betaflight, INAV and ArduPilot are all supported, which covers everything from FPV multirotors to more complex autonomous builds.

Connectivity is just as thorough: six UARTs, WS2812 LED support, a buzzer connection and outputs for up to eight motors, so X8 configurations are covered. Separate 5V/2.5A and 10V/2A BEC outputs power peripherals, and dedicated connections make integrating a DJI O3/O4/O4 Pro Air Unit or an analogue VTX straightforward. The FC takes 4-8S LiPo/LiHV input and offers both 20x20mm and 30.5×30.5mm mounting patterns; in this stack the ESC sets the overall 30.5×30.5mm pattern.

The H743 V2 comes with either the E130 G2 or E160 G2 4-in-1 ESC, both built on the STM32G071 32-bit processor and shipped with AM32 firmware. The E130 G2 is rated at 130A continuous / 220A peak per channel, while the heavier-duty E160 G2 reaches 160A continuous / 280A peak per channel. Both suit large motors and other high-current work where a conventional FPV 4-in-1 ESC runs short of headroom.

Both ESCs run to 12S LiPo/LiHV and use low-resistance, high-power MOSFETs with multi-layer PCBs, thick copper construction and onboard copper bus bars. That raises current-carrying capacity and helps shed the considerable heat high-power builds generate. A dual battery-pad arrangement allows parallel power connections, which makes heavy-gauge wiring easier to solder and spreads very high currents through the ESC.

The E130/E160 G2 reports real-time ESC telemetry, with onboard current measurement covering motor RPM, temperature and current. Every DShot protocol is supported along with PWM, OneShot and MultiShot, and configurable parameters cover motor timing, throttle calibration, current detection, motor direction and telemetry settings.

Between the H7 processor, the breadth of connectivity, X8 motor support and those 130A or 160A 4-in-1 ESC options, the SEQURE H743 V2 stack is a strong pick for high-performance FPV drones, CineLifters and other large multirotor builds needing far more current than a conventional FPV stack allows.

Specifications

In the box
