Sequre 65W SQ-001 Mini Soldering Iron

£38.95

The Sequre SQ-001 soldering iron is very similar to the original TS100 smart iron with all the same features, but at a more wallet friendly price.

With its 65W power rating it heats up in seconds and can be used to solder heavy gauge cable with ease. It also boasts very accurate temperature control thanks to dual temperature sensors and a STM32 microcontroller. The temperature is displayed on a clear OLED screen and it can be adjusted quickly from 100 °C to 400 °C by pressing the buttons on the handle. Its built-in motion sensor also allows the iron to automatically change between stand-by mode and operating temperature by sensing when the iron is picked up – a useful feature that saves power and oxidation of the tip whilst you aren’t using it. Our favourite feature of this iron is its brilliant portability. It’s very compact and can be powered from a 3-6S LiPo battery meaning you can take it to a race day and make repairs without a needing a mains power supply.

Features

• Built-in accelerometer with STM32 processor will put it to sleep when put down and wake upon picking it up.
• Digital temperature readout
• Temperature control is set on the handle for easy temperature adjustments
• Anti-static insulated structure ensures safety during use
• Supports custom programmable development (open source firmware)
• Multiple soldering head types are available
• Can be powered via a 3-6s LiPo battery for mobile use
• Power Supply: To power up the iron you should use a 12 V to 24 V power supply or a 3-6S LiPo.

Different power supplies will get different results when it comes to heat up time:

12 V (17 W): 40 seconds

16 V (30 W): 20 seconds

19 V (40 W): 15 seconds

24 V (65 W): 11 seconds

We sell two product bundles:

Option 1 : Included with the iron is the TS-BC2 tip, an XT60 cable and bakelite stand. Other tips are available for the iron here and it’s compatible with tips used by the popular TS100 Iron also.

Option 2 : This is the full combo kit that includes the SQ-001 soldering iron and same accessories as option 1, along with 3 extra spare tips (TS-B2,TS-BC2,TS-D24,TS-I), some solder, desoldering wick and carry case.

Specifications

• Power – 65W
• Temperature stability – ±2%
• Soldering tip resistance to GND – <2Ω
• Temperature Range – 100℃ – 400℃(max)
• Max operation ambient temperature – 40°C
• OLED screen
• Micro USB port
• DC5525 port
• Compliant with EU certification: CE FCC

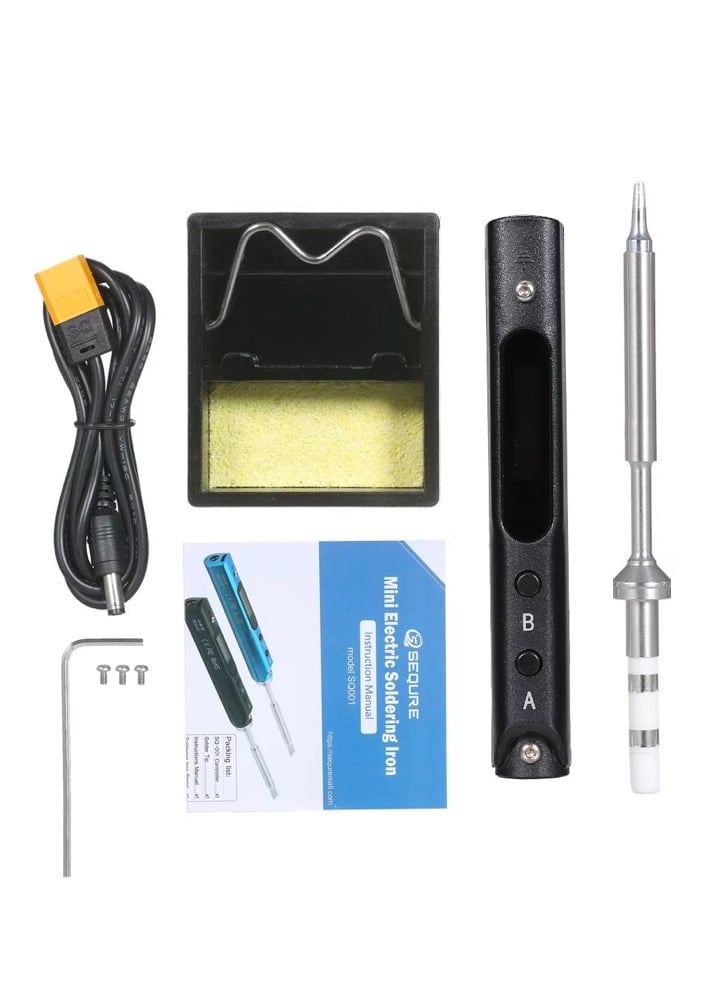

In the box

• 1 x SQ-001 Iron – Black
• 1 x Solder Tip (TS-BC2）
• 1 x Safety Instructions
• 1 x Hex Key
• 1 x DC5525 XT60 Power Cable
• 1 x Mini-bakelite Stand Holder
• 1 x User Manual
