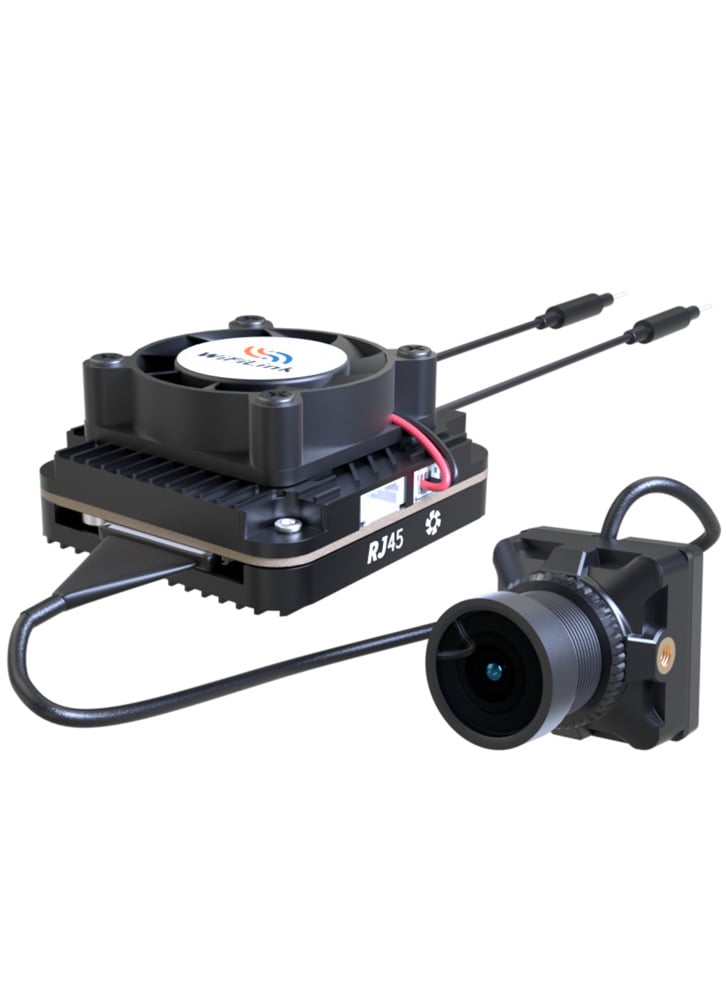

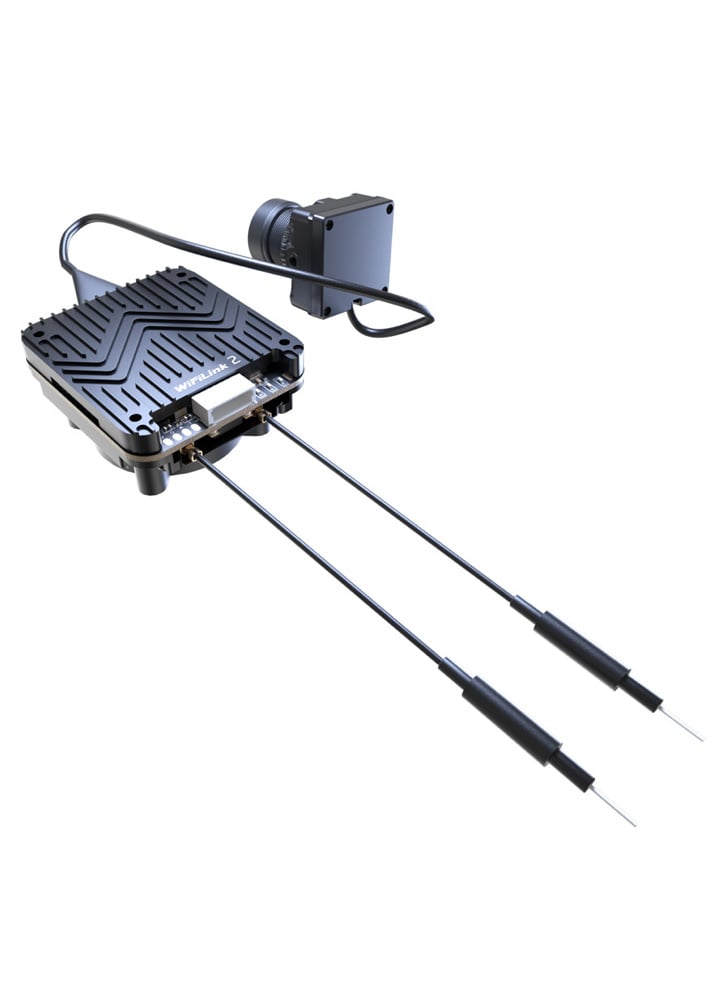

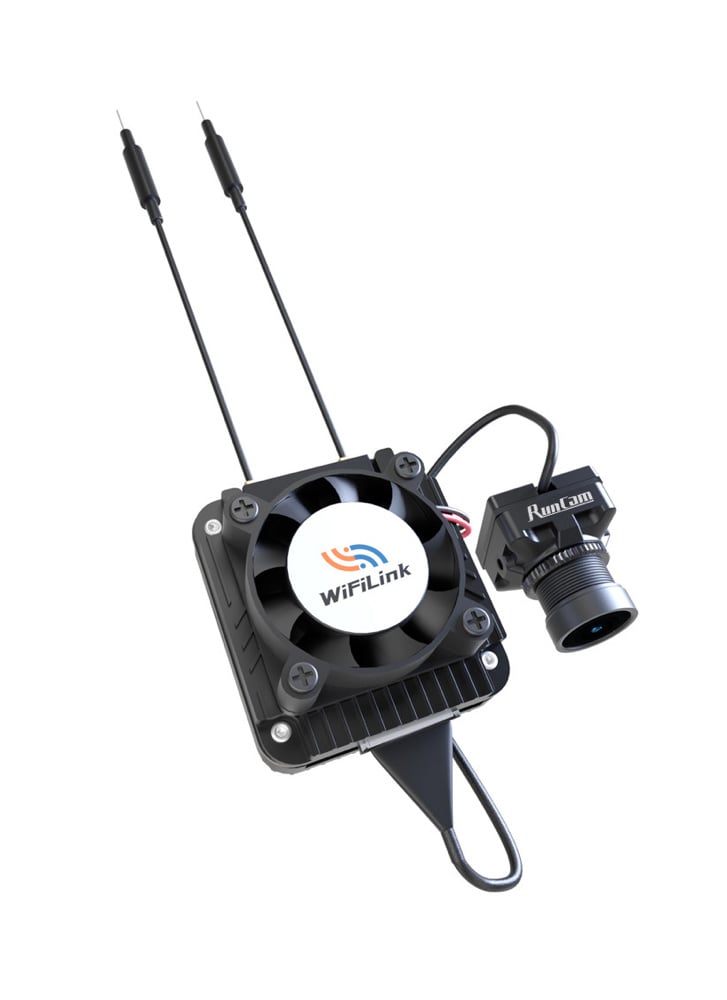

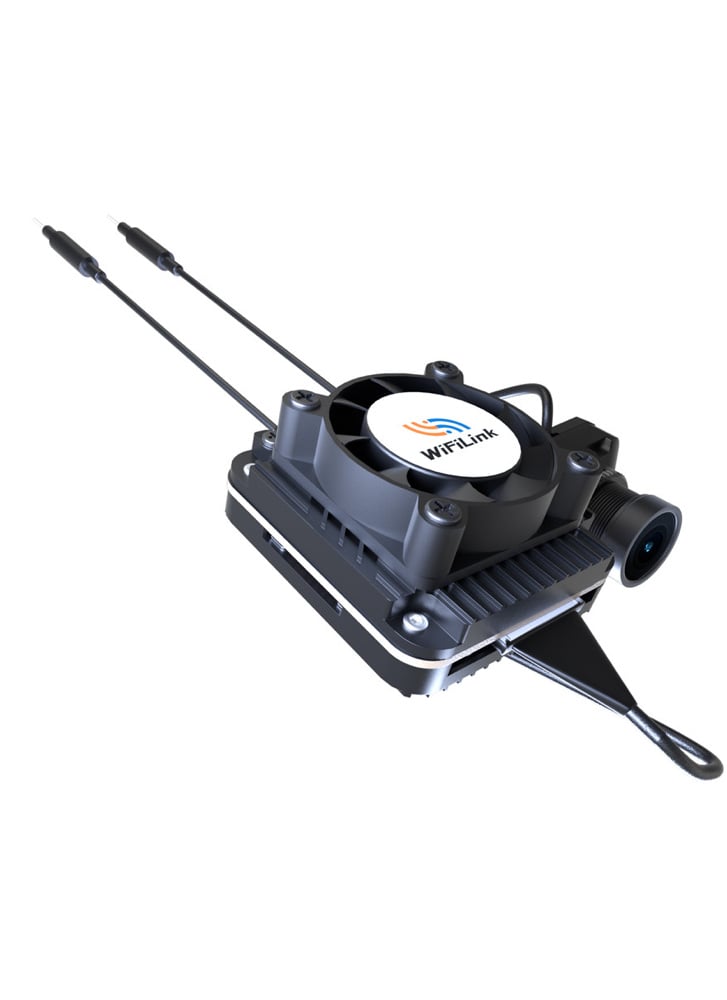

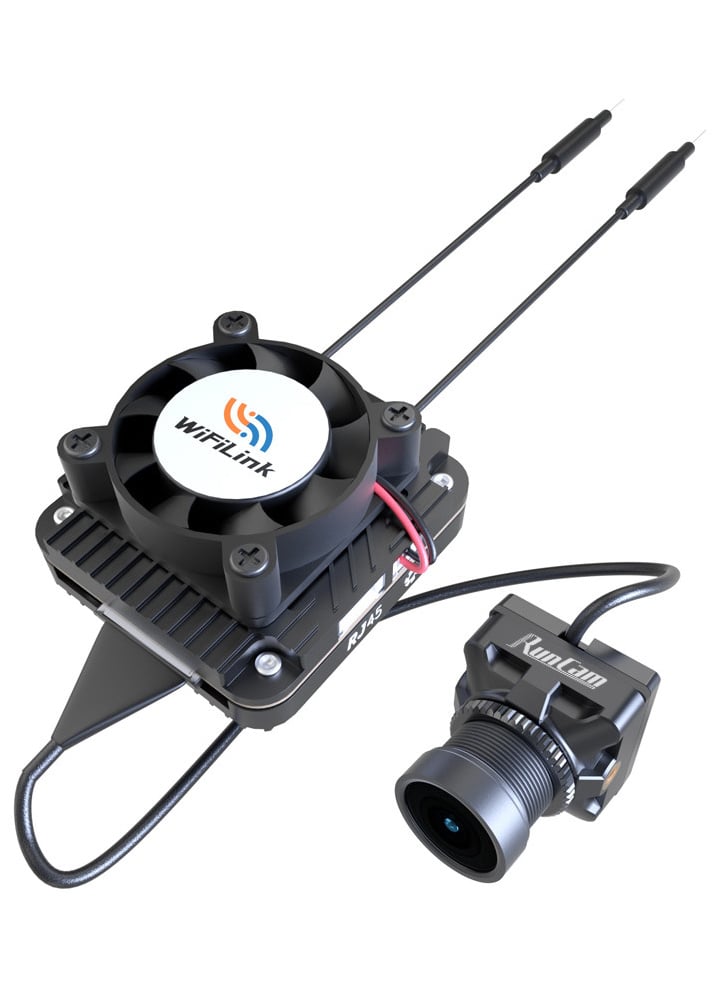

RunCam WiFiLink2 IP camera (Based on OpenIPC)
£114.99
Unlock the future of FPV with the RunCam WiFiLink 2 w/ OpenIPC, a cutting-edge HD video system built on the powerful OpenIPC open-source platform.
The RunCam WiFiLink 2 is an advanced digital FPV transmission system built around the OpenIPC open-source platform, giving experienced pilots full control over video quality, latency, bitrate and network configuration. Using high-power 5.8 GHz WiFi and an IMX415 sensor, it delivers smooth HD video at up to 1080p 90 FPS or 720p 120 FPS, making it ideal for long-range experimentation, ground-station setups and custom digital FPV projects.
The system combines a compact IP camera with an actively cooled WiFi VTX housed in a CNC-machined aluminium case for durability and thermal performance. Configuration is handled through OpenIPC tools such as PixelPilot or fpv4win, with access to detailed parameters including codec selection, channel control, bitrate, colour tuning and MAVLink OSD integration.
Two purchase options are available:
Camera + WiFi VTX Only – for pilots who already have a compatible WiFi receiver or ground-station setup.
G Kit – includes the camera, WiFi VTX, an 8812AU USB WiFi dongle and USB-OTG adapter, allowing quick connection to supported Android devices, PCs or single-board computers for ground-station use.
This is a highly configurable, experimental digital FPV platform aimed at advanced users who want maximum flexibility from an open-source HD link.
Features
- OpenIPC + Ruby FPV Support
- Dual HD Streaming Options
- CNC Aluminum Protection
- Mobile Device Streaming
- Efficient Cooling System
- Ultra-Low Latency
- All-in-One Design
- What is an IP camera?
- Internet protocol cameras, also known as IP cameras, are a special style of digital camera designed to send and receive footage over a secure network or internet connection.
- They are standalone security devices with their own unique IP addresses. When connected to a local network, footage can be sent from installed IP cameras to a wide range of internet-connected viewing devices, enabling teams to view security feeds remotely.
One of the main advantages of IP cameras is that they don’t require a local recording device like traditional analog CCTV systems. Instead, these cameras can be connected to a local network, just like a computer or a smartphone, with data processed internally to be viewed in real-time.
Useful Links:
RunCam Manual / Setup Guide
OpenIPC Project
OpenIPC Wiki
Specifications
- Image Sensor: IMX415
- Field of View: 160°
- Resolution: 1080P@60FPS/1080P@90FPS/720P@120FP
- Power Range: 9-22V(Max15W)
- Lens Module Size: 19x19mm / M12 lens / MIPI cable (130mm)
- Mounting Hole Spacing: 25.5mm*25.5mm
- PCB Size: 30.6mm*33mm
- Weight: 30g (with fan) / 25g (without fan
- Antenna: 2dB/IPEX1（5G)
- Power Amplifier: 5.8 GHz:≤29dBm (FCC),≤20dBm(CE)
