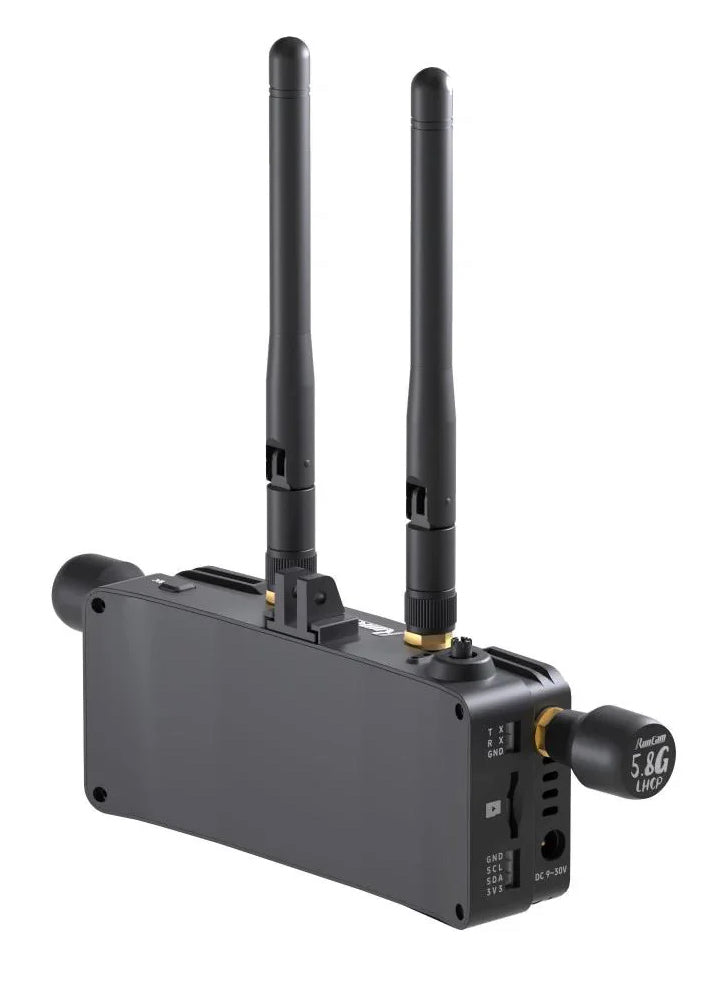

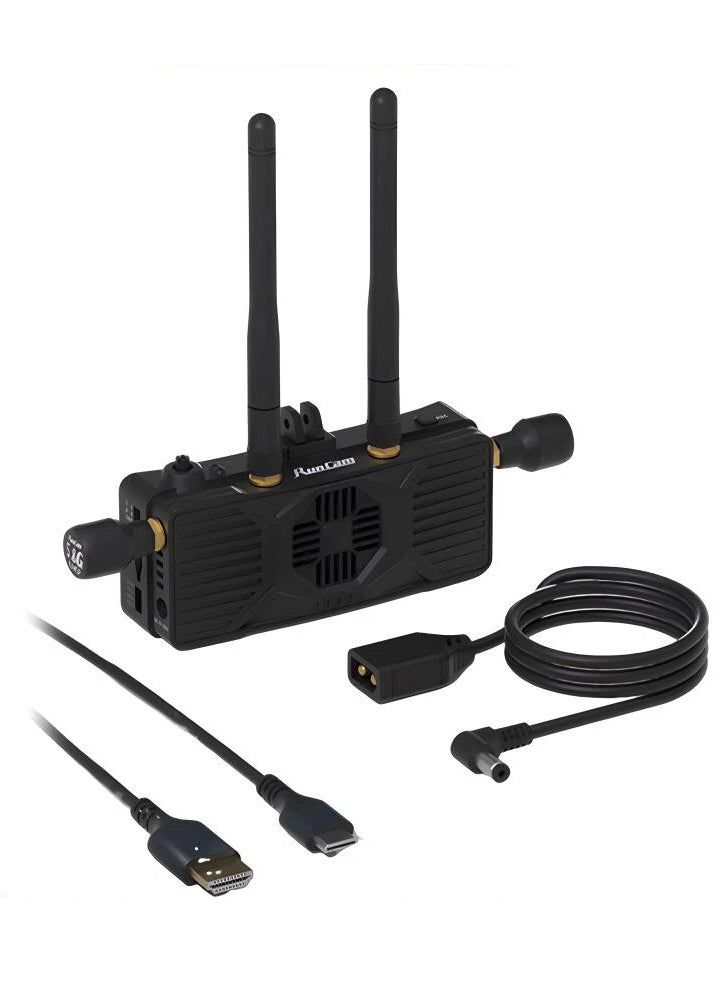

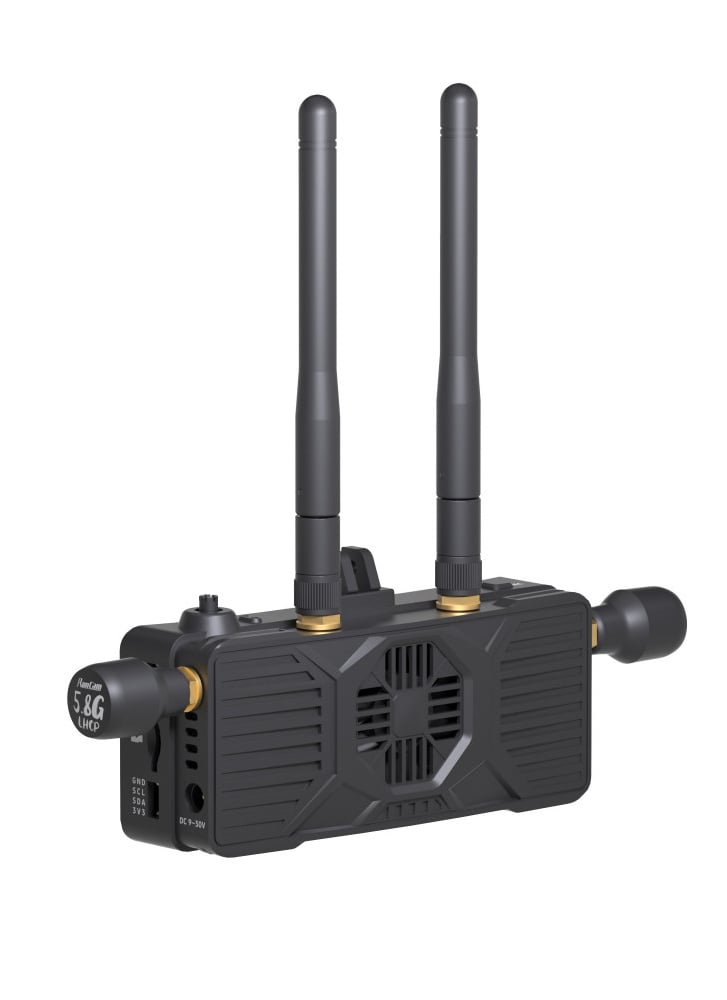

RunCam WiFiLink-RX Digital HD Receiver (Support OpenIPC/Ruby System VTX)
£129.99
The RunCam WiFiLink-RX is a compact digital HD video receiver designed for use with OpenIPC and Ruby FPV — two emerging open-source FPV video systems. It receives HD video wirelessly over Wi-Fi and outputs a crisp 1080p at up to 90fps or 720p at up to 120fps signal via its Mini-HDMI port , ideal for connecting to goggles or ground station monitors.
Engineered for flexibility and long-range performance, the WiFiLink-RX operates across the 5180MHz to 5885MHz band and features a quad-antenna design to ensure stable reception even in challenging RF environments.
A built-in 32GB DVR and MicroSD card slot (supporting up to 256GB) provide onboard recording without the need for extra equipment.

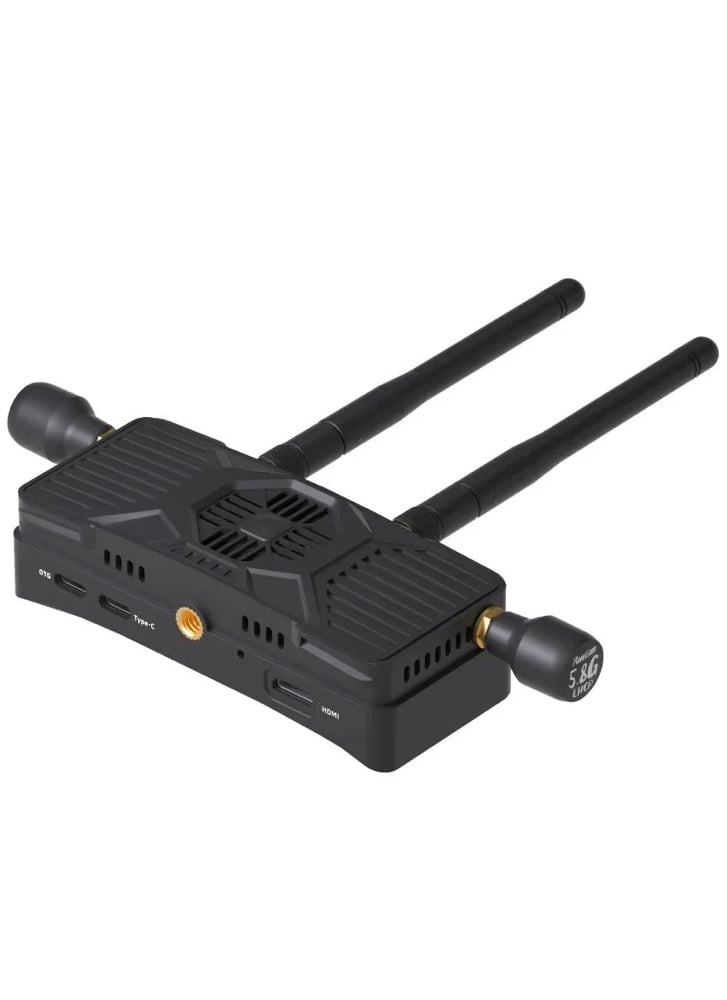

The housing is thoughtfully designed for practical use, including a mounting bracket that allows easy attachment to the front of FPV goggles or a ground rig, perfect for clean, compact installation.

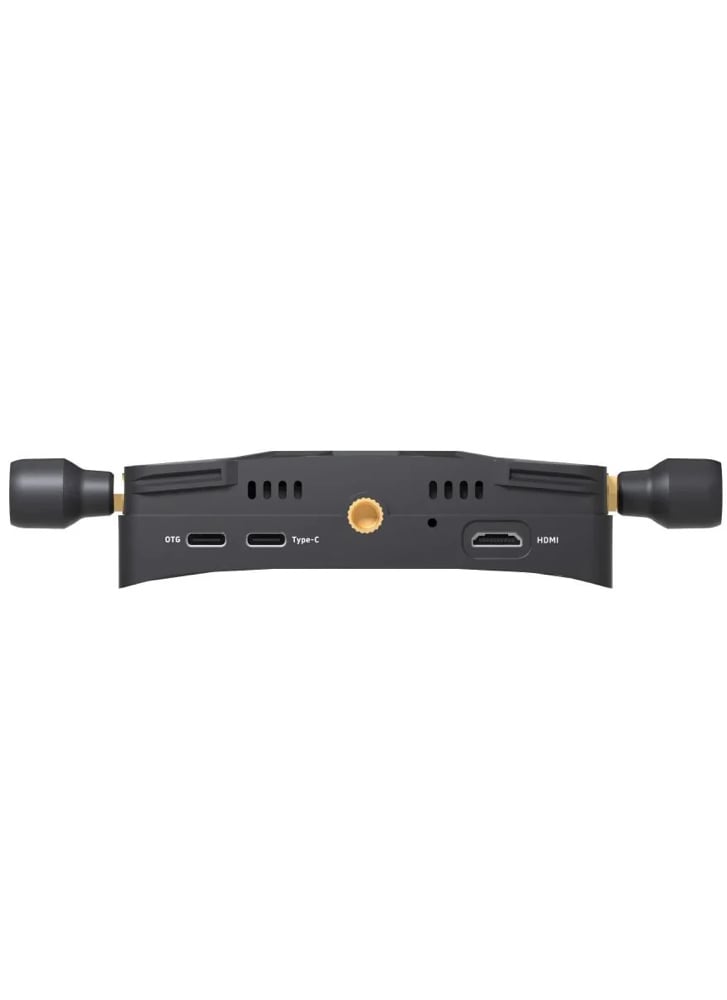

It supports 9–30V DC input (3S to 6S LiPo), making it easy to integrate into most field setups. Connectivity options include Mini-HDMI , MicroSD , DC 5.5×2.1mm power input , and a USB Type-C port with OTG support for firmware updates and file access.
Note: OpenIPC and Ruby FPV are active, community-driven development projects. While powerful and highly customisable, they are best suited for users comfortable working with open-source platforms and experimental setups. For a more refined, plug-and-play HD FPV experience, we recommend exploring systems like Walksnail .
Specifications
- Model: WiFiLink-RX
- Frequency: 5180~5885 MHz
- Transmission Power: < 25dBm(FCC) < 14dBm(CE) < 20dBm(SRC) < 25dBm(MIC)
- Interface: Mini-HDMI, Micro-SD, DC 5.5×2.1mm, Type-C, OTG
- Mini-HDMI Output: 1080P 60fps / 720P 60fps
- Power Input: 9~30V (3~6S)
- MicroSD Card: Supports up to 256GB
- Built-in Storage: 32G (including system files)
- System: Ruby FPV / OpenIPC
- Dimensions: (L)110.0mm x (W)27.3mm x (H)46.0mm
- Weight: 122.0g (±1g) (antenna excluded)
- Model: Stick Antenna
- Polarization: Vertical Polarization(VP)
- Frequency: 5150~5850 MHz
- Average Gain: 2.5dBi
- Standing Wave Ratio (SWR): <=2.0
- Dimensions: (R)4.8mm x (H)108.4mm
- Weight: 6.6g
- Model: Pagoda Antenna
- Polarization: Left-Hand Circular Polarization（LHCP）
- Frequency: 5500~5900 MHz
- Average Gain: 2.5dBi
- Standing Wave Ratio (SWR): <=2.0
- Dimensions: (R)8.0mm x (H)23.9mm
- Weight: 4.4g
