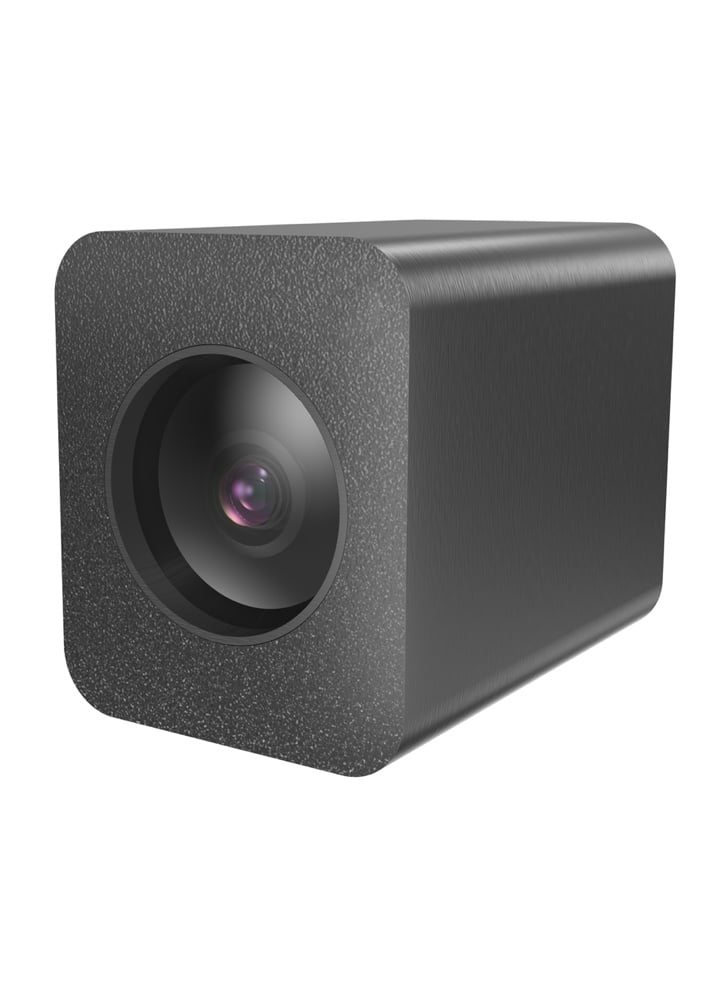

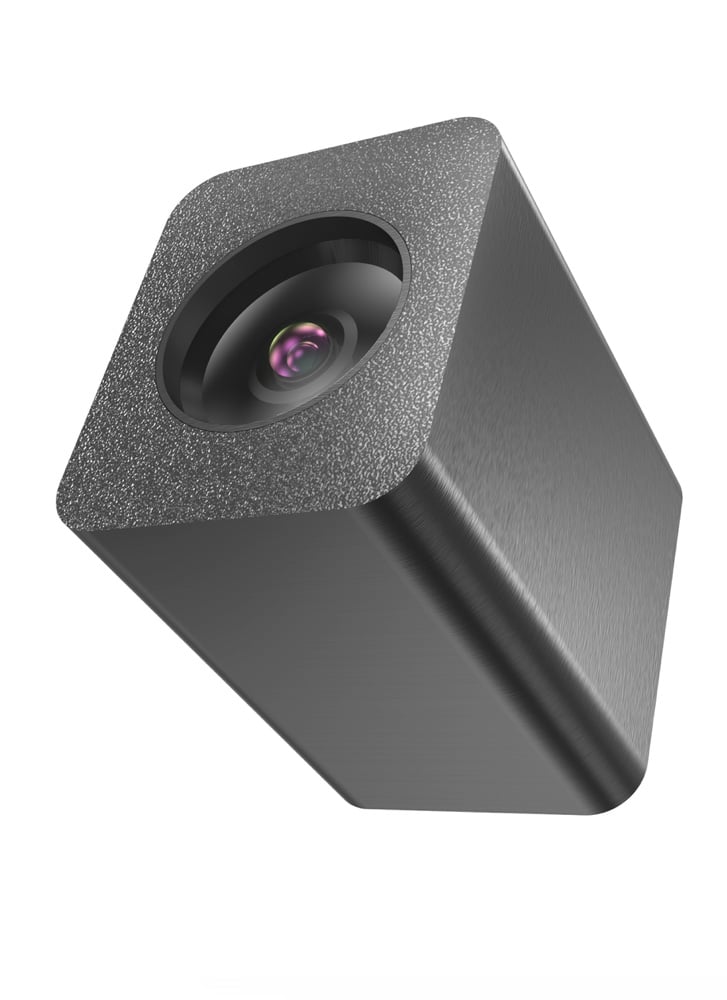

RunCam IPC (Internet Protocol Camera) 5MP 10X Optical Zoom Camera Module
£89.00
The RunCam IPC (Internet Protocol Camera) 5MP 10X Optical Zoom Camera Module is a compact network camera for surveillance, industrial monitoring and remote observation, wherever detail has to be captured at a distance. A 5MP image sensor and 10x optical zoom lens give high-definition video that holds its quality across the zoom range.
Video runs to 5MP at 25fps, with Ethernet handling transmission and network integration. ONVIF and RTSP support lets it drop into NVR systems, VMS platforms and third-party surveillance software, and the HiEasy mobile app provides remote control.
It ships in a protective enclosure with external Ethernet and 12V power connections, so integration is straightforward. Inside, the module exposes further development and control interfaces including Sony VISCA and Pelco-D, letting advanced users fold zoom and camera control into their own hardware and software.
This is not a consumer plug-and-play camera; it is aimed at technical users, developers and system integrators.
Features
- 5MP image sensor
- Up to 5MP @ 25fps video output
- 10x optical zoom lens
- Ethernet network connectivity
- ONVIF compatible
- RTSP streaming support
- HiEasy app control
- Sony VISCA and Pelco-D control protocol support
- 12V DC power input (5.5 x 2.5mm connector)
- Development documentation available
- Important: This is a specialist OEM camera module intended for technical users. Configuration may require knowledge of IP networking, RTSP streams, ONVIF devices, and software integration.
- IPC 5MP 10X Optical Zoom Module – FAQ
Specifications
- Resolution: 5MP
- Maximum Video Resolution: 5MP @ 25fps
- Optical Zoom: 10x
- Field of View (1x Zoom): 61.5° (Horizontal), 35° (Vertical), 69.5° (Diagonal)
- Field of View (10x Zoom): 7° (Horizontal), 3.97° (Vertical), 7.95° (Diagonal)
- Supported Protocols: ONVIF, RTSP
- Remote Control: HiEasy App
- Network Interface: RJ45 Ethernet
- Power Supply: 12V DC
- Power Connector: 5.5 × 2.5mm DC Barrel Connector
- Dimensions: 74 × 60 × 49.5mm
- Weight: 159g
- Control Protocols: Sony VISCA, Pelco-D
- Development Documentation: Available
- Intended Applications: Surveillance, Industrial Monitoring, Remote Observation, System Integration
In the box
- 1 × RunCam IPC 5MP 10X Optical Zoom Camera Module
