RadioMaster Zorro Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz
RadioMaster Zorro Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz
RadioMaster Zorro Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz

RadioMaster Zorro Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz

£119.99

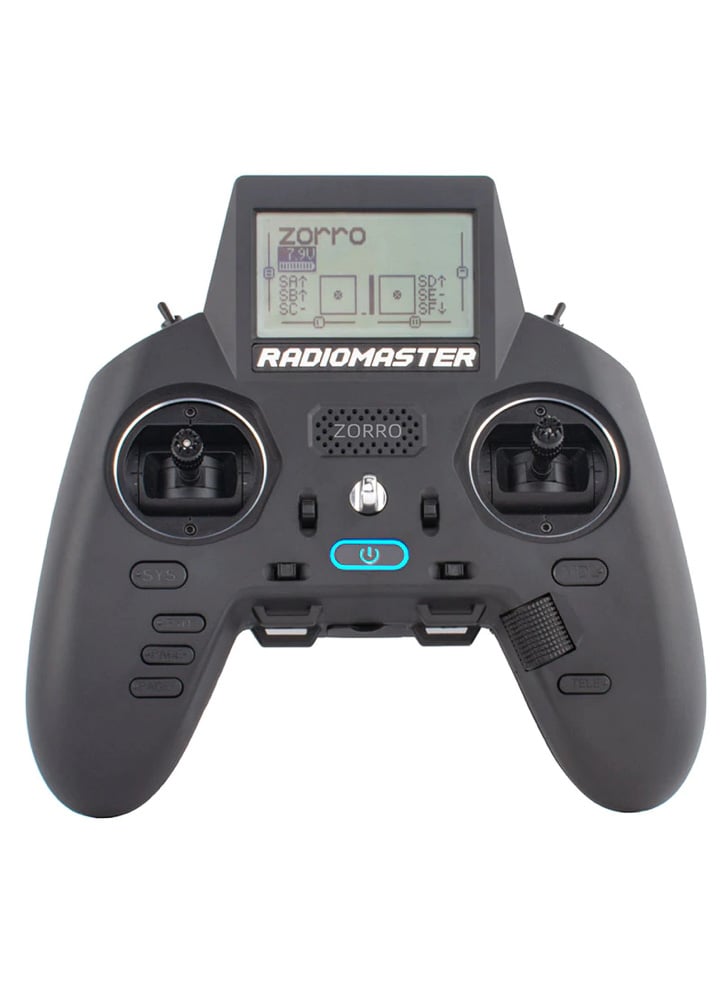

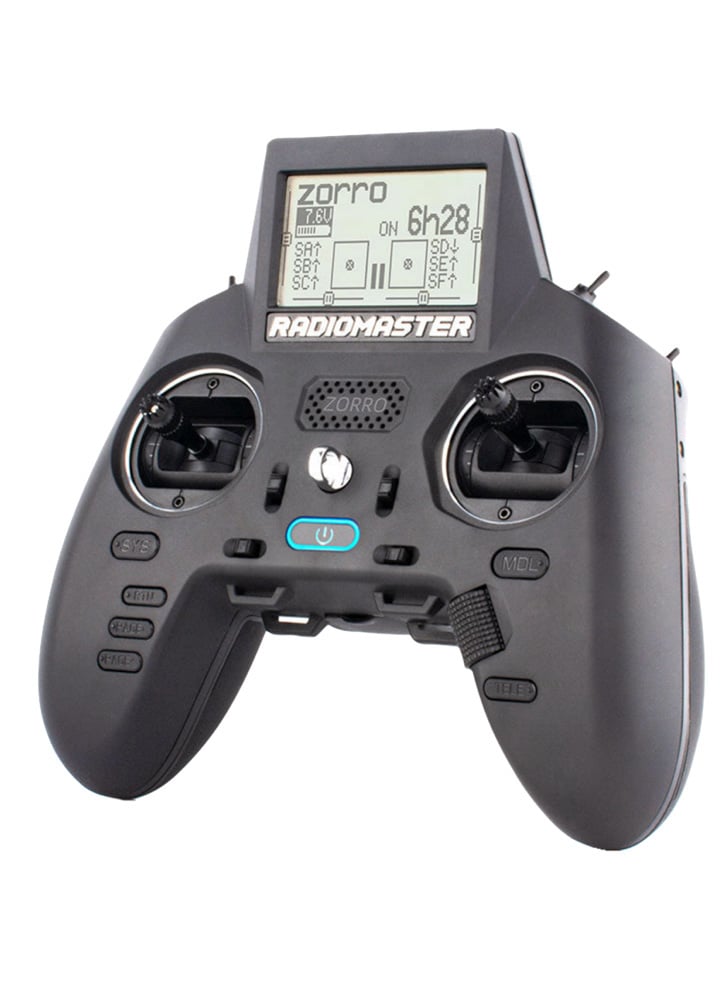

This radio controller features an oversized LCD display and officially supports OpenTX and EDGETX Firmware. It also has travel adjustable HALL sensor gimbals, a nano size external RF module bay which supports both TBS Crossfire/Tracer and ExperessLRS, built-in USB-C Charging, USB-C Data port for updating and playing simulators, rear and top assignable push buttons, scroll wheels, RadioMasters 7 button menu navigation system, headphone audio output, external power source input and a host of RF options the RadioMaster Zorro is set to change the game once again.

The Zorro Radio Controller comes in two versions. A Multi-Protocol and a ELRS 2.4G version. Be sure to choose the correct RF version: The 4-in1 Multi-Protocol version supports protocols including FRSKY ACCST, Spektrum DSMX and FlySky ADHDS 2A etc. The ELRS version, supports 2.4GHz ExpressLRS protocol only. We also sell the Zorro ELRS Starter Set HERE . Both versions have a nano size module bay and can work with external modules i.e. a multi-protocol module, ELRS module or long range module.

Zorro 4in1 is discontinued.

NEW – Zorro Max Version – HERE

Accessories:

Sticky360 Mini Gimbal Stick Ends

900mah 3.7v Li-ion 18350 Cells – The Zorro takes two 18350 Li-ion batteries (not included) – they can be recharged internally via the USB-C connector

External 2S power wire – a 2S LiPo can be used as an external power supply for the Zorro to extend the run time.

Case for Zorro

Leather Hand Grips

TBS Crossfire Nano Module

ELRS EP1 Nano Receiver

ELRS EP2 Nano Receiver

Features

Firmware Versions – FCC and EU LBT: Our stock is supplied with EU LBT firmware. Radios can be reflashed to FCC or vice versa, the hardware itself is not restricted. Please check the supported protocols below. To reflash the 4in1 version to unlock all protocols takes less than 5 minutes. Download the latest Multi-Module Firmware from here – Module Type: STM32 4-in1 / Radio Type: Serial / Channel Order AETR. The file name will be named: mm-stm-serial-aetr-vX.X.X.XX.bin. Load this file onto the Boxer radio’s SD card in the folder named firmware. Next on the radio, access the system menu. Use the Page button to find the SD card page, then enter on the firmware option. In there you should see the file you added to the SD card mm-stm-serial-aetr-v… enter on that (long press on the scroll wheel) then it gives you some options – select ‘Flash Int. Multi’. That’s it, the internal multi protocol module will now give you options for all MPM protocols.

Standard FCC Version

4in1 (FCC) Version supports all MPM protocols

ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)

EU LBT Version

4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX

ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)
