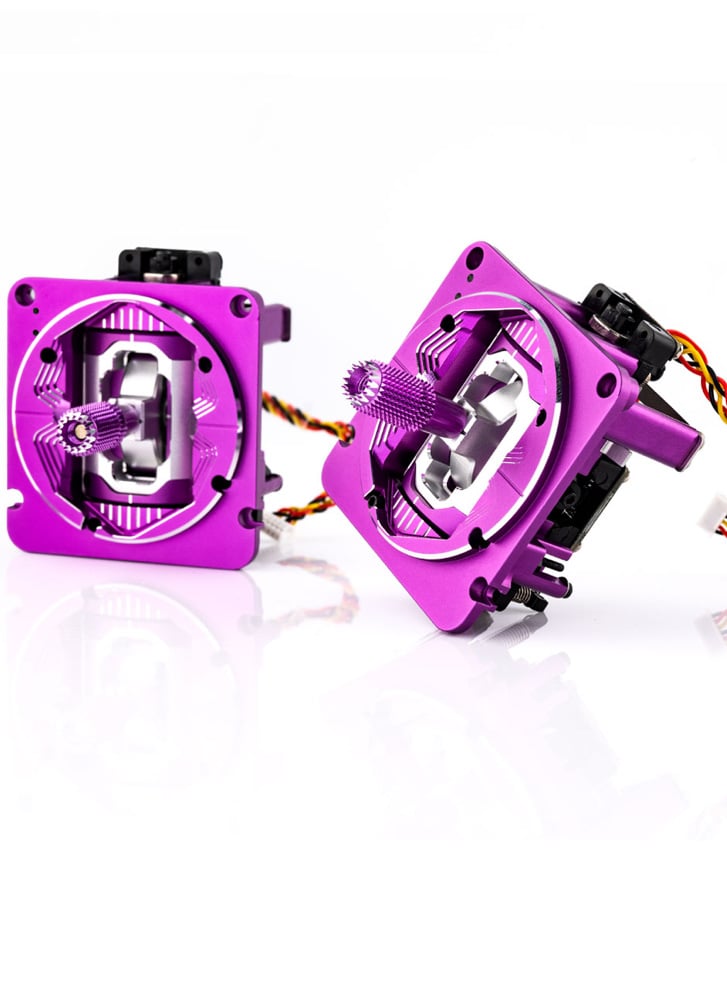

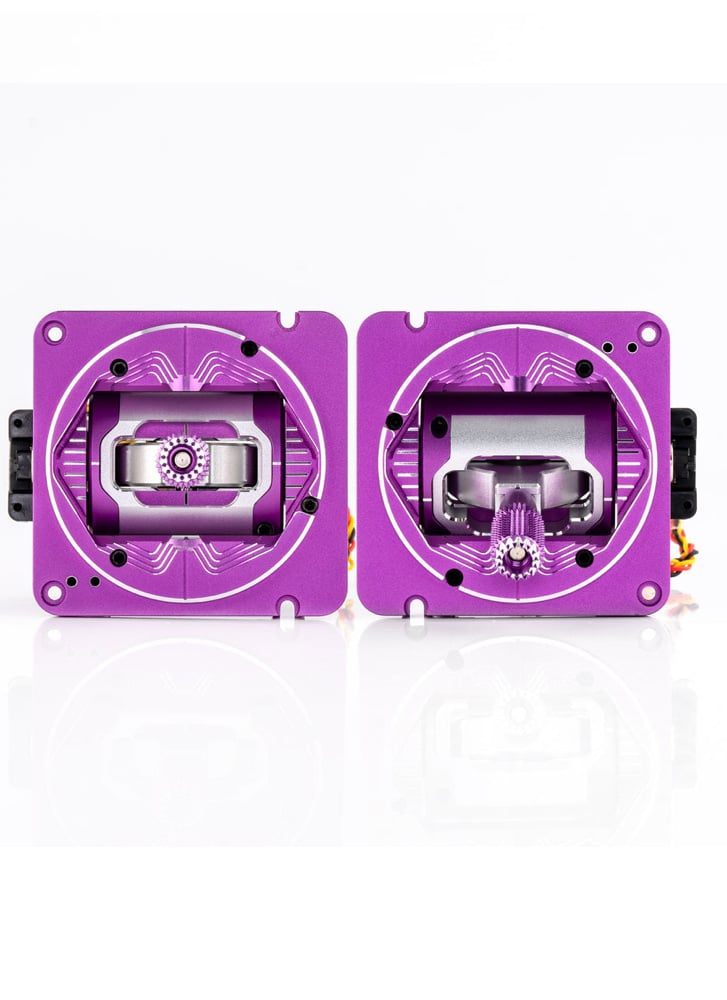

Radiomaster TX16S AG01 CNC Metal Hall Gimbal Set Colours

£139.90

We previously only offered the standard version of black AG01 gimbals . Now it’s time to show your true colors with the AG01 color gimbals! Built to the same cutting-edge precision as the black AG01s, the colour AG01s will look fly while you’re on the fly!

The colour options are Purple, Gold, Blue, Red, and Green. All color AG01 gimbals are now shipped with preinstalled Sticky360 Gimbal Sticks Ends .

Features

• Sicky360 gimbal stick ends – 360° Non-slip geometry with dual-ring design increases comfort and contact.
• Made with CNC processed aviation grade aluminum.
• Non-contact hall sensors, for accurate control inputs and precise centering.
• Quad precision bearings, for unparalleled stick feel.
• Improved package, to better protect the AG01 Gimbals.
• Exterior Adustable
• ① Set the lower travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°)
• ② Set the upper travel limit: Turn the screw clockwise to reduce the travel. Turn the screw counterclockwise to increase the travel. Travel range (38-54°)
• ③ Up and down spring tension: Turn the screw
• clockwise to increase the up and down spring tension.
• Turn the screw counterclockwise to reduce the up and down spring tension.

④ Centering and Mode adjustment: When the screw is turned clockwise to its lowest point, this gimbal will not center in its up and down axis when the stick is released. When the screw is turned counter-clockwise to its highest point, this gimbal will center its up and down axis when the stick is released.

⑤ Left and right spring tension: Turn the screw clockwise to increase the left and spring tension. Turn the screw counterclockwise to reduce the left and right spring tension.

Throttle tension adjustment: When there is no tension up and down, the ⑥screw adjusts the tension tightness, and the ⑦screw adjusts the scale tightness.

Size

Specifications

• Item: AG01 CNC Hall Gimbal Sets
• Colors: Red, Blue, Gold, Green, Purple
• Sensing type: Hall
• Working voltage: DC 3.3V
• Linearity: Real-time (No delay)
• Adjustable travel range: 38°—54°
• Adjustable mode: Yes
• Adjustable tension: Yes
• Quad bearing: Yes
• Temperature range: -20°c-85°c
• Size: 60x53x56mm
• Weight: 162g/set

In the box

• 1 x AG01 CNC Hall Gimbal (Throttle)
• 1 x AG01 CNC Hall Gimbal (Centering)
• 2 x TX16S Softer Tension Spring Set
• 2 x Hexagon socket screwdriver
• 1 x Manual
