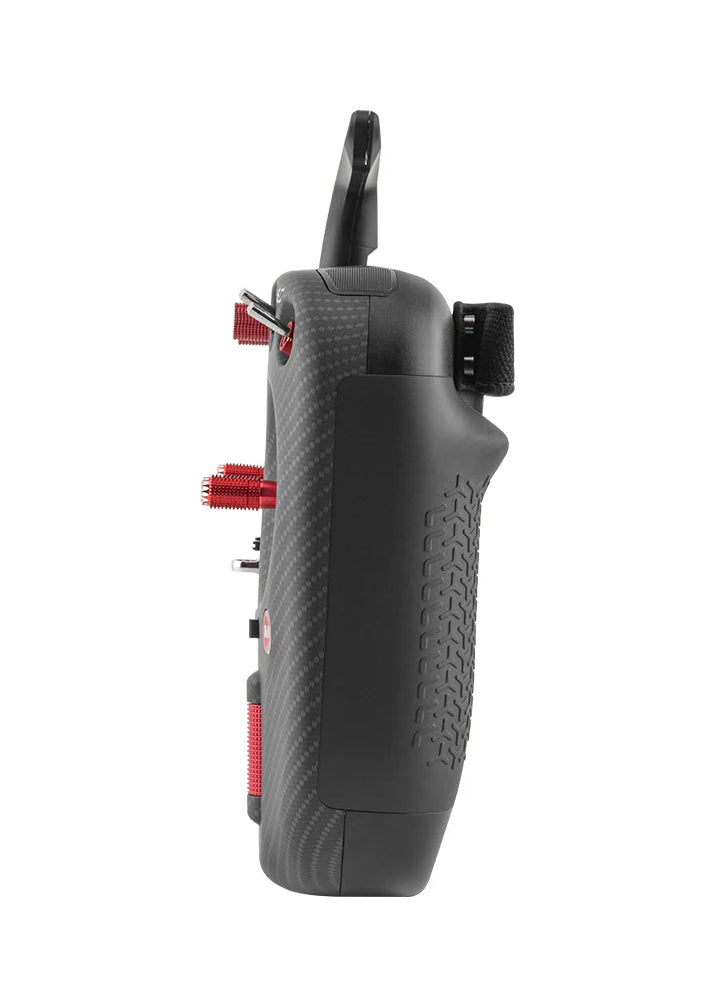

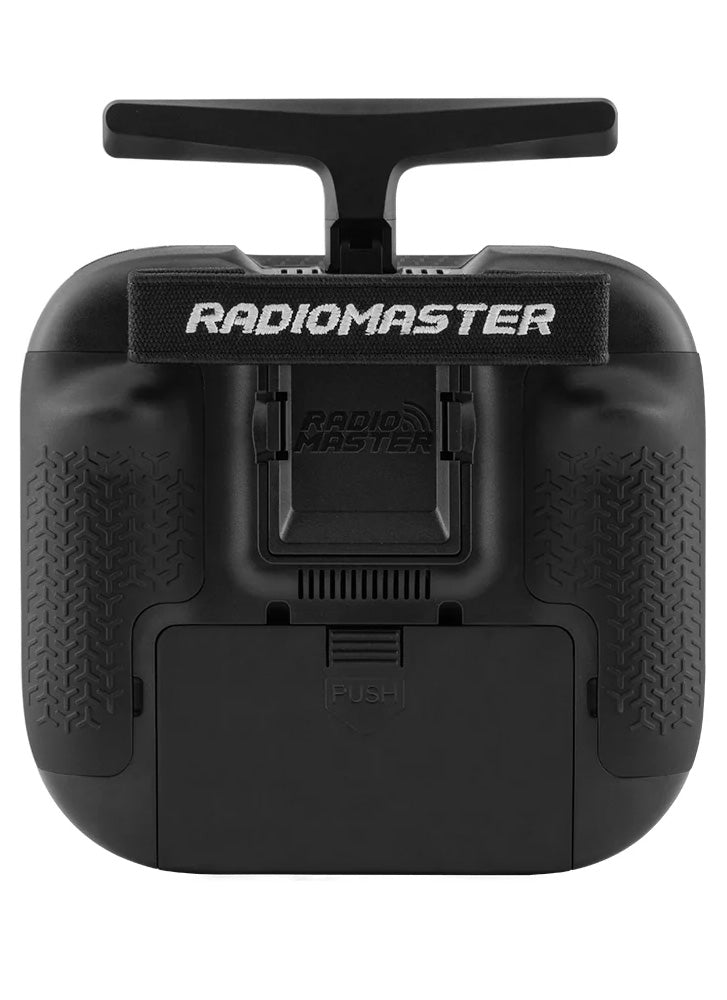

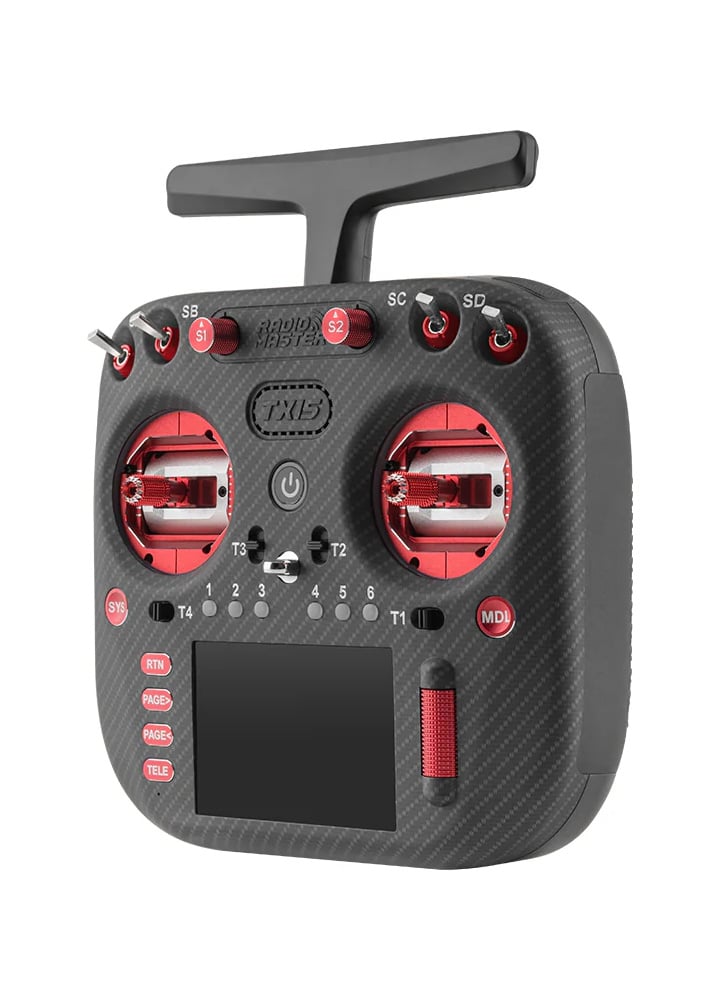

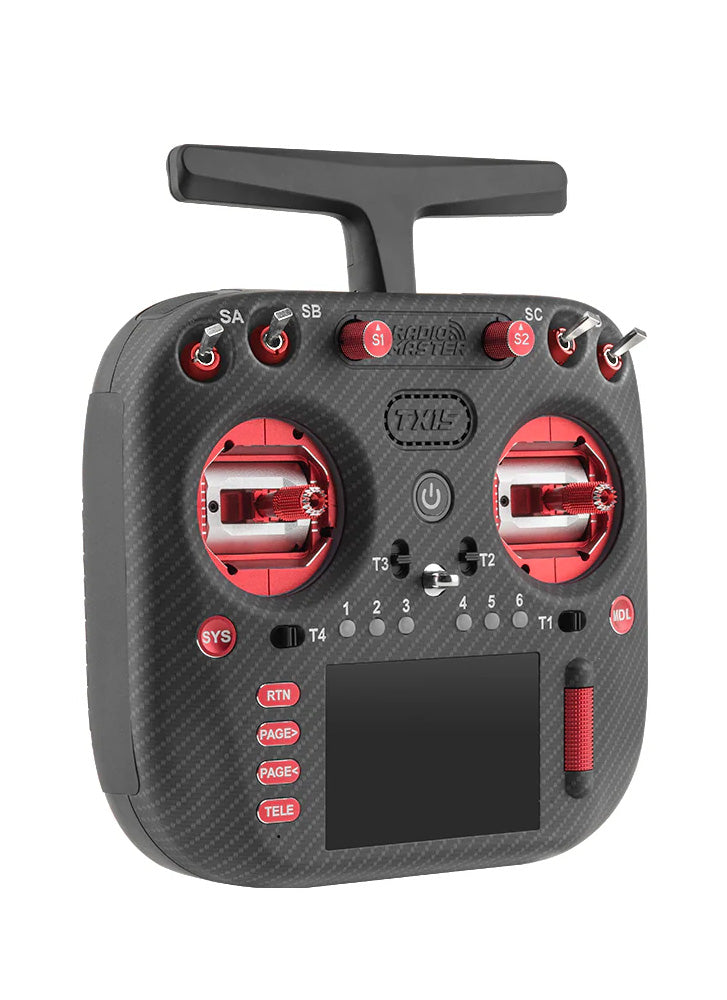

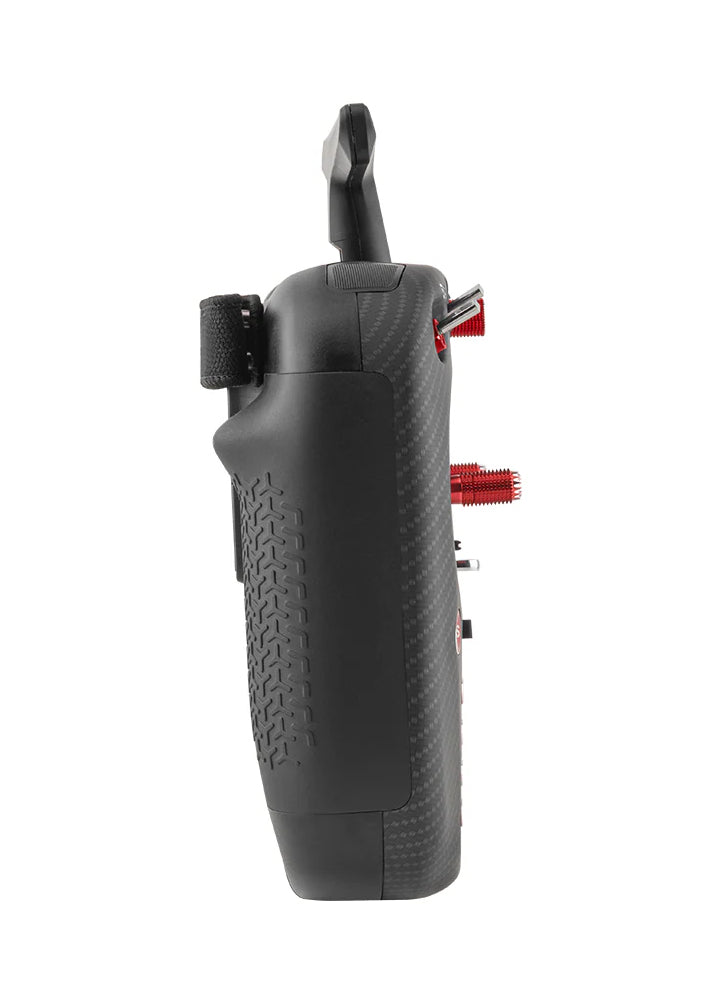

Radiomaster TX15 Max Radio Controller Transmitter (ELRS) – Mode 2

£219.99

RadioMaster continues to redefine the open-source remote control landscape. After years of collaboration with our open-source partners and users, we are proud to introduce the TX15 MAX. Driven by the high-performance STM32 H7 chip, it’s the powerhouse behind our fastest radio ever — enabling ultra-smooth EdgeTX control, instant model switching, and lightning-quick script execution. With 4GB of flash storage and MicroSD card expansion, you’ll have virtually unlimited space for models, scripts, sounds, and themes.

The TX15 MAX features a LR1121 Semtech transceiver, supporting both 2.4GHz or 900MHz ExpressLRS (ELRS) for long-range, low-latency performance. Whether you’re flying daily or operating in challenging RF environments, the TX15 MAX is built to perform. A smart balance battery circuit maximizes flight time, while the compact, foldable antenna design improves portability and ensures strong signal quality. The built-in gyro with TiltX/TiltY functions unlocks advanced control options, allowing you to trigger switches, pan/tilt cameras, or activate telemetry callouts with a simple tilt of your radio.

Enjoy sharp visuals on the 3.5-inch IPS touchscreen with 262k color resolution and 600 nits brightness, even in sunlight. The TX15 MAX boasts AG02 CNC aluminium gimbals in anodised red, black or gold, upgraded aluminium buttons, a scroll wheel, and a carbon-fiber-look case for a premium feel. Integrated RGB LED lights around the gimbals allow customisable LUA-controlled lighting. It includes advanced cooling, a USB-C charging port, SIM connectivity, firmware updates, and fast memory access for top-tier performance. We’ve included additional switches so you can swap out the shoulder buttons with either a momentary or two-position latching switch—perfect if you prefer a traditional switch over a button. Prefer the standard model? See the TX15 Standard .

Step into the future. TX15: The Future Is Here, One Step Ahead.

Max Vs. Standard: The TX15 MAX builds on the Standard edition with premium AG02 CNC aluminium gimbals, upgraded metal buttons, a carbon-fibre-look case, a scroll wheel, and customisable RGB gimbal lighting—delivering enhanced precision, durability, and visual flair for advanced pilots.

Features

• Blazing-Fast Performance: The STM32 H7 chip powers our fastest radio ever.
• Touchscreen Display: 3.5-inch, 480 x 320 IPS touchscreen with vivid colors and sharp detail.
• Precision Gimbals: the premium AG02 gimbals for enhanced smoothness.
• Built-in ExpressLRS: 2.4GHz / 900MHz ExpressLRS integration for reliable and long-range control.
• Smart Balance Battery Circuit: Maximizes battery efficiency and longevity for more flight time.
• Powerful, Cooling System: Low noise, high output fans and an aluminium heat sink keep your radio cool even on the hottest days.

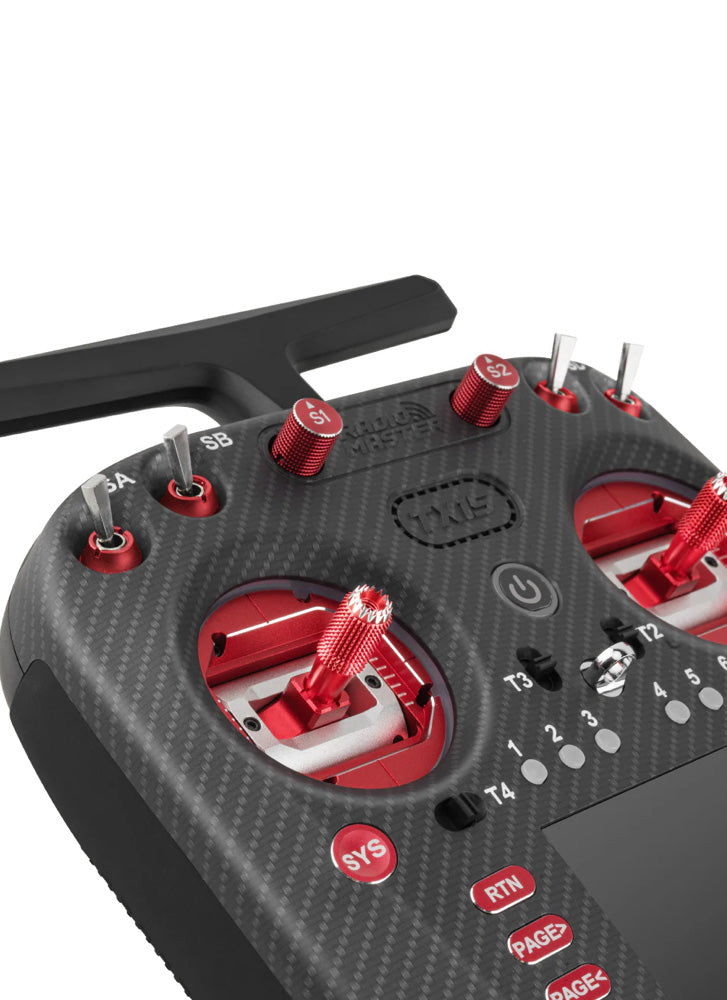

• AG02 Gimbal: More than 20% reduced weight, with adjustable travel on both vertical and horizontal axis.
• Customizable RGB Gimbal Light- Ring: Integrated RGB LED lights around the gimbals allow customizable LUA-controlled lighting.
• Foldable Antenna: Compact and easy to store without compromising signal strength.
• Built-in Microphone: For future feature expansion.
• Built-in Gyro: Trigger switches, pan/tilt cameras, or telemetry callouts simply by tilting your radio.
• Memory: Integrated 4GB of onboard flash memory and external MicroSD card support.
• Interchangeable Shoulder Switches: Customize your controls to match your flying style.

Associated Products

TX15 Radio

TX15 Max Radio

AG02 CNC Hall sensor gimbals

LED Gimbal Rings

18650 3200mAh 3.7V Battery

21700 5000mAh Battery

SE/SF 3 Position Assembly for TX15 Radio

Specifications

• Item: TX15 Max Radio Controller
• Size: 178*168*81mm
• Weight: 672g (without battery)

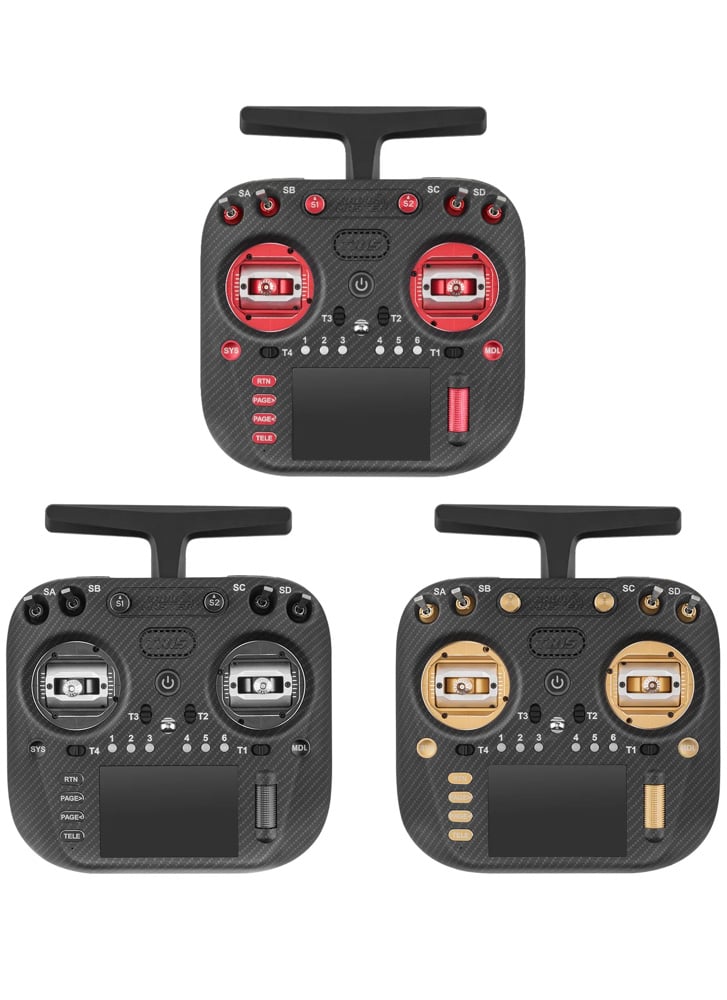

• Color: Red/ Black/ Gold
• Frequency: 2.400GHz OR Sub-G 900MHz
• Internal RF: ELRS 2.4GHz / Sub-G 900MHz
• Supported Protocols: Express-LRS
• Cooling Fan: Yes
• Transmitter Module: Built-in ELRS
• Built-in Flash Size: 4GB
• Built-in Microphone: Yes (Future expansion)
• Built-in Gyro: Yes (ICM-42607-C)

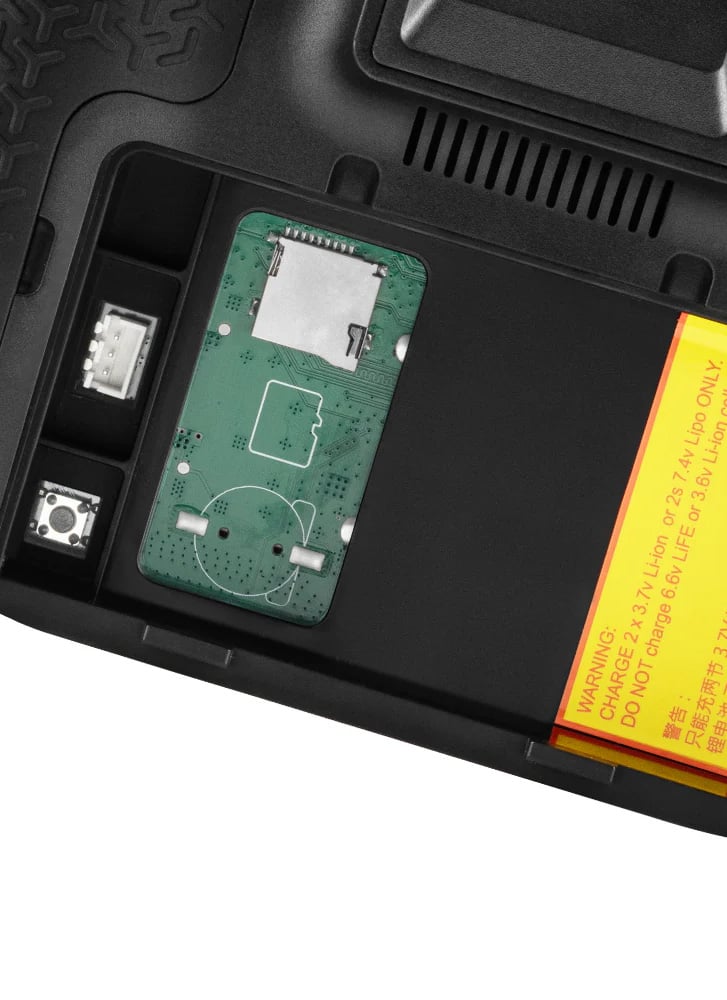

• MicroSD card* (Not included): 32GB/FAT32 (Inserting a MicroSD card will disable the onboard flash)
• Antenna Gain: 2dB (transmit power adjustable)
• Current: 875mA at max power output
• Voltage Range: 6.6 – 8.4V DC
• Radio Firmware: EdgeTX (Transmitter) (requires version 3.0.0 or later)
• Module Firmware: ExpressLRS
• Channels: Max 16 channels (Receiver dependent)
• Display: 3.5-inch IPS touchscreen (480 x 320 resolution)
• Battery: 7.4V 2-cell Lithium-Polymer / Two 3.7V 18650 Lithium-Ion cells / 21700 5000mAh Battery (batteries not included)
• Connectivity: USB-C
• Gimbals: AG02 CNC Hall sensor gimbals
• Gimbal Sticks: M4
• Upgrade Method: USB-C (UF2)
• Module Bay: JR-compatible module bay for additional modules

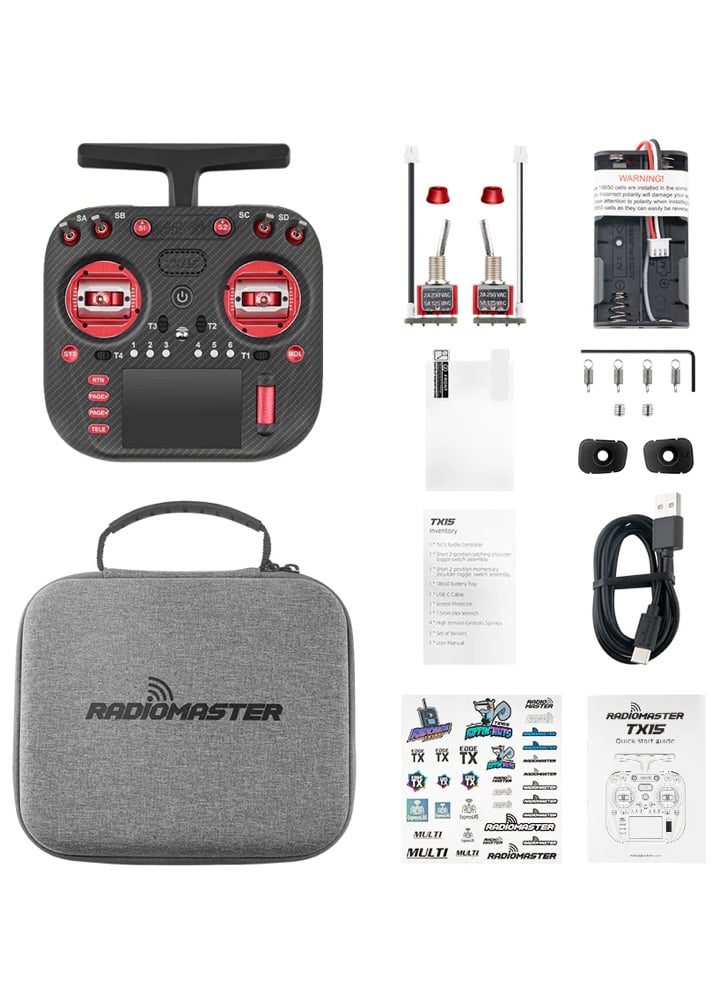

• 1 * TX15 Max Radio Controller

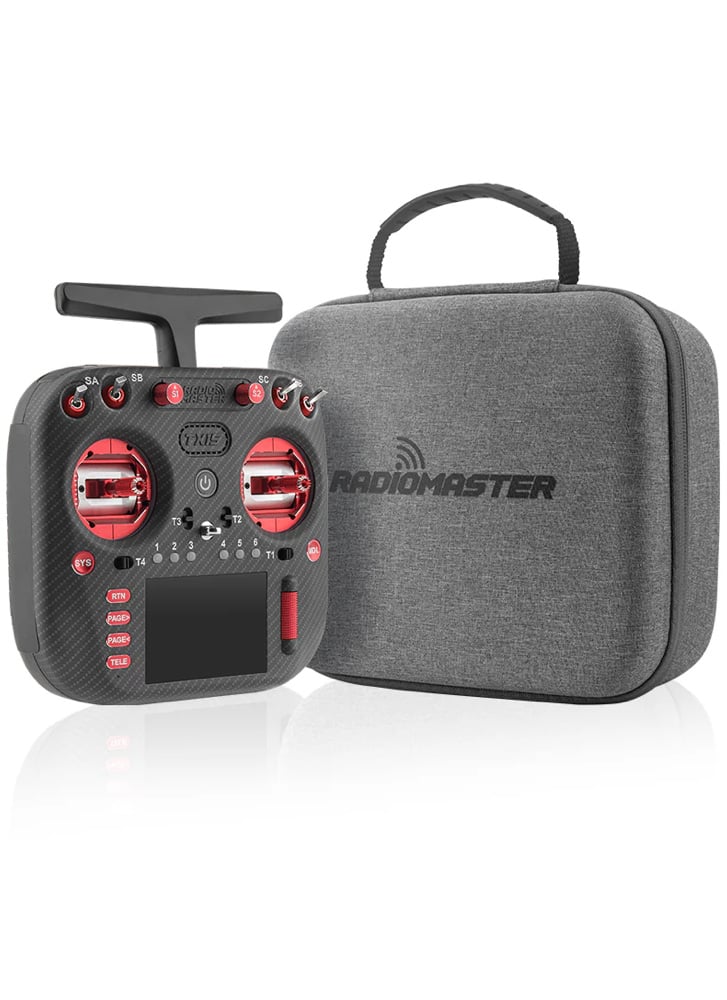

• 1 * Signature Carry Case
• 1 * Short 2-position Latching Shoulder Toggle Switch Assembly
• 1 * Short 2-position Momentary Shoulder Toggle  Switch Assembly
• 1 * 18650 Battery Tray
• 1 * USB-C Cable
• 1 * Screen Protector
• 1 * 1.5mm Hex Wrench
• 4 * High Tension Gimbals Springs
• 2 * Gimbal Stick Set Screw
• 1 * Stickers Set
• 1 * User Manual
• 1 * Inventory Card
