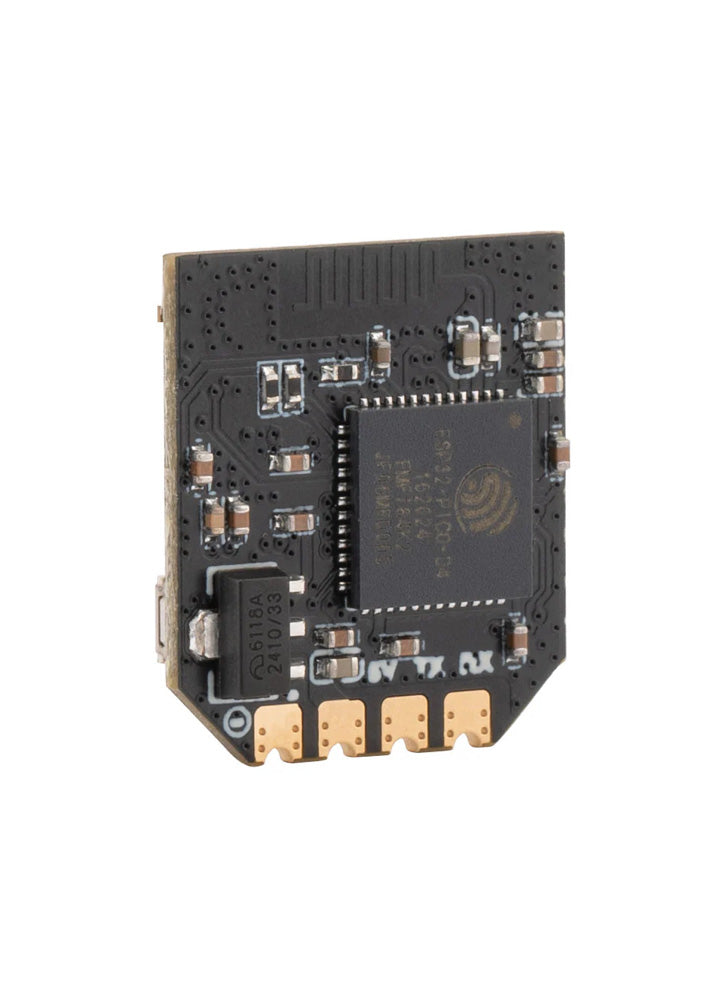

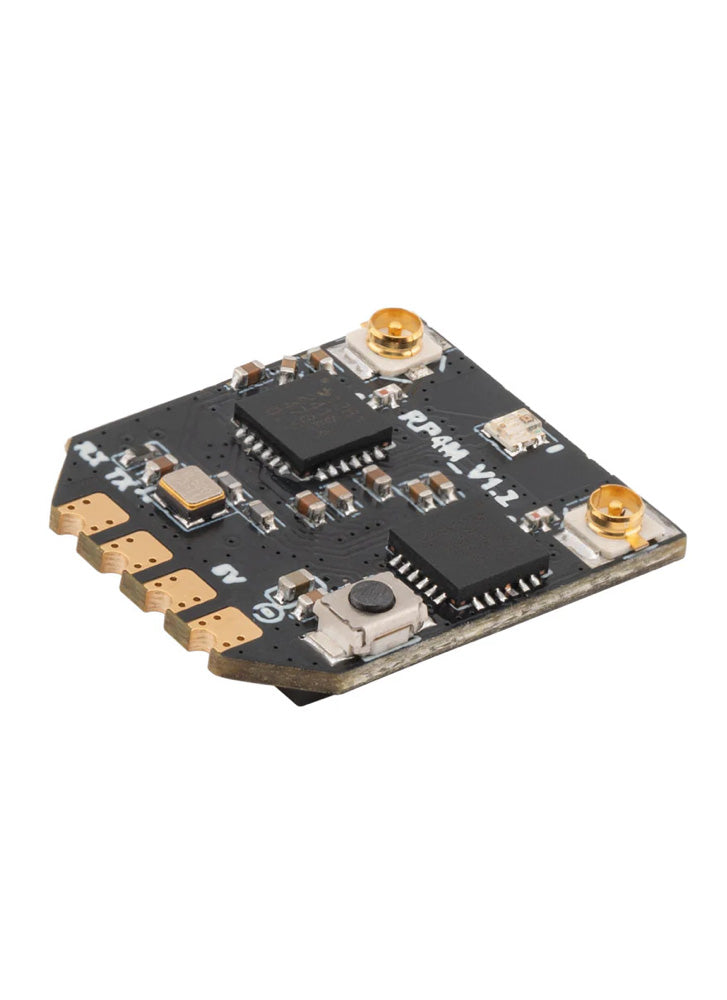

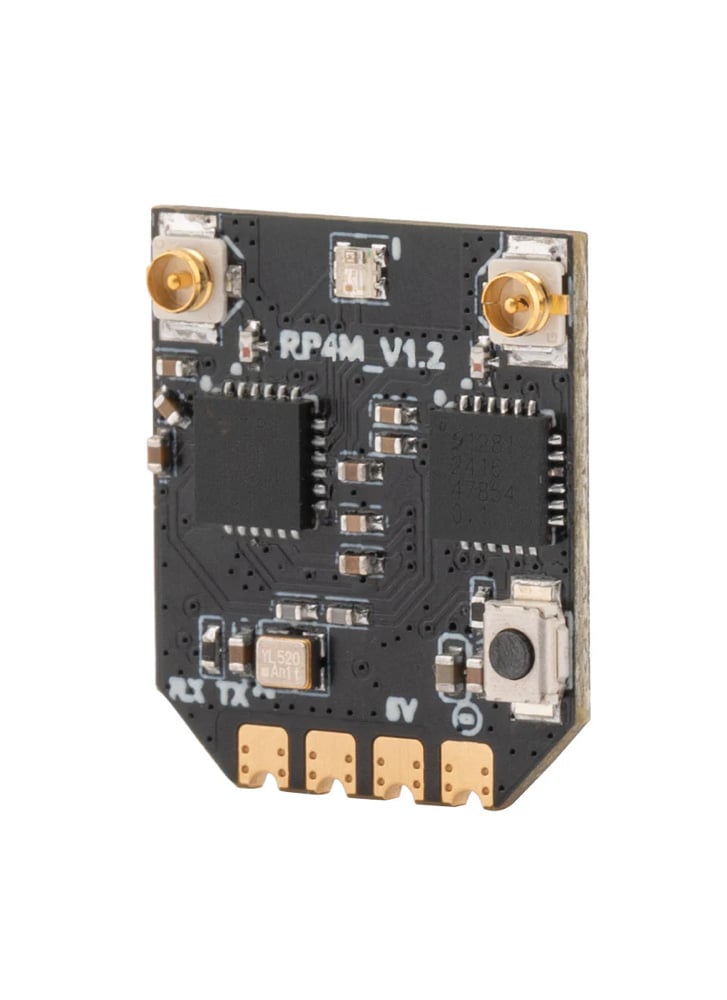

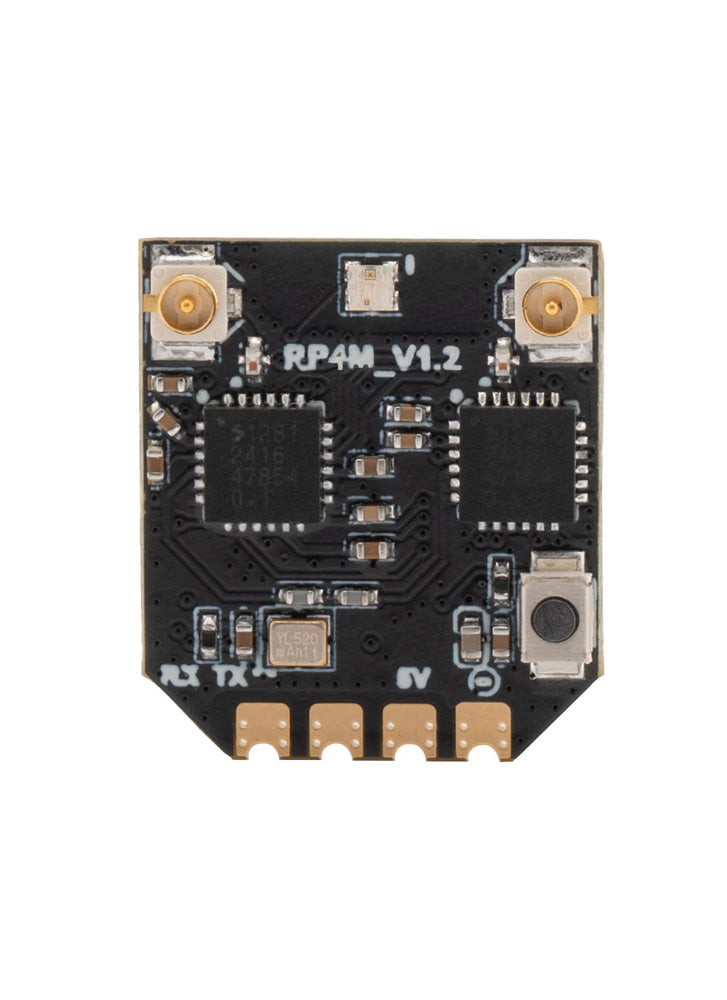

RadioMaster RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver

£19.99

The Radiomaster RP4TD-M is a 2.4GHz ExpressRLS true diversity receiver and is compatible with all 2.4GHz ExpressLRS transmitters on the market.

Introducing the Compact and Lightweight RP4TD-M! Building on the success of the RP4TD , we’re excited to unveil the RP4TD-M—a compact and lightweight version designed for optimal performance. Weighing in at just 1 gram, this receiver is ideal for builds where minimizing weight is crucial, while still leveraging ‘Gemini’ technology for superior interference mitigation. Thanks to its optimized circuit design, the RP4TD-M features dual-channel 2.4GHz radios, delivering exceptional signal sensitivity, signal-to-noise ratio, and overall performance. Whether you’re into racing drones or any application where every gram counts, the RP4TD-M stands out as a leader in its class.

Features

• Mini size true diversity Gemini receiver
• Class leading SNR and RSSI performance
• Built-in TCXO (temperature compensated crystal oscillator)
• Optimized PCB design for better heat dissipation
• Upgraded antenna with greater durability and performance
• 2 x 10mW RF Telemetry power output
• Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS

Specifications

• Item: RP4TD-M ExpressLRS 2.4GHz Mini True Diversity Receiver
• Type: ISM
• MCU: ESP32
• RF Chip: SX1281 x 2

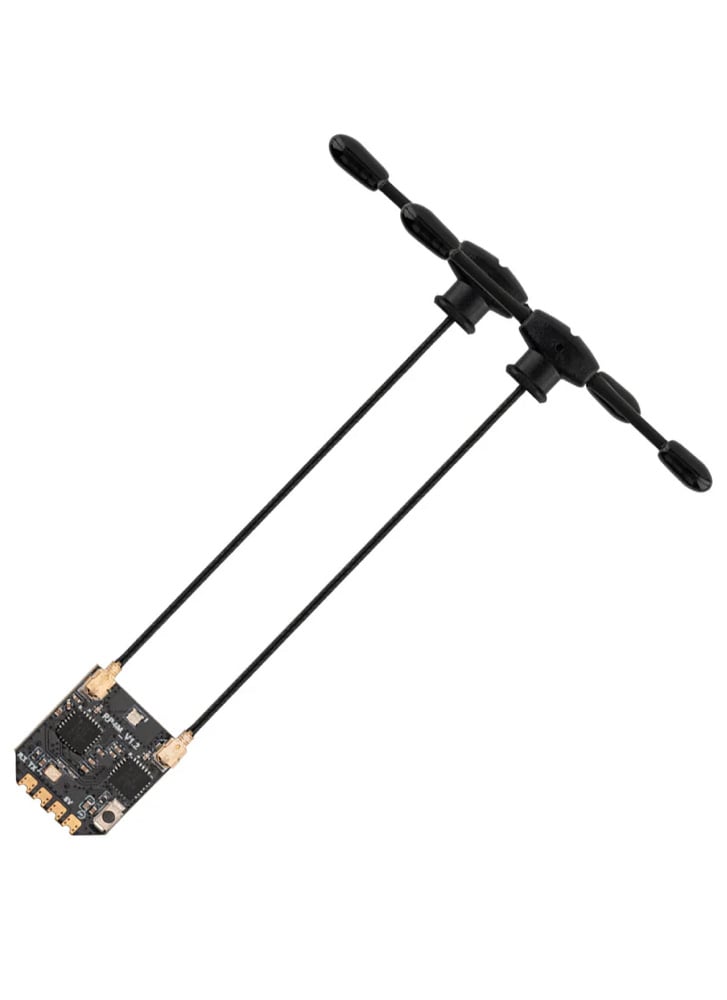

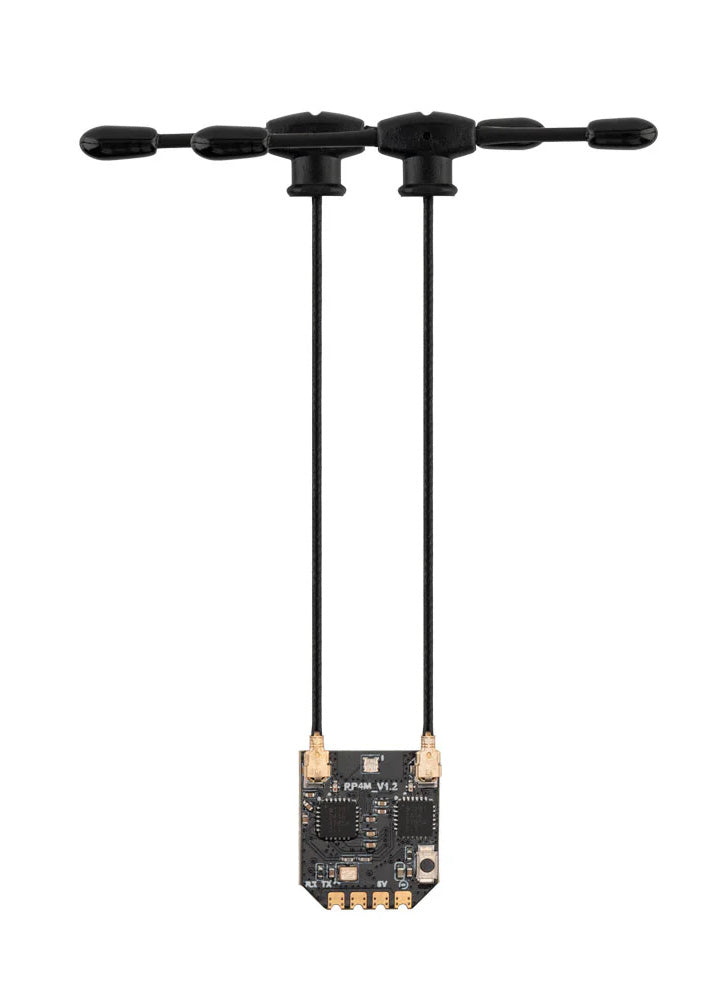

• Antenna: 65mm 2.4GHz T Antenna x 2
• Frequency Range: 2.4GHz
• Maximum Refresh Rate: 500Hz / F1000Hz
• Telemetry RF Power: Max 2x 10mW
• Working Voltage: DC 5.0V
• Wifi Updates: Yes

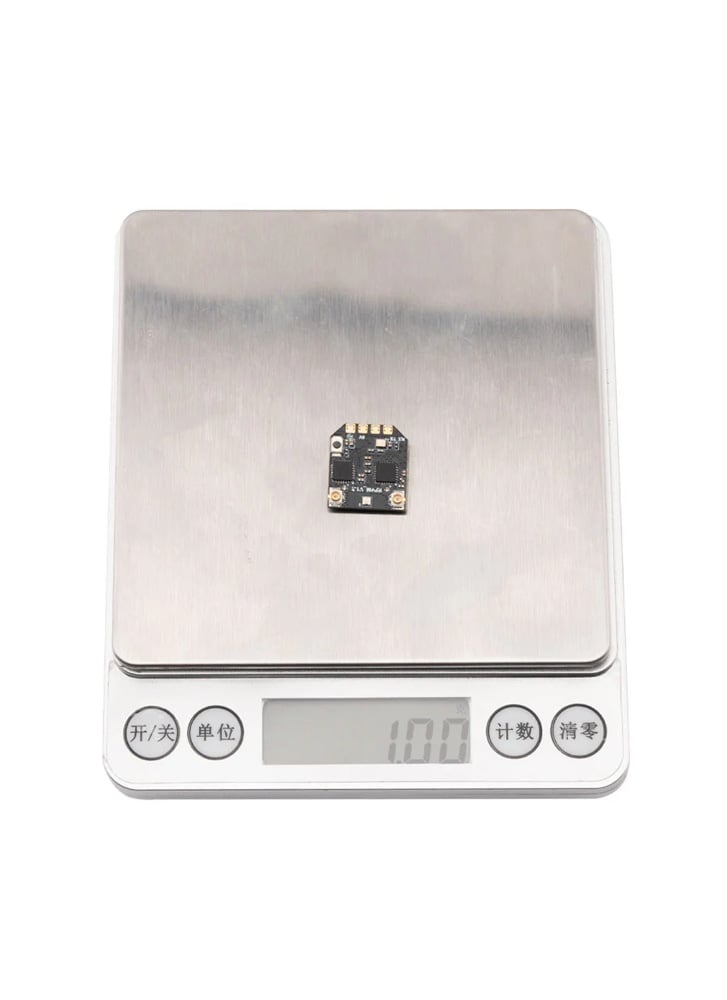

• Weight:  1.00g [Without antennas] / 3.30g [With antennas]
• Dimension: 18.10 x 16.0mm
• Firmware Version: ExpressLRS V3.4.3 pre-installed
• FW Target: RadioMaster RP4TD-M 2400 RX
• Bus interface: CRSF

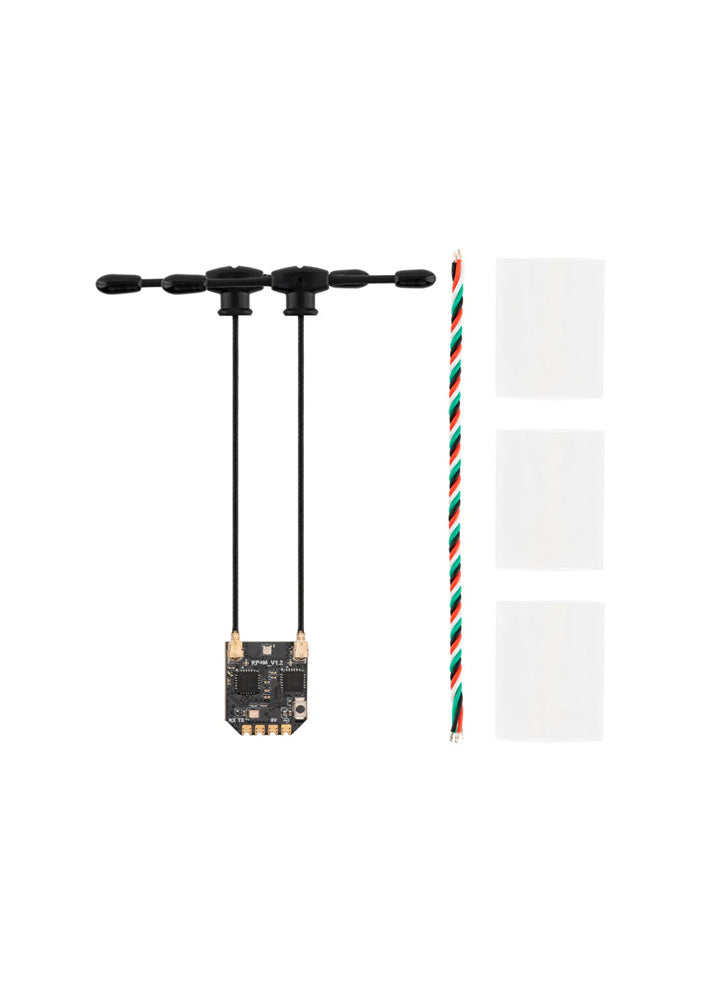

In the box

• 1 x RP4TD-M ExpressLRS True 2.4GHz Diversity Receiver
• 1 x CRSF wire
• 3 x Heat-Shrinkable Tube
• 2 x 65mm 2.4GHz T Antenna (Installed on receiver)
• 1 xUser Manual
