RadioMaster R Series R88 V2 Receiver – D8, D16 & SFHSS Compatible
RadioMaster R Series R88 V2 Receiver – D8, D16 & SFHSS Compatible
RadioMaster R Series R88 V2 Receiver – D8, D16 & SFHSS Compatible
RadioMaster R Series R88 V2 Receiver – D8, D16 & SFHSS Compatible
RadioMaster R Series R88 V2 Receiver – D8, D16 & SFHSS Compatible

RadioMaster R Series R88 V2 Receiver – D8, D16 & SFHSS Compatible

£17.90

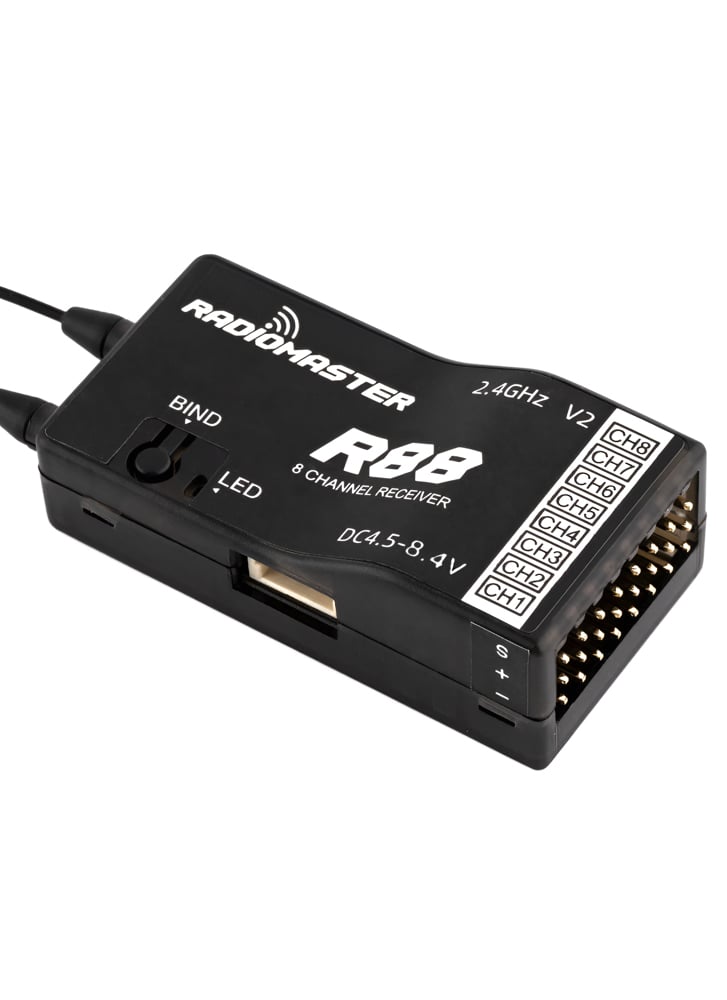

The RadioMaster R88 V2 is an 8-channel receiver with both PWM and SBUS output, providing flexibility for a wide range of aircraft and control setups. It supports FrSky D8 , D16 , and Futaba SFHSS protocols when used with a multi-protocol radio, and includes RSSI output on channel 9 along with built-in fail-safe protection. With a control range of over 1km and standard 15cm antenna, it’s a reliable option for larger models or builds requiring more channels. Requires an external multi-protocol module—does not bind to FrSky internal RF systems.

RadioMaster R Series Receivers: There is a choice of 4 receivers to suit different applications. In addition to PWM channels, R86C & R88 both have SBUS connections and support RSSI. All feature dual antennas and are full range (>1km Control distance) with support for setting a failsafe.

Options:

R81 Receiver – SBUS

R84 – 4 PWM Channels

R86 – 6 PWM Channels

R86C – 6 PWM Channels / SBUS (8CH)

R88 – 8 PWM Channels / SBUS (8CH)

Frsky transmitter not supported, only for MPM radio.

Selecting protocol:

Once the receiver has been put into bind mode, it will then cycle between the 3 protocol options: D8, D16 (FCC V1) and S-FHSS:

Three singles flashes = D8 Protocol

Three double flashes = D16 Protocol

Three triple flashes = S-FHSS Protocol

Select Bind on your radio when the receiver reaches the matching protocol.
