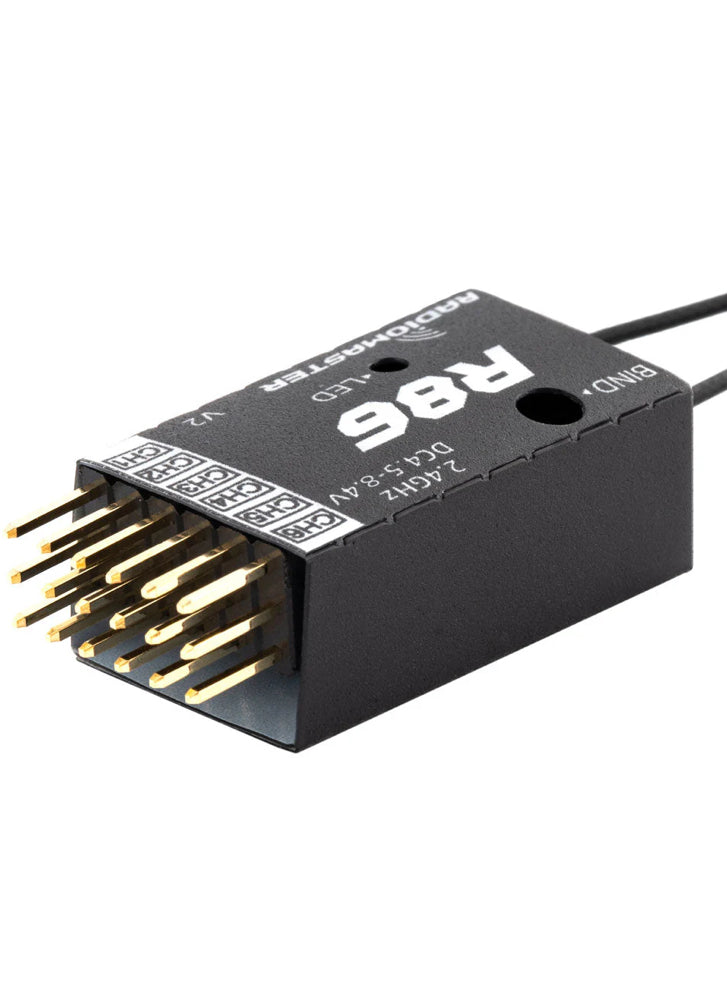

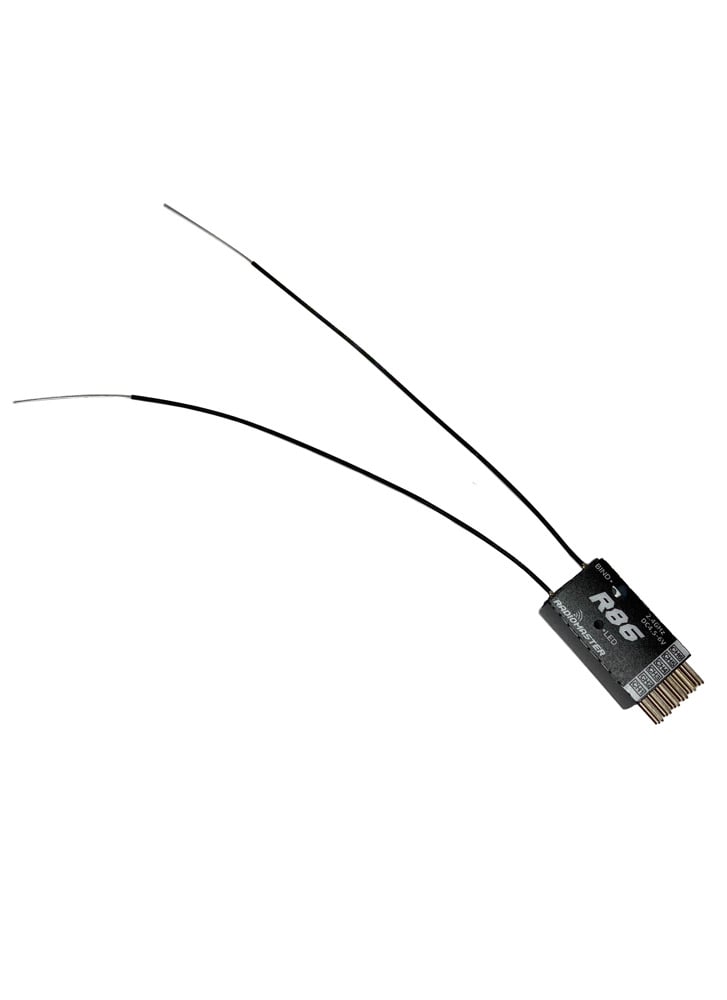

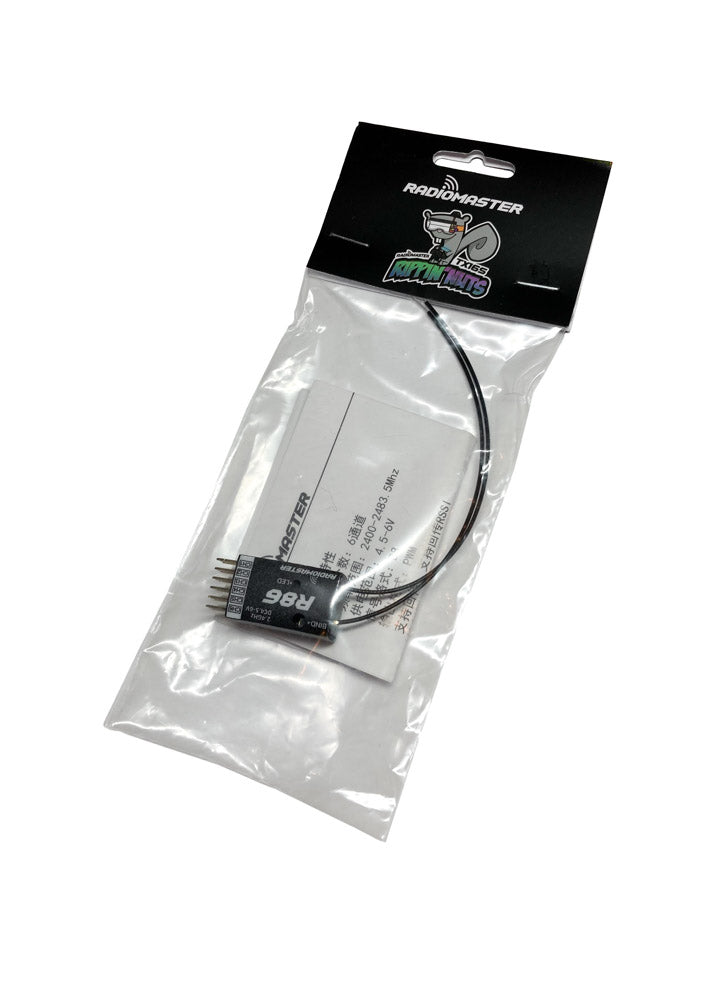

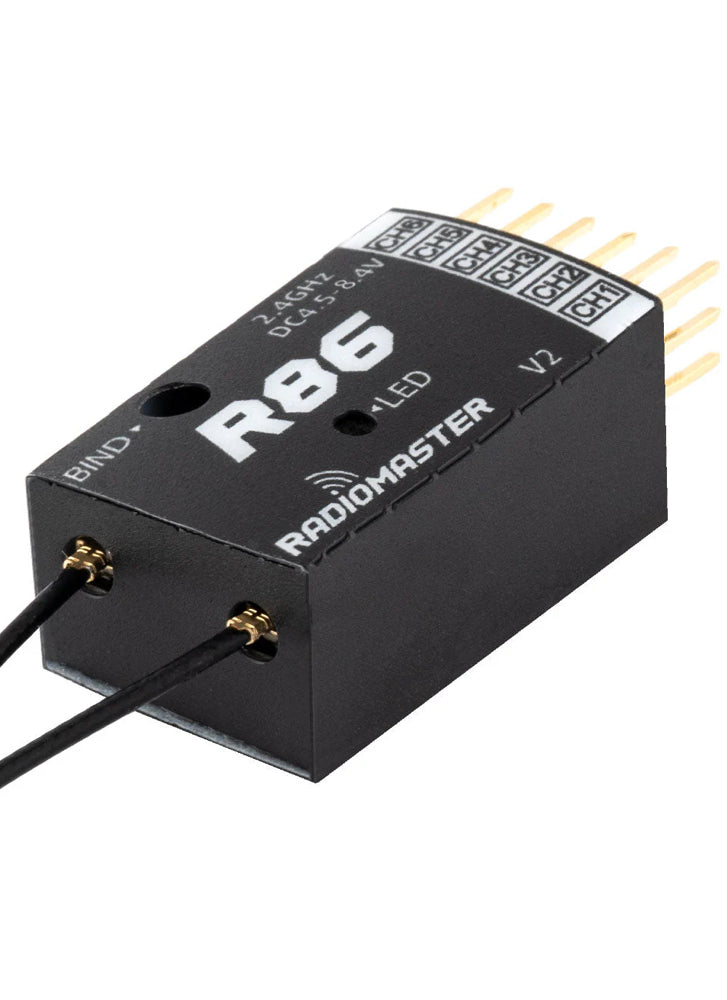

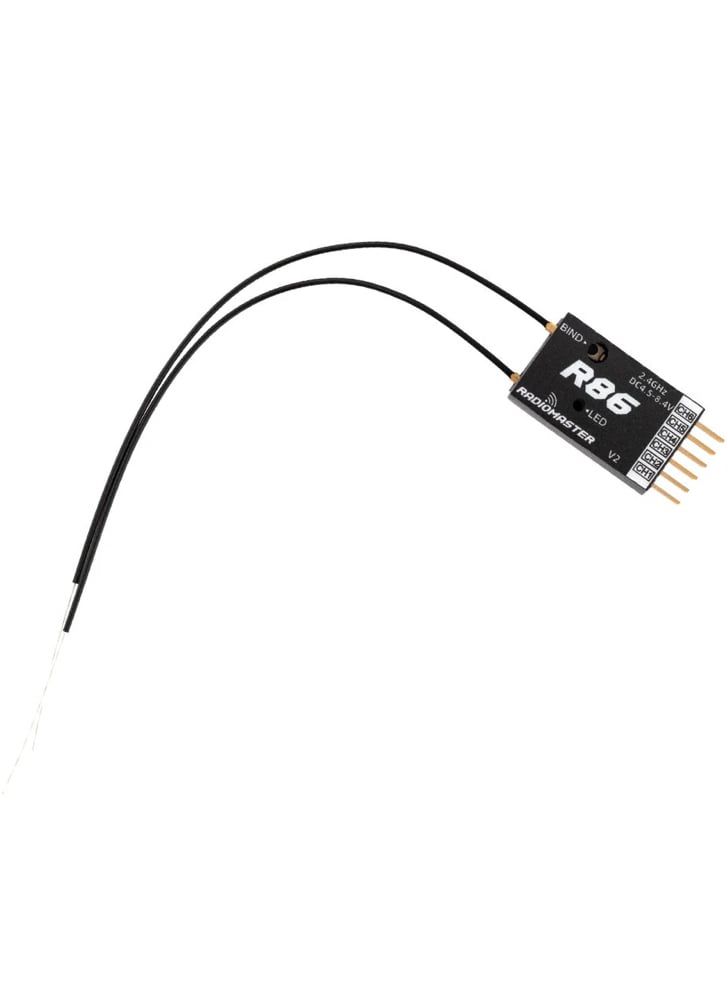

RadioMaster R Series R86 V2 Receiver – D8, D16 & SFHSS Compatible

£14.90

The RadioMaster R86 V2 is a compact 6-channel PWM receiver compatible with FrSky D8 , D16 , and Futaba SFHSS protocols when used with a multi-protocol radio. Designed for reliable control in RC planes and drones, it offers a range of over 1km, built-in fail-safe, and RSSI output. Measuring just 28×16.5×11mm and weighing 4.8g, it’s an ideal choice for space-constrained builds that need dependable signal performance. Requires an external multi-protocol module for binding—does not work with FrSky internal RF systems.

RadioMaster R Series Receivers: There is a choice of 4 receivers to suit different applications. In addition to PWM channels, R86C & R88 both have SBUS connections and support RSSI. All feature dual antennas and are full range (>1km Control distance) with support for setting a failsafe.

Options:

R81 Receiver – SBUS

R84 – 4 PWM Channels

R86 – 6 PWM Channels

R86C – 6 PWM Channels / SBUS (8CH)

R88 – 8 PWM Channels / SBUS (8CH)

Frsky transmitter not supported, only for MPM radio.

Selecting protocol:

Once the receiver has been put into bind mode, it will then cycle between the 3 protocol options: D8, D16 (FCC V1) and S-FHSS:

Three singles flashes = D8 Protocol

Three double flashes = D16 Protocol

Three triple flashes = S-FHSS Protocol

Select Bind on your radio when the receiver reaches the matching protocol.

Associated Products

Replacement Antenna for R84 R86 R86C R88 Receiver

Specifications

• Item: R86 V2 Receiver
• Channels: 6
• Frequency range: 2400-2483.5Mhz

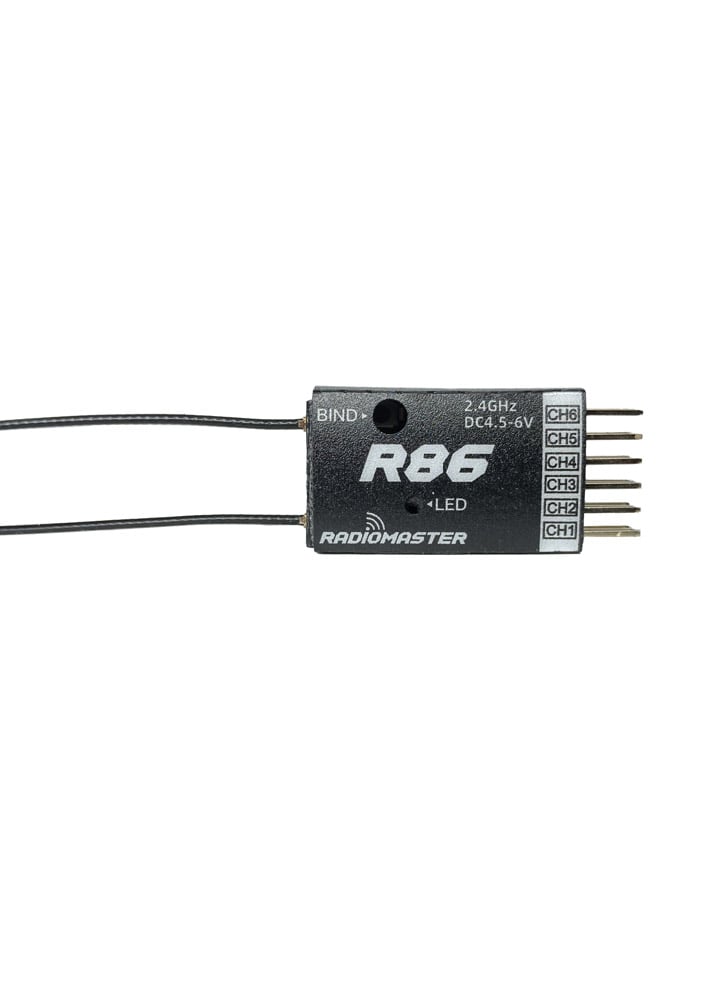

• Power input range: 4.5-8.4V (Please note the early R86 V2 Receivers are labeled DC4.5-6V. However are capable of DC4.5-8.4V.)
• Signal format: D8, D16 & SFHSS Compatible
• Output format: PWM
• Range: more than 1km
• Antenna length: 15cm
• Size: 28×16.5x11mm
• Weight: 4.8 grams
