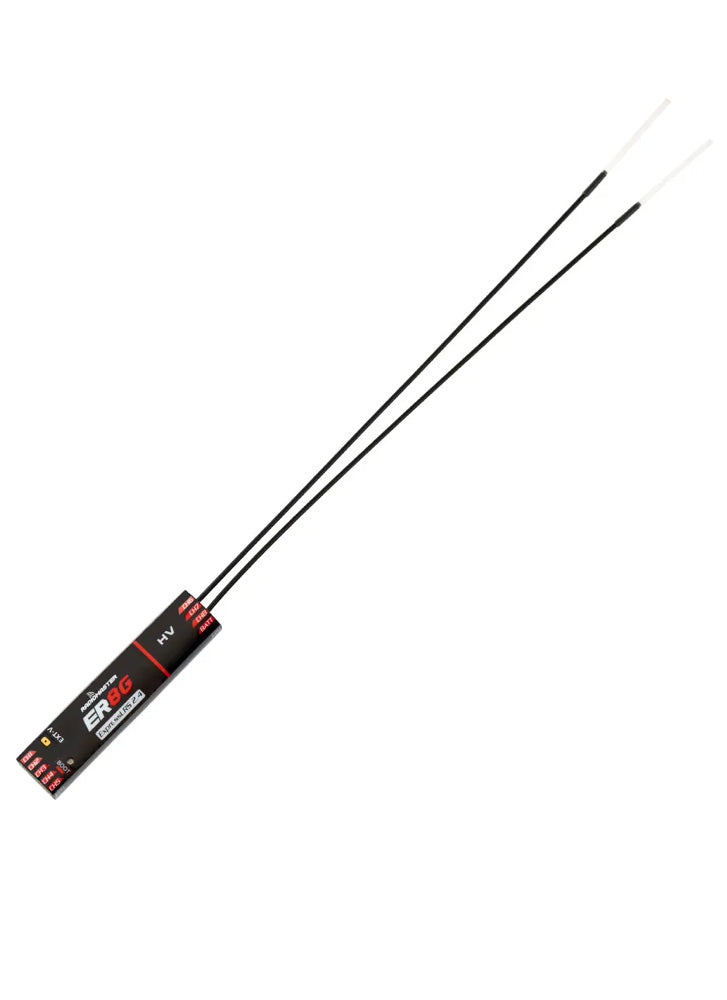

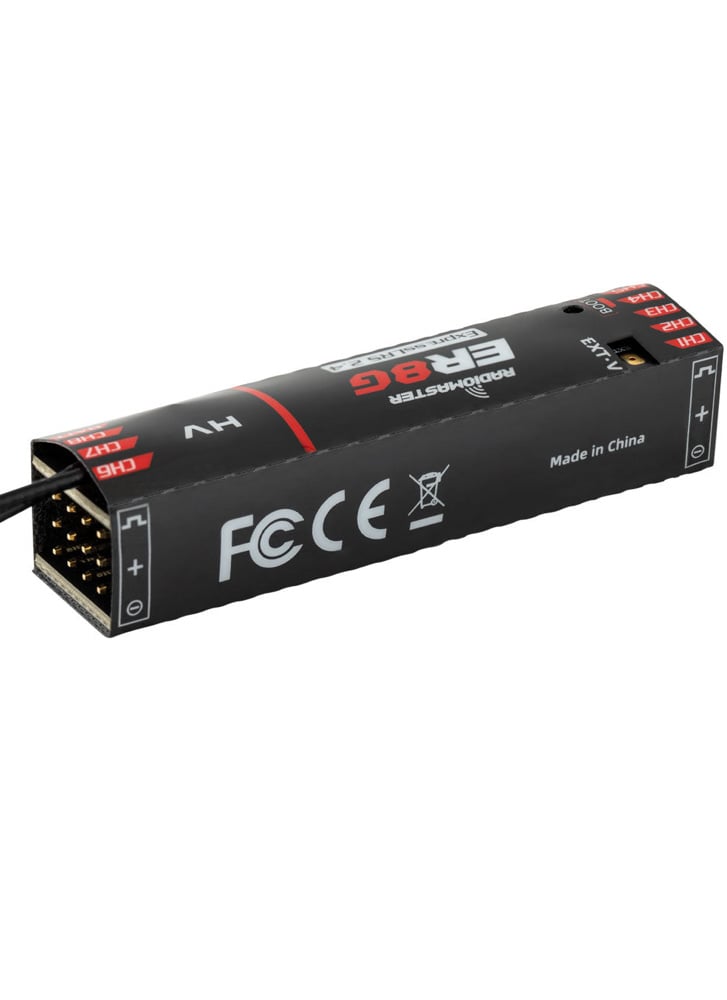

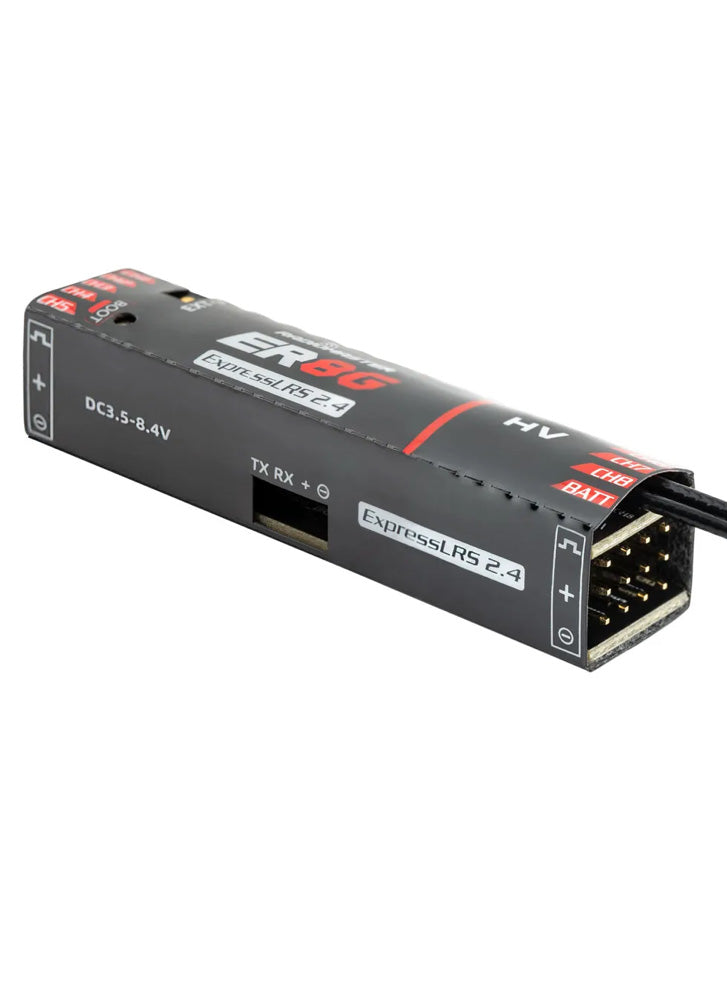

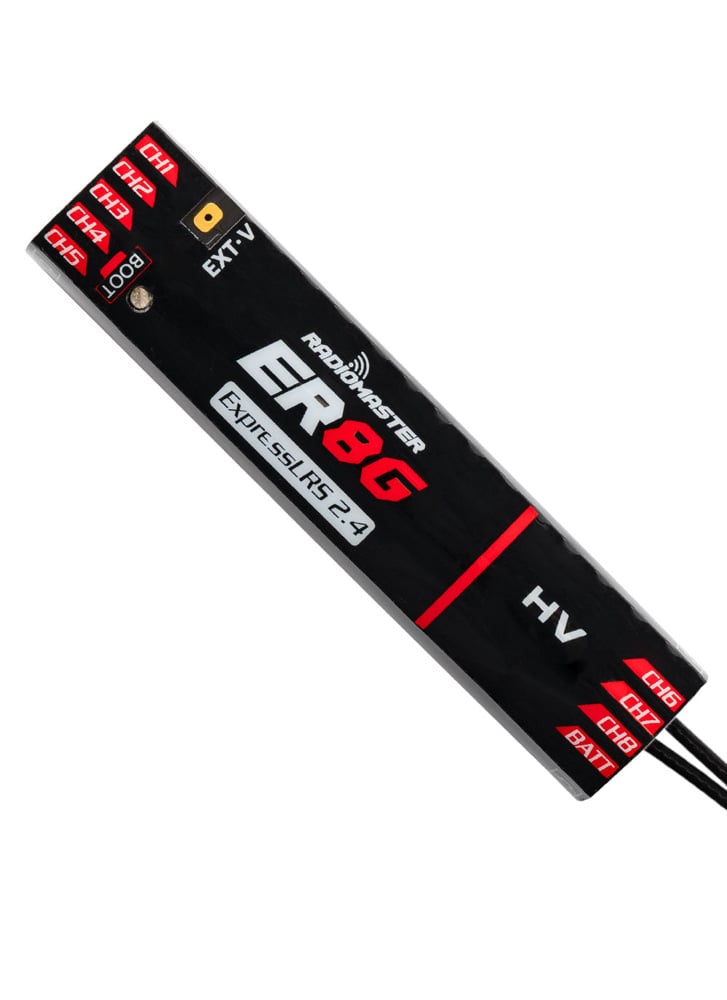

Radiomaster ER8G 8CH ELRS PWM Receiver
£34.90
The Radiomaster ER8G receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 8 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use (only one voltage input can be used at the any given time). The ER8G features a dual-antenna with telemetry power up to 100mw and can be used with a 1S Lipo receiver battery.
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.
We also sell the ER8G with Vario Sensor – ER8GV
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 6 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector
- Standard 15 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
Specifications
- Item: ER8G 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 20cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 8CH PWM
- Telemetry power: maximum 100mw (LUA can be set)
- Battery voltage detection range: DC 4.0 – 35V
- Weight: 12 grams
- Dimensions: 60×13.5x13mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER8G
In the box
- 1 x ER8G 2.4GHz ELRS PWM Receiver
- 2 x Heat-shrink tube
- 1 x Voltage telemetry wire (Type-A)
- 1 x CRSF wire
- 1 x ELRS- RX- SBUS wire
- 1 x User Card
