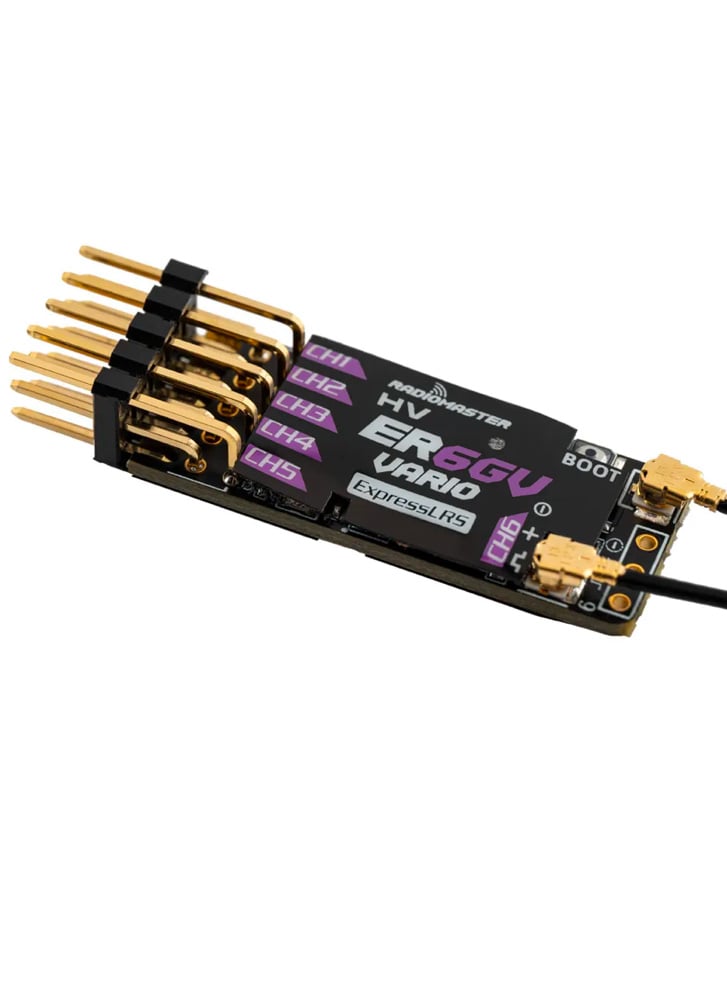

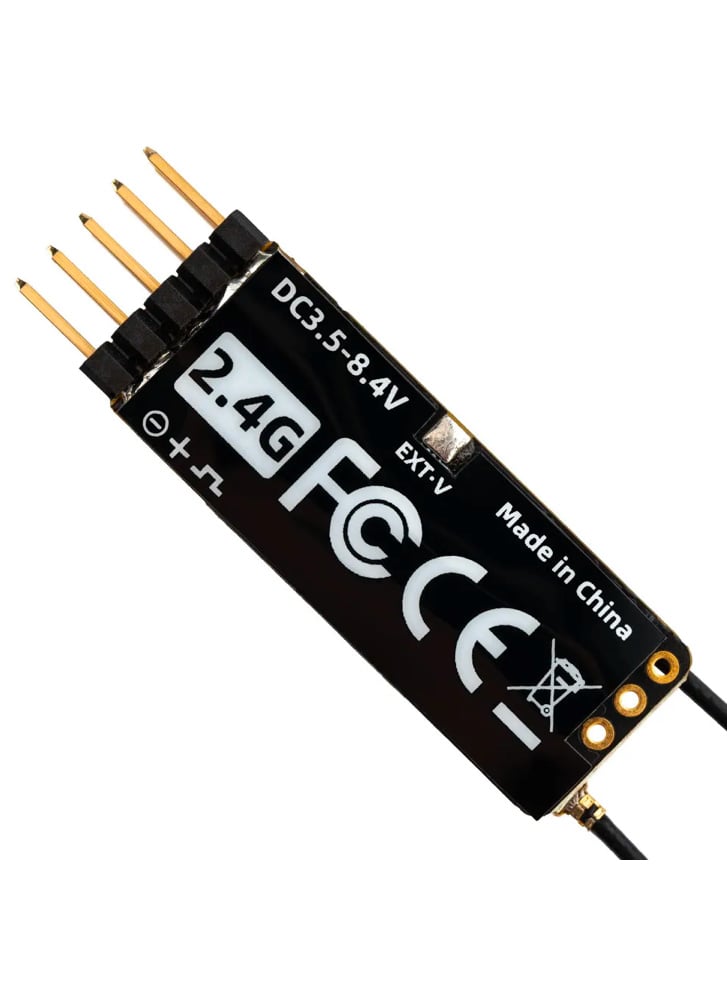

Radiomaster ER6GV 6CH ELRS PWM Receiver with Vario
£35.99
The Radiomaster ER6G receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. The ER6G features a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery. This ‘V’ version of the receiver has a built-in high-precision air pressure sensor (Vario) sensor, used by glider pilots. A Vario (Variometer) measures the rate of change of altitude by detecting the change in air pressure (static pressure) as altitude changes. When used with the EdgeTx / OpenTx transmitter, you can program both ascending and descending tones, so you will know whether you are in lift or sink without having to look at your transmitter. For competition pilots, we also sell this receiver without Vario sensor HERE .
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- ER6GV Receiver is built-in high-precision air pressure sensor (Vario)
- Support 6 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector

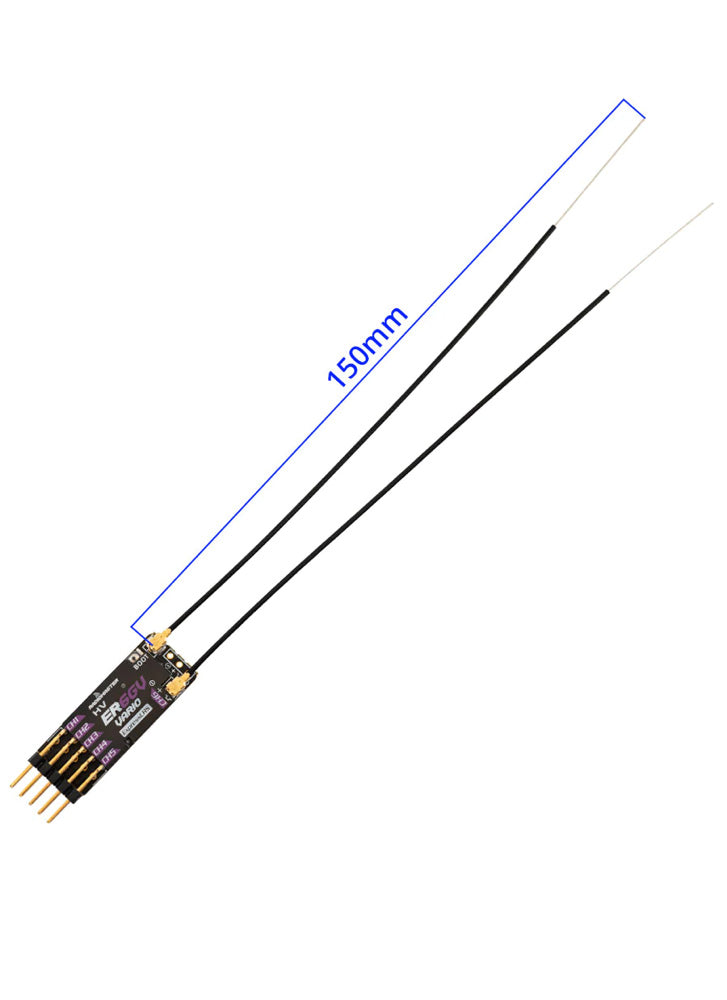

- Standard 15 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
Specifications
- Item: ER6GV 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.2 pre-installed
- Output channel: 6CH PWM
- Return power: maximum 50mw (LUA Adjustable)
- Built-in high-precision air pressure sensor (Vario)
- Battery voltage detection range: DC 3.0 – 26V
- Weight: 5.0 grams
- Dimensions: 42x13x8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6GV
In the box
- 1 x ER6GV 2.4GHz ELRS PWM Receiver
- 1 x Voltage telemetry wire (Type-A)
- 2 x Heat-shrink tube
- 1 x User Card
