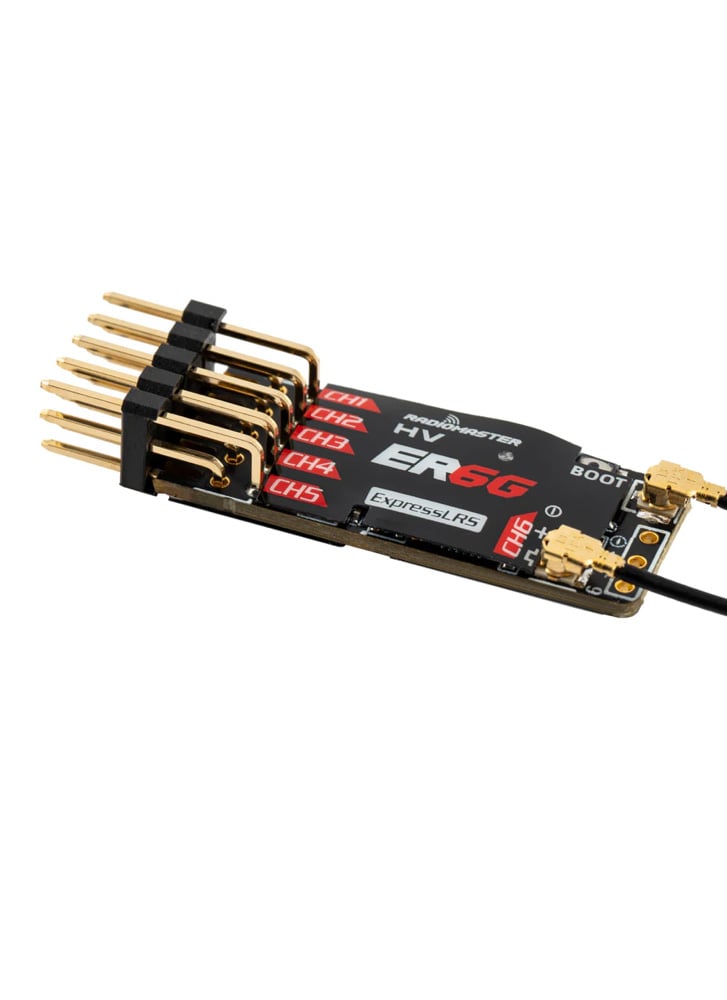

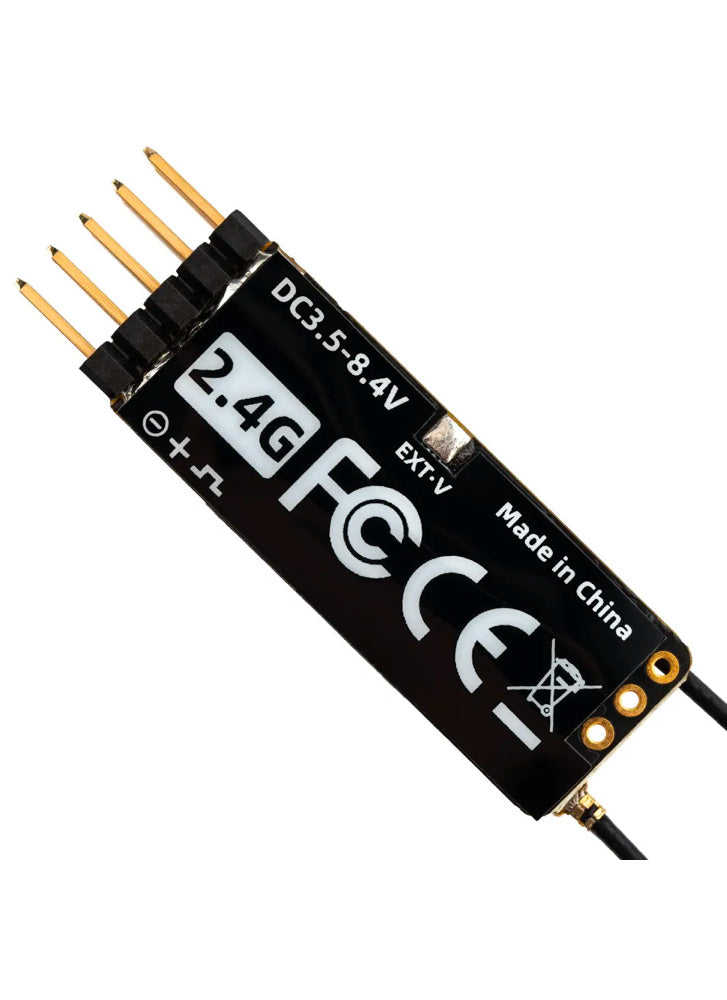

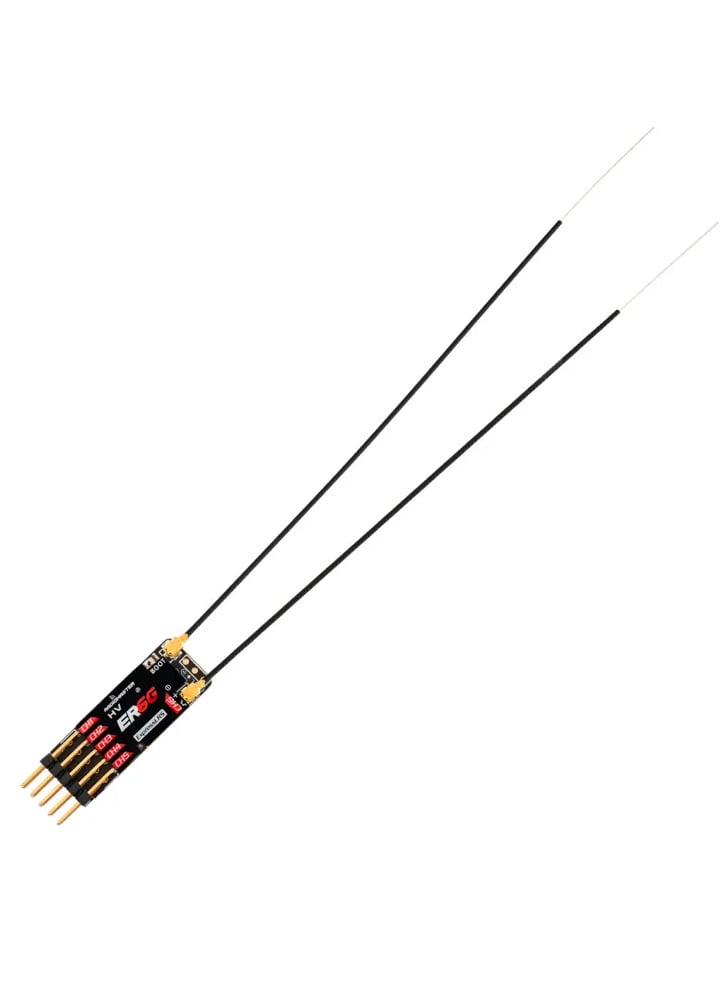

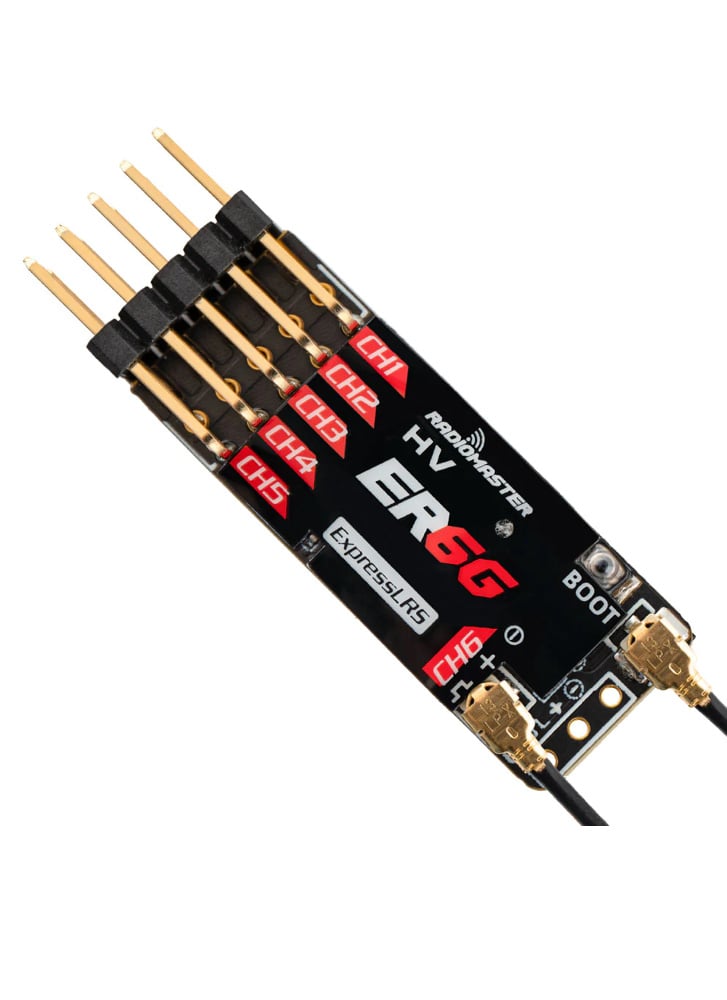

Radiomaster ER6G 6CH ELRS PWM Receiver
£29.99
The Radiomaster ER6G receiver have been specially designed for glider pilots who require a compact and slim receiver. It can drive up to 6 servos and has built-in receiver voltage telemetry and flight battery telemetry with the ability to automatically detect which voltage input to use. The ER6G features a dual-antenna with telemetry power up to 50mw and can work stably with a 1S Lipo receiver battery.
The RadioMaster ER series of PWM receivers are based on the revolutionary ExpressLRS system. It offers high performance, high reliability, flexible configuration, fast response speed and ultra-long range bringing you brand new experience with your hobby.
We also sell the ER6G with Vario Sensor – ER6GV
Features
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Support 6 PWM Channels
- Optimized ground up PCB design
- Automatically voltage telemetry of external battery voltage or built-in receiver voltage
- Supports Wi-Fi updates and WEBUI configuration
- High quality 2.54 mm connector
- Standard 15 cm High Sensitivity Antenna
- For fixed-wing aircraft and gliders
Specifications
- Item: ER6G 2.4GHz ELRS PWM Receiver
- Power supply: DC 3.5 – 8.4V
- Antenna type: 15cm high sensitivity antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 6CH PWM
- Telemetry power: maximum 50mw (LUA Adjustable)
- Battery voltage detection range: DC 3.0 – 26V
- Weight: 5.0 grams
- Dimensions: 42×13*8mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: Radiomaster ER6G
In the box
- 1 x ER6G 2.4GHz ELRS PWM Receiver
- 1 x Voltage telemetry wire (Type-A)
- 2 x Heat-shrink tube
- 1 x User Card
