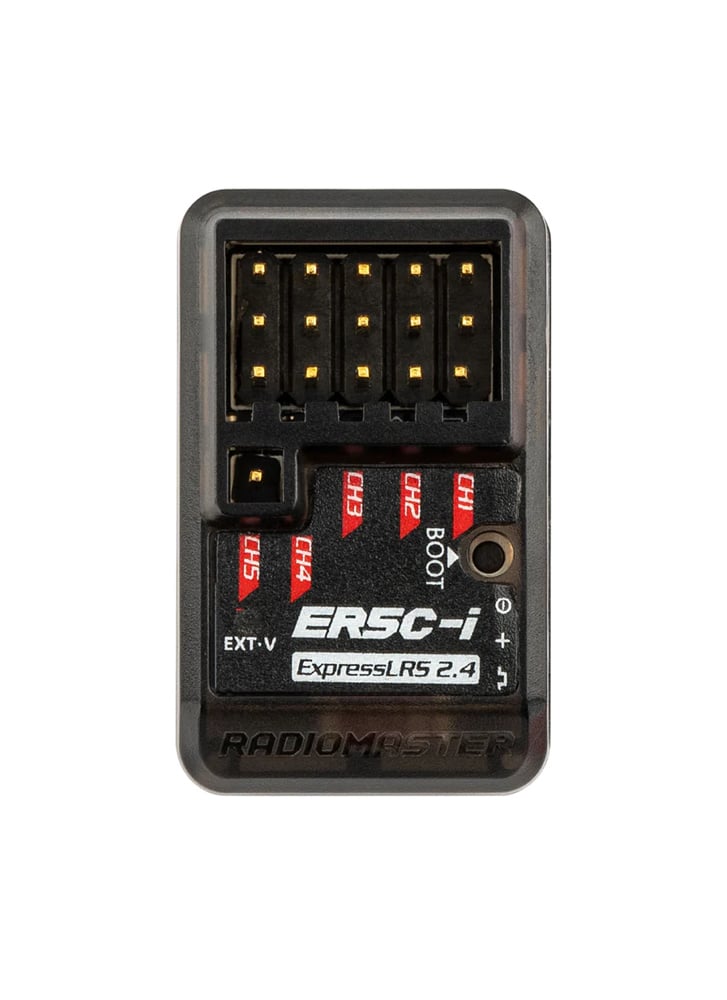

RadioMaster – ER5C-i 2.4GHz 5Ch ExpressLRS ELRS Receiver
£19.99
The RadioMaster ER5C-i receiver is based on the high-performance, revolutionary ExpressLRS system, featuring high reliability, highly flexible configuration, ultra-fast response speeds, and an ultra-long receiving range, bringing with it a brand-new usage experience.
The ER5C-i ELRS receiver can drive up to 5 servos and has built-in receiver voltage telemetry and battery telemetry with the ability to automatically detect which voltage input to use. The ER5C-i features a built-in high-sensitivity ceramic antenna, it is designed for all types of surface models and provides a clean install without antenna wires to worry about.
Features
- Built-in high-sensitivity ceramic antenna
- Based on the Revolutionary ExpressLRS System
- High performance, high reliability, flexible configuration, fast response speed and ultra-long range
- Supports 5 PWM Channels
- Automatically detects voltage telemetry of external battery voltage or receiver battery / ESC BEC voltage
- Optimized ground up PCB design
- Supports Wi-Fi updates and WEBUI configuration
- Built-in a TCXO (temperature compensated crystal oscillator), ensures stable and accurate performance in any environment
- Designed for all types of surface models
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Associated Products
ER SERIES ELRS PWM RECEIVERS
MT12 Surface Radio
Specifications
- Item: ER5C-i 2.4GHz ELRS PWM Receiver
- Power supply: DC 4.5 – 8.4V

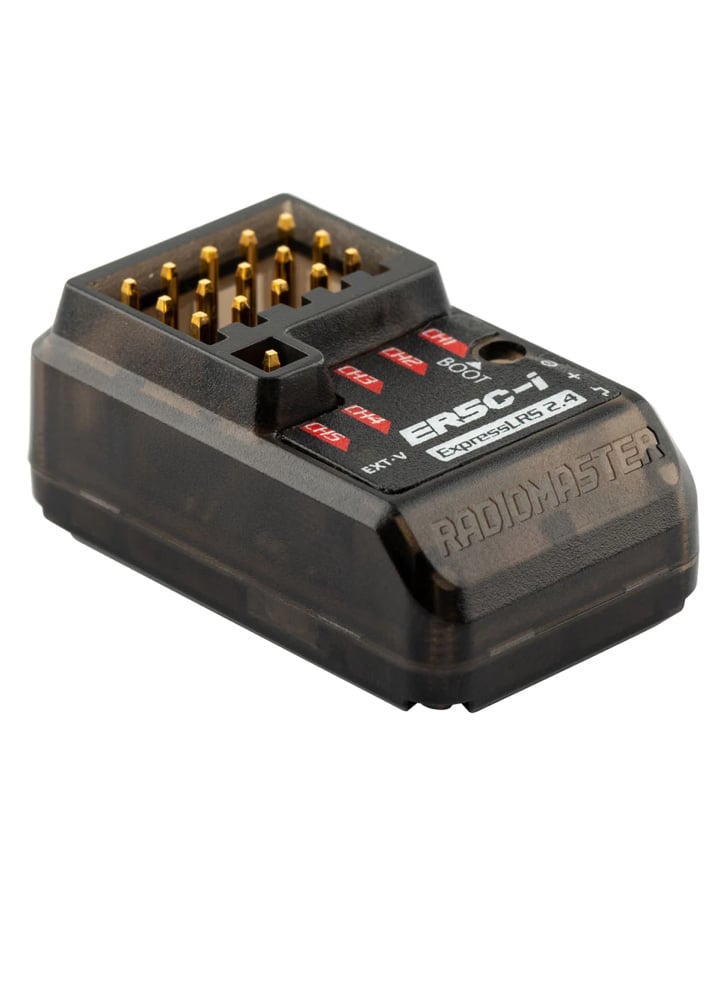

- Antenna type: Built-in high-sensitivity ceramic antenna
- Wireless protocol: ExpressLRS 3.3.0 pre-installed
- Output channel: 5CH PWM
- Telemetry power: 10mW
- Battery voltage detection range: DC 4.0 – 35V
- Weight: 5.0 grams

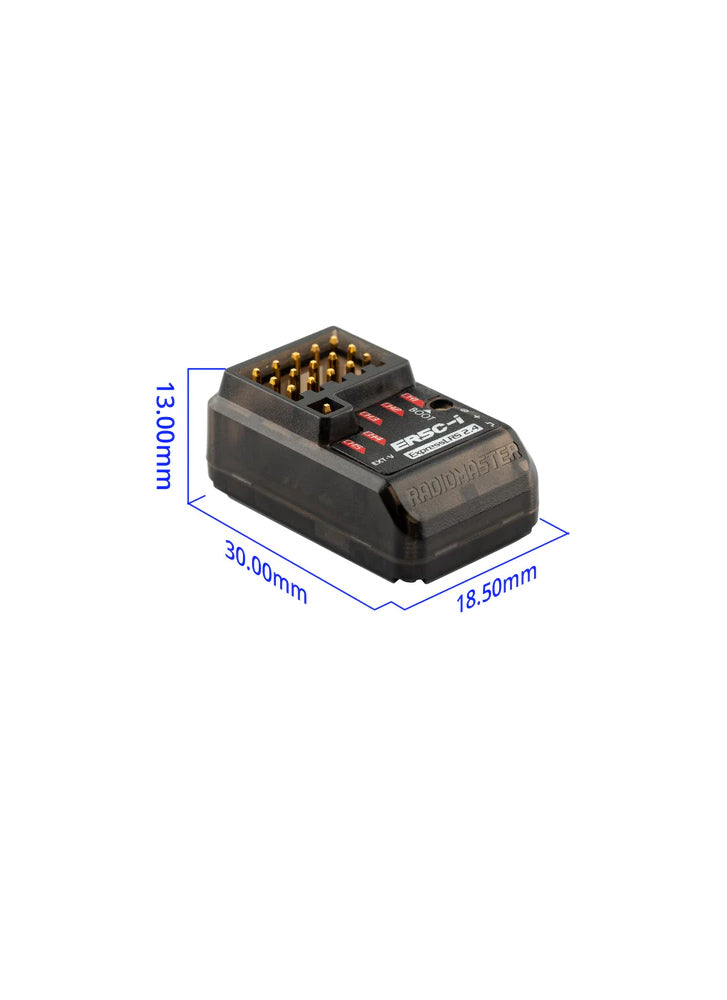

- Dimensions: 30.0×18.5×13.0 mm
- Firmware: Device Category: Radiomaster 2.4Ghz / Device: RadioMaster ER5C-i
In the box

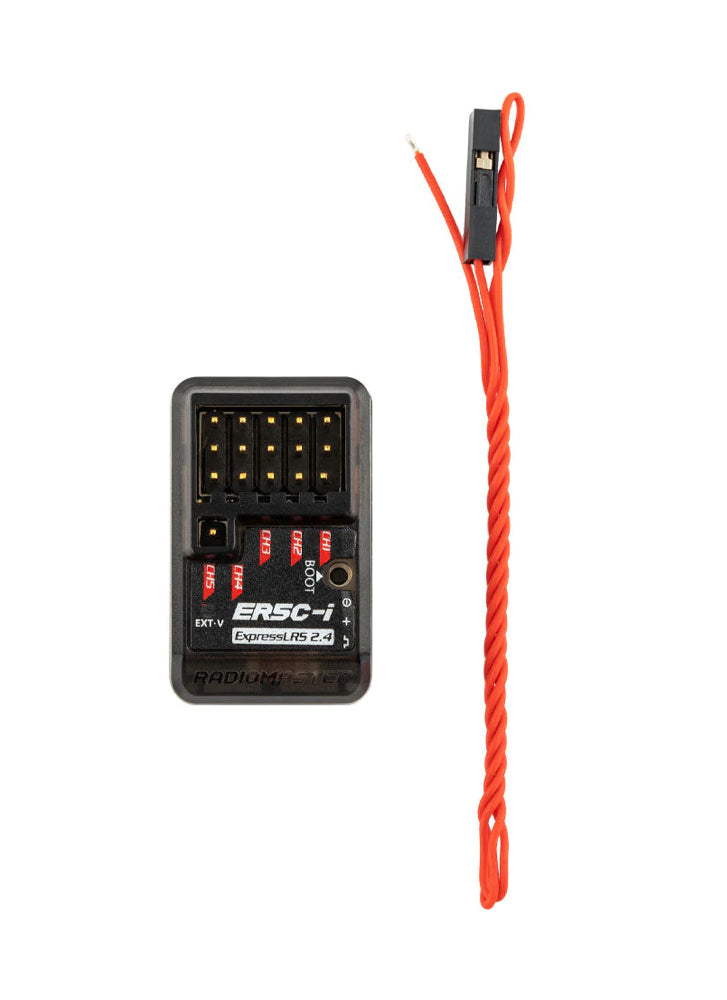

- 1 x ER5C-i 2.4GHz ELRS PWM Receiver
- 1 x Voltage telemetry wire
- 1 x User Card
