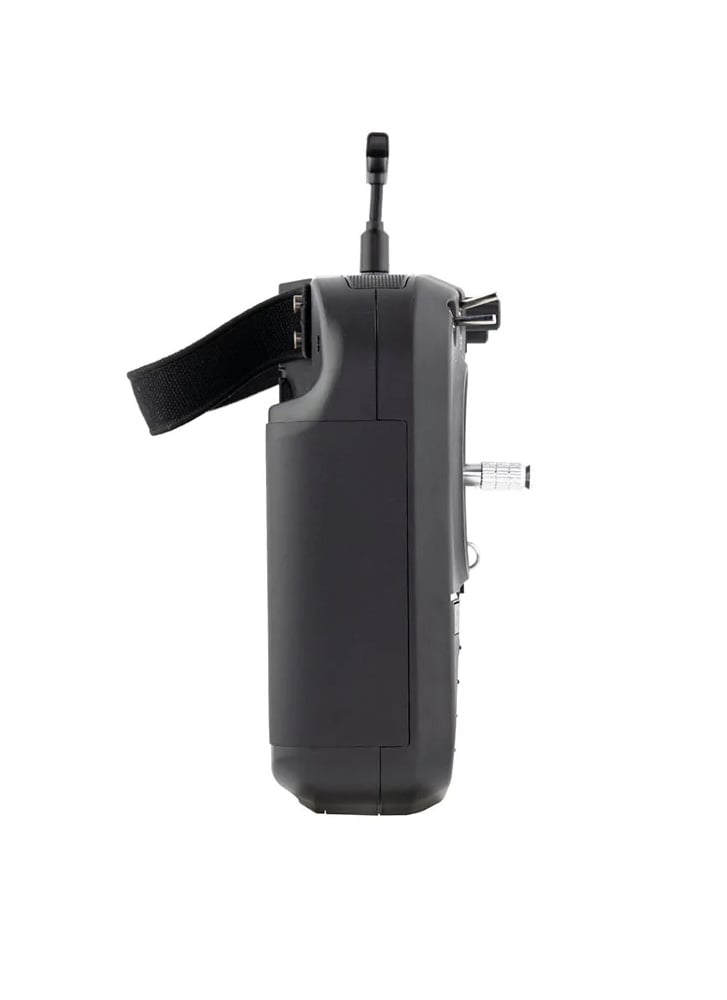

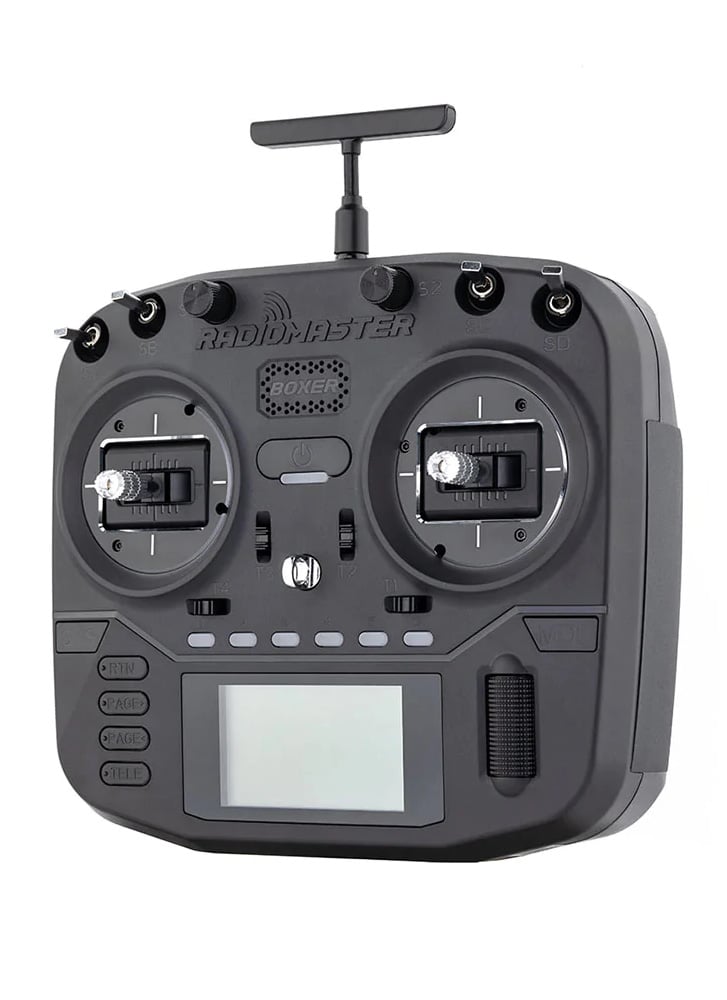

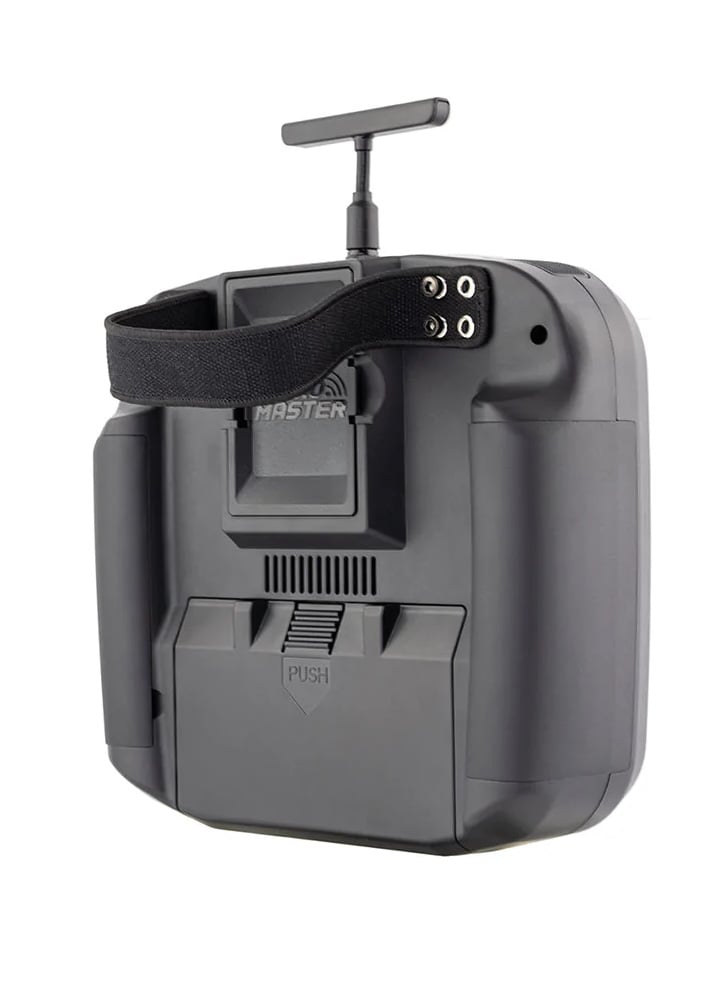

RadioMaster Boxer Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz
RadioMaster Boxer Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz
RadioMaster Boxer Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz
RadioMaster Boxer Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz
RadioMaster Boxer Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz

RadioMaster Boxer Radio 4-in-1 Multi-Protocol / ELRS 2.4Ghz

£153.90

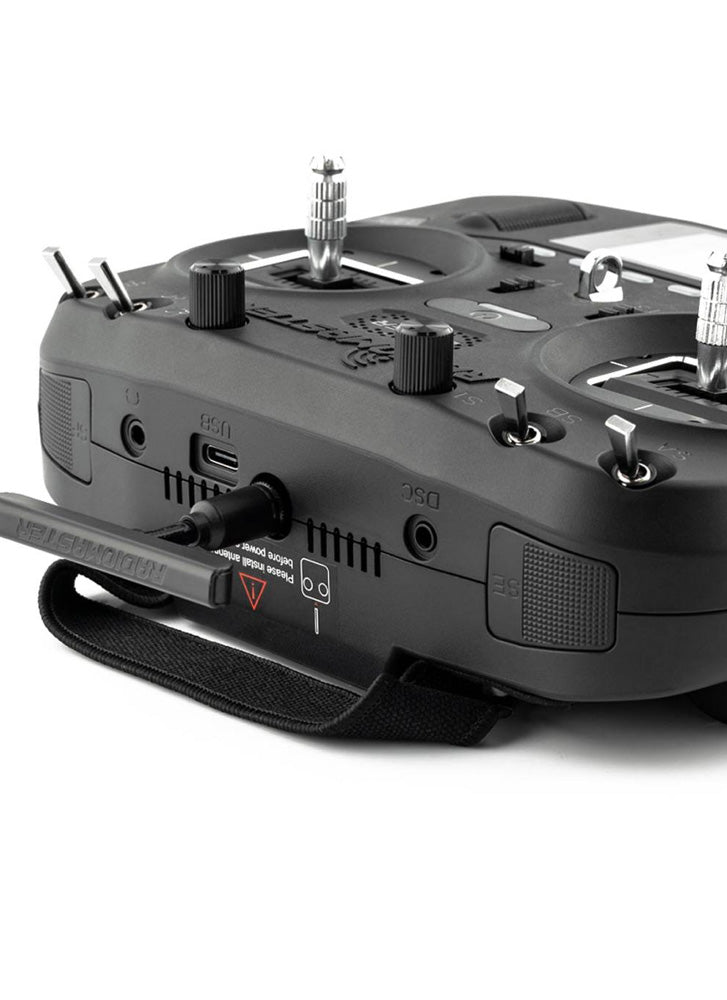

The perfect combination of size and ergonomics make the BOXER an ideal choice for pilots on the go. The Boxer radio features an STM32VGT6 processor, QC3.0 charging, and new low-profile latching SE switch and momentary SF switch. It also has full size V4.0 hall gimbals for precision control and an intuitive button layout. The BOXER gives you a compact radio without compromising on comfort and function.

Preinstalled with EdgeTX, the BOXER has cutting edge software fit for its class-leading hardware. RadioMaster works closely with the EdgeTX team to develop features and optimise the user experience.

We also sell the Transparent version of the Boxer ELRS Radio HERE, & Boxer Crush HERE .

Features

The Boxer Radio Controller comes in two versions. A Multi-Protocol and a 1W output ELRS 2.4G version. Be sure to choose the correct RF version: The 4-in1 Multi-Protocol version supports protocols including FRSKY ACCST, Spektrum DSMX and FlySky ADHDS 2A etc. The ELRS version, supports 2.4GHz ExpressLRS protocol only. ELRS is designed to provide reliable long-distance control, minimal latency, and high refresh rates. ELRS is a revolutionary open-source protocol taking the R/C industry by storm. Both versions have a JR size module bay and can work with external modules i.e. a multi-protocol module, ELRS module or long range module.

Firmware Versions – FCC and EU LBT: Our stock is supplied with EU LBT firmware. Radios can be reflashed to FCC or vice versa, the hardware itself is not restricted. Please check the supported protocols below. To reflash the 4in1 version to unlock all protocols takes less than 5 minutes. Download the latest Multi-Module Firmware from here – Module Type: STM32 4-in1 / Radio Type: Serial / Channel Order AETR. The file name will be named: mm-stm-serial-aetr-vX.X.X.XX.bin. Load this file onto the Boxer radio’s SD card in the folder named firmware. Next on the radio, access the system menu. Use the Page button to find the SD card page, then enter on the firmware option. In there you should see the file you added to the SD card mm-stm-serial-aetr-v… enter on that (long press on the scroll wheel) then it gives you some options – select ‘Flash Int. Multi’. That’s it, the internal multi protocol module will now give you options for all MPM protocols.

Standard FCC Version

4in1 (FCC) Version supports all MPM protocols

ELRS (FCC) is pre-installed witn ExpressLRS ISM FW (Max power is hardware dependant)

EU LBT Version

4in1 LBT Version (Europe) is limited to LBT compliant protocols FrSKY X/X2 LBT, HoTT LBT and DSMX

ELRS LBT (Europe) Version is pre-installed with ExpressLRS CE EU domain LBT FW (Limited to 100mw power output)

Recommended (Not Included)

AGO1 CNC Colored Gimbals: RadioMaster CNC AG01 Hall Gimbal (Set of 2) w/ Self Centering + Throttle – Multi Color

AGO1 CNC Black Gimbals: RadioMaster CNC AG01 Hall Gimbal (Set of 2) w/ Self Centering + Throttle

Transmitter Battery: Radiomaster 2S LiPo Transmitter Battery for Boxer – 6200mAh

The Boxer takes two 18650 Li-ion batteries (not included) – they can be recharged internally via the USB-C connector

Transparent Shell Set

Specifications

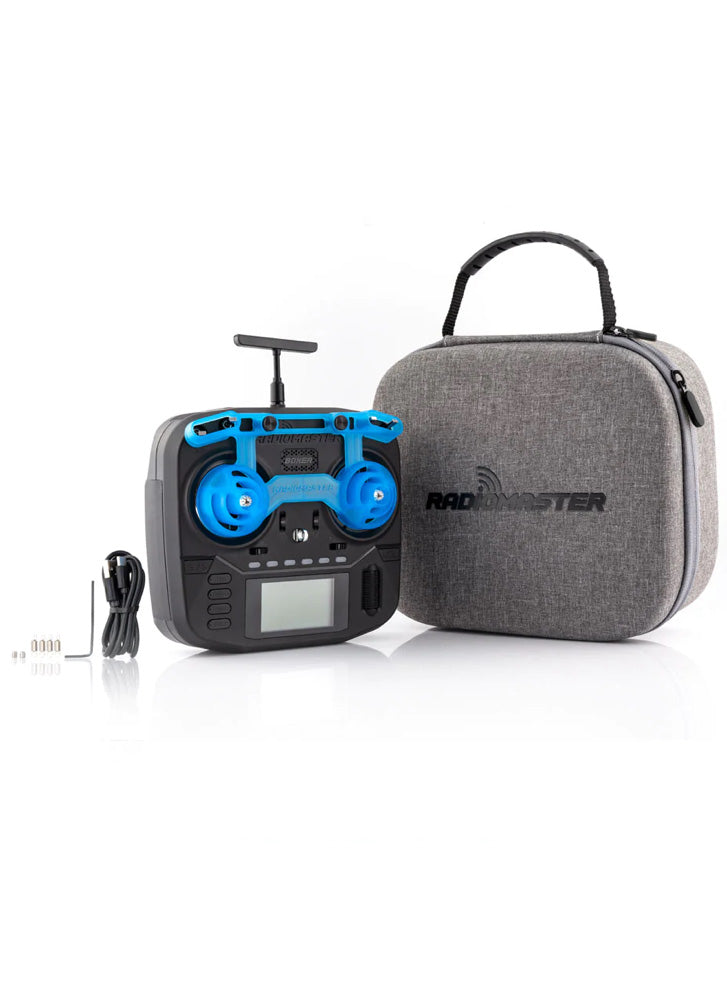

In the box
