RadioMaster 2.4G ELRS RP1 V2 Nano Receiver
£18.90
Latest Version: V2
The RP1 is nano size, open-source receiver based on ExpressLRS.

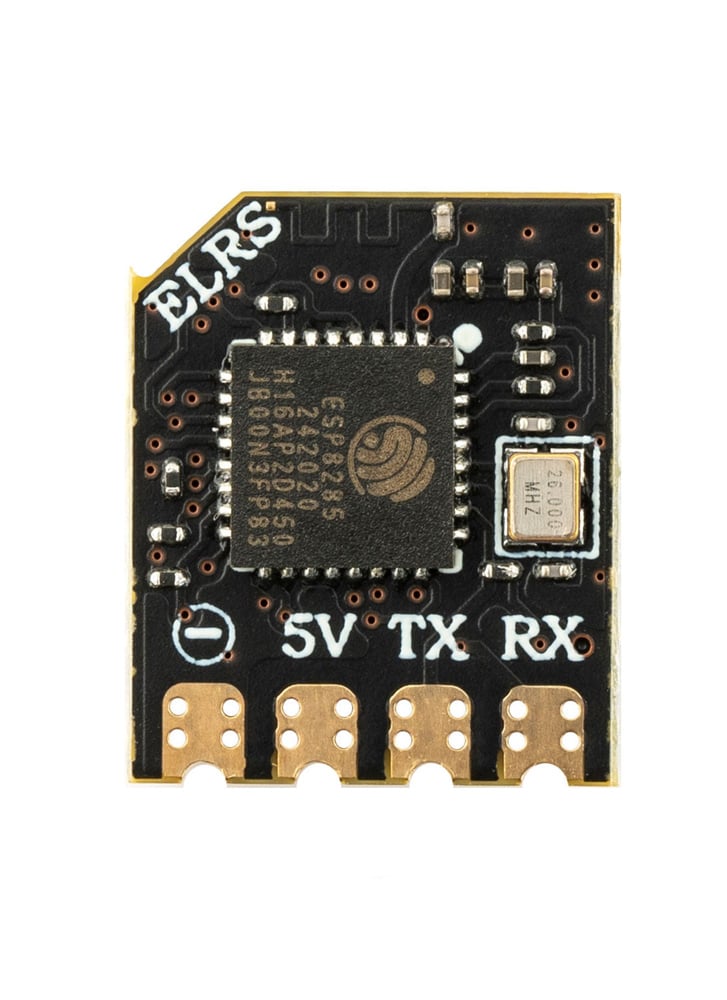

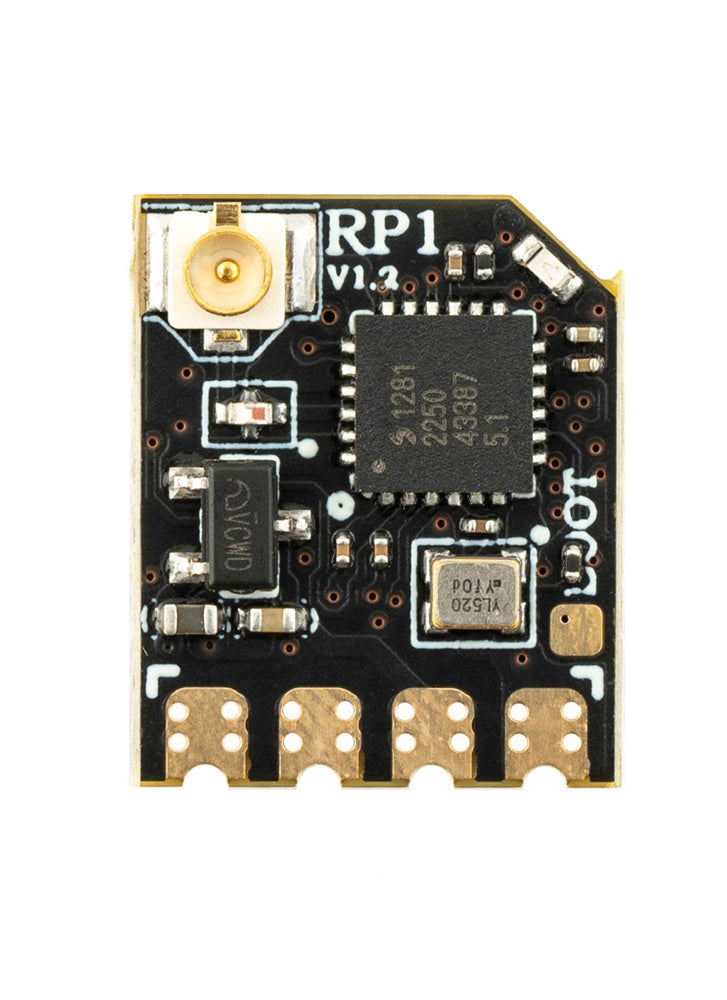

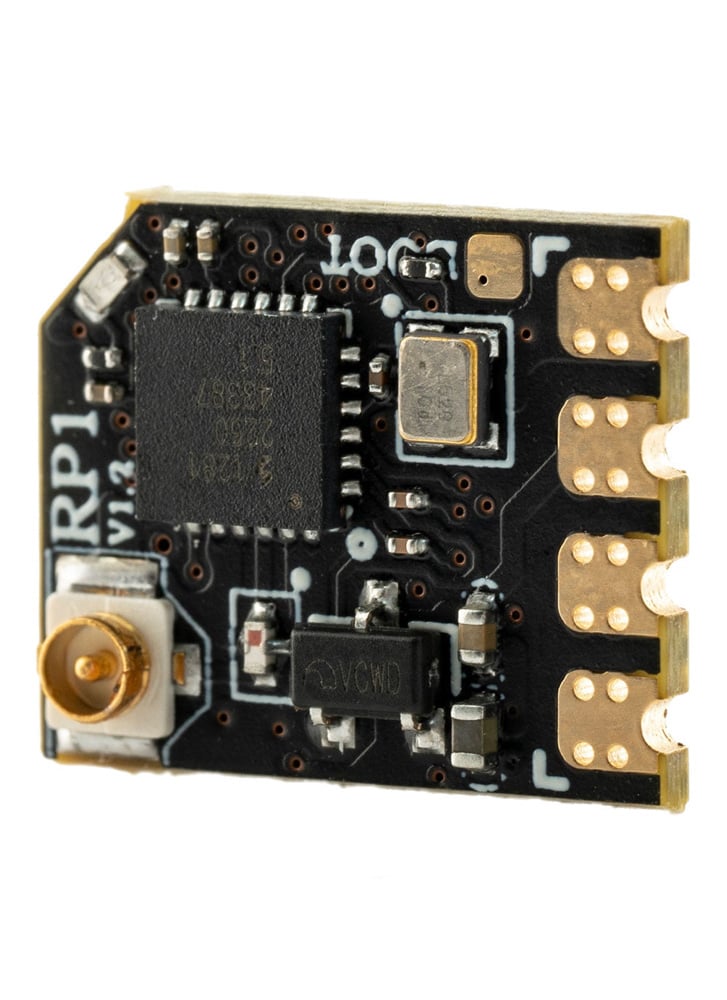

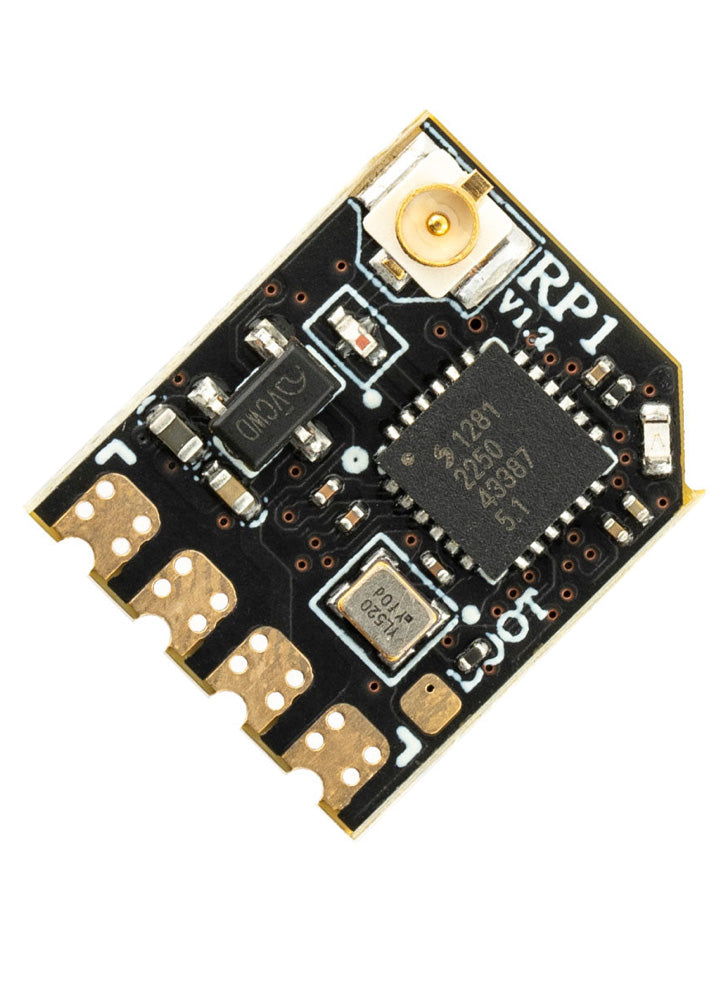

Developed around the ESP8285 MCU and SX1280 RF Chip, the RP series offer incredible range and low latency. With WIFI built in, firmware updates can be done on your craft without the need to remove the receiver. Binding can be done via the WebUI with your PC or mobile phone, meaning no more bind plugs or fiddly button presses while trying to plug in your battery.
The RadioMaster RP series receivers are built-in a TCXO (temperature-compensated crystal oscillator) now, which ensures reliable, stable, and accurate signal reception, allowing for superior performance in demanding environments and enhancing the flight experience.

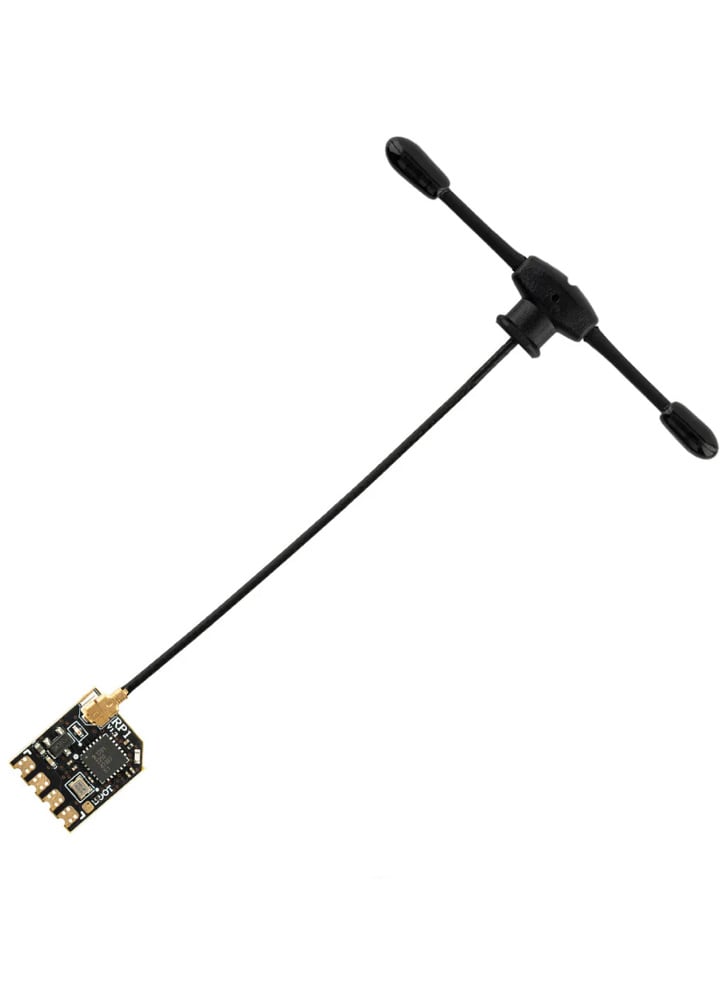

There are two versions of the RP series receiver, RP1 and RP2 . The RP1 has a UFL antenna socket for full-range antenna use. The RP2 has a built-in ceramic antenna which is super light and small in size.
Due to the low-latency and high-refresh-rate RF module, the RP1 and RP2 are ideal for FPV races or Long Range. Suitable for Whoops, drones, and fixed-wing models due to the ultra-light and Nano size, these receivers can fit just about anywhere!
Visit https://www.expresslrs.org/ to learn more.
Features
- Improved PCB design is better for heat dissipation.
- Upgraded rigid antenna with greater durability and performance.
- LED on the top side of PCB.
- Solder pads are improved and easier to solder to.
- Built-in a TCXO (temperature compensated crystal oscillator)
- Compatible with all 2.4GHz ExpressLRS modules and transmitters with built in 2.4GHz ExpressLRS
Specifications
- Type: ISM
- ESP8285 MCU
- SX1280IMLTRT RF Module
- Antenna: 65mm 2.4ghz T Antenna
- Frequency Range: 2400 MHz to 2480 MHz
- Maximum receive refresh rate: 500Hz / F1000Hz
- Minimum receiver refresh rate: 25Hz
- Working voltage: 5v

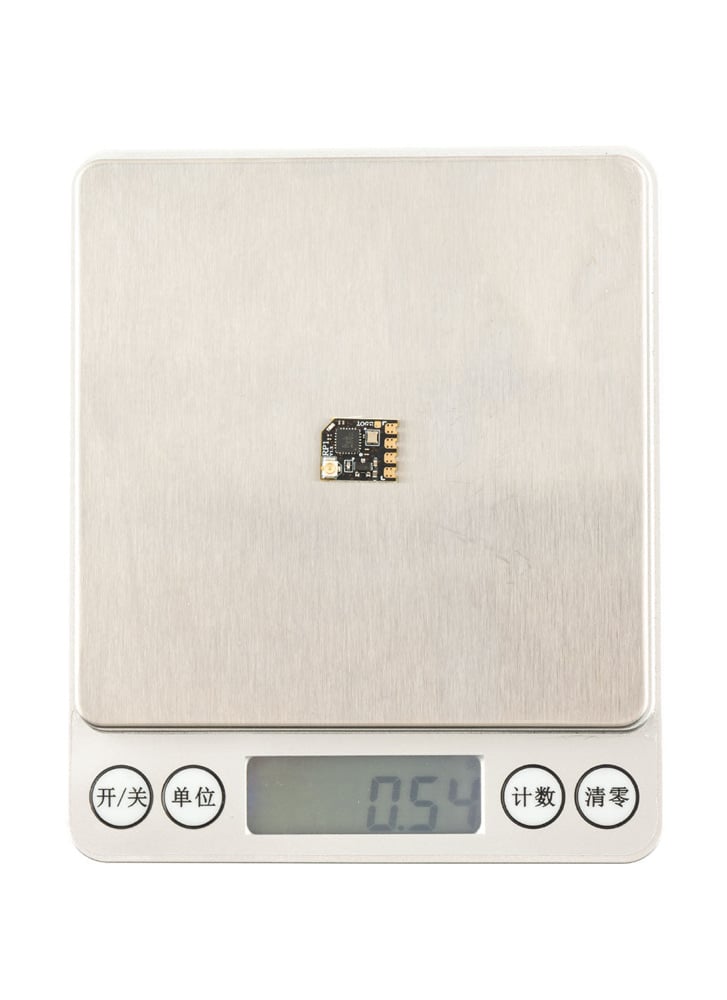

- Weight: 0.53g (without antenna)
- Dimension: 13mmx11mmx3mm

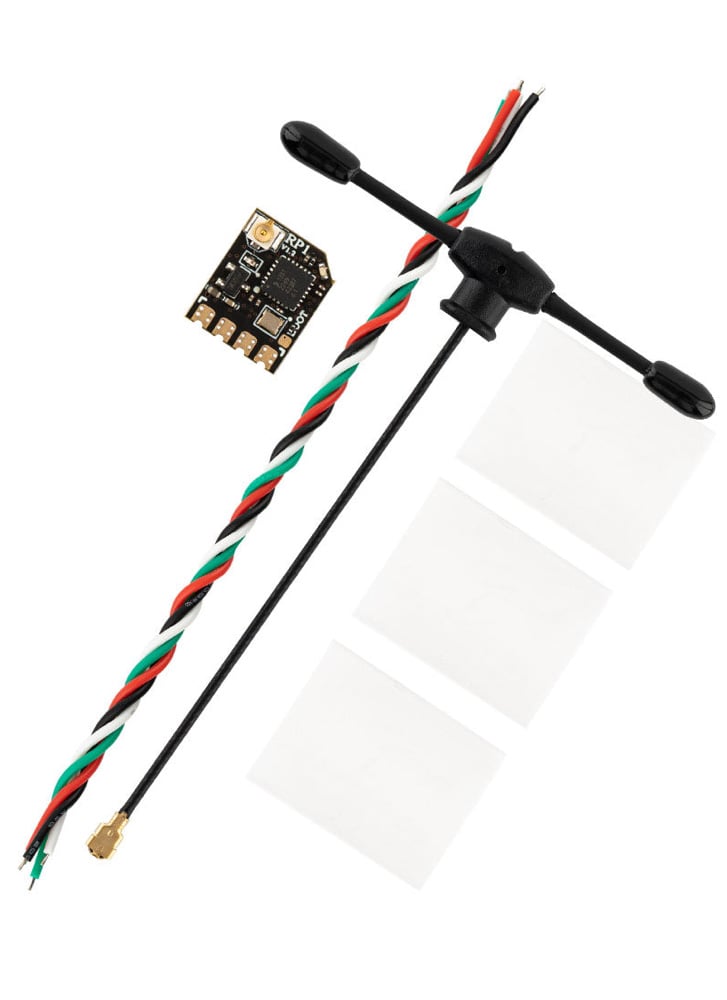

In the box
- 1 x RP1 V2 ExpressLRS 2.4ghz Nano Receiver
- 1 x 65mm UFL 2.4Ghz T Antenna
- 1 x User Manual
