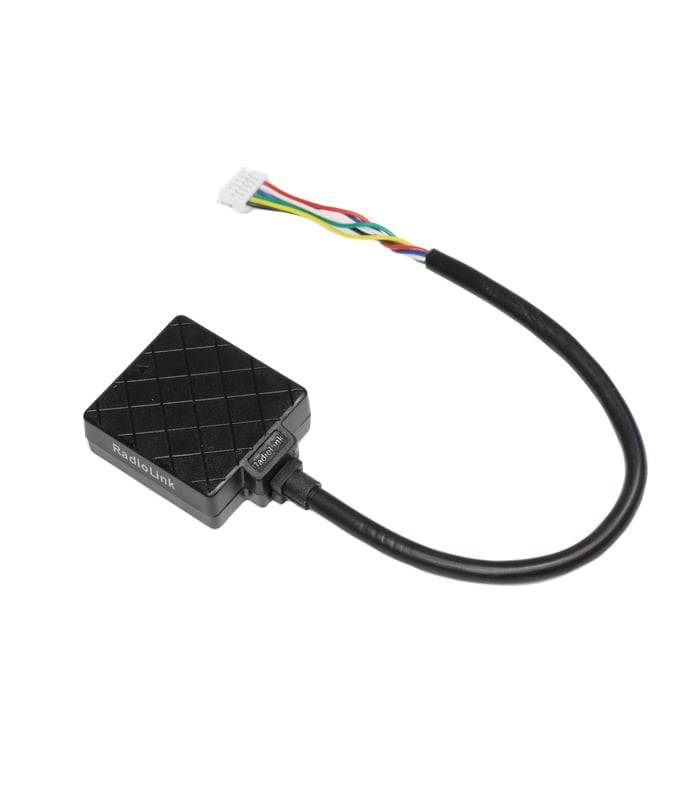

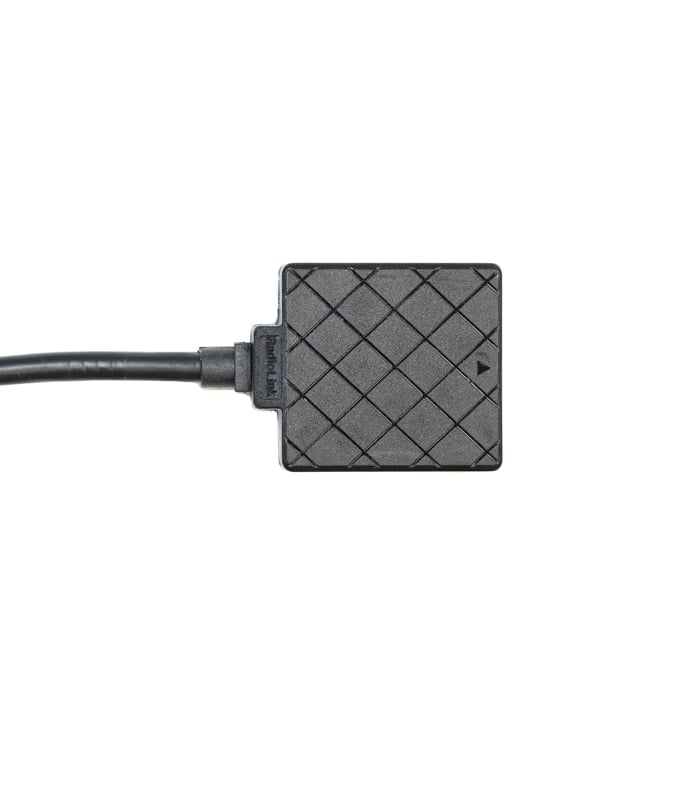

RadioLink TS100 Mini M8N GPS / Compass Module for Pixhawk Mini

£45.90

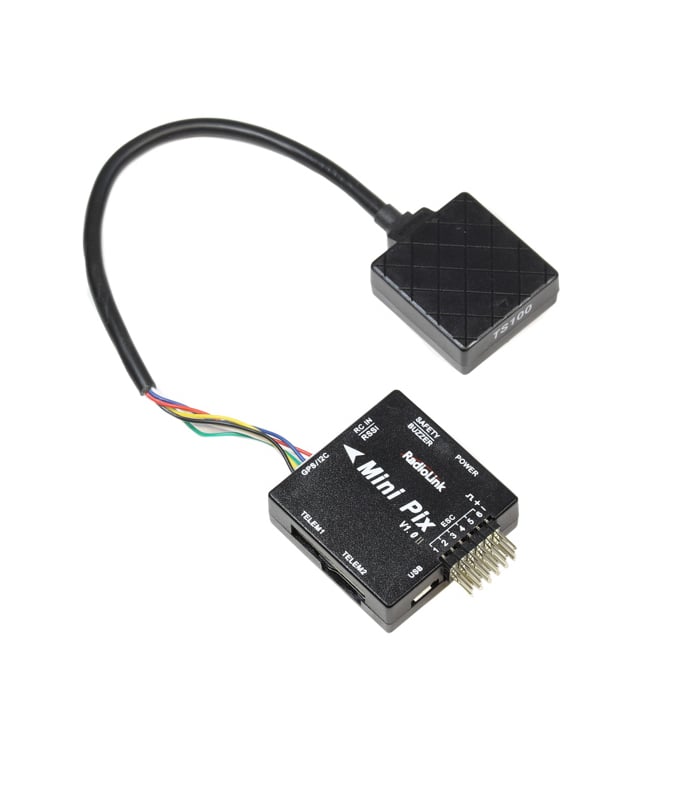

The TS100 is a mini GPS / Compass designed to be used with the RadioLink Mini Pixhawk . The module uses the u-blox UBX-M8030 (M8) chip and a QMC5883L magnetometer.

Specifications

• Positional accuracy: 50 centimeter precision when working with concurrent GNSS
• Velocity precision: 0.1m/s
• Max height: 50000m
• Max speed: 515m/s
• Max acceleration: 4G
• Max update rate: up to 10Hz
• Sensitivity: Tracking & Nav.: -167dBm, Reacquisition: -163dBm Cold start: -151dBm, Hot start: -159dBm Time to first fix: Cold start: 26s, Hot start: 1s
• Tracking & Nav.: -167dBm, Reacquisition: -163dBm
• Cold start: -151dBm, Hot start: -159dBm
• Time to first fix: Cold start: 26s, Hot start: 1s
• Power supply: voltage 5VDC+-5%, current 50~55mA
• GPS decoder chip: Radiolink M8N GPS, with u-blox UBX-M8030(M8), 72-channel
• Geomagnetic: QMC5883L
• Antenna: 2.5dbI high gain and selectivity ceramic antenna
• Double filter: SAWF (Surface acoustic wave filter) form Murata
• Size: 32x30x12mm
• Weight: 20g

In the box

• 1 x Radiolink TS100 Mini M8N GPS
