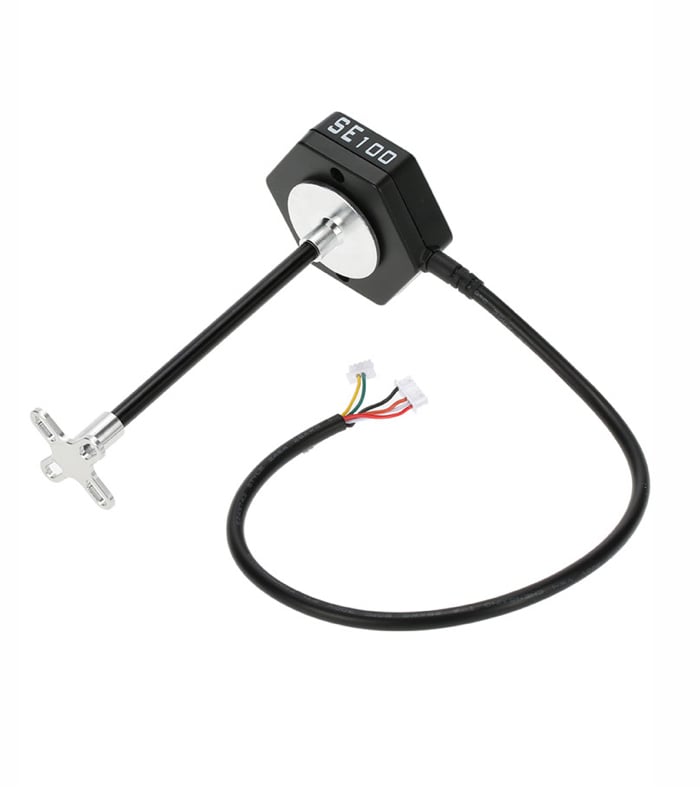

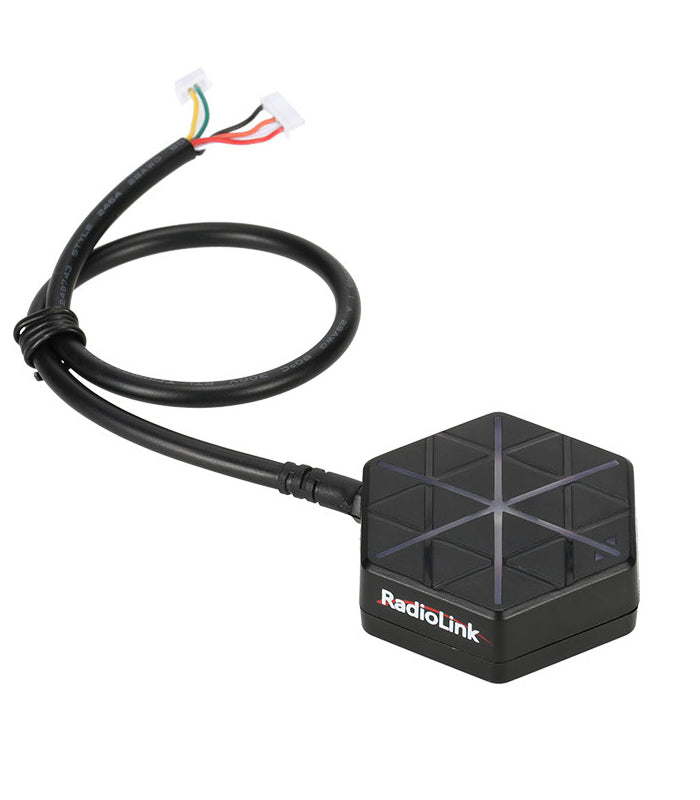

RadioLink SE100 M8N GPS Compass with Mount for Pixhawk & APM
£46.90
The SE100 is a popular GPS module made by RadioLink. The module comes plug and play with a cable to connect with the Pixhawk & APM flight controllers. It can also be used with most open source flight controllers, such as the PX4 and iNav FCs.

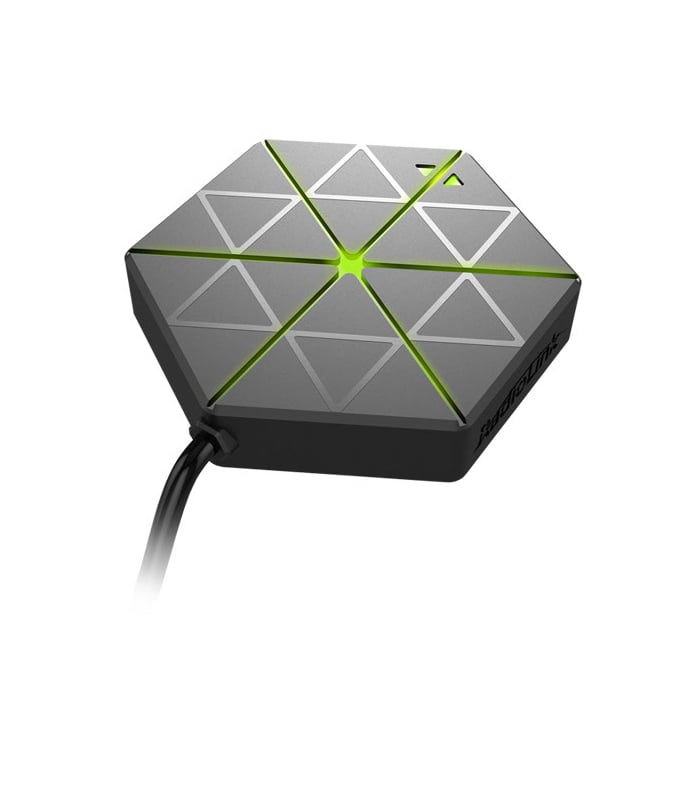

Unlike some of the cheaper GPS modules on the market, this one uses genuine components. It utilises a U-Blox M8N GPS receiver and QMC5883L digital compass, so you can be assured of reliable performance. When testing, we found it acquired up to 20 satellites outside in under a minute, and even managed to get a 12 satellite GPS lock indoors. Another nice feature are the flashing green status LEDs on top of the module, which make it very clear when a position lock has been established.
Specifications
- GPS decoder chip: U-blox UBX-M8030(M8)
- Geomagnetic: QMC5883L
- Antenna: 2.5dbI high gain and selectivity ceramic antenna
- Power amplify IC: MMIC BGA715L7 from Infineon
- Double Filter: SAWF (Surface acoustic wave filter) form Murata
- Positional Accuracy: 0.5m precision when working with concurrent GNSS, 2.5m precision when working with single GNSS
- Velocity precision: 0.1m/s
- Max height: 50000m
- Max speed: 515m/s
- Max acceleration: 4G
- Max update rate: up to 18Hz
- Sensitivity, Tracking & Nav.: -167dBm
- Reacquisition: -163dBm
- Cold start: -151dBm
- Hot start: -159dBm
- Time to first fix: Cold start: 26s, Hot start: 1s
- Power supply: voltage 3.3VDC+-5%, current 50~55mA
- Port A: GPS UART interface, baud rate: 1.2K/4.8K/9.6K/19.2K/38.4K/57.6K/112.5K
- Port B: Geomagnetic I2C interface

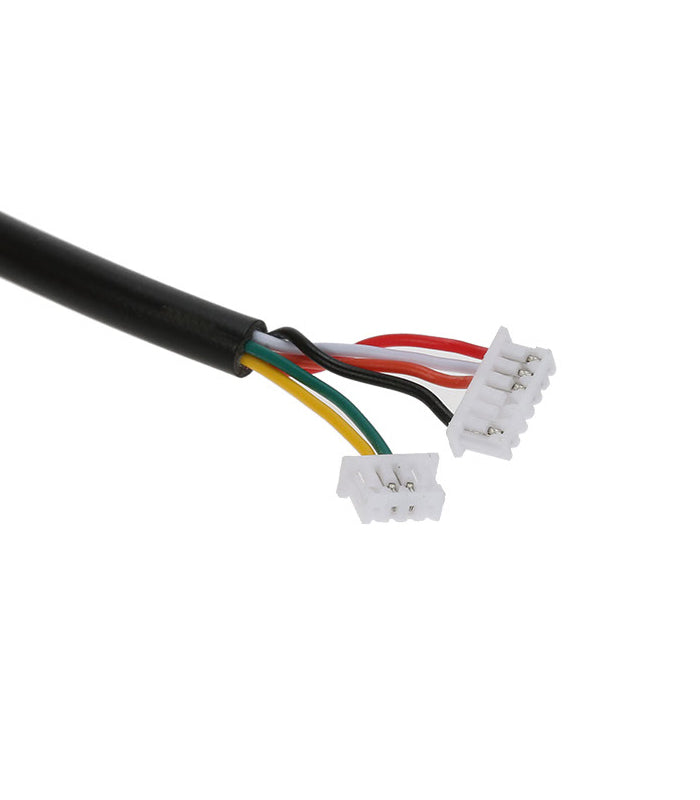

- Connect to PIX: 4pin connect to I2C, 6pin connect to GPS
- Size: 49x43x16mm
- Weight: 34.9g
- Antenna: 300mm

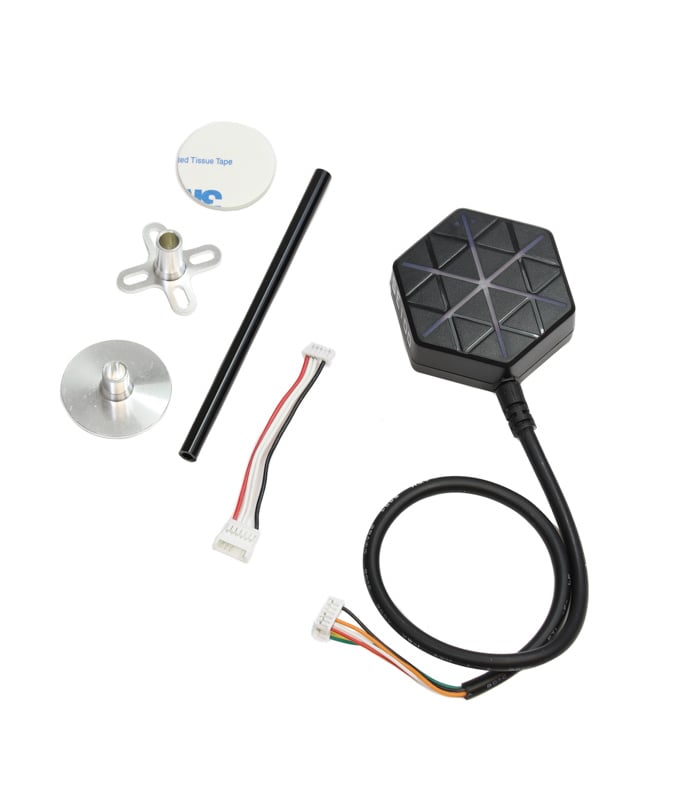

In the box
- 1 x Radiolink M8N GPS module with Cable
- 1 x Antenna Mounting Kit
- 1x 6pin to 5pin Adapter Cable
