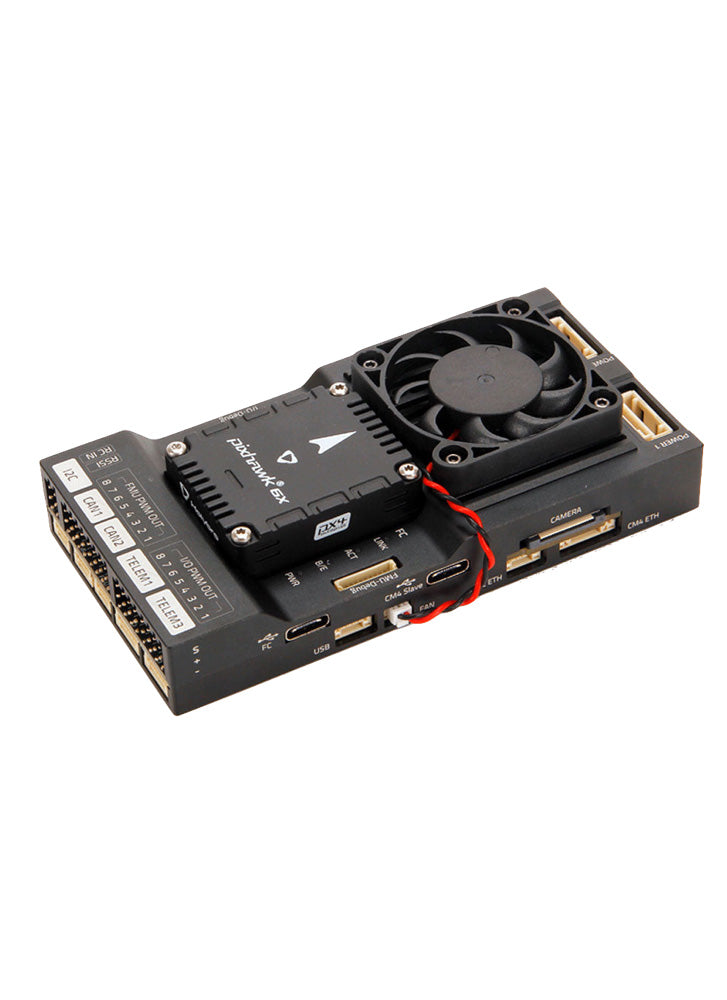

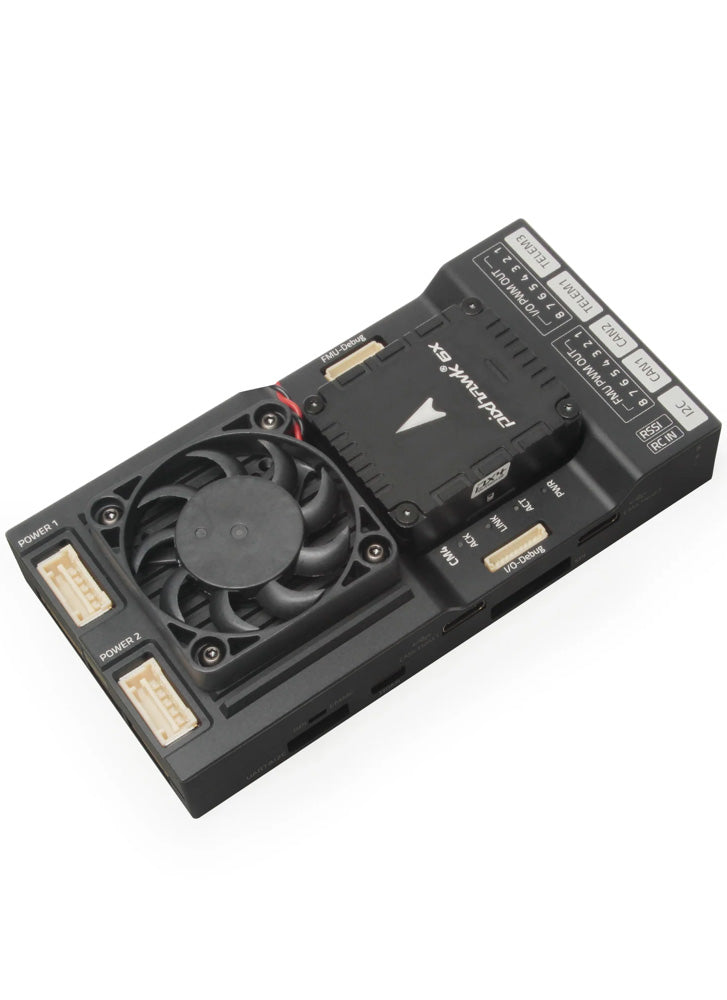

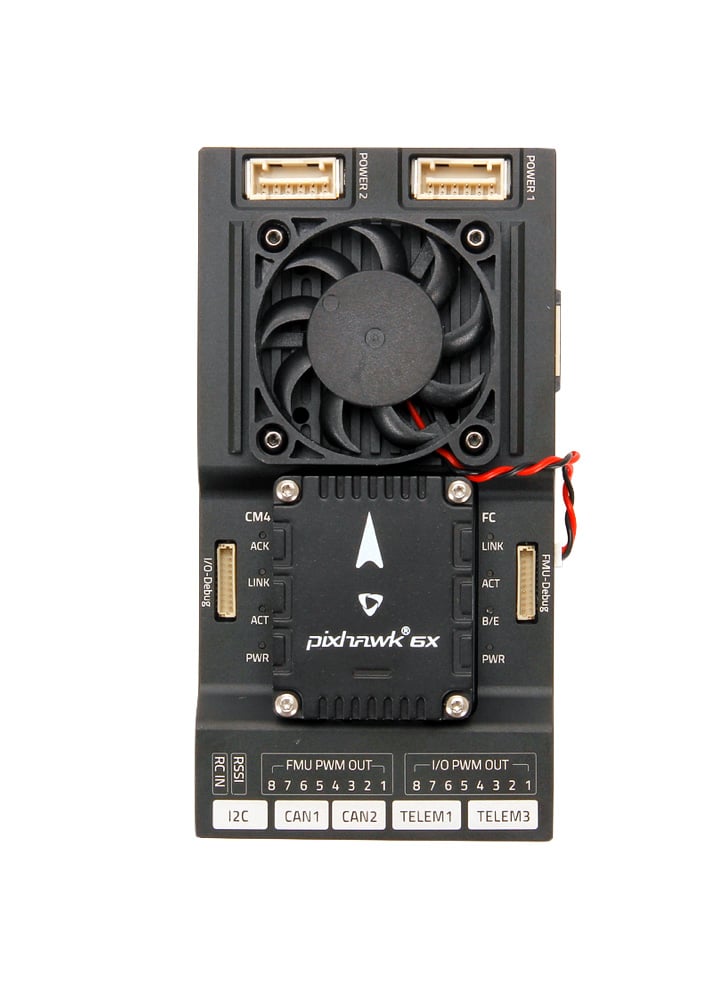

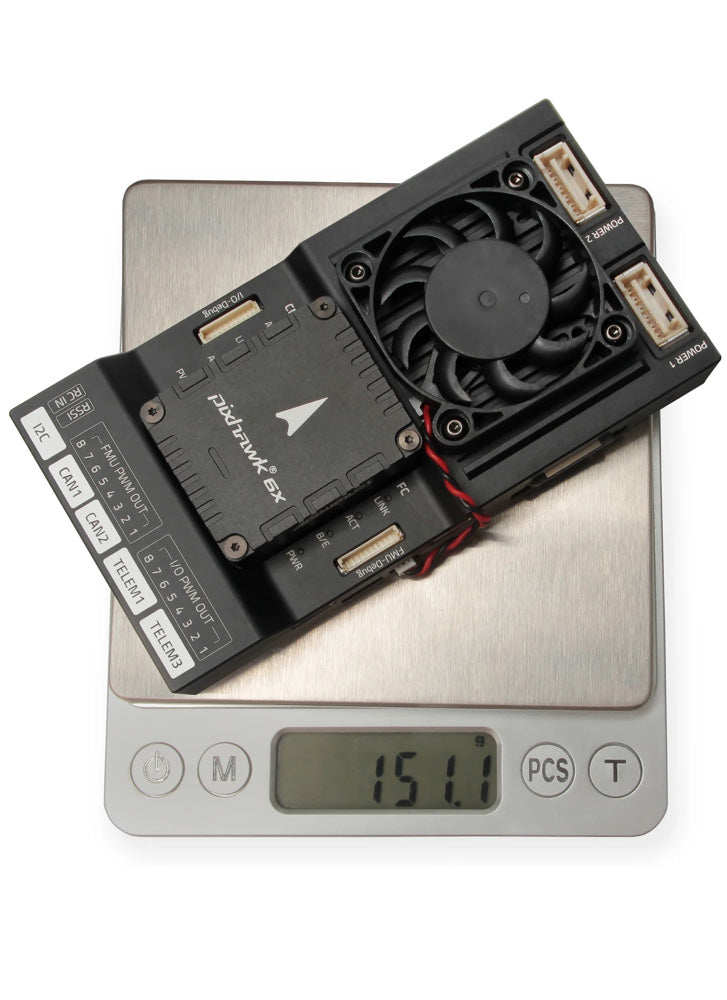

Pixhawk RPi CM4 Carrier Board with Pixhawk 6X (Rev8) / PM03D

£399.99

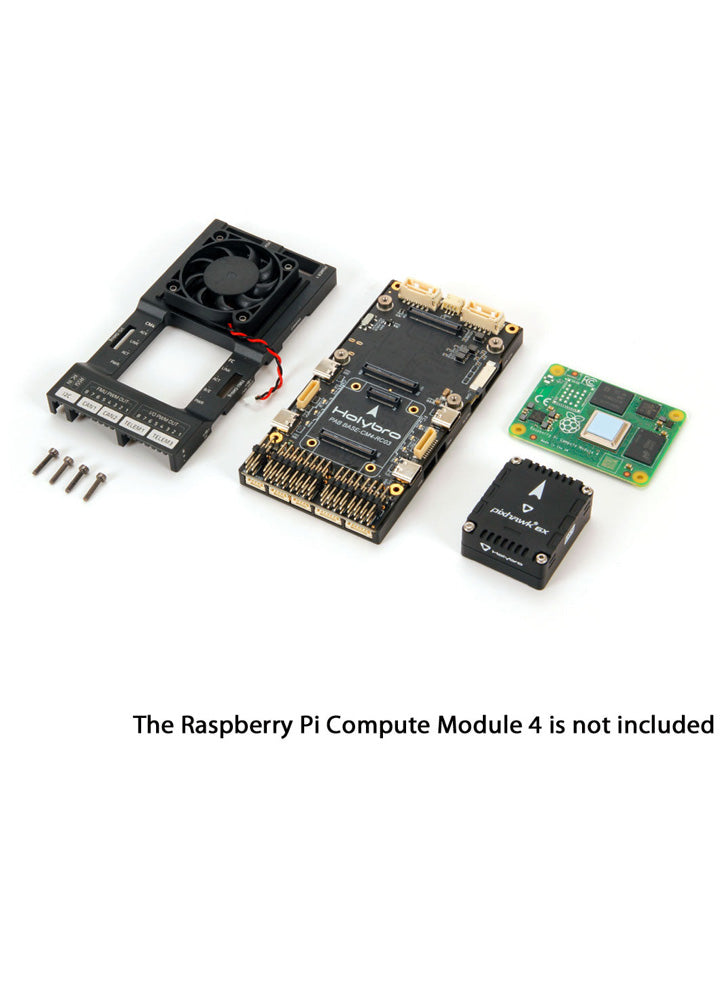

Note: Does not include RPi CM4 – this product it provides the compatible carrier board, the RPI CM4 module needs to be ordered separately.

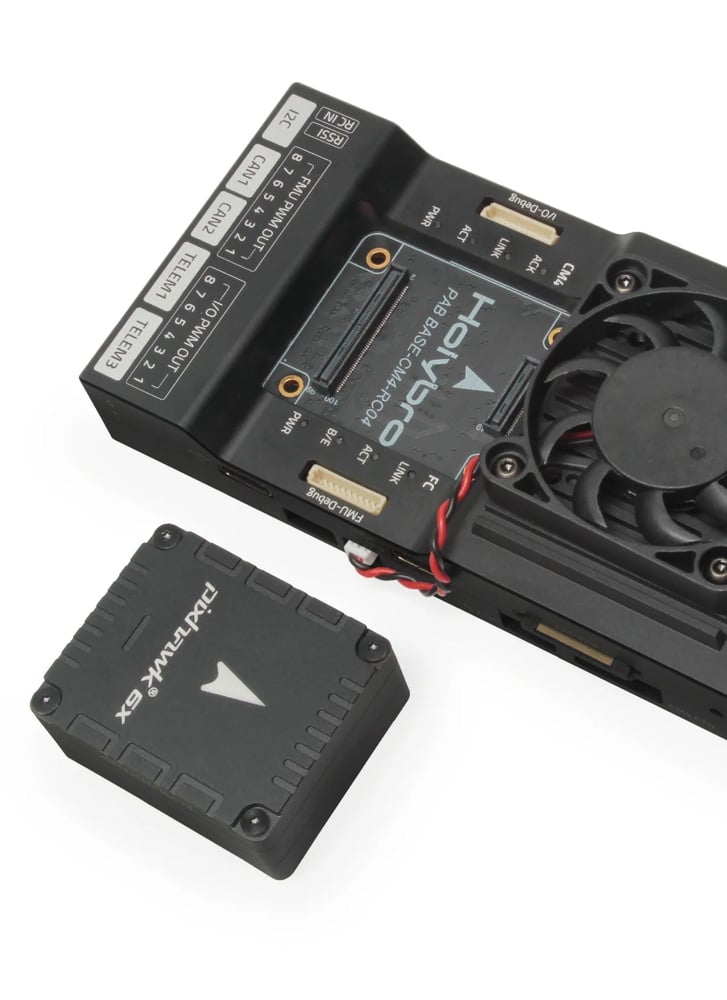

The Holybro Pixhawk RPi CM4 Baseboard combine the Pixhawk FC module with the Raspberry Pi CM4 companion computer in on compact form factor with all the connections you need for development. It follows the Pixhawk Connector and Autopilot Bus Standard , allow easy swap of FC Module with any FC that follows the Pixhawk Bus Standard. The FC Module is internally connected to RPi CM4 through TELEM2, and can also be connected via ethernet with a external cable provided. It is compatible with the Pixhawk 5X & 6X flight controller module.

User guide & other technical detail can be found on our Documentation Page Here.

Hint: This Pixhawk RPi baseboard supports Raspberry Pi CM4 and CM5. The CM5 requires more power, and the USB-C port used for flashing also powers the Pi. If your computer doesn’t provide enough power, use a powered USB hub for reliable flashing operation.

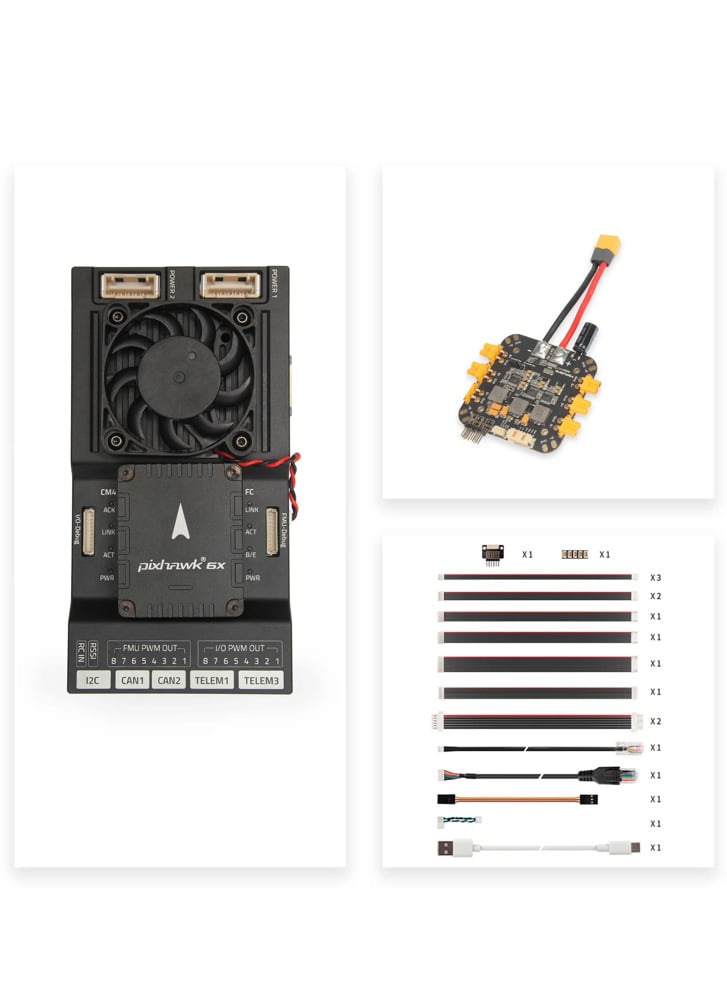

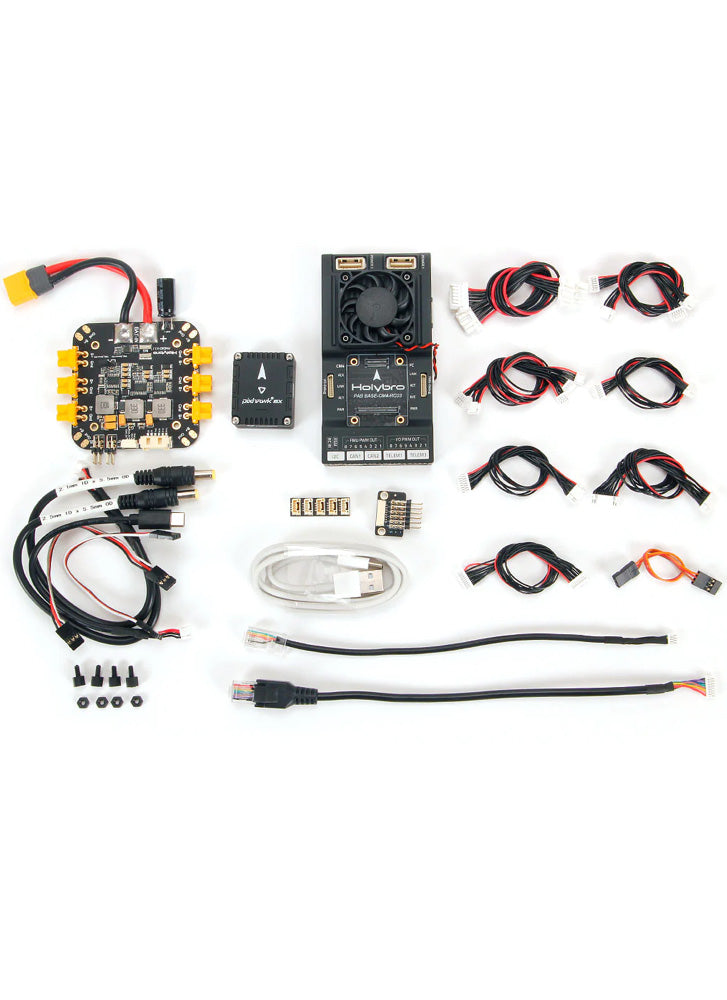

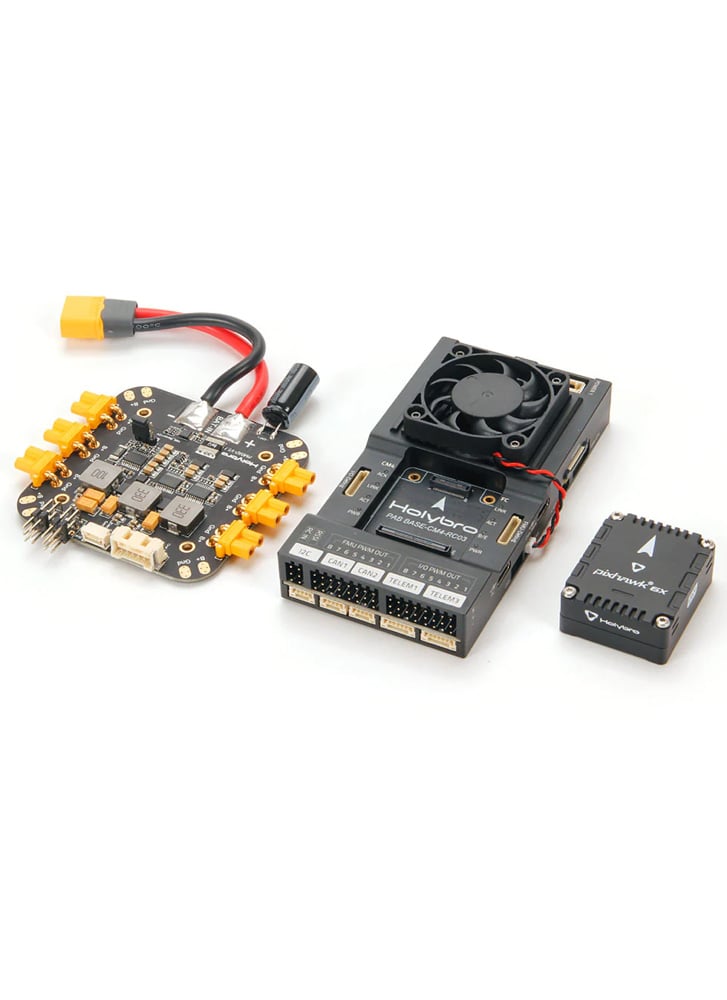

Includes:

Pixhawk 6X Flight Controller Module

PM03D Power Module

Pixhawk RPi CM4 Baseboard Note: Does not include RPi CM4

Note: Does not include RPi CM4

Pixhawk RPi CM4 Baseboard Cable Set

Recommend specification for RPi CM4:

Wireless: Yes

RAM: 4GB or higher

eMMC: 16GB or higher

Reference Links:

Connection & Ports

RPi CM4 Flash Guide

Dimension

PM03 Wiring Guide

Installation of Rasberry Pi CM4

User guide & other technical details can be found on our Documentation Page Here.

Blog on talking to PX4 with CM4 Baseboard

Specifications

• Pixhawk RPi CM4 Cable Set

In the box

• 1x Pixhawk RPi CM4 Baseboard
• 1x HolyBro PM03D Power Module
