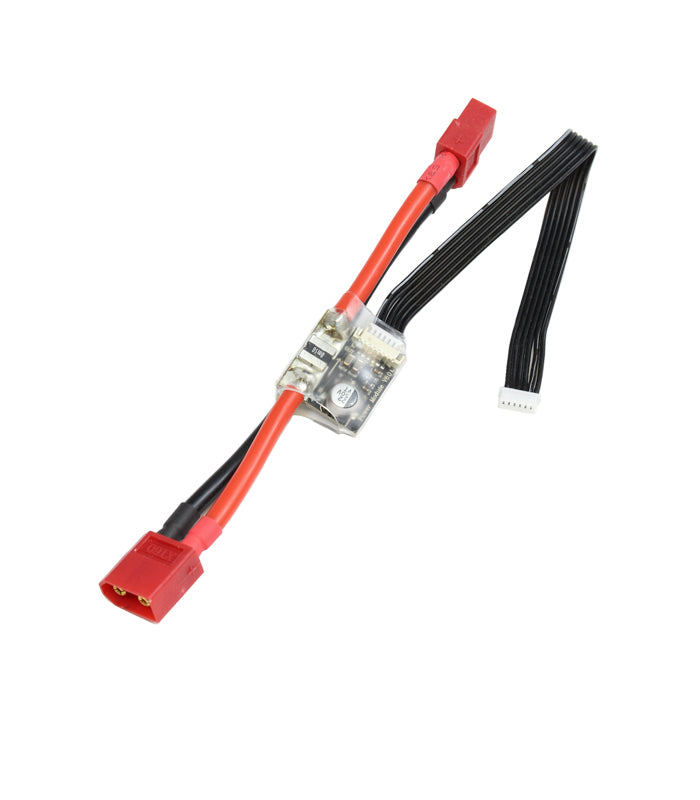

Pixhawk / APM XT60 90A High Voltage Power Module 2-12S with 3A UBEC

£19.90

This is our High Voltage version of the Power Module for the Pixhawk / APM. It provides a plug and play solution for powering your flight controller with clean power from a LiPo battery, as well as reporting battery voltage and current consumption for logging and live telemetry. The on-board switching regulator outputs 5.4V at a maximum of 3A, and can be used up to 50Volts (12S LiPo) with a maximum current sensing rating of 90 amps. The Power Module comes ready to use with XT60 connectors pre-fitted, and shrink wrapped for protection.

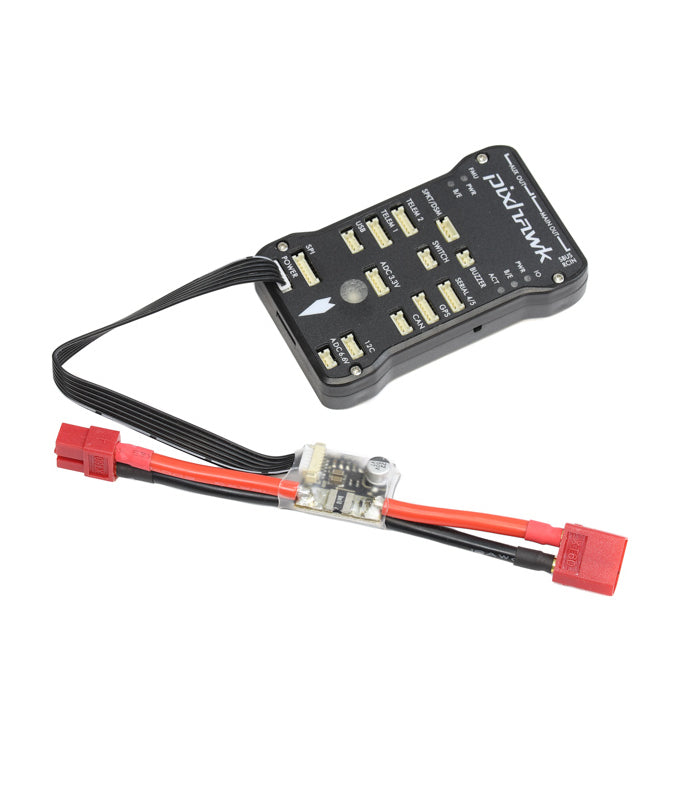

The Pixhawk and APM 2.x have a dedicated connector for attaching a Power Module (PM). This is useful because it:

Provides a stable power supply which reduces the chances of a brown-out.

Allows monitoring of the battery’s voltage and current and triggering a return-to-launch when the voltage becomes low or the total power consumed during the flight approaches the battery’s capacity.

Allows the autopilot firmware to more accurately compensate for the interference on the compass from other components.

Note: The Power Module is rated at 3 Amps to power the FC, receiver and peripherals (GPS and Telemetry radio) ONLY. To power servos use an ESC with an adequate BEC or a standalone BEC plugged into the Aux output rail.

Ardupilot Power Module Instructions – Here .

Specifications

• Max input voltage: 50V
• Max current sensing: 90A
• Switching regulator outputs: 5.4V at 3A max
• Connector: 6-pos Molex cable plugs directly to APM/Pixhawk ‘PM’ connector
• Voltage and current measurement configured for 5V ADC

In the box

• 1x 90A HV Power Module with XT60 Connectors Board
• 1x Molex 6 Position Connector 15cm
