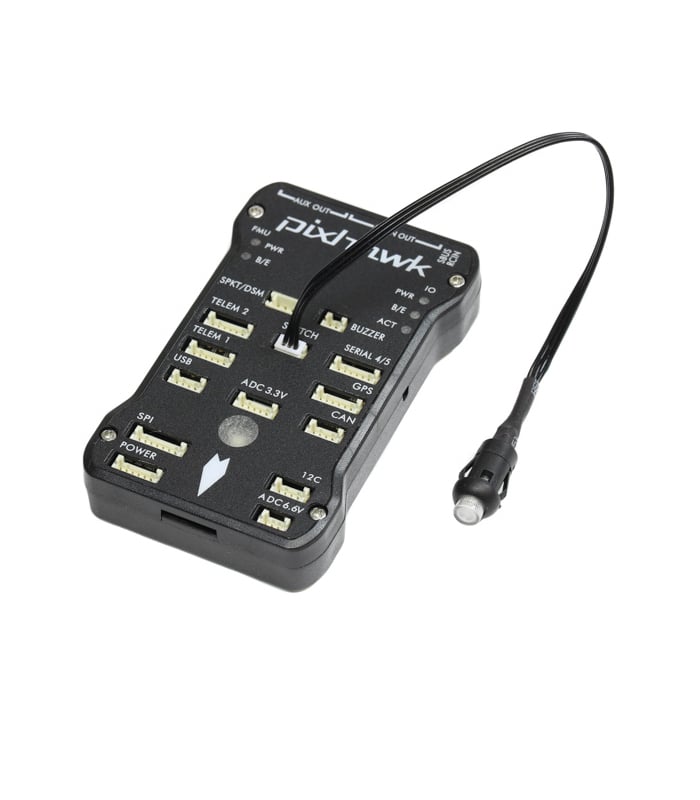

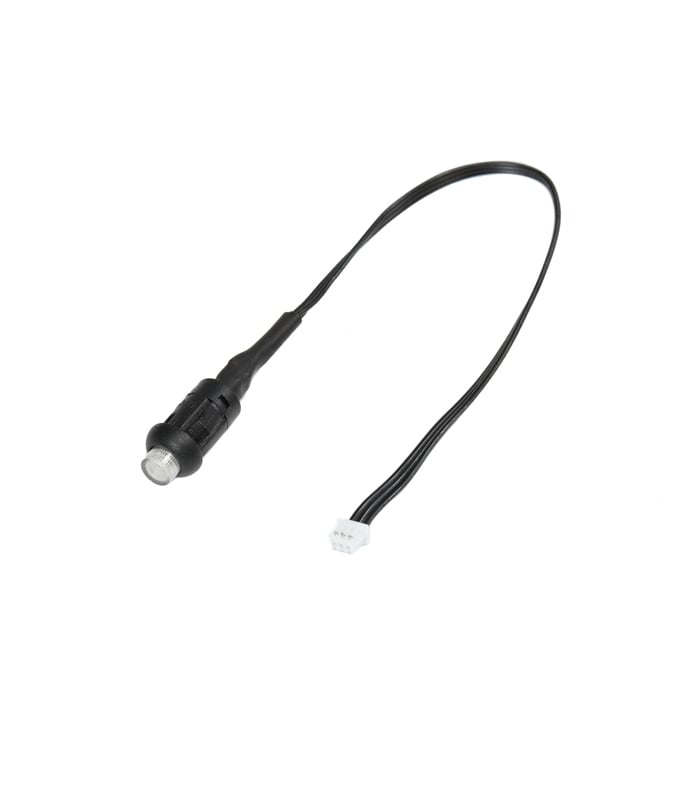

Pixhawk 1 Arming Safety Switch with LED

£7.60

This is a replacement safety switch for the Pixhawk 1. The switch is used to enable/disable the outputs to motors and servos. It also features a status LED light.

LED meaning:

Constant blinking – system is initialising

Intermittent blinking – system is ready. Press the safety switch to enable output to the motors.

Solid – safety switch has been pressed. Motors and servos are able to move once the vehicle is armed.

Specifications

• Connector: 3 pin DF13

In the box

• 1x Pixhawk 1 Safety Switch with LED
