PandaRc VT5804M L1 3-in-1 VTX LED Controller & Buzzer
PandaRc VT5804M L1 3-in-1 VTX LED Controller & Buzzer
PandaRc VT5804M L1 3-in-1 VTX LED Controller & Buzzer
PandaRc VT5804M L1 3-in-1 VTX LED Controller & Buzzer

PandaRc VT5804M L1 3-in-1 VTX LED Controller & Buzzer

£32.50

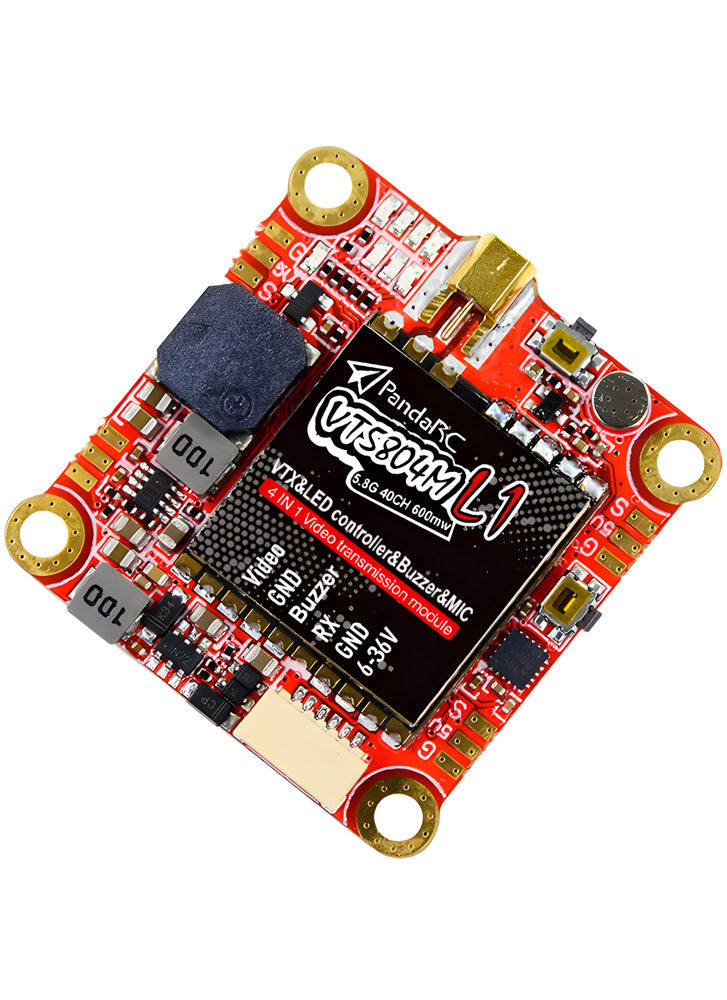

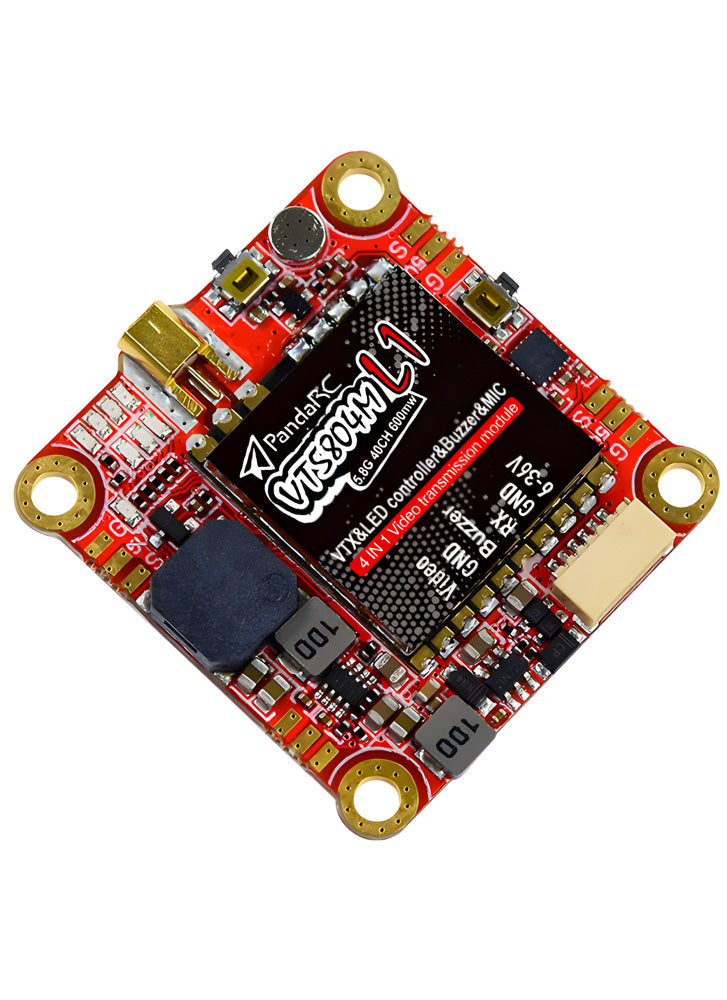

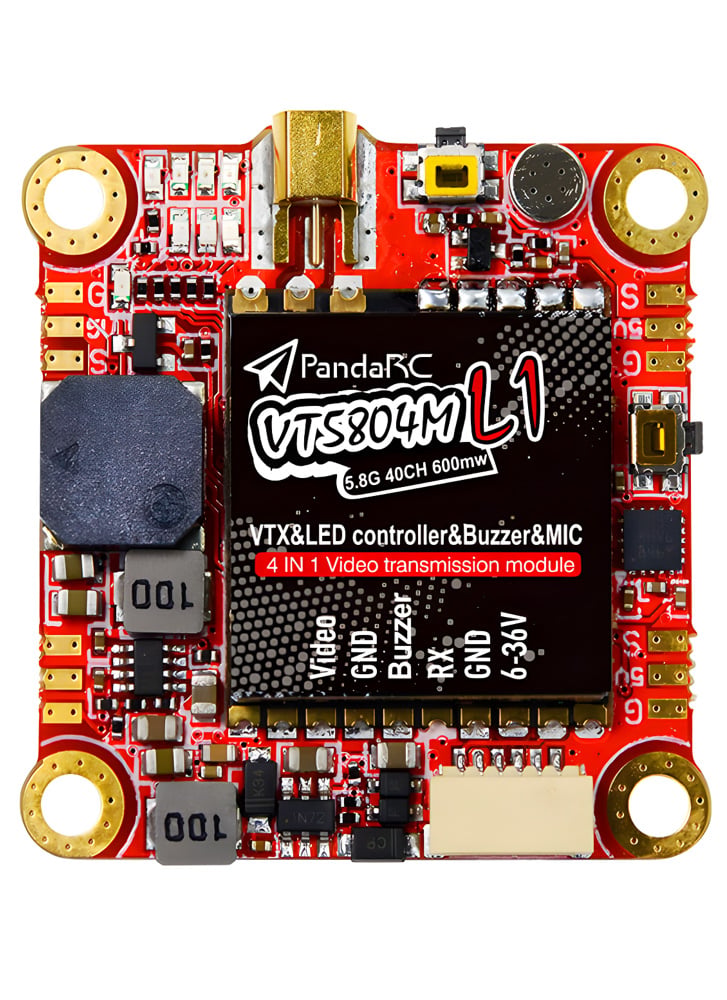

The PandaRC VT5804M L1 VTX is more than just a video transmitter. In addition to being a video transmitter, the VT5804M also functions as a LED Controller and Buzzer. The board has a 30.5×30.5mm mounting pattern allowing it to be neatly integrate into any 30×30 flight stack.

5.8GHz VTX:

The PandaRC VT5804M transmits via 40 different channels within the 5.8GHz frequency band. It has an adjustable transmission power output: 0/25/100/200/400 / 600mW. There’s also a Pit Mode, which means a battery can be safely plugged in without disturbing the FPV image of other pilots. Finally the VTX is equipped with MMCX antenna connection.

LED Controller:

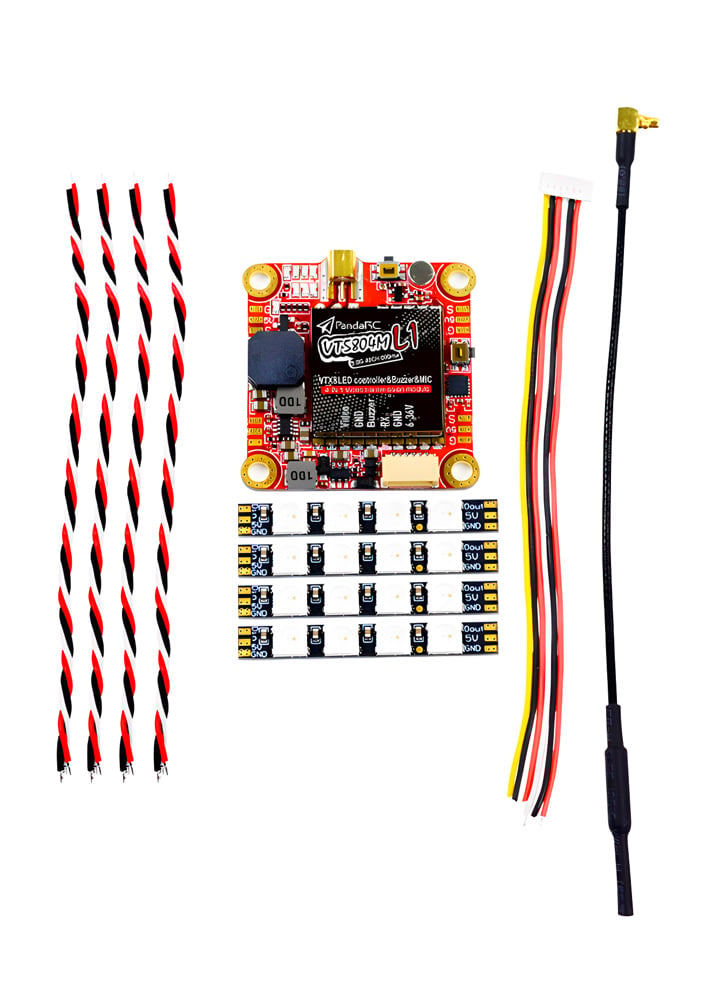

Another cool feature of the VT5804M is that is also functions as an LED controller. It comes with 4x 4 LED strips which you can equip your quadcopter with and enjoy the different lighting patterns it offers.

Buzzer:

To top it all off, it also has a built-in buzzer. The buzzer produces a loud 85dB and can be used to help find a lost quad.

Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.

Specifications

In the box
