PandaRC – VT5804 Q1 / X1 5.8G Adjustable Power FPV VTX
£32.90

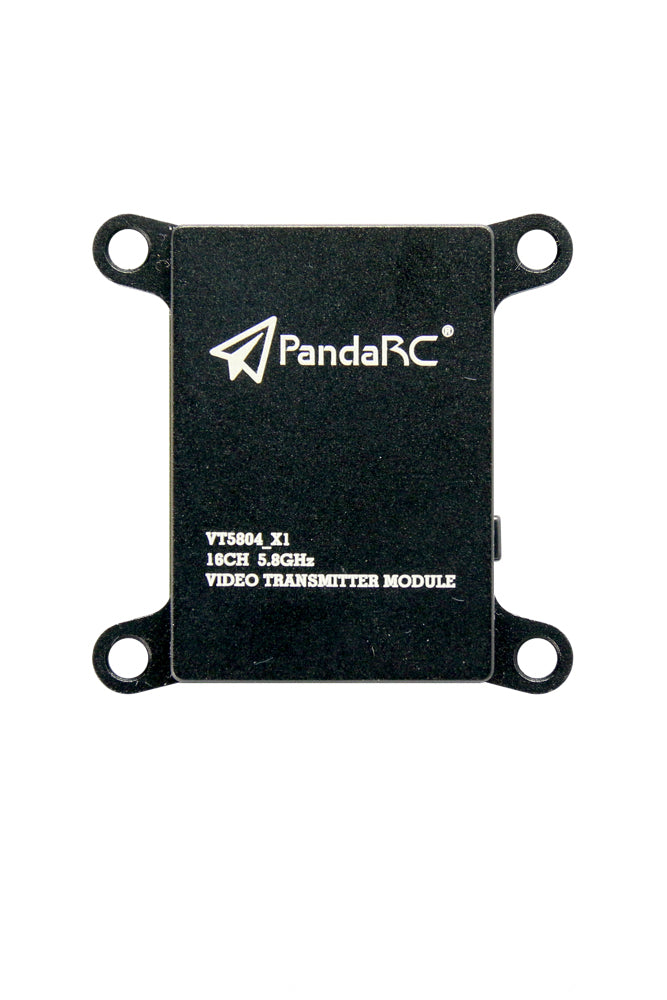

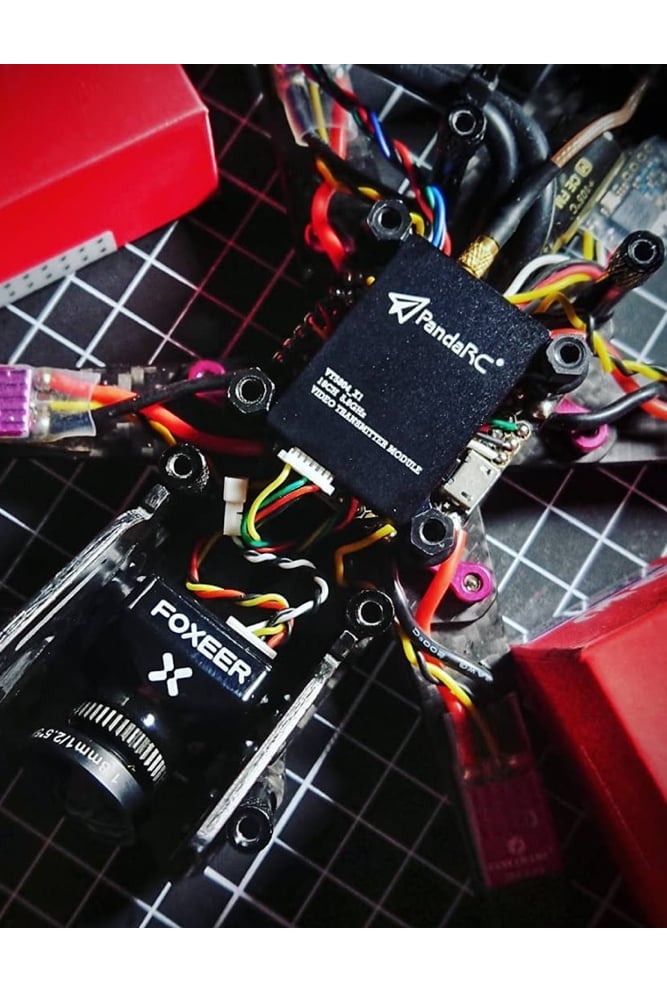

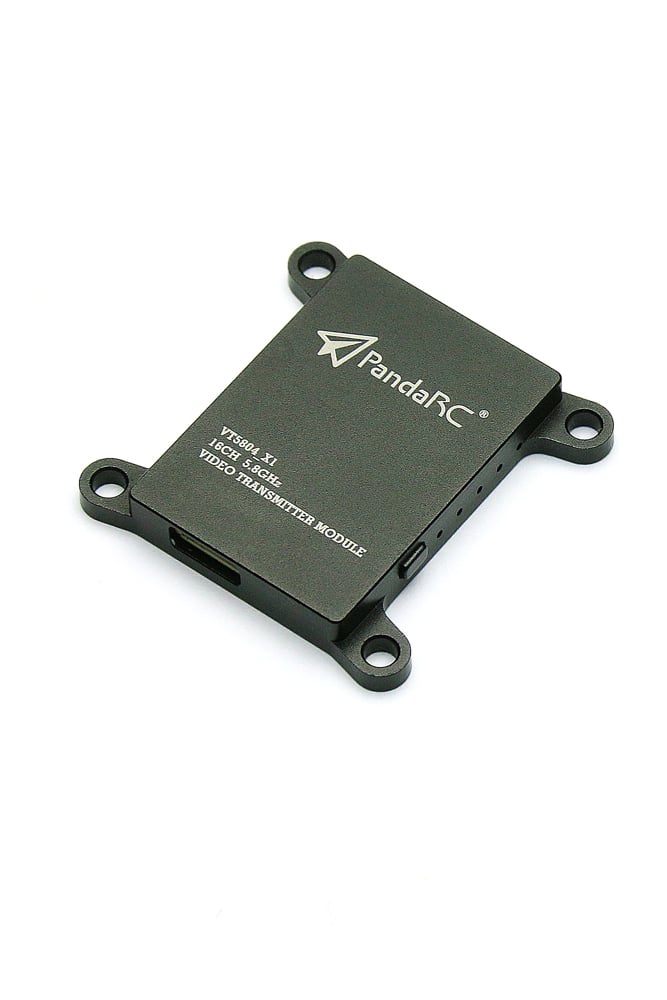

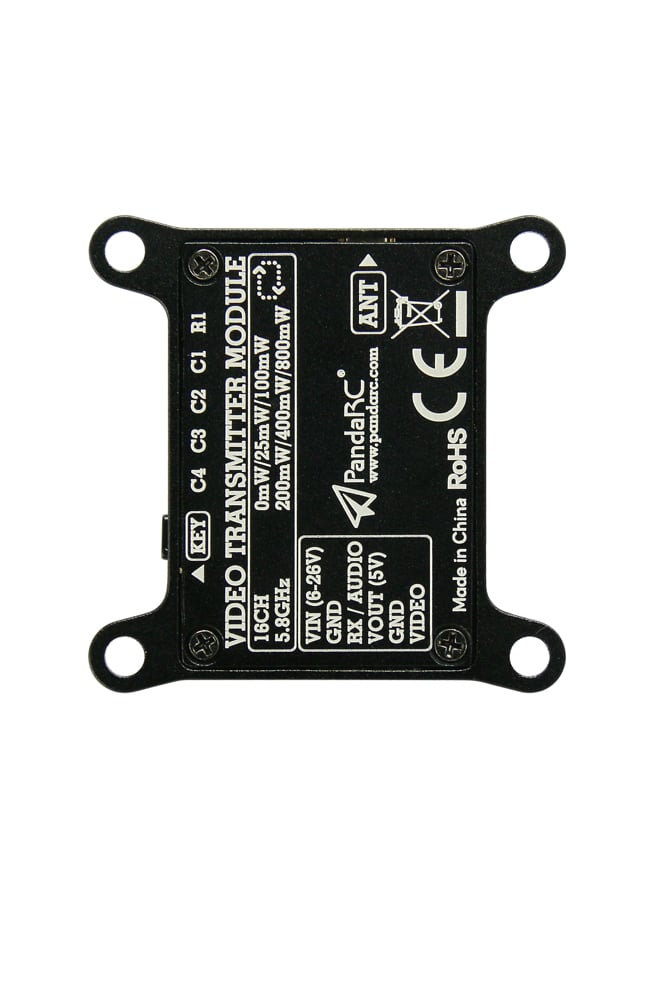

This FPV Video Transmitter (VTXs) from PandaRC comes is an all metal case which gives it a premium look and some extra crash protection. There are two versions of the transmitter, one fitted with hole mounts to suit a 30×30 stack ( VT5804 X1 ) and the other without the hole mounts ( VT5804 Q1 ). The transmitter is feature packed, so boasts a variable power output ranging from 25mW to a massive 800mW and also a Pitt Mode so you can start the VTX without interrupting other pilots. Channels and output power can be set via a push button and more conveniently you can configure it remotely using OSD control via the Tramp Protocol, when used with a flight controller.
Features
- Switchable transmitting power, including 0mW / 25mW / 100mW / 200mW / 400mW / 800mW mode.
- Ultra-clean transmission (Up to 8 pilots at once)
- Flexible 6-26v (2s-5s input)
- PitMode – Power up your quad during a race
- Supports IRC Tramp OSD Control, with fallback button menu
- 5V Onboard quiet switching regulator for FPV camera
- Fully enclosed metal housing
- CE Certified
- Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.
Specifications
- Input Voltage: 6-26V
- Output Power: 28.5-29.5dBm
- Video Bandwidth: 8MHZ
- Audio carrier frequency: 6.5MHZ
- Video input level: 0.8-1.2 VP-P
- Audio input level: 0.5-2.0 VP-P
- Radio Frequency Output Impedance: 50 Ohm
- Audio input impedance: 10K Ohm
- Connector: MMCX
- Size: 34x24x5.5MM
- Weight: 9g
In the box
- 1x PandaRC VT5804 5.8GHz 25-800mW VTX – MMCX
