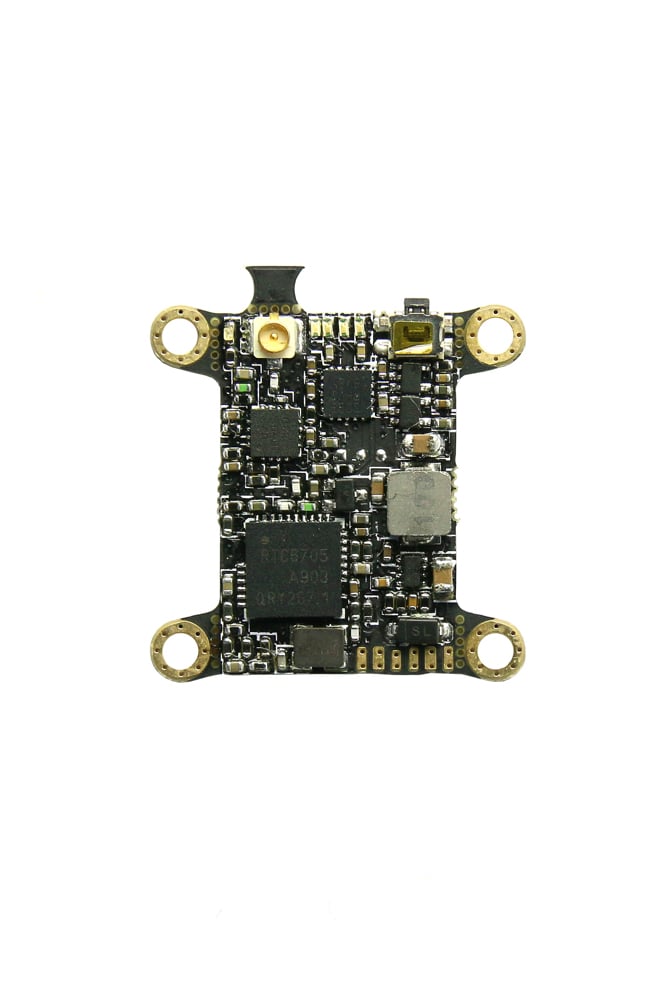

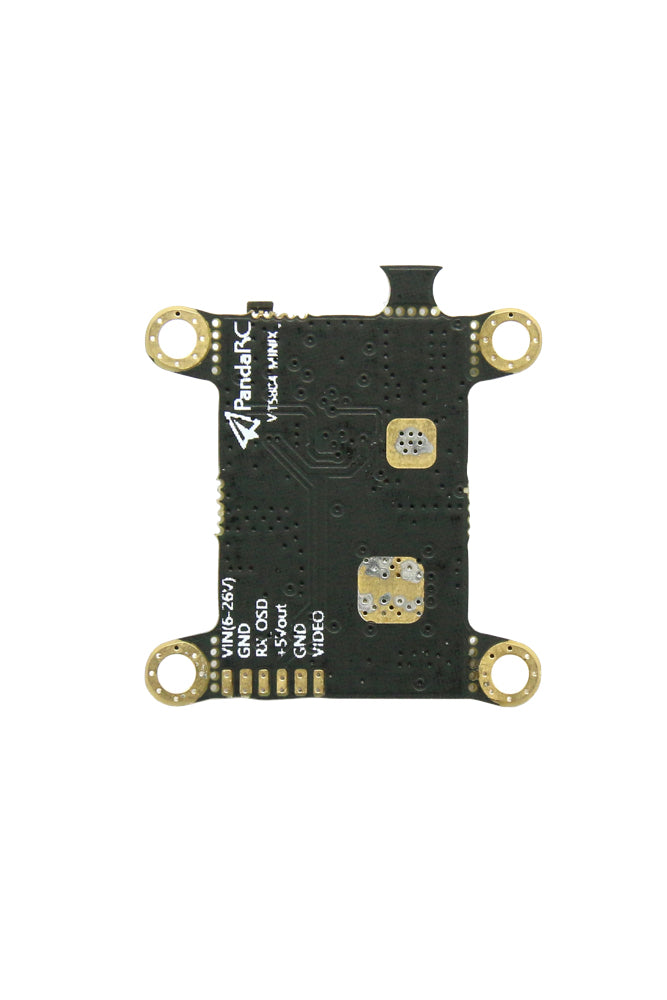

PandaRC VT5804 Mini X 25-400mW 5.8GHz 20×20 VTX
£21.99

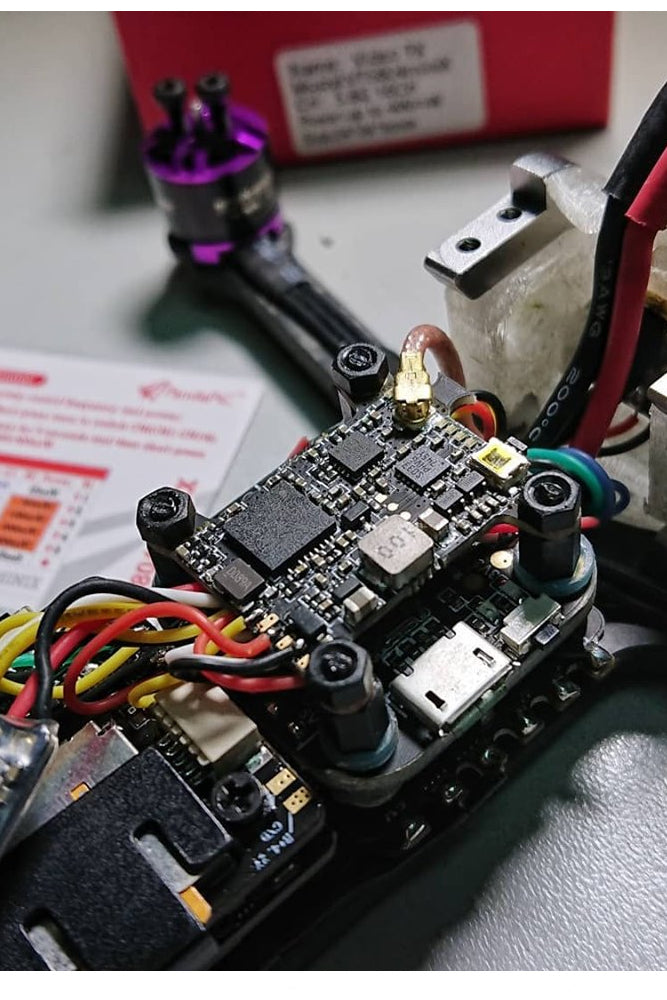

The PandaRC Mini VTX is a good choice for mini drones and compatible with a 20×20 flight stacks. It comes with six adjustable power outputs ranging from 0mW-400mW and includes Pitt Mode. It supports 2-6S input voltage and has a U.FL antenna connection. Overall it’s a good value VTX and an excellent choice for all your small builds!
Features
- Small 24x24mm with 20×20 M2 installation holes
- Lightweight (<3g without antenna)
- Up to 400mW of output power
- Low power consumption: 12V/240mA@400mW
- Ultra-clean transmission (Up to 8 pilots at once)
- PitMode – Power up your quad during a race
- Supports IRC Tramp OSD Control, with fallback button menu.
- CE Certified
- Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.
Specifications
- Input Voltage: 6-26V
- Operating Voltage: 5V
- Output power: 0mW/25mW/50mW/100mW/200mW/400mW
- Frequency: 5.8GHz 40CH
- Video format: NTSC/PAL
- PitMode
- Connector: UF.L(IPE-X)
- Dimension: 24mmx24mmx3mm (with out mounting holes）
- Mounting holes: 20mmx20mm
- Weight: <3g (without antenna)
In the box
- 1x PandaRC VT5804 Mini
- 1x Antenna
- 1x Cable
- 1x Manual
