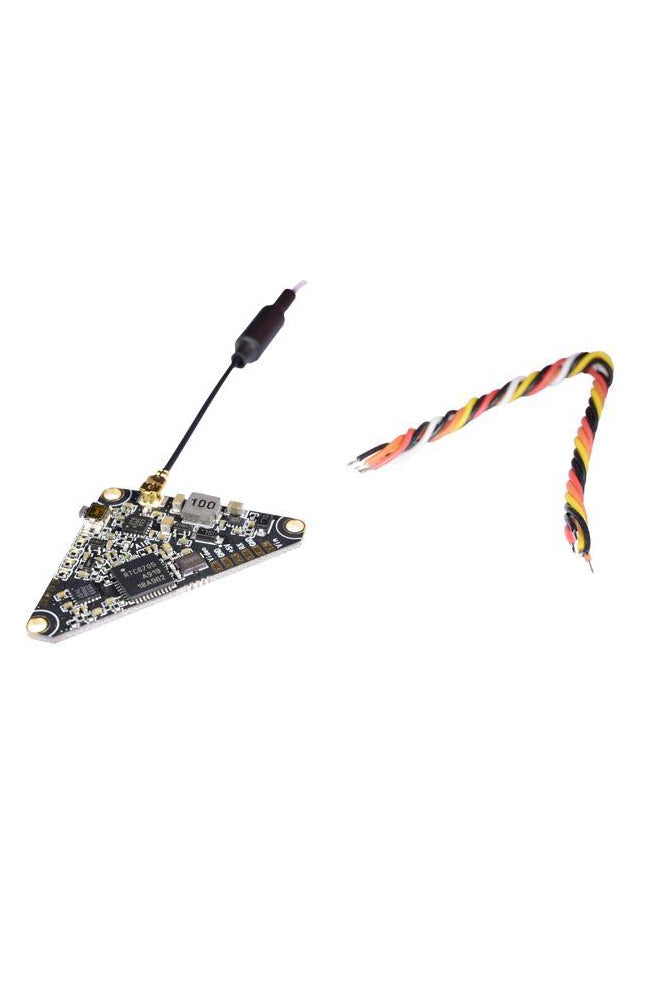

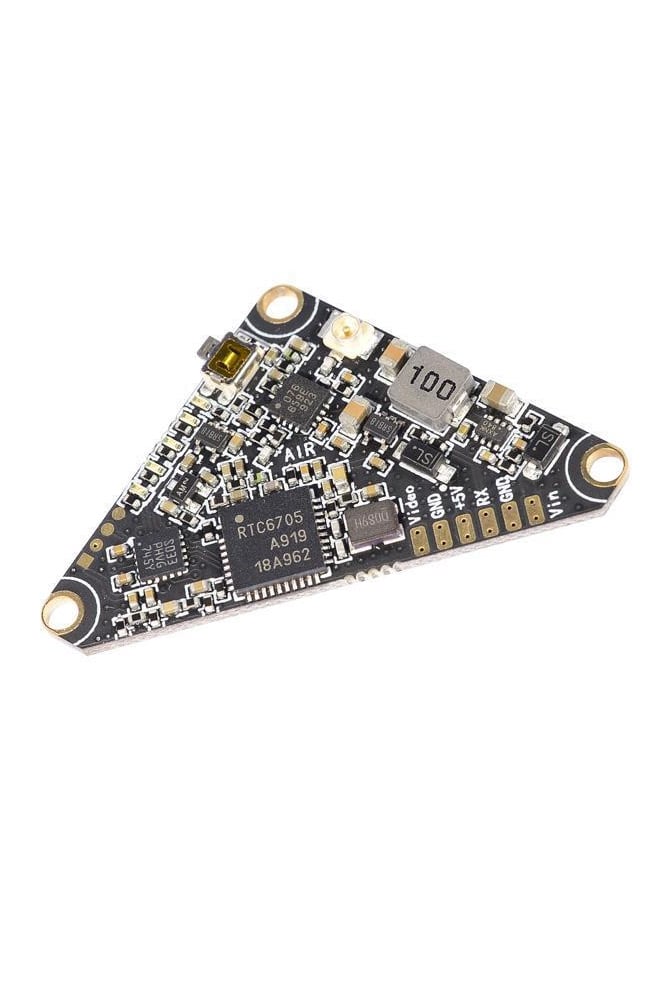

PandaRC VT5804 Air 25-400mW 5.8GHz Whoop/Toothpick VTX
£16.90
PandaRC has many options available for reliable and affordable 5.8GHz Video Transmitters (VTX), featuring different sizes, connectors, and output power levels.
This VTX in particular has been designed for Whoops and Toothpick class micro drones. Its triangular form factor is easier to install into these smaller drones and it has the common 25.5X25.5mm mounting hole pattern. It features an impressive max power output of 400mW and supports 2-6S input voltage. Its antenna connection is U.FL.
Features
- Switchable transmitting power, including 0mW / 25mW / 100mW / 200mW / 400mW
- Fast frequency lock, boot does not interfere with other pilots
- Comes with output power self-test function
- Wide input voltage range 2-6S LiPo
- Whoop / Toothpick compatible hole mounts 25.5X25.5mm
- Controllable through Tramp protocol
- Legal Notice: Please check with your local authorities regarding the operation of this equipment before you purchase. Regulations on power output, usable frequencies and licenses’ to operate vary from region to region.
Specifications
- Frequency Band: 5.8GHz
- Channel: 40CH
- Power: 0/25/50/100/200/400mW Switchable
- Input Voltage: 6-26V,+12V/240mA @400mW
- Video Format: NATSC/PAL
- Dimension: 28.5×28.5x3mm
- Mounting Holes: 25.5X25.5mm
- Weight: ≤3g (Without antenna)
In the box
- 1x PandaRC VT5804_AIR FPV VTX
- 1x Antenna
- 1x Cable
- 1x Manual
