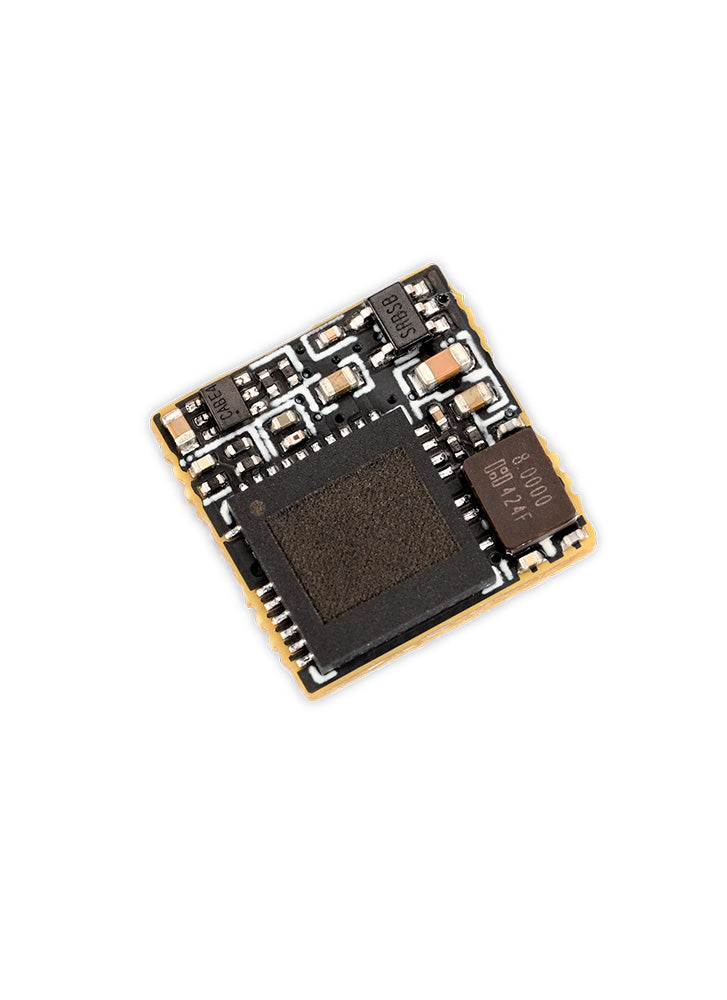

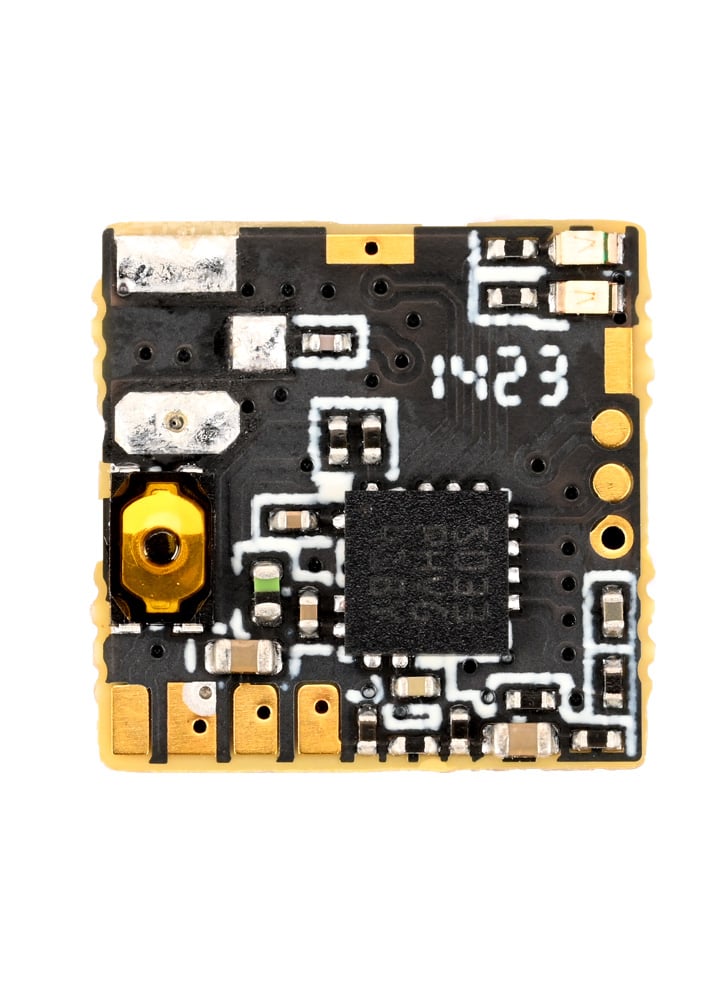

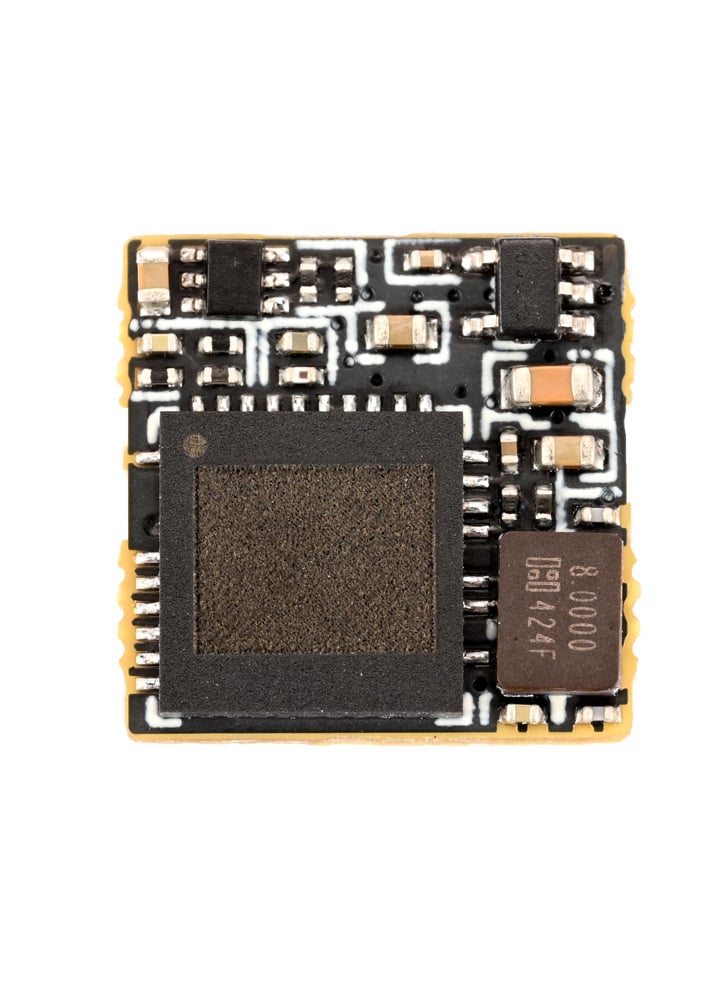

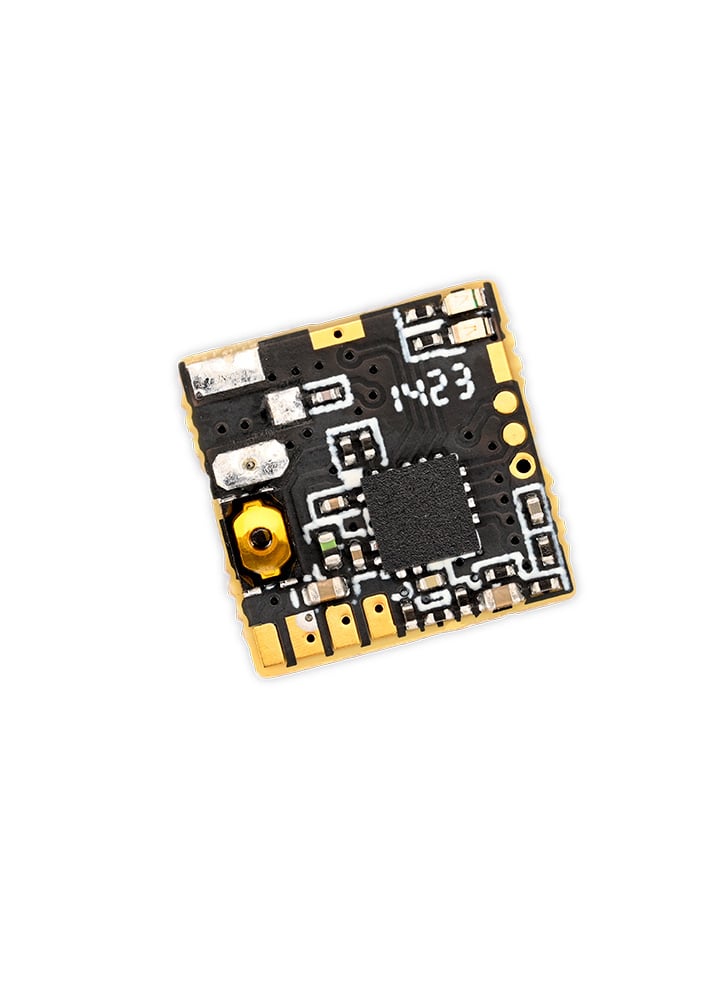

PandaRC Nano25 Video Transmitter 25mW 5.8GHz
£17.90
The PandaRC Nano25 Video Transmitter is an ultra-lightweight VTX designed for micro FPV setups, delivering a fixed 25mW output that complies with UK legal power limits for video transmission. It operates on 40 channels and supports both PAL and NTSC video standards with automatic detection. At just 10x10x2.5mm and weighing under 0.5g, it’s ideal for tight builds where every gram counts. The Nano25 runs on 5V input, draws only 180mA, and allows parameter adjustments via onboard button or OSD. It comes pre-wired with soldered antenna and power leads for quick, hassle-free installation.

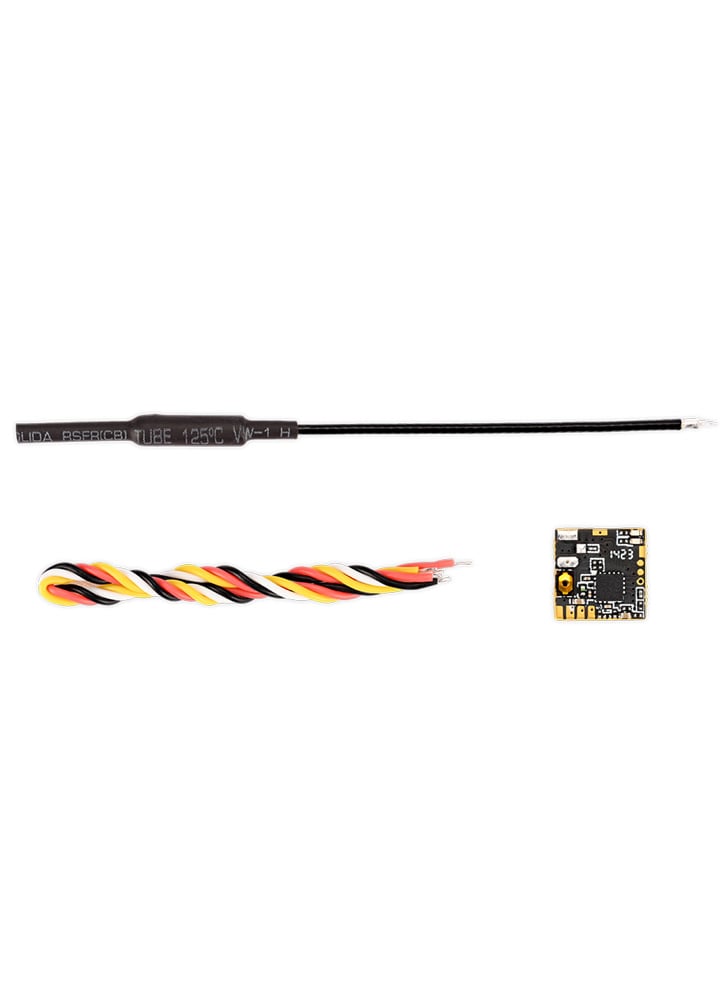

Note: The antenna comes pre-soldered to the VTX.
Specifications
- Output Power: 25mW
- Input Voltage: 5V
- Parameter adjustment mode: Key/OSD
- Working current: 25mW/180ma@5V
- Output frequency: 40CH
- Antenna interface: Welded/The antenna and power cables are welded by default
- Video standard: PAL/NTSC Auto
- Weight: <0.5g

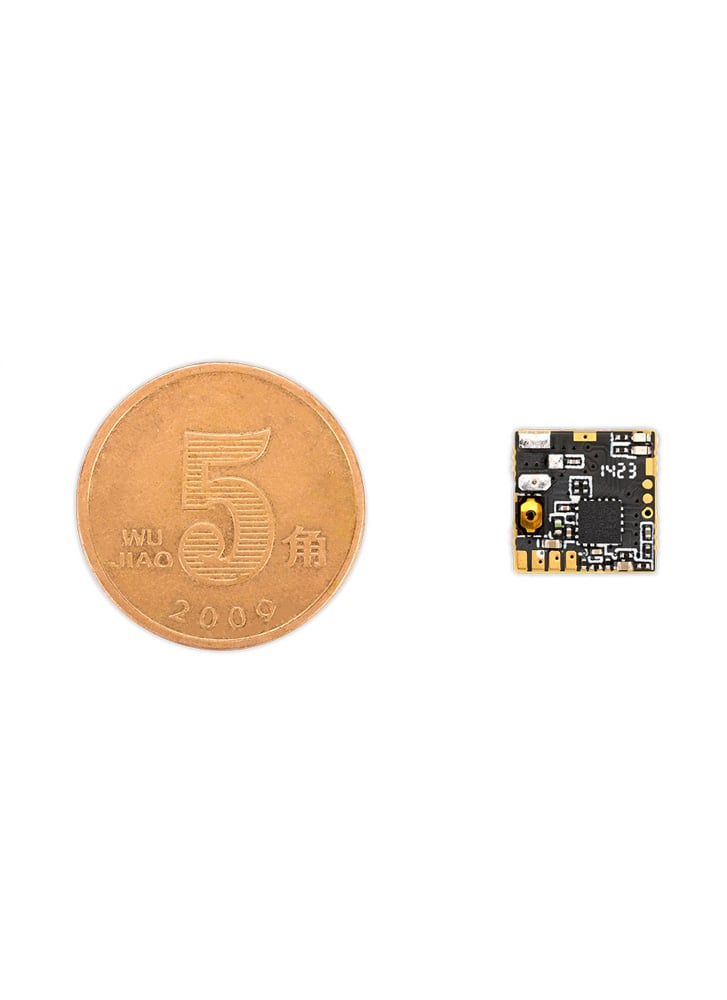

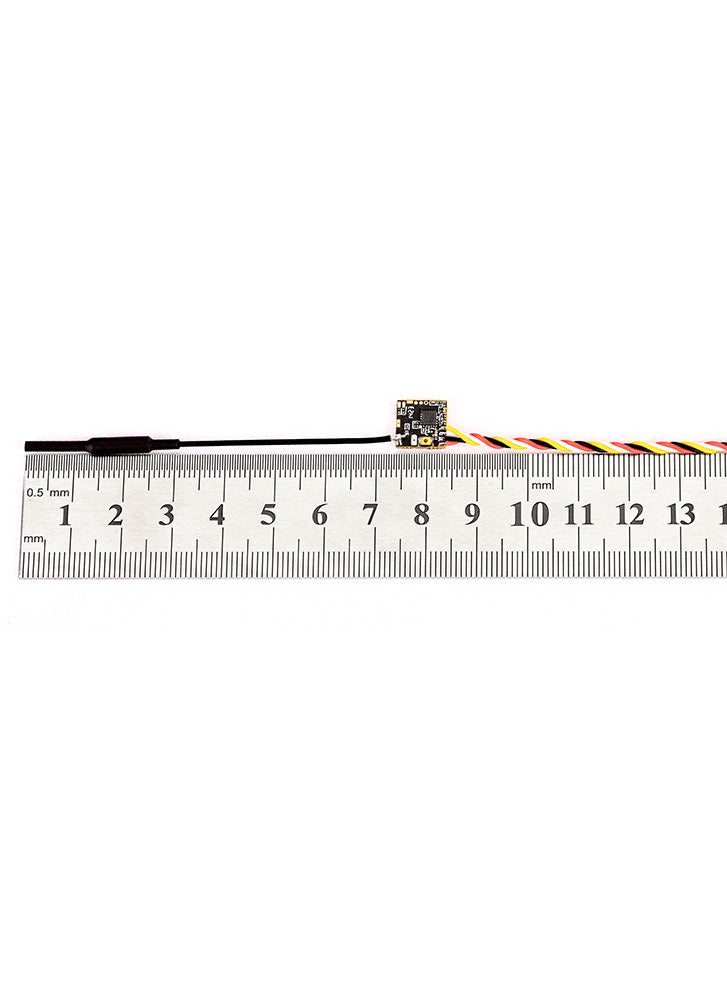

- Dimensions: 10x10x2.5mm
