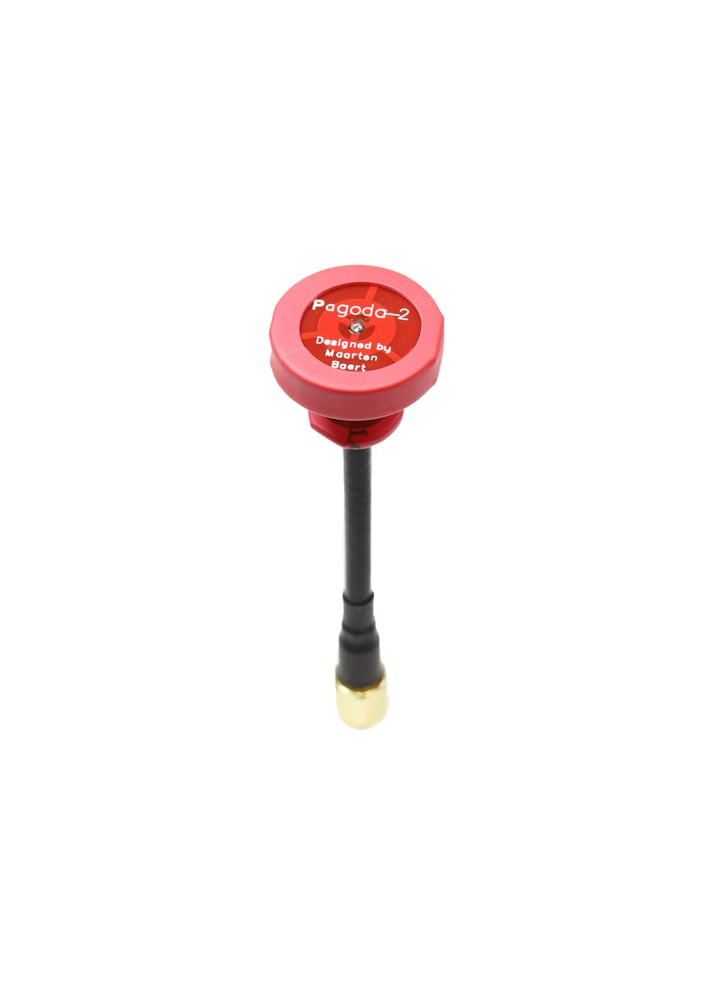

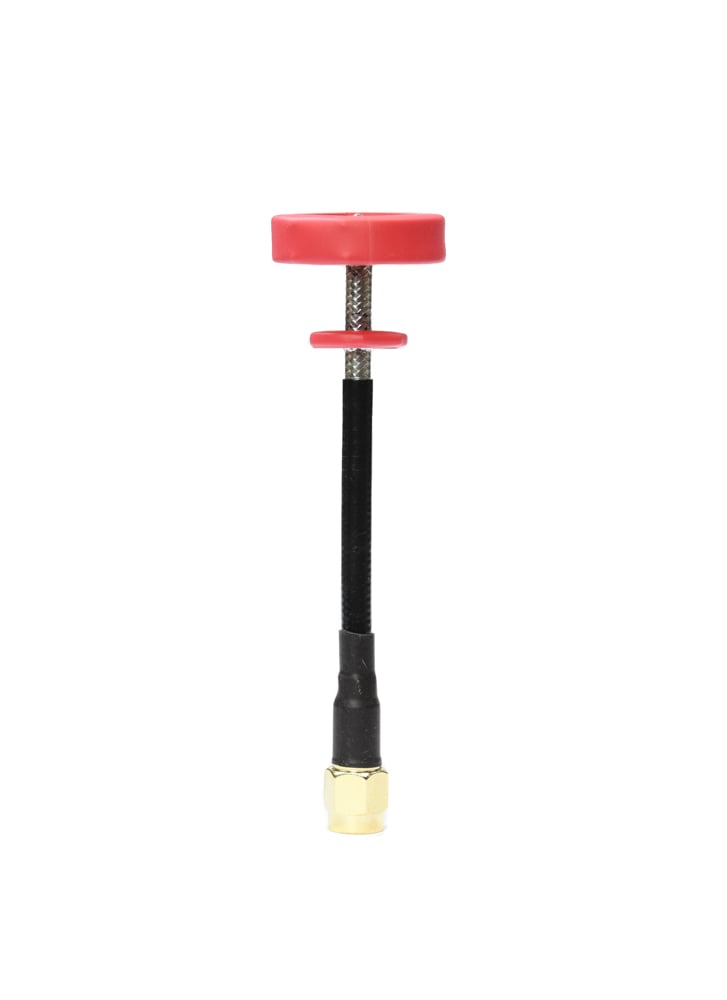

Pagoda 2 Omnidirectional FPV 5.8GHz Antenna SMA / RPSMA

£8.99

The Pagoda 2 Antenna is an omnidirectional circularly polarized 5.8GHz FPV antenna with great performance and small in size.

This antenna has an excellent omnidirectional radiation pattern along with a good axial ratio, giving you solid all-around coverage.

This antenna’s simplified manufacturing process keeps costs low allowing for a great low price for an antenna with high performance.

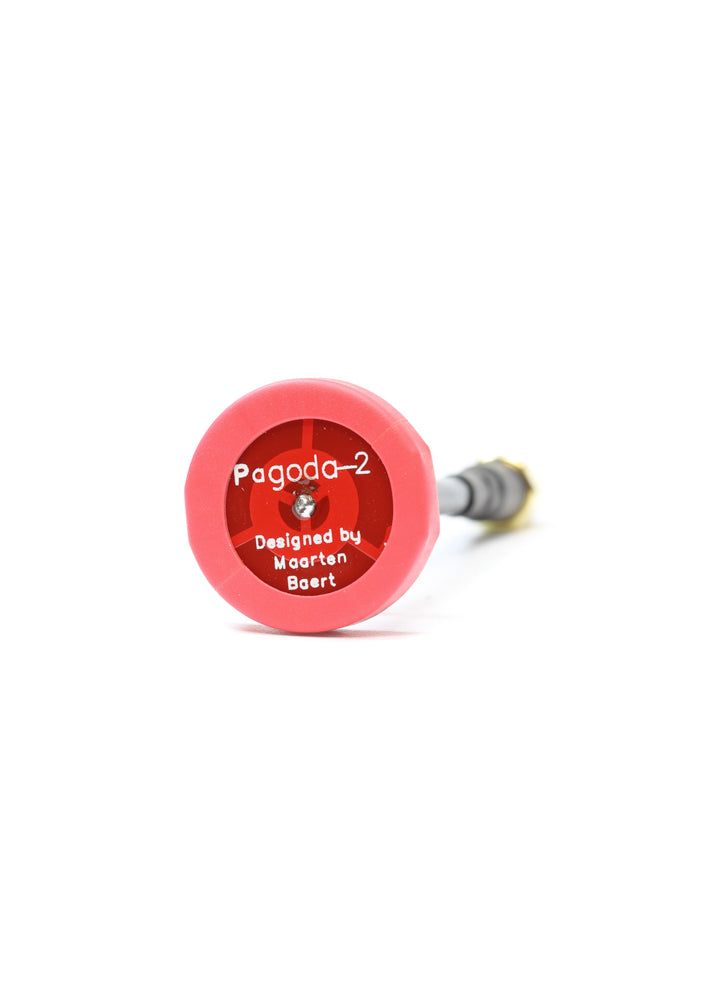

The Pagoda 2 Antenna was designed by Maarten Baert .

Specifications

• Center frequency: 5.8 GHz
• Bandwidth: 500 MHz (5.55 – 6.05 GHz)
• Matching: S11 < -20 dB, VSWR < 1.22 (at center frequency)
• Axial ratio: < 1.3
• Gain: 2dBi
• Beam width: 360 degrees
• Radiation efficiency: 95%

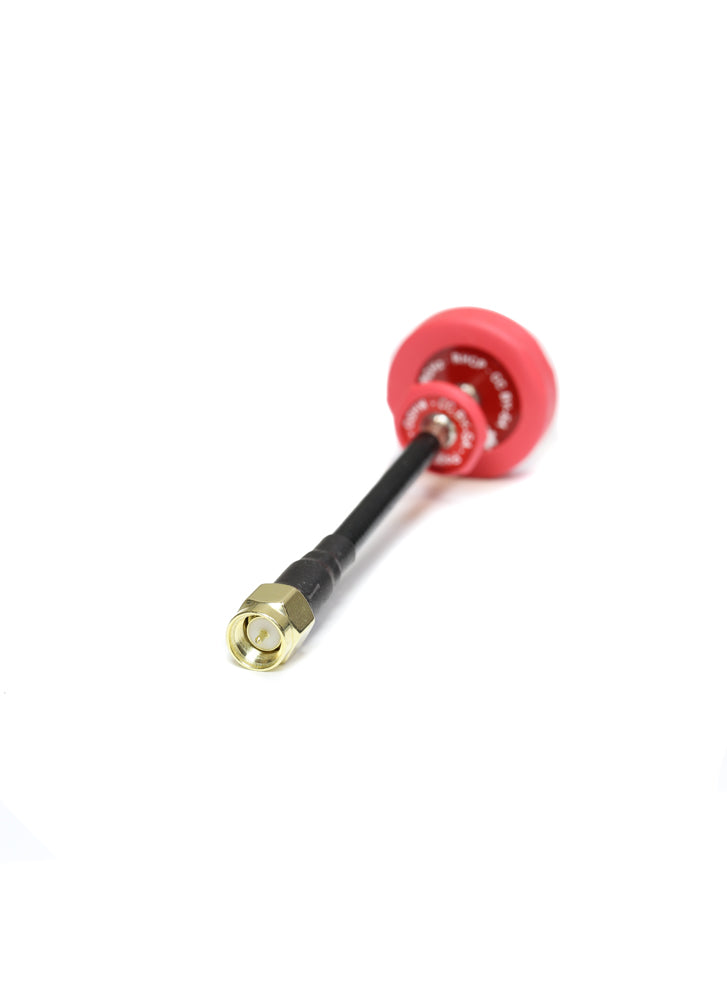

• Connector: SMA
• Length: 80mm
• Weight: 8g
• Pagoda 2 Antenna (SMA)
