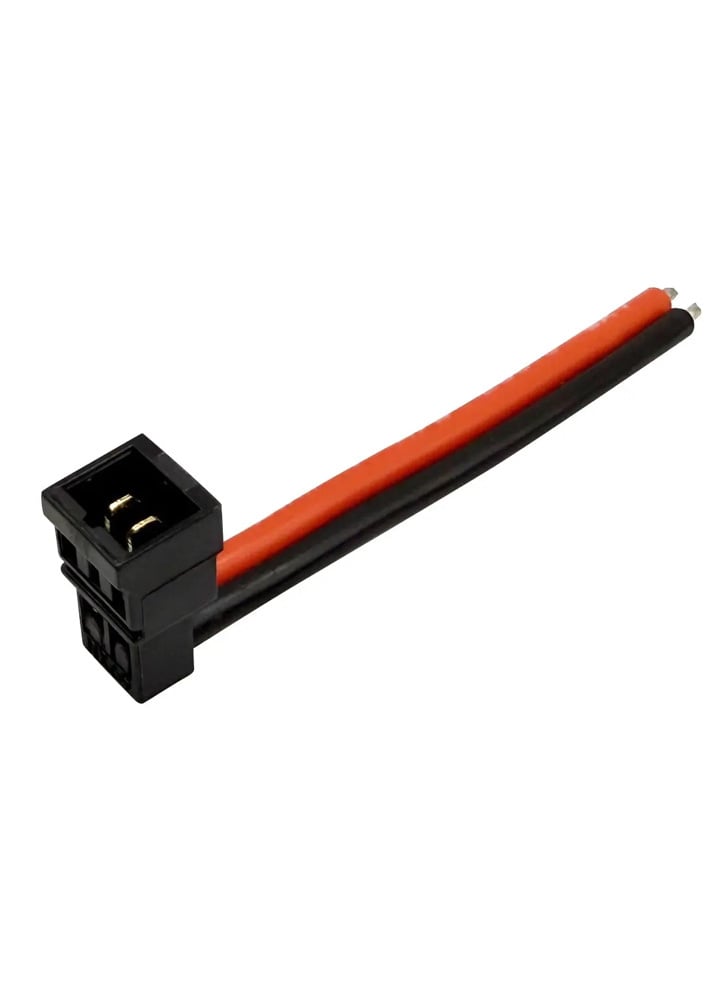

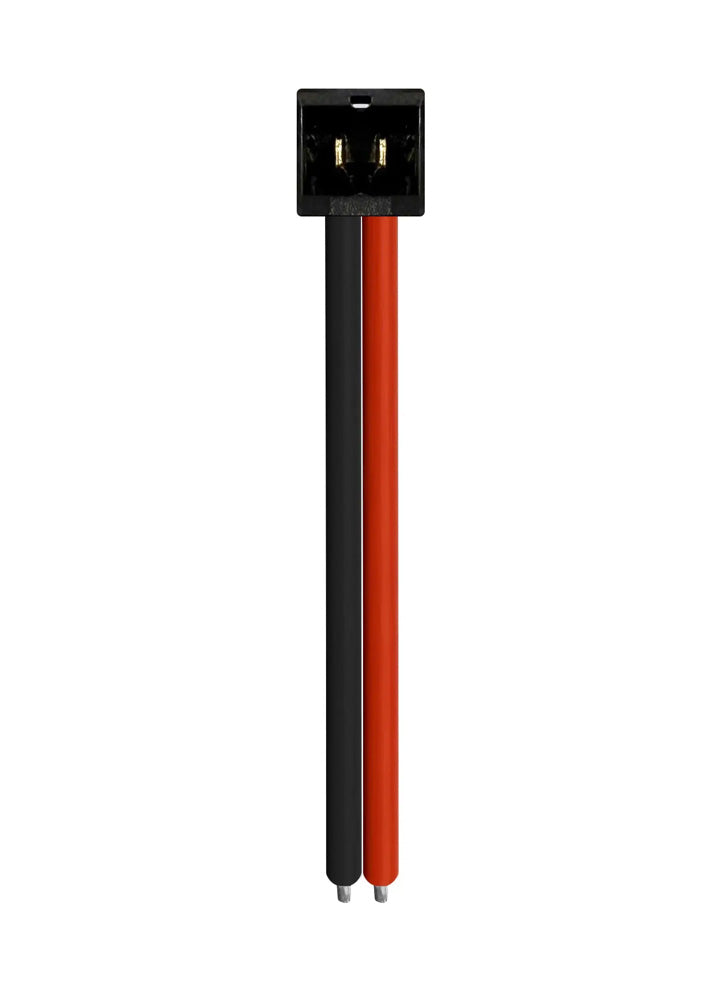

NewBeeDrone NX69 Whoop Pigtail Cable 20AWG 40mm (1PC)
£1.50
Unlock the full power of your 1S whoop setup with the NewBeeDrone NX69 Whoop Power Cable — engineered for maximum performance and future-proof compatibility.
Designed specifically for the NX69 ecosystem, this pigtail set features 20AWG ultra-low-resistance wire , making it the largest gauge power cable ever used in the whoop industry . At just 1 gram per piece , and with an optimized cable length of 40mm , this power lead is the perfect balance between weight savings and superior current delivery.
Features
- Pre-installed NX69 Plug – Comes factory-soldered with the next-gen NX69 plug for seamless integration with NX69-equipped batteries and chargers.
- 20AWG Silicone Wire – Largest scale wire used in the whoop category, drastically reducing resistance and unlocking the full discharge potential of modern and future battery cells.

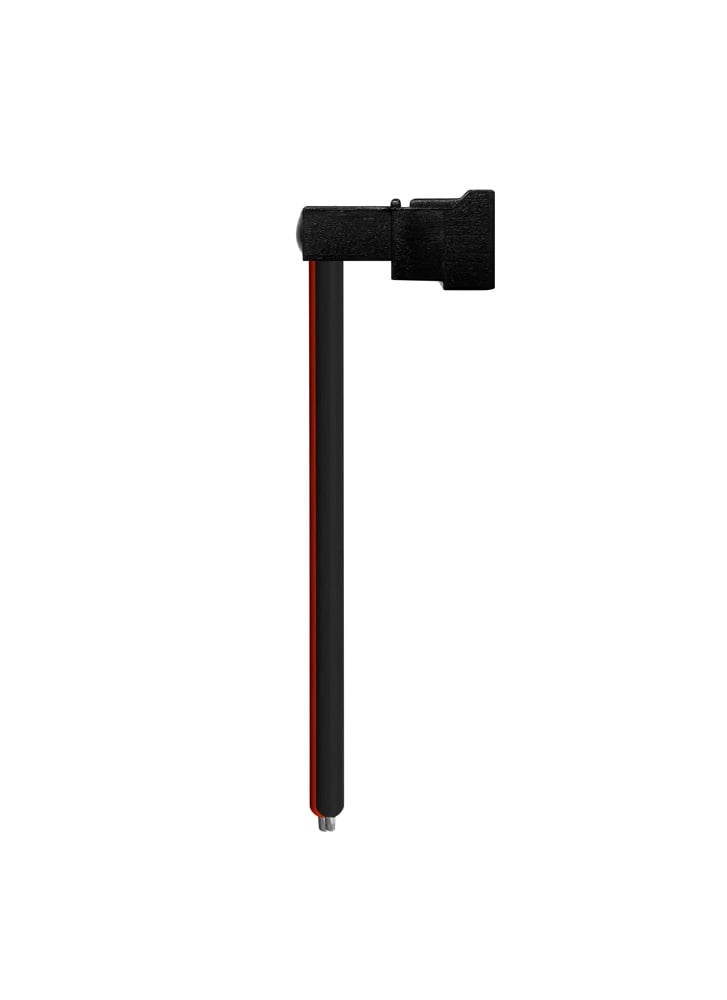

- 90° Cable Angle – The plug-to-cable connection is designed with a right-angle layout, making it easier to route and connect in tight builds while saving valuable space.
- Optimised Length – At just 40mm (wire only), we’ve minimised excess wire to reduce resistance and weight without compromising usability.
- 1 Gram Per Piece – Thoughtfully engineered to maintain whoop-class weight while pushing the limits of power throughput.
- Why 20AWG? Why Now?
- The NX69 plug was built to handle serious power — with internal contact metal that matches 16–18 AWG wire class. To unlock that full performance, we use 20AWG wire , striking the perfect balance between low resistance and manageable weight.
- Performance Comparison
- Component
- Material
- Cross-Section Area
- AWG Equivalent
- NX69 Drone Side
- Pure Copper
- 0.85 mm²
- ≈ 18 AWG
- NX69 Battery Side
- Brass
- 1.34 mm²
- ≈ 16 AWG (conductivity ≈ 18 AWG copper)
- Wire (This Cable)
- Copper
- 0.519 mm²
- 20 AWG
- Competitors use 22 AWG (for comparison)
- 0.326 mm²
- 22 AWG – too limiting
By contrast, 20AWG comes much closer to matching the connector’s real-world performance ceiling . It supports high burst current and minimises voltage drop, while keeping weight manageable in a micro drone setup. Our internal tests confirmed that this wire gauge ensures the plug is the limiting factor — not the wire — which is exactly what you want in a performance-optimised system.
Specifications
- Weight: 1g per piece
In the box
- 1x NX69 Pigtail Cables (20AWG, 43mm total length including plug, 40mm wire only)
