MyFlyDream Mini Crossbow Automatic Antenna Tracker (AAT)
£195.90
Take full advantage of high-gain directional antennas with the MyFlyDream Mini Crossbow Automatic Antenna Tracker (AAT). Designed for long-range FPV and UAV ground stations, the Mini Crossbow automatically tracks aircraft position and continuously points your receiving antenna toward the aircraft to maintain the strongest possible signal. This allows narrow beam directional antennas to achieve improved reception performance over longer distances.
Supporting both analogue and digital telemetry workflows, the Mini Crossbow can receive tracking information via MFD VBI downlink (compatible with MFD AP, MFD Crosshair, TeleFlyPro and TeleFlyTiny systems) or through MAVLink V1.0/V2.0 telemetry over digital radio and HD video links. This flexible compatibility makes it suitable for a wide range of FPV and UAV platforms.

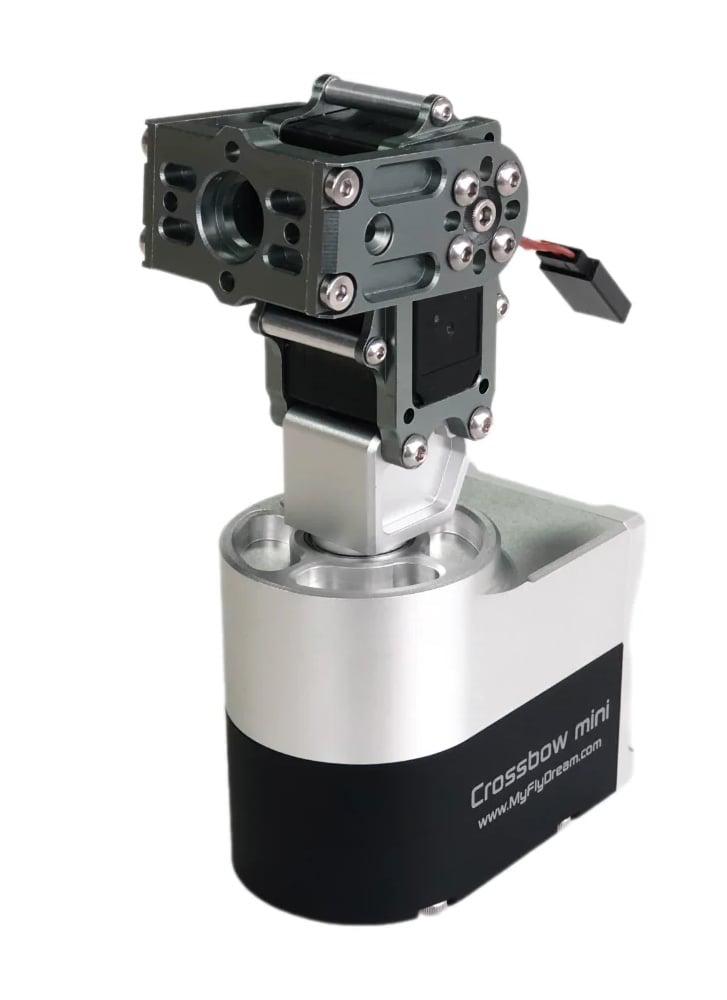

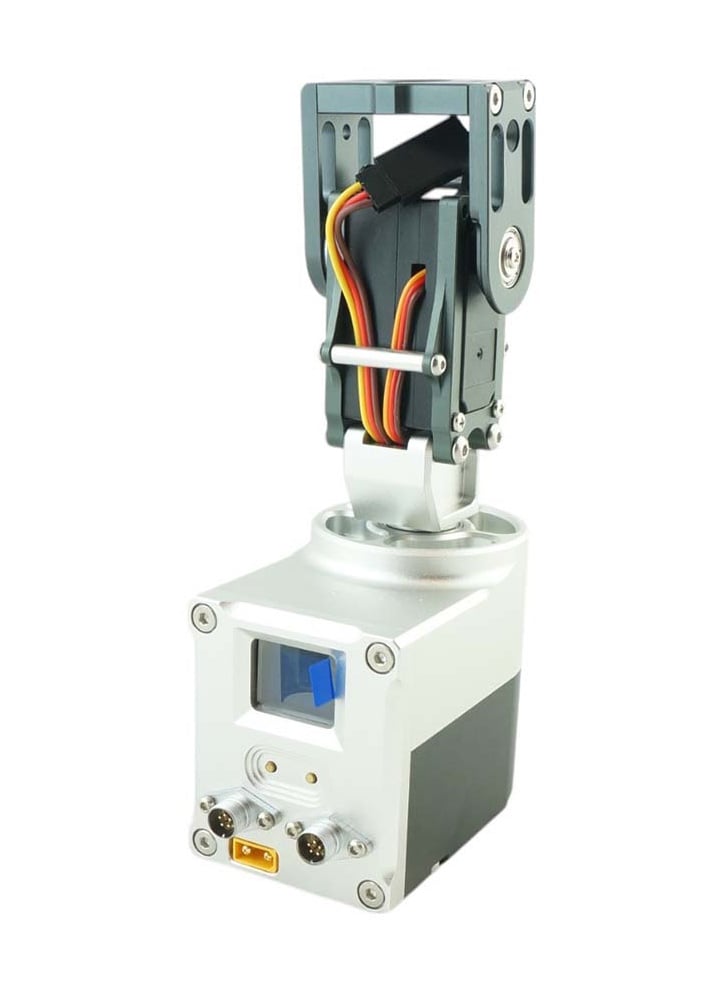

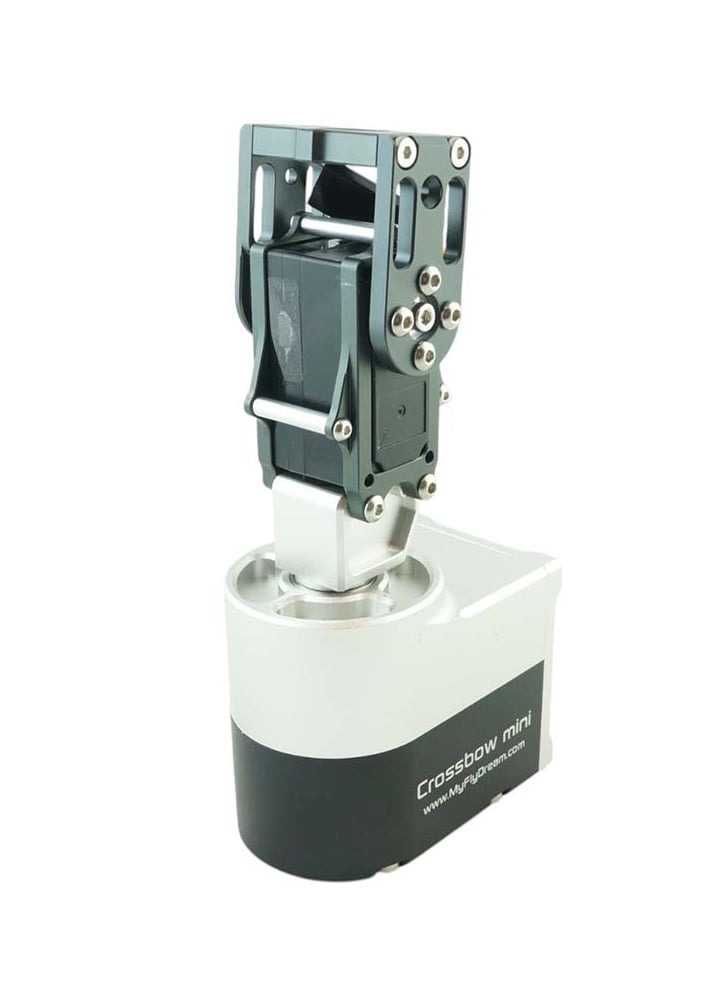

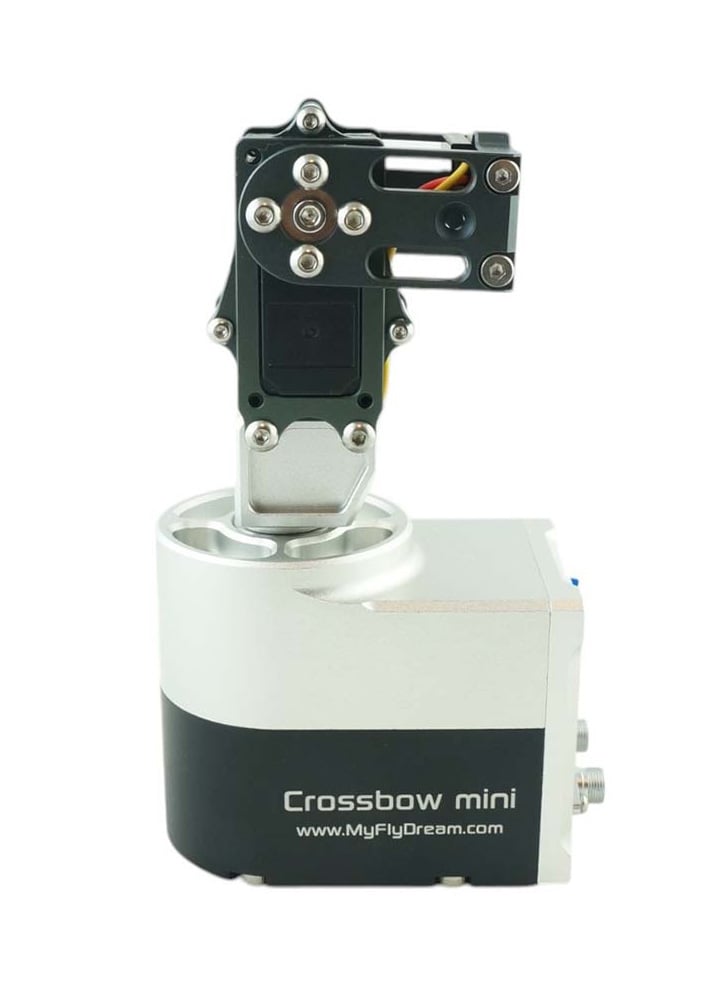

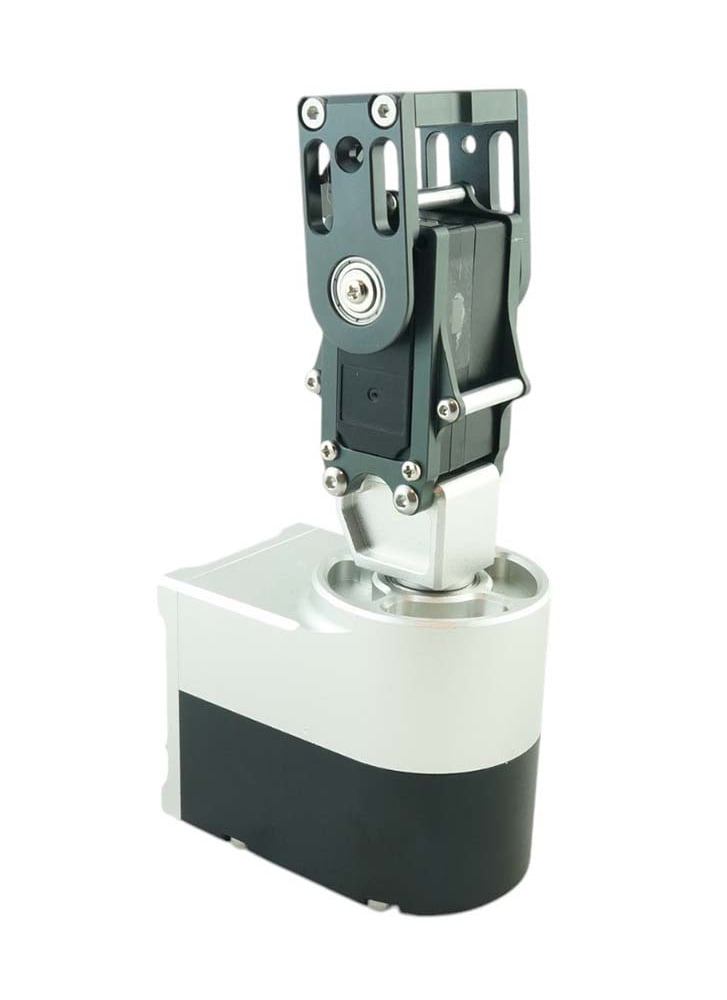

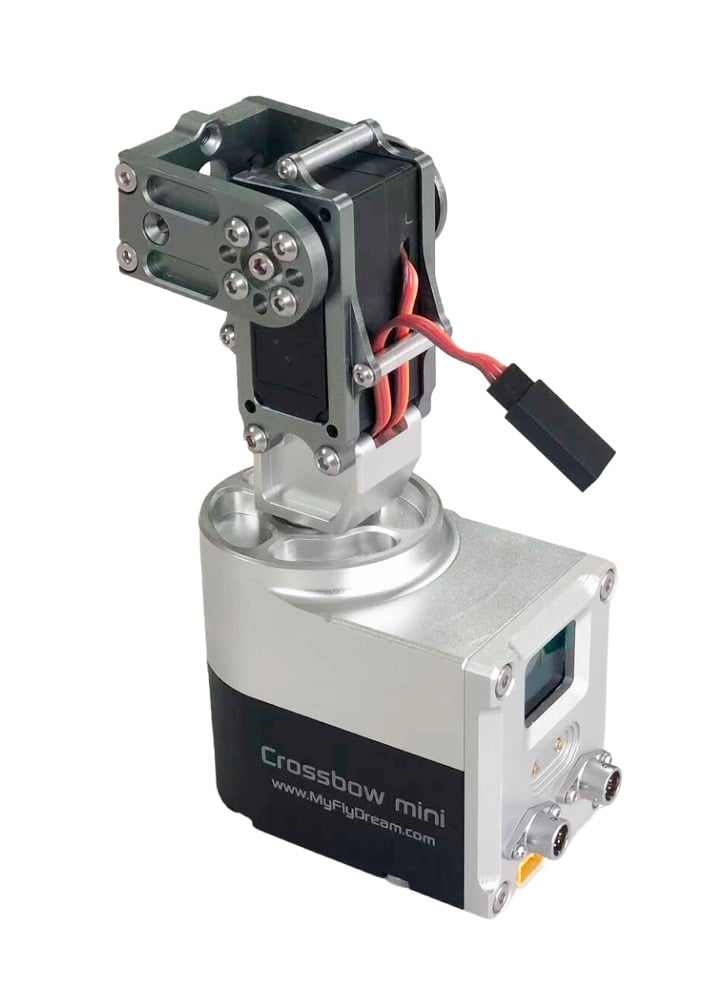

Built from precision-machined aluminium, the Mini Crossbow combines a lightweight yet robust design with fast tracking performance of up to 400°/s pan speed and 120°/s tilt speed. It mounts directly to standard camera tripods using the integrated 1/4″-20 thread and includes an OLED display with onboard controls for setup, calibration, and configuration in the field.
For advanced setups, the Mini Crossbow includes UART and CAN interfaces and supports optional external GPS and compass modules for improved tracking accuracy and mobile operation. Multiple compatible Mini Crossbow trackers can also be linked together over CAN-BUS using MyFlyDream’s FlyTogether functionality, allowing up to 10 trackers to share aircraft position and altitude information and display connected pilots on the OSD.

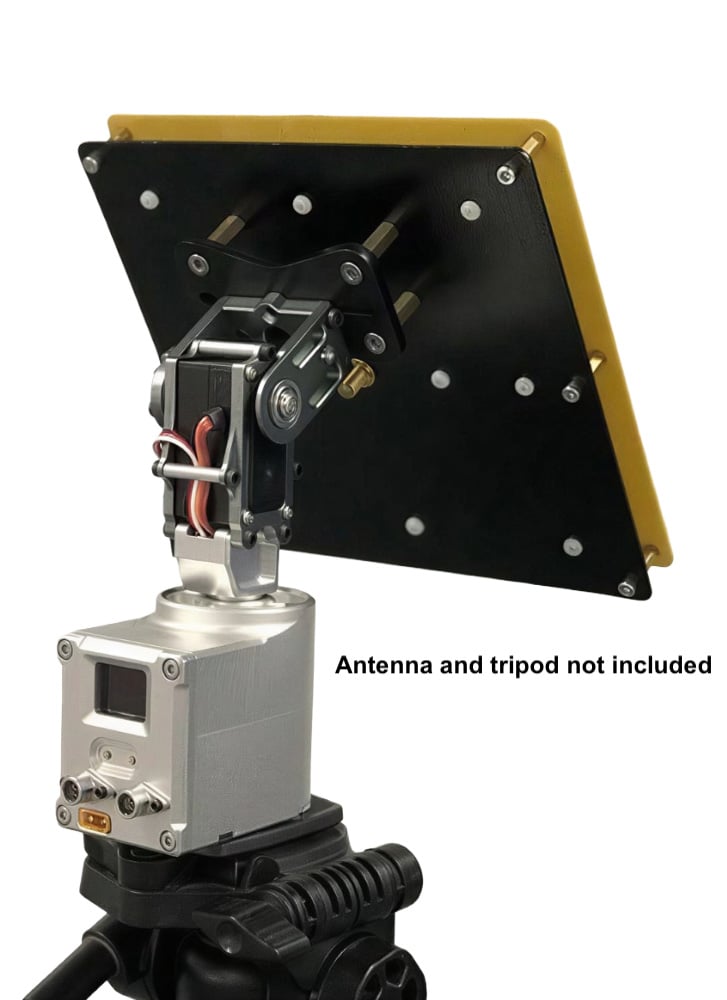

Note: This product is intended for advanced users and requires compatible telemetry or video downlink equipment to provide aircraft position data. Antennas, receivers, telemetry modules, and tripod are not included.
Specifications
- Input Voltage: 12–16V DC (3–4S)
- Power Connector: XT30
- Power Consumption: <10W (typical)
- Max Pan Speed: 400°/s
- Max Tilt Speed: 120°/s
- Pan Rotation: Up to 360° tracking movement*
- Tilt Range: 0–90°
- Maximum Tilt Torque: 10kgf·cm
- Supported Protocols: MFD VBI, MAVLink V1.0 / V2.0
- Interfaces: UART, CAN
- Tripod Mount: Standard 1/4″-20 thread
- Weight: 470g
In the box
- 1x Antenna tracker
- 1x XT30-XT60 adapter
- 2x Connection board (extboard)
- 1x USB to TTL converter
- 1x Screw set
